Default Calling for MS Gurus - Help with MS2 SMD v3.57 installation

Okay, I finally got some time to play with my friend's car with MS2 v3.57 SMD and still no luck to get the car start.

Spec:
1990 Miata with A/C

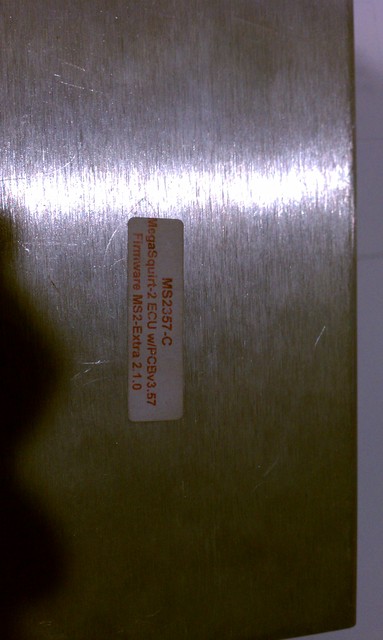

MS2357-C MegaSquirt-2 ECU w/PCBv3.57
RX8 yellow injectors
Walbro 190lph FP
Garrett T25 turbo from SR20DET
Artech mani and dp.
Stock CAS - which is unplug
ST-SIGN removed
jumper wire FP to GND (just for now to test, will do the right way later with light green wire from FP relay to purple fuel pump wire)

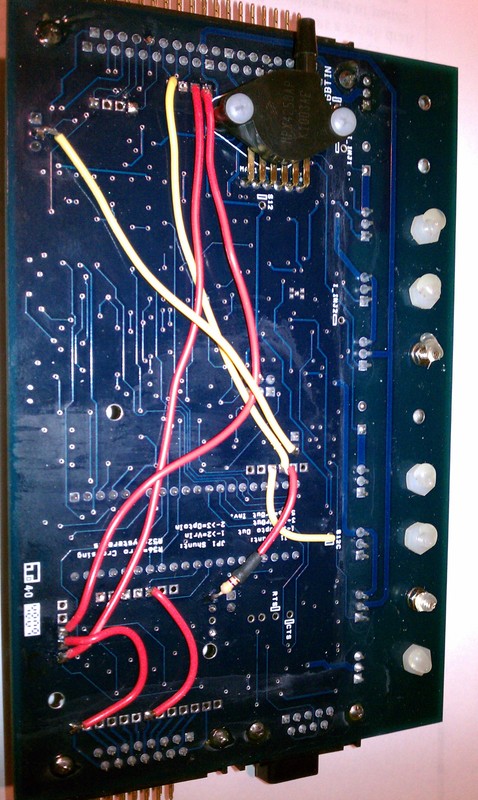

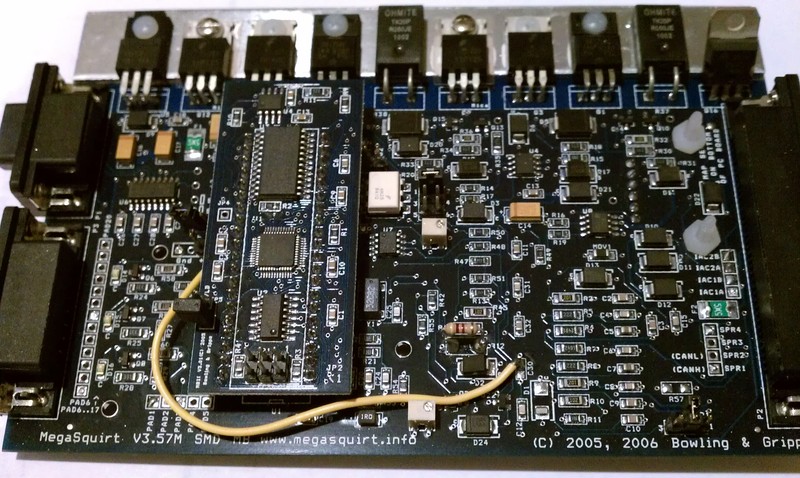

I opened up the MS2 box and check all the wiring and have the routing as follow (it looks like a assembled MS2 V3.57 SMD unit) :
S12C to JS9
XG1 to JP2
PAD2 to PAD6
PAD1 to IAC2A
PAD3 to IAC2B
PAD12 to J54
5V to JS10
JS10 to IAC1A

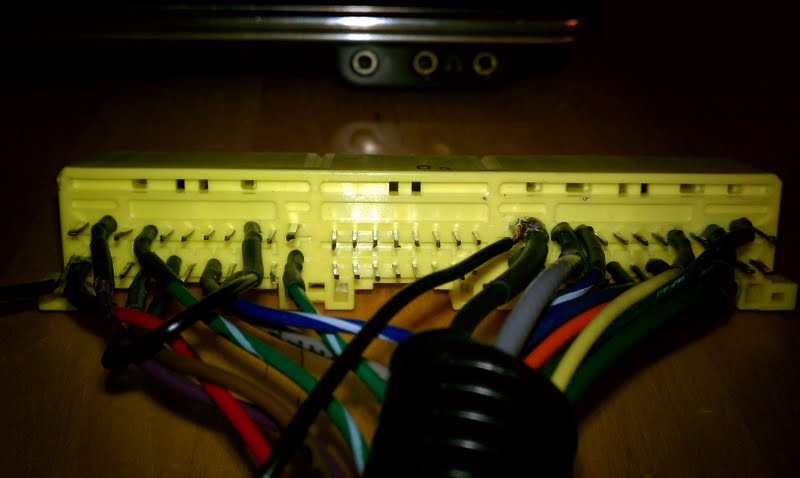

I made a standalone harness according to brain's post and hopefully I did it right.


I couldn't find Tachselect to XG1 and IGN and IAC2B get swapped according to http://miataturbo.wikidot.com/ms2-a. Am I missing something?
Any advice, pointers to get the car start???

TIA!
- Jason
Attached Thumbnails
Calling for MS Gurus - Help with MS2 SMD v3.57 installation-imag0056yw.jpg   Calling for MS Gurus - Help with MS2 SMD v3.57 installation-imag0057wq.jpg   Calling for MS Gurus - Help with MS2 SMD v3.57 installation-imag0060xg.jpg   Calling for MS Gurus - Help with MS2 SMD v3.57 installation-standaloneharness.jpg
aznDragonX is offline   Reply With Quote
Old 01-07-2012, 12:01 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

where the c30 jumper go?


if you do it that way you need to lift off on aside of r57 to remove the pullup and and completely remove c30.

open up TS and click the diagnostics tab, then record and crank for about 10 secs until the lines appears...post screenshot.
Braineack is offline   Reply With Quote
Old 01-07-2012, 12:19 AM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

My bad. 5v to top of C30.

I will get the recording of crank tomorrow. Meanwhile, this is the recording I got from last night with the tune. TIA brain!

- Jason
Attached Files
File Type: msl 2012-01-05_20.34.34.msl (29.1 KB, 73 views)
File Type: msq CurrentTune.msq (57.6 KB, 72 views)
aznDragonX is offline   Reply With Quote
Old 01-07-2012, 10:30 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

looks like you got an rpm signal, maybe too lean during cranking is the issue, barely drops to 14.0:1 AFR after you've cranked.
Braineack is offline   Reply With Quote
Old 01-07-2012, 10:34 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

spark output should be going low (normal)

what base map is this? I don't like you dwell settings either, and your timing is set to fixed right now...should turn it back to map to start the car.
Braineack is offline   Reply With Quote
Old 01-07-2012, 05:44 PM   #6
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

Brain,

It's the map that I got from my friend that have similar setup and I tweak it match my friend's spec. Here is the log and tune file I ran this morning.

- Jason
Attached Files
File Type: csv 2012-01-07_13.34.20.csv (29.9 KB, 59 views)
File Type: msl 2012-01-07_13.34.59.msl (53.8 KB, 68 views)
aznDragonX is offline   Reply With Quote
Old 01-07-2012, 08:26 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

you should copy the ignition settings from the diypnp basemap. but yeah looks like it's just too lean to run.
Braineack is offline   Reply With Quote
Old 01-11-2012, 01:01 AM   #8
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

okay, I copied the ignition settings from the diypnp basemap and still no luck. My friend mentioned about CAS might be bad?? Also, used test light on injectors, I am getting power on both wires to the injector (#4) during cranking. Shouldn't be one is power and one is ground?
Attached Files
File Type: msq CurrentTune.msq (57.7 KB, 57 views)
File Type: msl 2012-01-10_10.06.13.msl (11.2 KB, 57 views)
aznDragonX is offline   Reply With Quote
Old 01-11-2012, 09:34 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

You're getting RPMs in TS, so the CAS is functioning. You can verify it's not getting loss sync, and even look at the signals as they input using the composite logger.

and yes, at the injector, there's a constant 12v source, and the MS grounds the other end to squirt.

I notice on the harness you did the wiring for hte vtps, did you add this or are you still on the stock 1.6L tps? that's an isuse, and you need to unplug the tps if have not upgraded.

Also I failed to notice the rx8 injectors, what are those 440cc? IIRC your req_fuel value was for stock 230cc injecors, so that's makes sense why I think it's lean...maybe half the req_fuel number if it's set to 11-13 or something like that.
Braineack is offline   Reply With Quote
Old 01-11-2012, 11:22 PM   #10
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

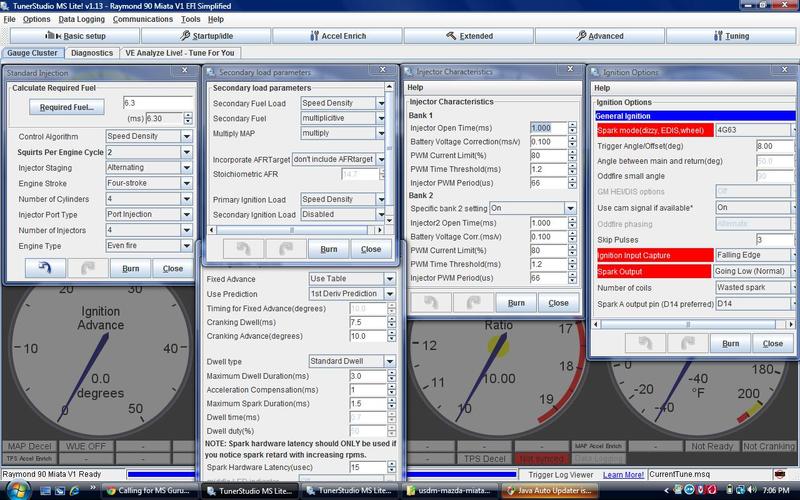

Okay, am I missing something here? Still couldn't get the car to start.


Stock TPS is unplug. Have to wire Bosch vTPS later after I get the car start. I am start to think if the MS unit is bad.

Brain, much appreciate for your time to look at my friend's MSQ file!
Attached Thumbnails
Calling for MS Gurus - Help with MS2 SMD v3.57 installation-ray1990miatatsmap.jpg
Attached Files
File Type: msq CurrentTune.msq (57.7 KB, 81 views)
aznDragonX is offline   Reply With Quote
Old 01-12-2012, 10:39 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

are you running seq. injection? and are you injectors low ohm?

this is all software related due to the use of this poor basemap you chose to use.
Braineack is offline   Reply With Quote
Old 01-12-2012, 10:40 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This forum sucks as a technical resource.
hustler is offline   Reply With Quote
Old 01-12-2012, 02:57 PM   #13
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

Okay, so let me use the start map from DIYPNP and change the req_fuel to 420cc injector. Hopefully this would at least get the car start!

http://www.diyautotune.com/diypnp/ap...3-16b6-mt.html
Attached Files
File Type: msq 91 miata 460cc injectors.msq (78.9 KB, 62 views)
aznDragonX is offline   Reply With Quote
Old 01-12-2012, 03:05 PM   #14
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

Running batch injection, RX8 yellow 420cc high impedance PNP injectors
aznDragonX is offline   Reply With Quote
Old 01-12-2012, 03:21 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

yeah see the map you had was setup for pwm drivers and a 2nd batch of injectors...
Braineack is offline   Reply With Quote
