Default Cam Sync Sensor

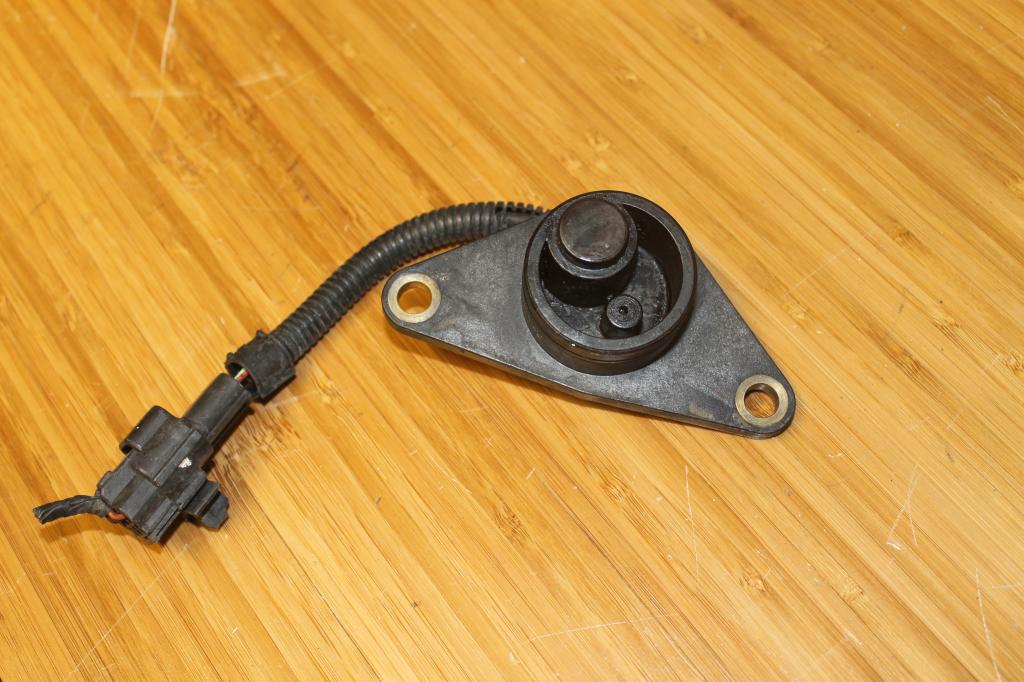

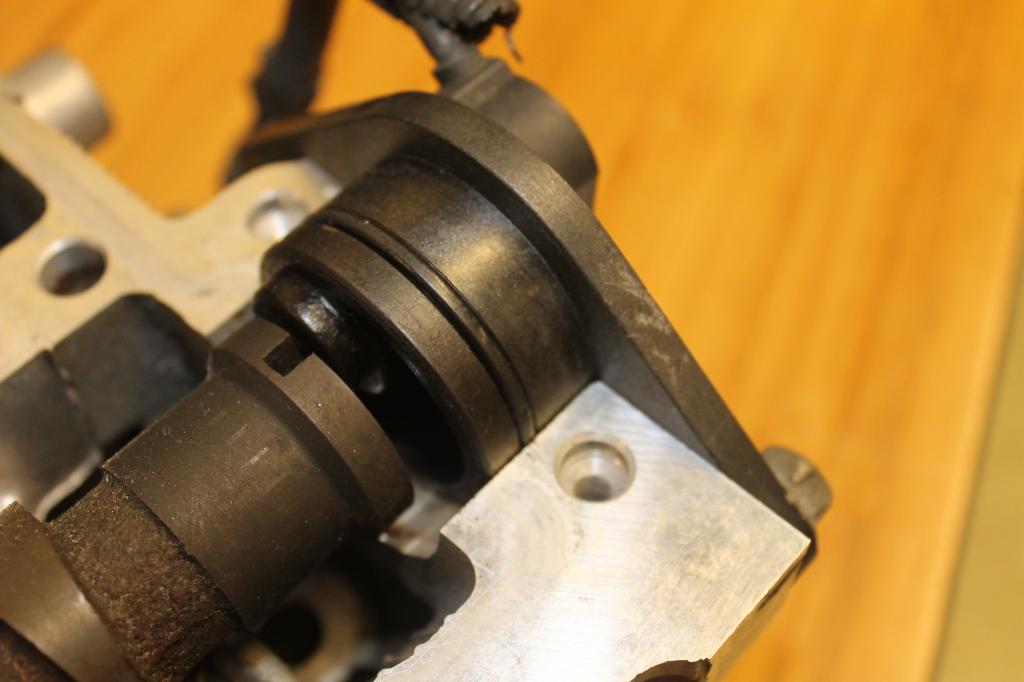

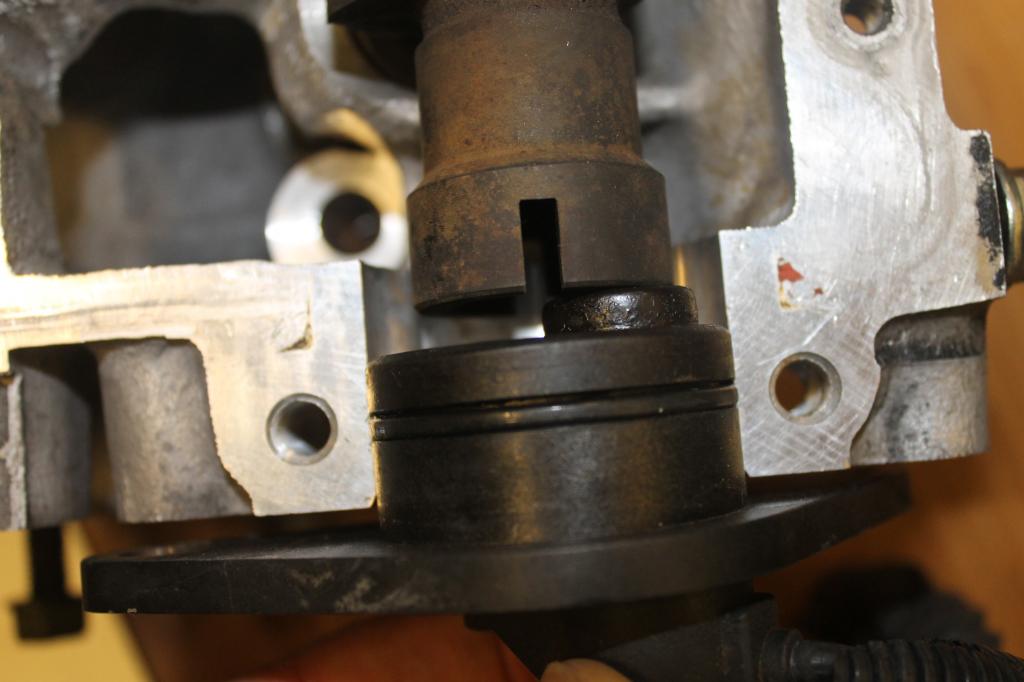

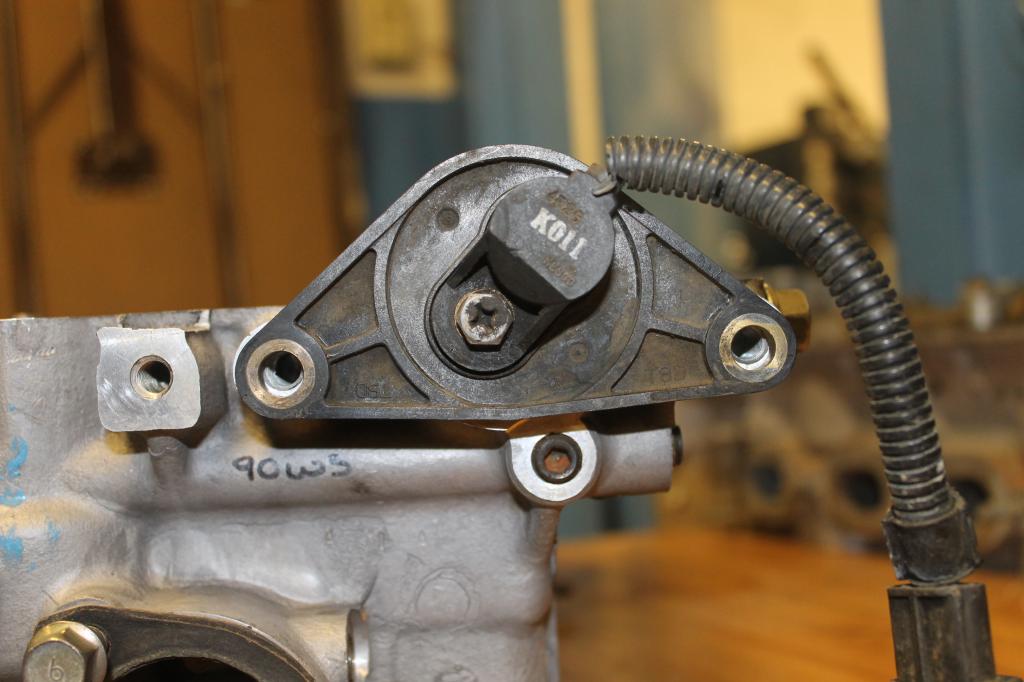

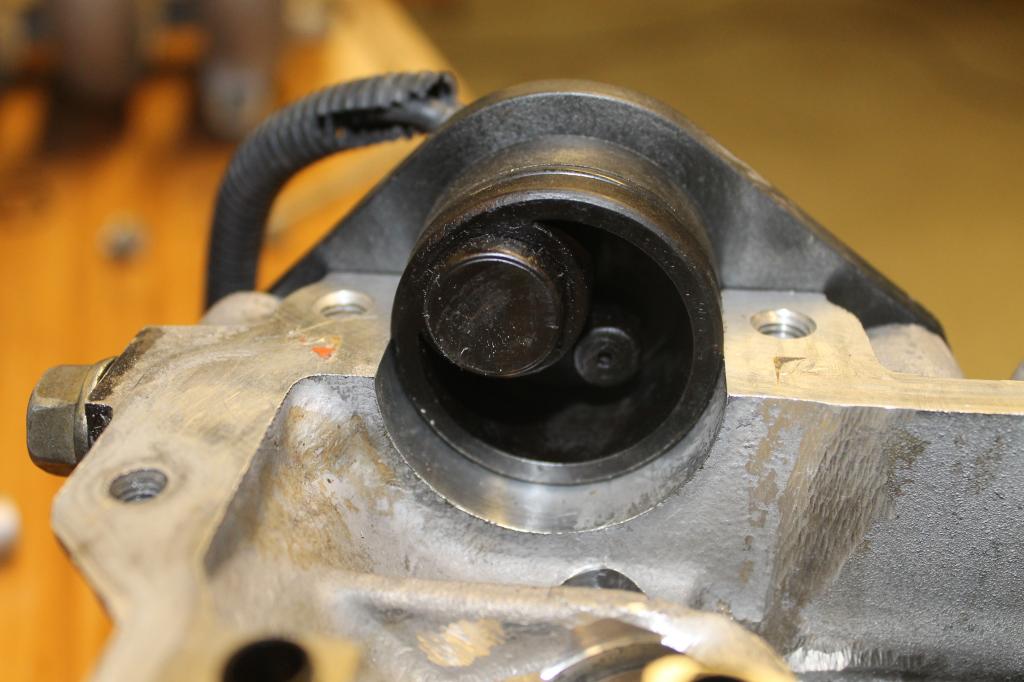

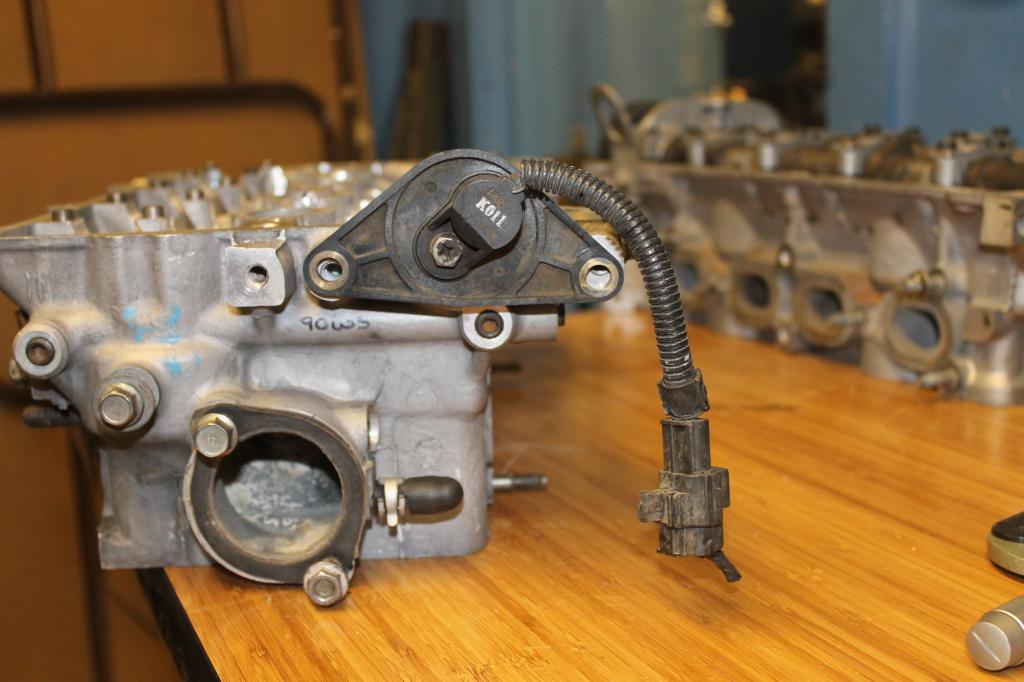

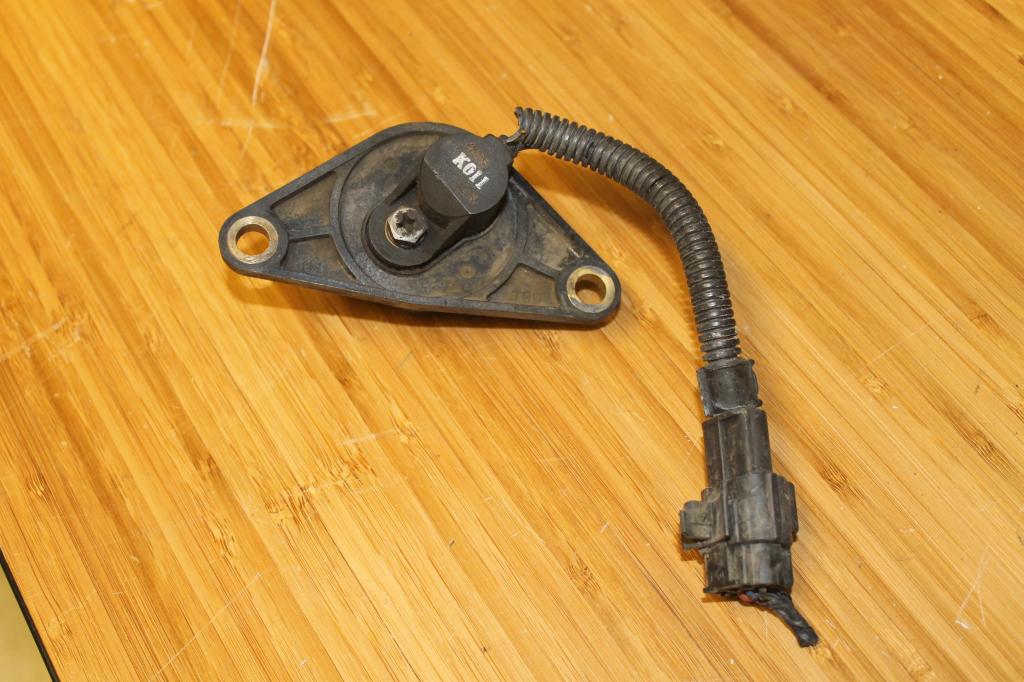

My local dismantling yard keeps Mazda, Kia, Hyundai and Mitsubishi’s in the same portion of the yard. While getting some parts off a FWD 1.8 engine l looked over and noticed a cam angle sensor on the back of a Kia that looked about the same size as the Mazda CAS unit. Since Kia has a history of purchasing and redesigning Mazda engines I thought… Why not see if it fits.

[IMG][/IMG]



[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]



My plan is to use this as a cam sync for my 36-1 trigger wheel and sequential injection. I know the stock CAS can be modified to work, but I thought this sensor assembly may be a better approach. Since I am a total n00b at electronics, I thought I would ask the experts.

So here are my questions:

1) Is it a Hall or VR sensor?

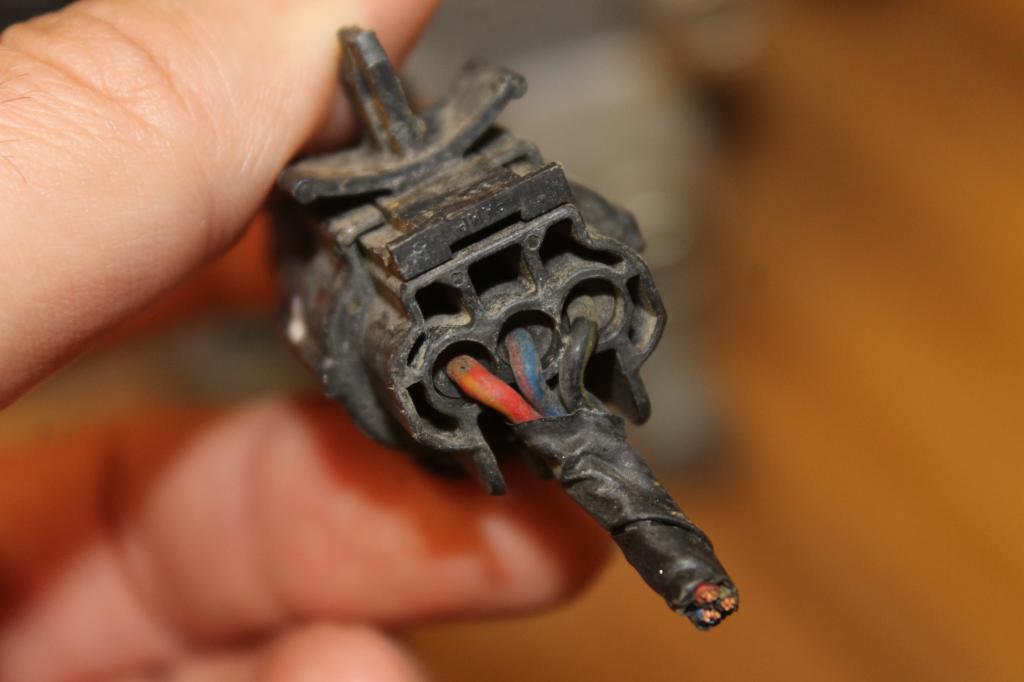

2) How should it be wired to an MS3?

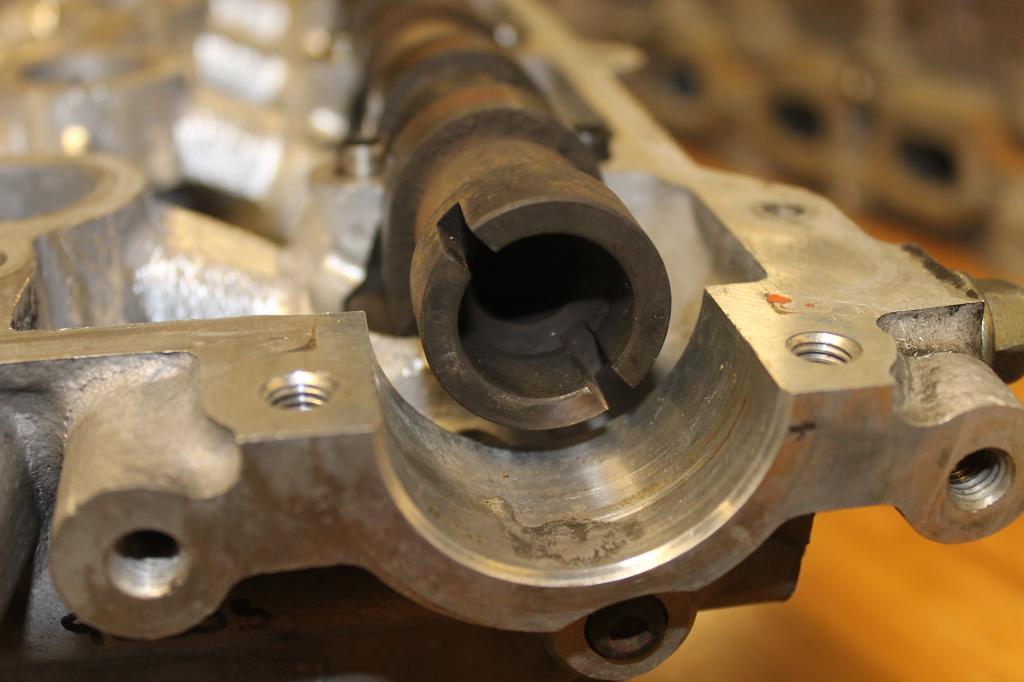

3) If I cut half the CAS drive on the back of the stock cam off, can the remaining half-moon shape be used as a trigger signal?
4) If a tooth is ideal, what clock position should the “Tooth” on the back of the cam be at?
5) How wide should the gap between the sensor and tooth be?
Attached Thumbnails
Cam Sync Sensor-img_5998_zps3ff112e1.jpg   Cam Sync Sensor-img_5996_zpsdda37310.jpg   Cam Sync Sensor-img_6013_zpsc9d235cf.jpg   Cam Sync Sensor-img_6005_zps41bf5196.jpg   Cam Sync Sensor-img_6015_zps6a461860.jpg

Cam Sync Sensor-img_6008_zps98b8fcc0.jpg   Cam Sync Sensor-img_6021_zpsedecffde.jpg   Cam Sync Sensor-img_6011_zps3b894ab7.jpg   Cam Sync Sensor-img_6024_zpsa327420b.jpg
crowder92 is offline   Reply With Quote
Old 03-25-2013, 06:19 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

That is a very nice find!

You can use a half moon so cutting half the CAS drive off will work perfectly.
richyvrlimited is offline   Reply With Quote
Old 03-25-2013, 10:37 AM   #3
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

I've seen those before. Could even be a cheap CAS blockoff, as those are more abundant in the Junkyards than NB's
duffbuster243 is offline   Reply With Quote
Old 03-25-2013, 10:38 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

all he'd have to do is grind down one half moon off the cam.
Braineack is online now   Reply With Quote
Old 07-23-2013, 09:16 PM   #5
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,714
Total Cats: 320
Default

Does the sensor need to be shimmed to offer clearance to the cam? If grinding one of the half moons off, does one need to worry about balance of the cam?

I've been trying to learn about adding a trigger wheel and the CAS modifications; running wires and bolting things on, I can do but feel like I'm in over my head when it comes to the actual tuning setup (VR pot adjustments and syncing)
psyber_0ptix is offline   Reply With Quote
Old 10-08-2013, 03:54 AM   #6
Junior Member
iTrader: (6)

Join Date: Feb 2012
Location: Phoenix, AZ
Posts: 143
Total Cats: 4
Default

Funny I was just looking at this myself at the junkyard on sunday. Anybody get this to work?

Would it matter what side of the half moon was removed and would this be any advantage over just using the CAS?
300zxrb26dett is offline   Reply With Quote
Old 11-03-2013, 11:58 PM   #7
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,714
Total Cats: 320
Default

any new developments?
psyber_0ptix is offline   Reply With Quote
