Default Can you verify my wiring for seq spark please?

Spark A to Cylinder 1, green
Spark B to Cylinder 3, brown
Spark C to Cylinder 4, white
Spark D to Cylinder 2, yellow

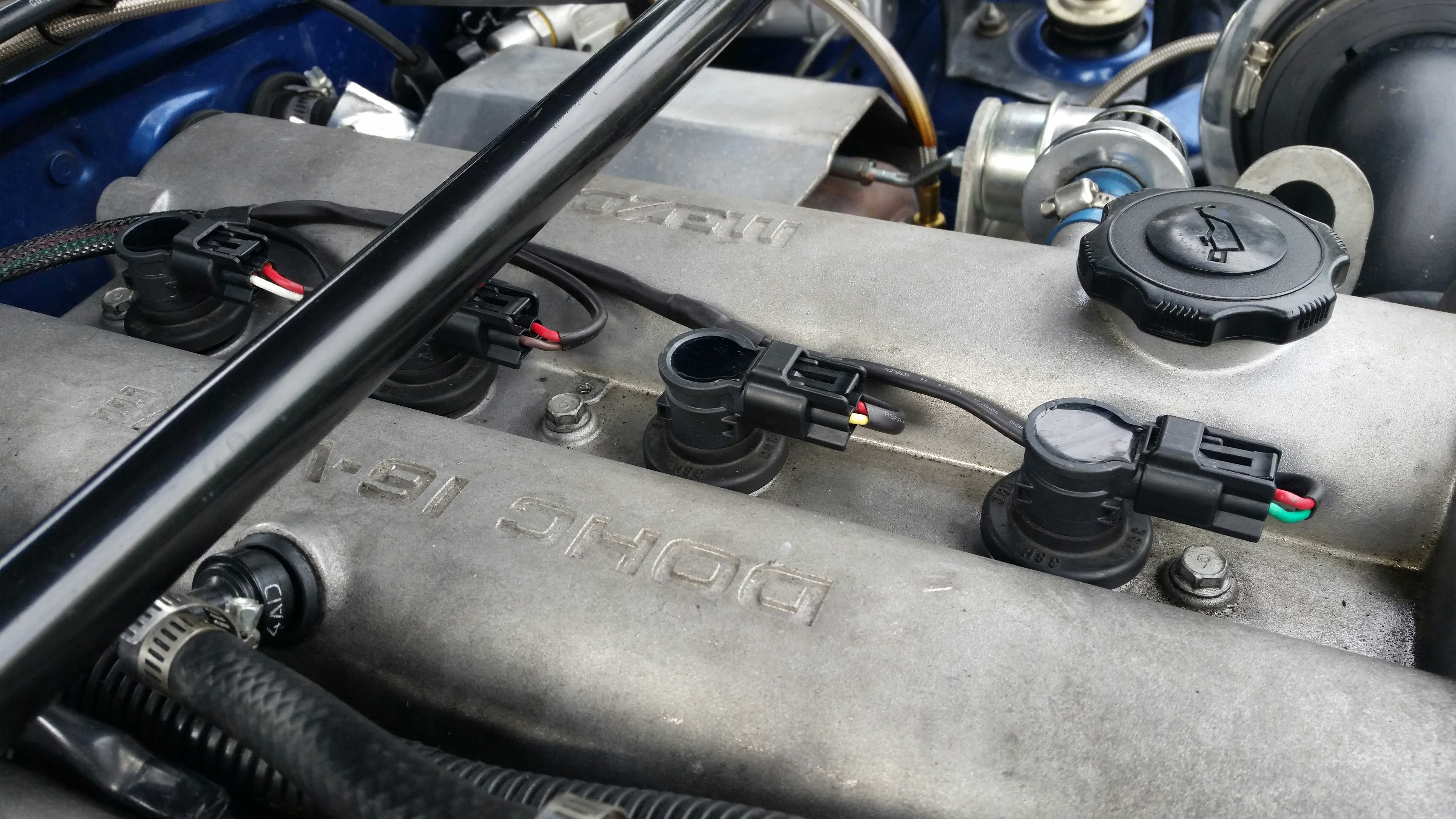

Right now I have the ms3 running wasted spark with my fab9 COP PNP setup. It looks like cylinders 1 and 3 can stay connected thru the oe harness, and I'll just have to cut and run spark c to white/#4 wire, and spark d to the yellow/#2 wire that go to the igniter, and set the ignition setting to COP? Is that all?

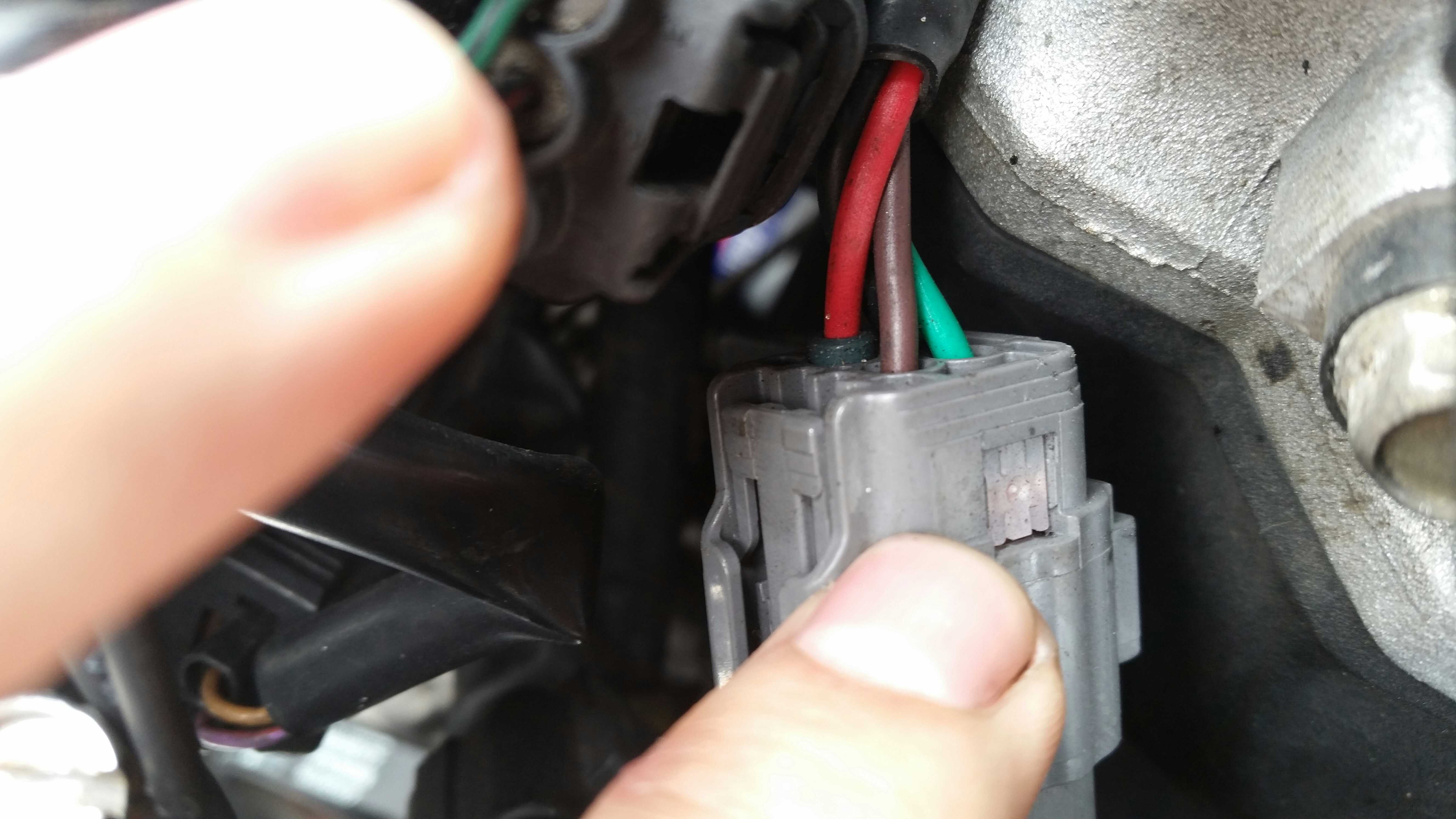

The PNP harness connected to the oe harness:


Thanks!
Mech5700 is offline   Reply With Quote
Old 01-14-2015, 05:22 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Sounds right. When you take apart the OEM harness it is pretty obvious how they are connected. Just make sure you cut the connection to cylinders 2 and 4 after they split off from the main harness. If that makes sense.
aidandj is offline   Reply With Quote
Old 01-14-2015, 05:34 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

Quote:
Originally Posted by aidandj View Post
Sounds right. When you take apart the OEM harness it is pretty obvious how they are connected. Just make sure you cut the connection to cylinders 2 and 4 after they split off from the main harness. If that makes sense.
The oem harness (4 wire connector side) plugs in to the fab9 pnp harness. I have to cut off cyl 2 and 4 from the fab harness. The oem side of the harness shouldn't need to be tampered with since I'm not using the section that splits to the 2 coil connectors.

Last edited by Mech5700; 01-14-2015 at 05:51 PM.
Mech5700 is offline   Reply With Quote
Old 01-14-2015, 05:34 PM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yeah sounds right.
aidandj is offline   Reply With Quote
Old 01-15-2015, 12:01 PM   #5
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

Did it this morning, worked out great!
