Old 03-01-2012, 11:57 AM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
do not follow the 12.X at 160 kPa at low RPM.

I know you can't boost like that, but I wouldn't put that in the table.
If there is 160kpa of manifold pressure at any RPM, that's the AFR I want with piston speeds that low. This is the "skipped-gear miss shift 120,000 shaft-RPM zone).

What do you think?
hustler is offline   Reply With Quote
Old 03-01-2012, 12:06 PM   #22
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

after reviewing my current modified version of curlys im going to switch to hustlers, looks a little smoother for a street car, but you didnt leave yourself a big 15.x area for milage did you?
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 12:14 PM   #23
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

That was adapted from one of Scott's maps I believe, so you can talk to him about the benefits. I would argue that it's smoother, but I'll take a little jerkyness going into cruise if it means I get to save a couple mpgs on the way to the track. Again, not a DD, so your choice may vary.
curly is offline   Reply With Quote
Old 03-01-2012, 12:15 PM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by redturbomiata View Post
after reviewing my current modified version of curlys im going to switch to hustlers, looks a little smoother for a street car, but you didnt leave yourself a big 15.x area for milage did you?
I spent a few hours on a road trip using the "Instant MPG" function and decided that 15.2 with ~38* of advance made the best output. This matched my shennanigans on the dyno where I made the same output numbers leaner, with more advance in cruise.

There isn't much in regard to "smoothness", drive-ability is achieved in the VE and spark tables. My numbers are based on output and several truths I discovered in the tuning process such as:
  • Output increases with AFR values approaching 11.5:1, the compromise is fuel shear and oil longevity
  • going leaner than 15.2 provided no MPG increase in my turbo car
  • Lean-ness does not mean "faster spool" at low rpm
hustler is offline   Reply With Quote
Old 03-01-2012, 12:16 PM   #25
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by hustler View Post
I spent a few hours on a road trip using the "Instant MPG" function and decided that 15.2 with ~38* of advance made the best output. This matched my shennanigans on the dyno where I made the same output numbers leaner, with more advance in cruise.
my plan is to follow curlys advice

Quote:
Originally Posted by curly View Post
Use the MSPNP base map. Search for AFR target tables, they're the important ones. I think JP has some good ones. Keep the MSPNP spark table, aka: DON'T ------- TOUCH IT.

Then use VEAL and those AFR targets to tune your fuel table. It's usually fairly rough at first.
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 12:31 PM   #26
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

For spark yes, follow his afr advice though. That's interesting about the 15.2, makes me wanna play around with mine. ABE! chop chop!
curly is offline   Reply With Quote
Old 03-01-2012, 12:34 PM   #27
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Just for you guys to laugh at me, i forgot the Mspnp base tune has overboost protection set to 1.5psi. doh
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 12:37 PM   #28
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

The important thing to remember in cruise is that you're trying to move the LPP based upon spark angle and fuel. The leaner you go, the more advance you need to hit LPP at the right spot in the crank/piston's cycle.

Sometimes I wonder if better fuel economy can be achieved on lower octane fuel because it "lights-off" faster. I also am fairly certain that stronger spark can help fuel economy too.
hustler is offline   Reply With Quote
Old 03-01-2012, 12:37 PM   #29
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by redturbomiata View Post
Just for you guys to laugh at me, i forgot the Mspnp base tune has overboost protection set to 1.5psi. doh
Don't feel bad, I still can't get Jeff's car to run in boost at all.
hustler is offline   Reply With Quote
Old 03-01-2012, 12:40 PM   #30
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by hustler View Post
Don't feel bad, I still can't get Jeff's car to run in boost at all.
overboost protection makes it feel like it falls on its face.
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 12:40 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

not injecting fuel and cutting spark can do that
Braineack is offline   Reply With Quote
Old 03-01-2012, 01:04 PM   #32
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

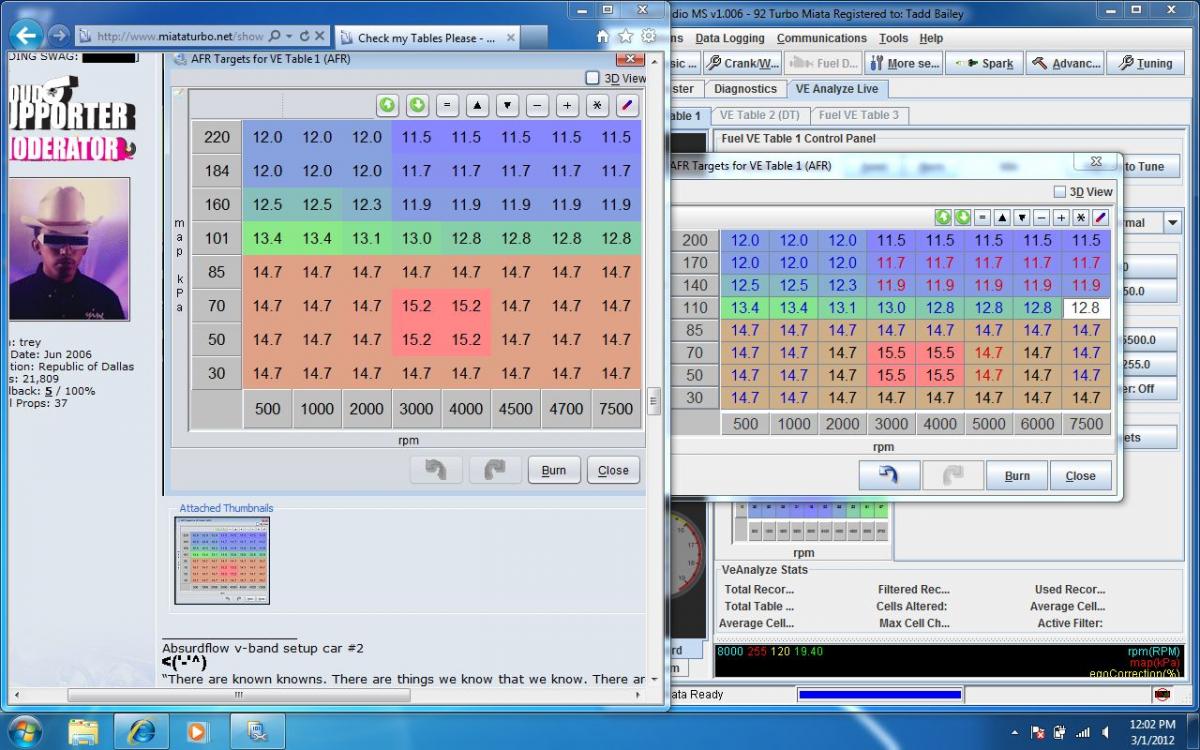

Look good?
Attached Thumbnails
Check my Tables Please-hustler-copy.jpg
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 01:08 PM   #33
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Sure. You don't need me to tell you this, see how the car drives. It should drive fine with that AFR table, so if it's bucking make spark or enrichment adjustments.
hustler is offline   Reply With Quote
Old 03-01-2012, 01:10 PM   #34
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by hustler View Post
Sure. You don't need me to tell you this, see how the car drives. It should drive fine with that AFR table, so if it's bucking make spark or enrichment adjustments.
i have no idea how to do this again
edit: if it doesnt like it i will switch back to the previous table till i can figure out the problem.
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 04:19 PM   #35
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

alright so stupid question but why is there not much info about launch control? i kinda want to use it, i think.
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 04:46 PM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by redturbomiata View Post
i have no idea how to do this again
edit: if it doesnt like it i will switch back to the previous table till i can figure out the problem.
Advance spark in cruise as you go leaner, or fatter as you retard spark angle in cruise.
hustler is offline   Reply With Quote
