Question Closed loop ebc for MS3

I have read the thread on EBC but it was not clear what changes were made for MS3. Ken said in one of the posts that he changed the code for MS3 and the theory for tuning the EBC was different.

Can someone please explain what PID does and give me a starting point? I am looking for 18psi.

Thank you!
Amellrotts is offline   Reply With Quote
Old 09-18-2013, 07:18 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

You have found me. I am 18psi

You're welcome
18psi is offline   Reply With Quote
Old 09-18-2013, 07:18 PM   #3
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

aaronc7 is offline   Reply With Quote
Old 09-18-2013, 07:20 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

oh wow that's perfect.

+props

That's what I was trying to explain to you yesterday all written out and with pictures
18psi is offline   Reply With Quote
Old 09-18-2013, 07:23 PM   #5
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Applies for latest MS2 firmware as well (what I used when I tuned my stuff up).
aaronc7 is offline   Reply With Quote
Old 09-18-2013, 07:27 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

yeah, The other **** people were linking to on DIY website was the old MS2 stuff and I was afraid to use it. Thanks Aaron! That should be exactly what I needed!
Amellrotts is offline   Reply With Quote
Old 09-18-2013, 07:42 PM   #7
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Closed loop fuel requires 3 things:

- a 12x12 or so table of AFR targets vs RPM and MAP
- an open loop 12x12 table of injector on-times vs RPM and MAP (the VE table)
- and the O2 sensor and PID to provide feedback to trim the AFR

Why doesn't boost control do the same thing?:

- an 8x8 table of boost target vs RPM and TPS
- an 8x8 table of open loop table of boost solenoid duty cycle vs. RPM and target boost
- and PID to provide feedback to trim the boost solenoid duty


And then just like fuel auto-tune changes the VE table, boost autotune should do the same for the open-loop duty table.

Last edited by JasonC SBB; 09-18-2013 at 09:47 PM.
JasonC SBB is offline   Reply With Quote
Old 09-18-2013, 07:46 PM   #8
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by JasonC SBB View Post
Closed loop fuel requires 3 things:

- a 12x12 or so table of AFR targets vs RPM and MAP
- an open loop 12x12 table of injector on-times vs RPM and MAP
- and the O2 sensor and PID to provide feedback to trim the AFR

Why doesn't boost control do the same thing?:

- an 8x8 table of boost target vs RPM and TPS
- an 8x8 table of open loop table of boost solenoid duty cycle vs. RPM and target boost
- and PID to provide feedback to trim the boost solenoid duty
Ooooh, ooooh, ooooh. I'd love that!
stefanst is offline   Reply With Quote
Old 09-18-2013, 09:30 PM   #9
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

And then just like fuel auto-tune changes the VE table, boost autotune should do the same for the open-loop duty table.
JasonC SBB is offline   Reply With Quote
Old 09-18-2013, 10:35 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I generally welcome and enjoy your contributions Jason, but this one is making me wonder if you've ever actually used or tuned a MS3?

MS3 has several options for boost control:
-Standard open loop
-Closed loop with 8x8 boost target table
-Feed forward closed loop with 8x8 initial duty % table and 8x8 boost target table

Other algorithms exist to augment/supplement boost control as well, such as boost vs time after launch, boost vs VSS, boost vs gear, and a couple traction control strategies -- but I think these can be ignored for this conversation.

I think if you tried one of our closed loop strategies, you will find that the MS3 does an excellent job of closed loop control, and the "autotune" feature has potential to be a very dangerous solution to a problem that doesn't exist.


Quote:
Originally Posted by JasonC SBB View Post
Closed loop fuel requires 3 things:

- a 12x12 or so table of AFR targets vs RPM and MAP
- an open loop 12x12 table of injector on-times vs RPM and MAP (the VE table)
- and the O2 sensor and PID to provide feedback to trim the AFR

Why doesn't boost control do the same thing?:

- an 8x8 table of boost target vs RPM and TPS
- an 8x8 table of open loop table of boost solenoid duty cycle vs. RPM and target boost
- and PID to provide feedback to trim the boost solenoid duty


And then just like fuel auto-tune changes the VE table, boost autotune should do the same for the open-loop duty table.
Ben is offline   Reply With Quote
Old 09-19-2013, 02:19 AM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I'd be curious to see datalogs of results, duty cycle, boost and boost target... flooring it at different RPMs, from different starting values of MAP.
JasonC SBB is offline   Reply With Quote
Old 09-19-2013, 03:08 AM   #12
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

O.K. Jason, here you go.

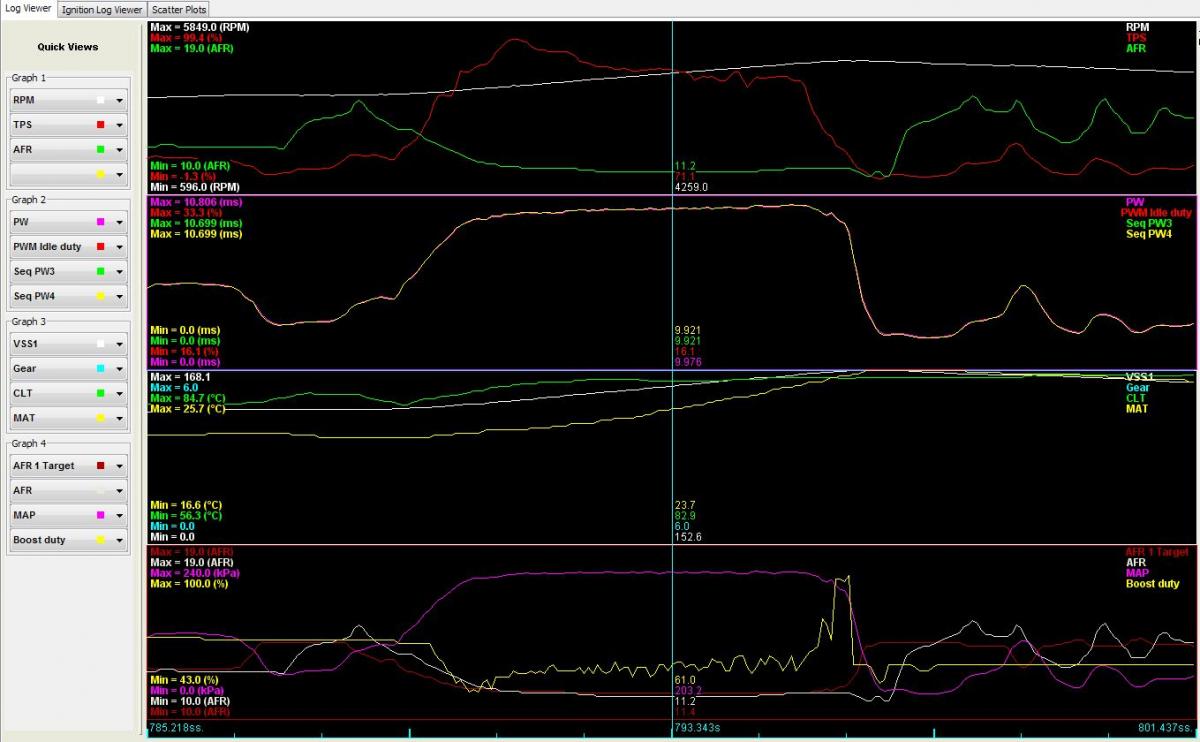

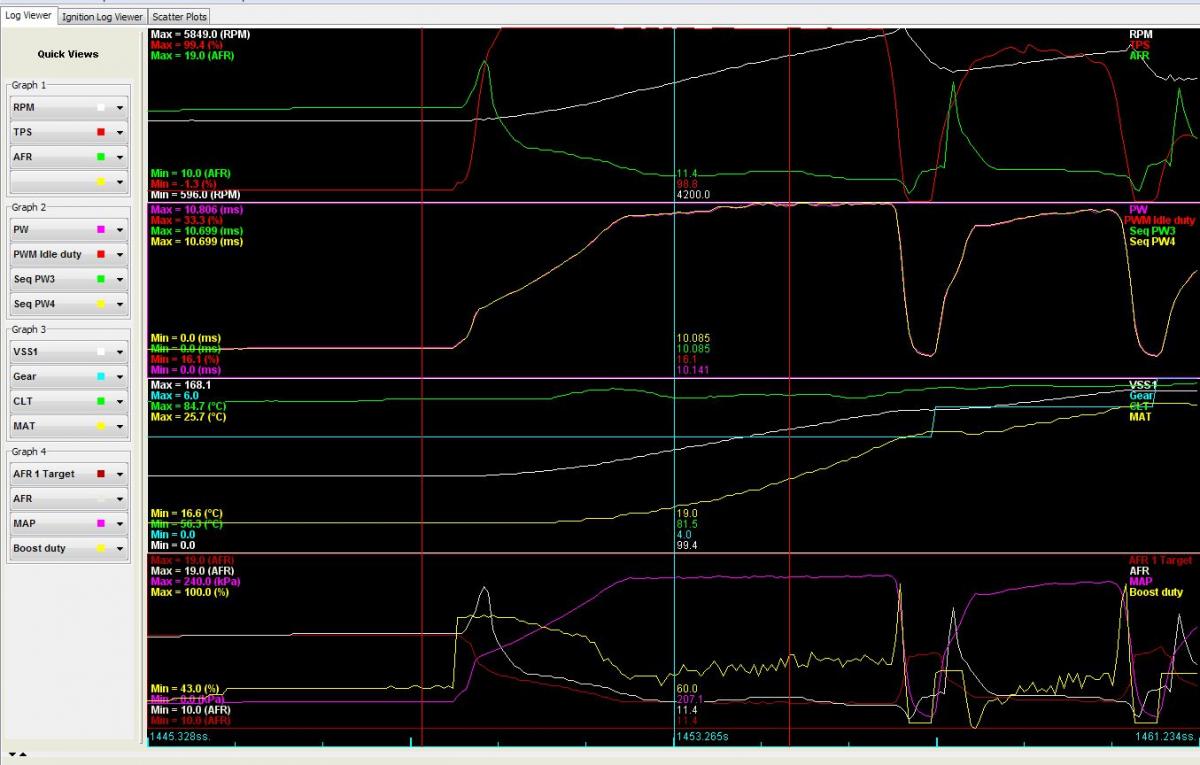

Nr. 1
stomp on the throttle keeping it at 100%
4. Gear



Nr. 2
lighter throttle,
6. gear



Pretty darn good, I would say...
Attached Thumbnails
Closed loop ebc for MS3-boost_1.jpg   Closed loop ebc for MS3-boost_2.jpg
Zaphod is offline   Reply With Quote
Old 09-19-2013, 09:53 AM   #13
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

I've looked and looked again and was unable to find the feed forward CL option. Is it in a newer FW release? I'm running one of the 1.2.x versions.
stefanst is offline   Reply With Quote
Old 09-19-2013, 09:54 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I thought that was still in the alphas.
Braineack is offline   Reply With Quote
Old 09-19-2013, 10:51 AM   #15
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Zaphod: tune your enrichment and look under the file menu for "save graph as PNG". the world will be a better place!

I'm kinda sad I never got to play with the new method of boost.
y8s is offline   Reply With Quote
Old 09-19-2013, 10:56 AM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by stefanst View Post
I've looked and looked again and was unable to find the feed forward CL option. Is it in a newer FW release? I'm running one of the 1.2.x versions.
The initial duty option is in the 1.3 chain, which is still considered alpha.
Downloadable here:
Megasquirt firmware downloads

This firmware also includes alternator control.
Ben is offline   Reply With Quote
Old 09-19-2013, 12:51 PM   #17
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

And I thought I'd do some work on the house this weekend. Looks like I'll be installing FW and re-tuning instead :-)
stefanst is offline   Reply With Quote
Old 09-19-2013, 01:56 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Zaphod,

Thanks. Do you have a log where you went WOT at high RPM, such as a WOT upshift?
JasonC SBB is offline   Reply With Quote
Old 09-19-2013, 02:14 PM   #19
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by JasonC SBB View Post
Zaphod,

Thanks. Do you have a log where you went WOT at high RPM, such as a WOT upshift?
I'll have a look.
Zaphod is offline   Reply With Quote
Old 09-29-2013, 12:44 PM   #20
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Here are mine:

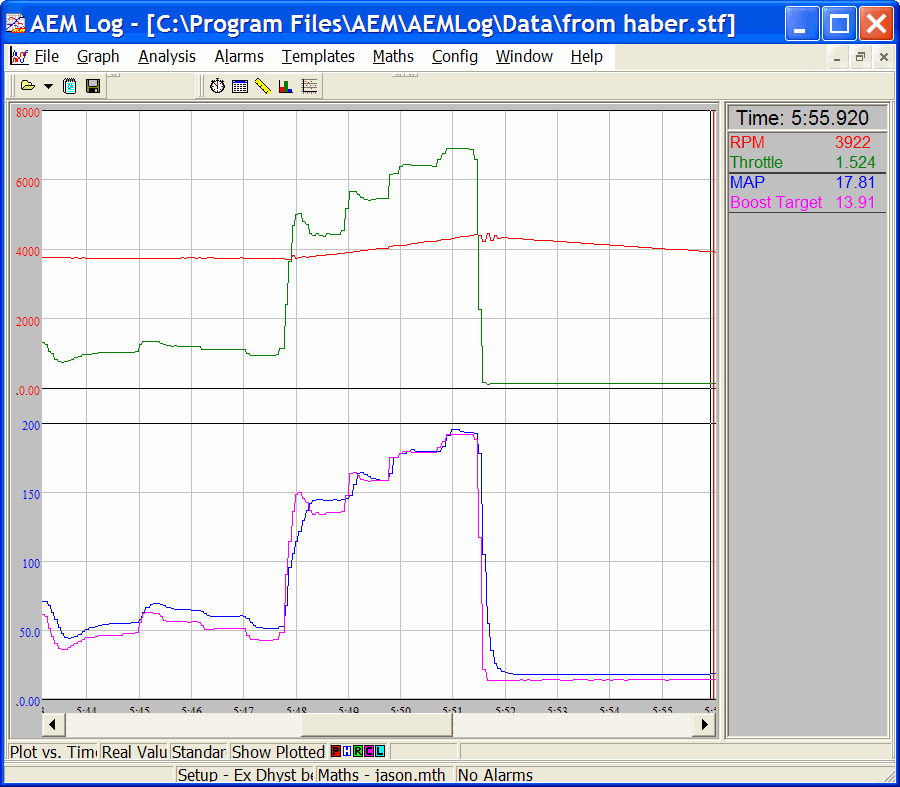

Varying TPS ergo varying boost target. Note how it doesn't overshoot much and it hits the changing boost target quickly:

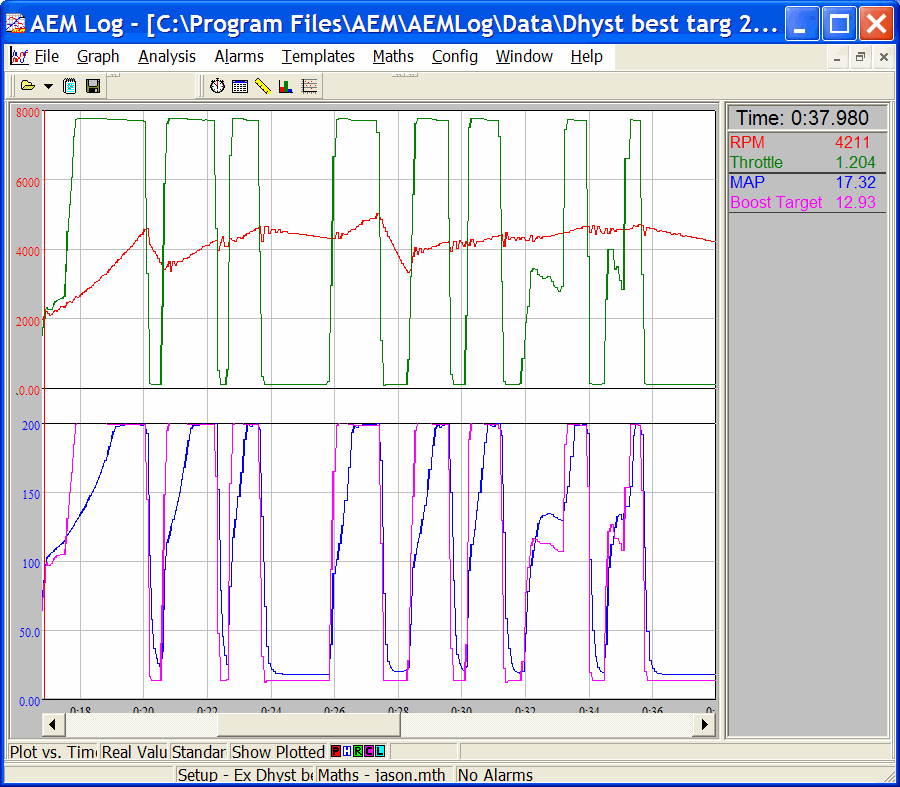

WOT'ing at different RPMs. Note how it hits full boost quickly with no overshoots even at different RPMs:
JasonC SBB is offline   Reply With Quote
