Default Cold Start Crank, with video!

Here's my video of my car sitting in the garage, cold. I datalogged the crank / startup. When it cranks, it cranks for a bit, then it sounds like it wants to catch. I just keep on the key and a second or 2 later it'll start right up. Please give me some opinions, I'm not sure if it's getting too much fuel, or not enough.
warm.msl

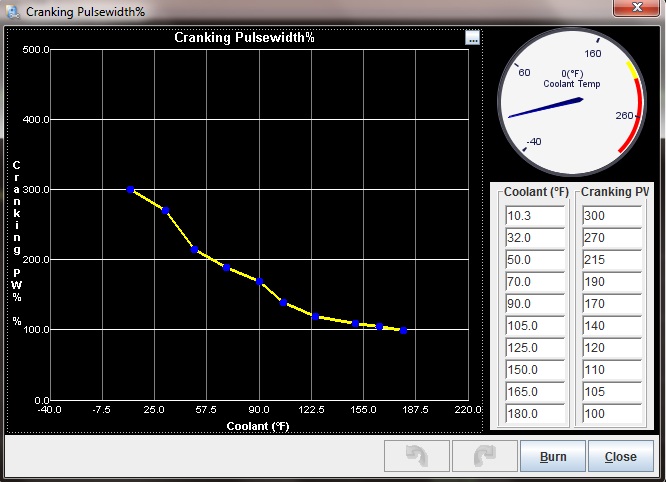

Cold Start Crank, with video!-crank.jpg

thirdgen is offline   Reply With Quote
Old 03-11-2011, 01:49 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

so what you are saying is you need to tweak your tune?
Braineack is offline   Reply With Quote
Old 03-11-2011, 01:51 PM   #3
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I'm just saying, it starts up decent. I just feel it can be cleaned up. Notice how it cranks and kicks like it wants to start, but then it takes another second to actually fire up? I want to work that out.
thirdgen is offline   Reply With Quote
Old 03-11-2011, 01:53 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

so work it out?

adjust the values up in the map at that particular CLT value. stop once it starts better.


congrats, you've just worked it out.
Braineack is offline   Reply With Quote
Old 03-11-2011, 02:29 PM   #5
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Why isn't your AFR reading in tunerstudio?

I noticed a big difference in starting when I adjusted the cranking dwell for my Cops. Down to 5ms, I think. You may want to check the cranking dwell settings for your coils. Cranking rpm might also play a role.
miatauser884 is offline   Reply With Quote
Old 03-11-2011, 02:36 PM   #6
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Your starter or battery seem weak.
Bryce is offline   Reply With Quote
Old 03-11-2011, 04:06 PM   #7
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Datalog!!? Somebody said "datalog"?
sjmarcy is offline   Reply With Quote
