Default Connection Woes on new Megasquirt

Hello I hope someone can help.

Mazda mx5 1.8 1997 mk1

I have a ms 2 from reverant and I can't get it to connect to my laptop.

So far I have used a laptop with serial to no avail

I then purchased a usb to serial adapter installed that and tested it through hyperterminal, which brings back what I am typing.

However when I try to connect to the ecu it states no controller found check connections and drivers. I am sure the cable works but not sure if I have a setting mixed up.

Ideally if someone with previous experience or is local to lend some assistance would be much appreciated
based in buckinghamshire

Thanks in advance Nick

Last edited by naw43; 10-15-2014 at 02:03 PM. Reason: added information
naw43 is offline   Reply With Quote
Old 10-15-2014, 09:53 PM   #2
Junior Member

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

Did you load the COM port drivers?
Mech5700 is offline   Reply With Quote
Old 10-16-2014, 03:04 AM   #3
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

I loaded the drivers that came with the cable.

The drivers for the com ports have all been installed correctly asthere is no yellow triangle next to them in device manager
naw43 is offline   Reply With Quote
Old 10-16-2014, 08:27 AM   #4
Junior Member

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

When setting up the new project, I remember having to change the com port and baud rate to get it to connect.
Mech5700 is offline   Reply With Quote
Old 10-16-2014, 08:29 AM   #5
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

I have changed the com port settings and baud rate but still no success

Thanks for the suggestions
naw43 is offline   Reply With Quote
Old 10-16-2014, 09:33 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

have you used the port checker utility?
Braineack is offline   Reply With Quote
Old 10-16-2014, 09:34 AM   #7
Junior Member

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

No prob, that's all I got :/
Mech5700 is offline   Reply With Quote
Old 10-16-2014, 09:35 AM   #8
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

Yes i have

With the ecu connected it either comes up with no connection made or "S"ing"
naw43 is offline   Reply With Quote
Old 10-16-2014, 11:59 AM   #9
Junior Member
iTrader: (2)

Join Date: Oct 2011
Location: Chicago Il
Posts: 111
Total Cats: 2
Default

Probably a dumb question but when nothing else works....

Did you have the ECU powered up when you tried to connect? It won't work on a bench. Don't start the car, just put the key in and give it 2(?) clicks. You should hear the fuel pump prime.
akbloom is offline   Reply With Quote
Old 10-16-2014, 12:49 PM   #10
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

Quote:
Originally Posted by akbloom View Post
Probably a dumb question but when nothing else works....

Did you have the ECU powered up when you tried to connect? It won't work on a bench. Don't start the car, just put the key in and give it 2(?) clicks. You should hear the fuel pump prime.
Hi

the ecu is currently in the car, at current i have no way of bench testing.

With second stage ignition the fuel pump runs for two seconds
naw43 is offline   Reply With Quote
Old 10-16-2014, 01:55 PM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Please post a snapshot of Device Manager, with the USB cable adapter highlighted.
Reverant is online now   Reply With Quote
Old 10-16-2014, 04:42 PM   #12
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

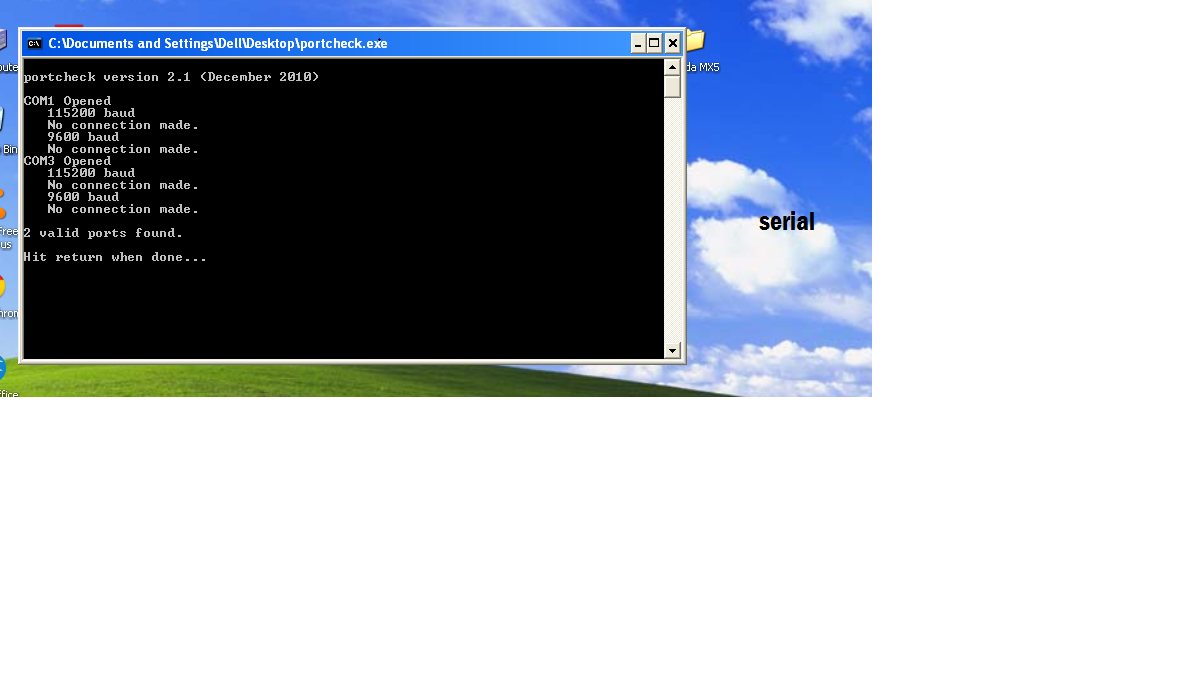

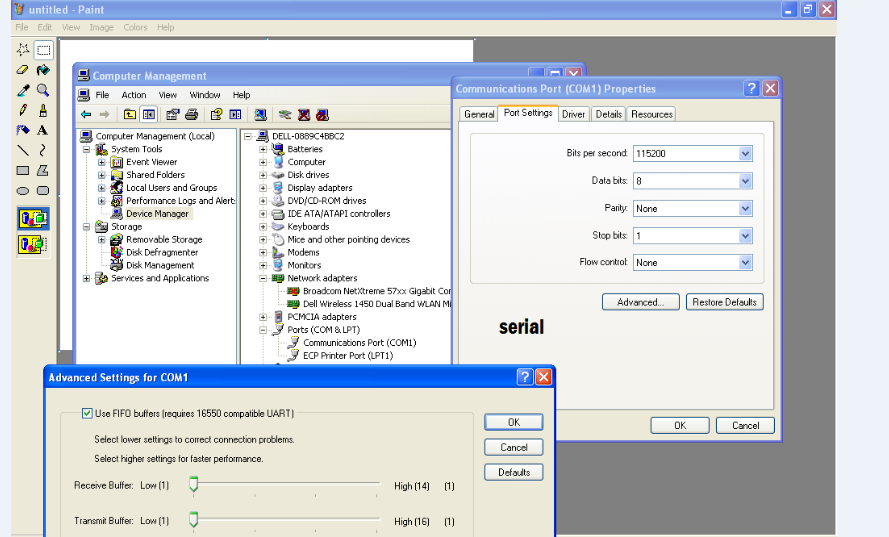

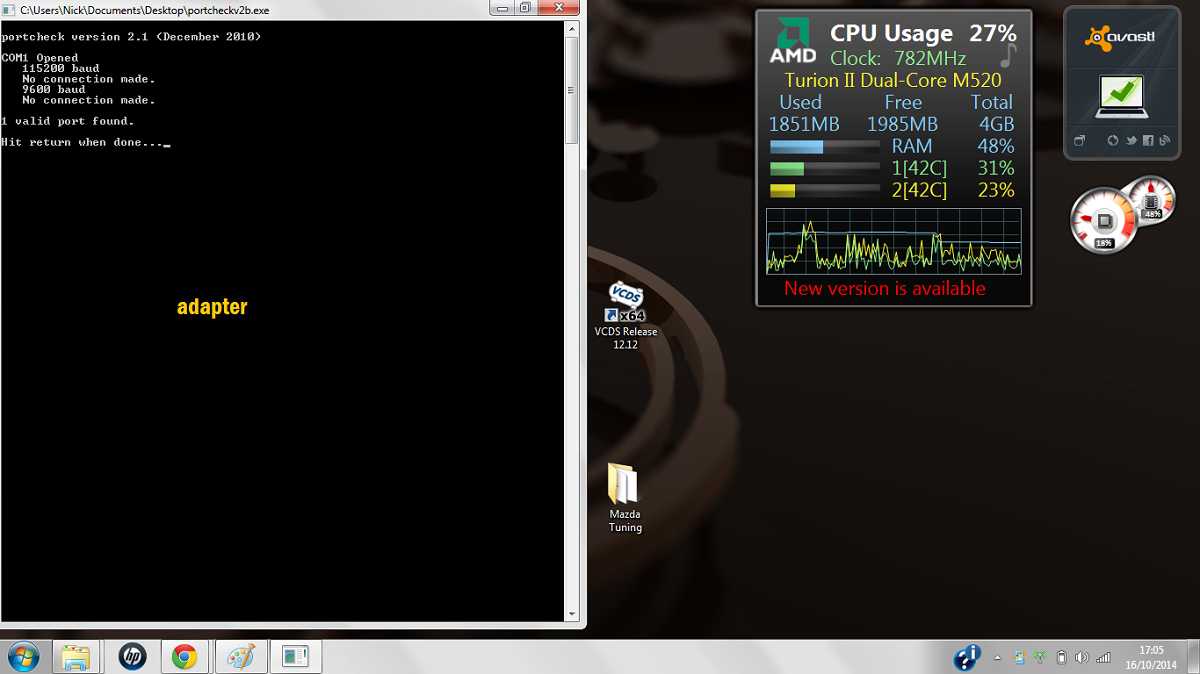

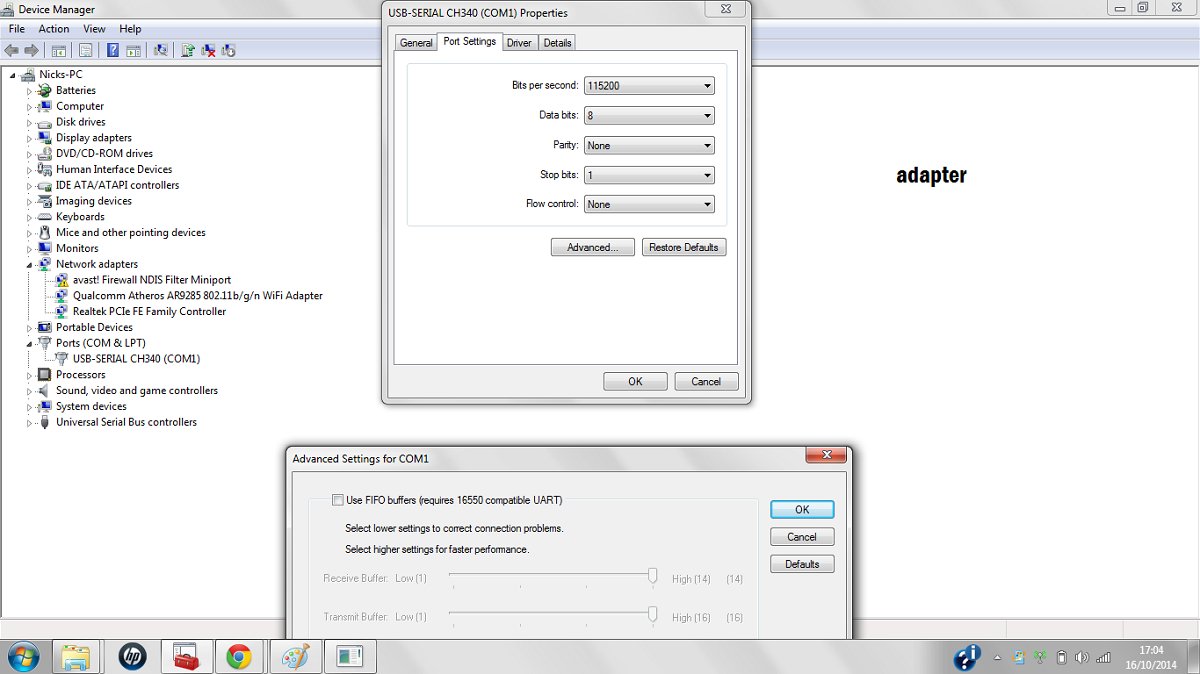

I have a laptop using just serial connection, and another laptop with a usb to serial adapter, i have attached four pictures, they have been labelled

The ecu was plugged in and ignition stage 2 when screenshots taken

Thanks Nick
Attached Thumbnails
Connection Woes on new Megasquirt-adapter-no-connection.png   Connection Woes on new Megasquirt-adapter-settings.png   Connection Woes on new Megasquirt-serial-no-connection..png   Connection Woes on new Megasquirt-serial-settings.png
naw43 is offline   Reply With Quote
Old 10-16-2014, 05:03 PM   #13
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

The CH340 USB adapter is pretty much trash, so I don't trust it at all.

The plain serial cable should work though. Anything running on the laptop with the serial port that could be hogging the port?
Reverant is online now   Reply With Quote
Old 10-16-2014, 05:08 PM   #14
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

I thought the cable was no good, so i have purchased a cable from a company that guarantee that it will work with megasquirt

The laptop is as basic as it comes it literally has windows, and a couple of programs so i dont think anything else is using the port.
naw43 is offline   Reply With Quote
Old 10-16-2014, 05:24 PM   #15
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Does the car actually try to start if you crank it?
Reverant is online now   Reply With Quote
Old 10-16-2014, 05:40 PM   #16
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

I havent tried that

I will do so tomorrow

My mega squirt is it ms2 basic

Thanks for your help so far
naw43 is offline   Reply With Quote
Old 10-17-2014, 04:23 AM   #17
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

With ms ecu plugged car churned for a couple of seconds then fired up like normal, then immediately started hunting, revving from 500 to 1500 rpm

hope this helps
naw43 is offline   Reply With Quote
Old 10-19-2014, 11:36 PM   #18
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

it is likely you haven't but try and get to project properties and ensure the CAN communication in the CAN tab is not active.

I had terrible comms issues when I turned it on thinking it was for something else....

You have checked in device manager what port your usb device is allocated and then set that in the tunerstudio comms setting?
mx5-kiwi is offline   Reply With Quote
Old 10-20-2014, 01:47 PM   #19
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

Hello

I double checked today the instructions i have state to have it activated.

So i tried it with deactivated as well and still no joy

Thanks for the suggestion
naw43 is offline   Reply With Quote
Old 11-17-2014, 05:33 PM   #20
Newb
Thread Starter

Join Date: Oct 2014
Posts: 12
Total Cats: 0
Default

Its been a while but will report back.

I have successfully connected to the car and she runs like a dream.

The problem was i started out with a cable that didn't work, which was swiftly changed for a cable that was guaranteed to work which was faulty. A replacement was sent and the rest was history. i also tried using an old laptop with serial but no avail on that either

Hope this helps other

A big thank you to reverant for support and other forum members
