Default connector pinout

RESOLVED

SEE MATT'S POST BELOW. IGNORE WHAT MAY BE PRINTED ON THE CONNECTOR. PIN 9 IS THE BOTTOM LEFT PIN

THE PINS ARE POSITIONED LIKE THIS ON THE MS:
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

I am getting ready to connect the EBC. The MS site ( MegaSquirtPNP by DIYAutoTune.com ) says to connect to Pin 9. Is Pin 1 the one on the top-left when the lock tab is on the top? Pin 9 would be directly below it. See the attached image.

Edit: attached a new image. Are the labels correct when looking at the connector this way with the wires on the back side?

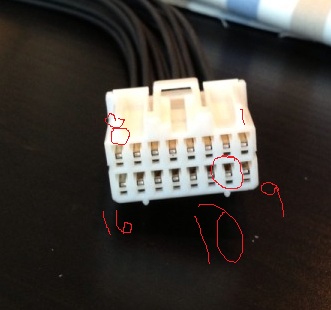

Edit #2: With a magnifying glass, and then verified by taking a picture and zooming in, I was able to identify markings on the connector. The numbers in the first picture are correct. And I pointed to the markings in the second picture below.

Last edited by travisb; 05-21-2013 at 01:22 PM.
travisb is offline   Reply With Quote
Old 05-21-2013, 11:14 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

Don't go by the numbers - they weren't there on the original connector we spec'ed! The correct pins are the mirror image of what you posted.
Matt Cramer is offline   Reply With Quote
Old 06-13-2013, 05:31 PM   #3
Newb

Join Date: Jun 2013
Posts: 1
Total Cats: 0
Default

Anyone has pin-out diagram for this? So we can have better explanation for it.

pcb assembly components

Last edited by caliskan; 06-18-2013 at 03:41 PM.
caliskan is offline   Reply With Quote
Old 06-14-2013, 10:28 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Braineack is offline   Reply With Quote
Old 06-14-2013, 10:51 AM   #5
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Quote:
Originally Posted by caliskan View Post
Anyone has pin-out diagram for this? So we can have better explanation for it.
There are 3 connectors on the MS box. 1 and 3 are for the wire harness. 2 is for extra inputs and outputs.

Looking at connector 2 on the MS, Pin 1 is the top left, Pin 8 is top right, Pin 9 is bottom left, and Pin 16 is bottom right.

See the attached diagram that I made.
Attached Thumbnails
connector pinout-ms_connections.jpg
travisb is offline   Reply With Quote
