Default Cranking RPM and the process of starting

My DIYPNP is gradually getting closer to starting like stock, but I'd welcome any advice about the process the ECU goes through when starting the car.

This morning the car took about 2 seconds to fire, but then ran smoothly.

Stepping through the log, it took about 0.3 seconds for any rpm to register and that's when Cranking:Y lights up. Run:Y lights half a second later (but I don't see what triggers that). Fuel injection starts 0.3 seconds later. Another 0.3 seconds later it hits 300rpm and fires up cleanly on the next stroke.

For most of that time, I can see it it was cranking at about 250rpm. My Cranking RPM is still set to the DIYAutoTune default 300rpm. Is there any reason I shouldn't reduce the value to 250rpm to speed the process? (Or is 250 actually rather low, and should I look at my battery, ground wiring etc? When cranking, the voltage drops to around 10V. Is that low?)
Martin Y is offline   Reply With Quote
Old 09-09-2011, 10:37 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

you should increase it if anything. You'll have trouble starting if your battery is low or it's a cold day.

the delay is the MS confirming the crank inputs and syncing.
Braineack is offline   Reply With Quote
Old 09-09-2011, 11:16 AM   #3
Newb
Thread Starter

Join Date: Sep 2006
Posts: 20
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you should increase it if anything. You'll have trouble starting if your battery is low or it's a cold day.

the delay is the MS confirming the crank inputs and syncing.
Sorry, I don't follow you. Are you saying I should increase Cranking RPM value or that I should try to improve the speed my starter motor turns the engine?
Martin Y is offline   Reply With Quote
Old 09-09-2011, 11:42 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
the delay is the MS confirming the crank inputs and syncing.
This confuses me. How does the MS know it's cranking before it's sync'd?
richyvrlimited is offline   Reply With Quote
Old 09-09-2011, 11:55 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by Martin Y View Post
Sorry, I don't follow you. Are you saying I should increase Cranking RPM value or that I should try to improve the speed my starter motor turns the engine?
If the cranking RPM value is too low, you'll have trouble starting...mostly in cold weather or on a sub par battery. Say you lower it to 200RPM and you get it to crank to 250RPM, the MS with kick into normal running mode, but it could be too early. Mine is set to 400RPM. I had an issue on winter where my cranking RPM value got kicked down to 200 due to a firmware change. I had trouble getting the car to start and stay running...it would catch and stumble out. As soon as I changed the value back to 400RPM I never had the issue again.

Quote:
Originally Posted by richyvrlimited View Post
This confuses me. How does the MS know it's cranking before it's sync'd?
It should read the pulses instantly, but it skips pulses (user set) before it does anything, correct?
Braineack is offline   Reply With Quote
Old 09-09-2011, 12:11 PM   #6
Newb
Thread Starter

Join Date: Sep 2006
Posts: 20
Total Cats: 0
Default

I see your point, though if I had a weak battery I wonder if the cranking would ever reach 400rpm unless I opened the throttle a bit.

<edit> I think I may have misunderstood. I thought Cranking RPM was the speed at which the MS decided it was time to fire the ignition and start the engine, but that's wrong, isn't it? It's actually the speed at which it decides it has started the engine - the ignition's firing all the time fuel is being injected. Is that right?
Martin Y is offline   Reply With Quote
Old 09-09-2011, 12:18 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

yes, because it would catch. The cranking RPM is the point where the motor isn't cranking, but actually running. It needs to be HIGHER than your actual RPM during cranking. 300RPM will work; I used that for years.
Braineack is offline   Reply With Quote
Old 09-15-2011, 09:04 AM   #8
Newb
Thread Starter

Join Date: Sep 2006
Posts: 20
Total Cats: 0
Default

Just a quick bump, as clean starting is still a bit hit and miss:

When the motor reaches Cranking RPM, is that when the MS stops adding the Cranking Pulse and starts the ASE Taper?
Martin Y is offline   Reply With Quote
Old 09-15-2011, 09:42 AM   #9
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by Martin Y View Post
Just a quick bump, as clean starting is still a bit hit and miss:

When the motor reaches Cranking RPM, is that when the MS stops adding the Cranking Pulse and starts the ASE Taper?
Correct. Above the cranking RPM, the MS transitions from the cranking pulse table to the VE table, and begins applying ASE and WUE.
Matt Cramer is offline   Reply With Quote
Old 09-15-2011, 10:08 PM   #10
Junior Member

Join Date: Feb 2009
Posts: 67
Total Cats: 0
Default

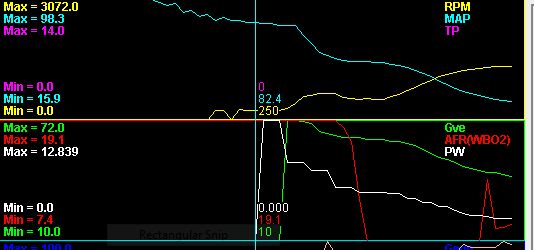

I have a very similar problem with my DIYPNP. The MS does not deliver any fuel for .5 seconds after the it detects the cranking. Any idea why no fuel is delivered for the first .5 seconds.
Attached Thumbnails
Cranking RPM and the process of starting-ms_slow_start.jpg

Last edited by John151; 09-15-2011 at 11:00 PM.
John151 is offline   Reply With Quote
Old 09-16-2011, 10:04 AM   #11
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Could we see the MSQ too?
Matt Cramer is offline   Reply With Quote
Old 09-17-2011, 10:42 AM   #12
Junior Member

Join Date: Feb 2009
Posts: 67
Total Cats: 0
Default

MSQ attached.
Attached Files
File Type: msq CurrentTune.msq (78.9 KB, 129 views)
John151 is offline   Reply With Quote
Old 09-17-2011, 02:28 PM   #13
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

I have exactly the same behavior, 0.5 sec before fuel is injected. Been trying to get rid of it ever since I built the MS (2009). Think it's inherent to the software.
WestfieldMX5 is offline   Reply With Quote
Old 09-19-2011, 10:51 AM   #14
Junior Member

Join Date: Feb 2009
Posts: 67
Total Cats: 0
Default

bump
John151 is offline   Reply With Quote
Old 09-19-2011, 11:17 AM   #15
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You can try changing Skip Pulses from 3 to 1 if this is a concern.
Matt Cramer is offline   Reply With Quote
Old 09-19-2011, 12:09 PM   #16
Newb
Thread Starter

Join Date: Sep 2006
Posts: 20
Total Cats: 0
Default

What's the purpose of the skipped pulses?
Martin Y is offline   Reply With Quote
Old 09-19-2011, 12:37 PM   #17
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

The first couple of pulses might be unstable, given that the engine is still accelerating under the power of the starter motor, so the fuel/ignition delivery might not be optimal. Ideally, you want fuel and ignition to be delivered under stable conditions, ie the engine is spinning at a constant angular velocity.
Reverant is offline   Reply With Quote
Old 09-20-2011, 01:44 AM   #18
Junior Member

Join Date: Feb 2009
Posts: 67
Total Cats: 0
Default

Quote:
Originally Posted by Matt Cramer View Post
You can try changing Skip Pulses from 3 to 1 if this is a concern.
This shaved off .1 second (delay now at .4 sec).

My battery voltage drops into the 9s while cranking. Would this be a factor?
John151 is offline   Reply With Quote
Old 09-24-2011, 01:24 AM   #19
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

Connect a charger and see if that helps. If yes, then yes. I would say it will have a problem spinning the engine with that low of voltage.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 09-24-2011, 10:31 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

that's where the voltage goes when cranking...
Braineack is offline   Reply With Quote
