Old 10-14-2009, 12:30 PM   #101
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

why the hell have I written all my mails in English, Matt! Nice German, well, sort of...
Zaphod is offline   Reply With Quote
Old 10-14-2009, 12:34 PM   #102
Junior Member

Join Date: Jan 2007
Location: Austria
Posts: 121
Total Cats: 0
Default

*LOL* Matt.. you are right, better in english

Yes i understand that all, the current status of the diypnp is fresh, but you know...

Maybe have you a PDF of the current Manual anywhere?
xitsam is offline   Reply With Quote
Old 10-14-2009, 12:42 PM   #103
Junior Member

Join Date: Jan 2007
Location: Austria
Posts: 121
Total Cats: 0
Default

There are some things i dont understand...

Where is the O2 Sensor Jumper? Is this the O2 Sensor Contact? *Kopf rauch*
If i use a Various TPS on a 1.6 91er Miata (like from Automatic Miata), what have i to do?
What if i dont have a MAF ?

Yes i read a bit in the Manual, but i dont understand that what that means at most.. and no online translator can help me there *lol*

It is for a Mazda Miata MK1, 1.6, Year 1991
xitsam is offline   Reply With Quote
Old 10-14-2009, 12:59 PM   #104
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by xitsam View Post
Maybe have you a PDF of the current Manual anywhere?
It was originally written on the website, so there isn't a PDF at the moment. I will see what I can do.

Quote:
Originally Posted by xitsam View Post
There are some things i dont understand...

Where is the O2 Sensor Jumper? Is this the O2 Sensor Contact? *Kopf rauch*
This connects to the MicroSquirt's O2 sensor input, so it either connects to the O2 sensor signal wire in the harness or the LC-1's analog output.

Quote:
If i use a Various TPS on a 1.6 91er Miata (like from Automatic Miata), what have i to do?
Splice it into the wiring and wire the TPS signal, VREF, and SG pins to the three wires you're using for the TPS.

Quote:
What if i dont have a MAF ?
Wire an IAT sensor to the temperature terminal on the MAF connector, just like with the MSPNP.
Matt Cramer is offline   Reply With Quote
Old 10-14-2009, 12:59 PM   #105
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by Zaphod View Post
why the hell have I written all my mails in English, Matt! Nice German, well, sort of...
Because your English is a lot better than my German.
Matt Cramer is offline   Reply With Quote
Old 10-14-2009, 09:58 PM   #106
Junior Member

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
If you're running waste spark, jump A and B. If you're running individual coils, then jump all 4.
So if I'm installing this in a NA6 with the standard wasted spark do I install all four Ignition drivers or just A and B? I presume I'm not jumpering the high current jumpers?

Is there anything I should be doing different from the standard instructions to suit a NA6 with standard ignition and injectors?

Edit: So do I install all 4 drivers but jumper A and B?

Last edited by jerrah; 10-14-2009 at 10:51 PM. Reason: more
jerrah is offline   Reply With Quote
Old 10-14-2009, 10:15 PM   #107
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Matt Cramer View Post
It was originally written on the website, so there isn't a PDF at the moment. I will see what I can do.



This connects to the MicroSquirt's O2 sensor input, so it either connects to the O2 sensor signal wire in the harness or the LC-1's analog output.



Splice it into the wiring and wire the TPS signal, VREF, and SG pins to the three wires you're using for the TPS.



Wire an IAT sensor to the temperature terminal on the MAF connector, just like with the MSPNP.
How many stock manual trans TPS wires come in on the stock harness???? If it is less than the three needed for the VTPS we should use the DB15 and then jumper to VREF and SG. I'm sure at least the TPS signal wire comes in through the stock harness.

The pinout has both SG points used, so what do we do about that?

AC circuit question. Pinout lists and input and ouput on adapter board. Are these two supposed to be jumpered together, or do they go somewhere on the main board ? relay?

Last edited by miatauser884; 10-14-2009 at 10:48 PM.
miatauser884 is offline   Reply With Quote
Old 10-15-2009, 09:17 AM   #108
Junior Member

Join Date: Mar 2006
Location: Sydney Australia
Posts: 138
Total Cats: 0
Default

The stock manual 1.6 TPS has 3 wires to the ecu.
Red VREF is at pos 1N
Black/Light Green is Signal GND on 2C
Light Green/White is SG on 2L

You should not need the DB15
ampz is offline   Reply With Quote
Old 10-15-2009, 10:34 AM   #109
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by ampz View Post
The stock manual 1.6 TPS has 3 wires to the ecu.
Red VREF is at pos 1N
Black/Light Green is Signal GND on 2C
Light Green/White is SG on 2L

You should not need the DB15
Are the positions you list for the diypnp jumper harness, or the stock harness? I don't want to solder to the wrong jumper.

Do the diypnp pin identifier (i.e. 4p) correspond to the stock harness (4p) positions etc.

Here are a couple of camera phone pictures. When I'm done I'll upload the pics I have taken with my good camera.





Thanks

Last edited by miatauser884; 10-15-2009 at 10:45 AM.
miatauser884 is offline   Reply With Quote
Old 10-15-2009, 10:43 AM   #110
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by jerrah View Post
So if I'm installing this in a NA6 with the standard wasted spark do I install all four Ignition drivers or just A and B? I presume I'm not jumpering the high current jumpers?

Is there anything I should be doing different from the standard instructions to suit a NA6 with standard ignition and injectors?

Edit: So do I install all 4 drivers but jumper A and B?
Install and jumper A & B. You don't have to install C & D if you don't want to, though I'd just go ahead and do it. Don't jumper them though. You can use them as GPO if you need them.
Ben is offline   Reply With Quote
Old 10-15-2009, 10:44 AM   #111
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by djp0623 View Post
How many stock manual trans TPS wires come in on the stock harness???? If it is less than the three needed for the VTPS we should use the DB15 and then jumper to VREF and SG. I'm sure at least the TPS signal wire comes in through the stock harness.

The pinout has both SG points used, so what do we do about that?

AC circuit question. Pinout lists and input and ouput on adapter board. Are these two supposed to be jumpered together, or do they go somewhere on the main board ? relay?
You're makign this too complicated. Just bring the TPS signal on the TPS wire. Everything else is handled, assuming you make the VREF and SG connections as indicated. Pull out your car's wiring diagram if you need to further clarify.
Ben is offline   Reply With Quote
Old 10-15-2009, 10:54 AM   #112
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 940
Total Cats: 59
Default

You need more cooling paste
WestfieldMX5 is offline   Reply With Quote
Old 10-15-2009, 11:01 AM   #113
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I didn't notice.

Dude you use the teeniest bit of that stuff, like the size of a small grain of rice. It will spread out when the transistor gets hot. It just fills in the gaps between the surfaces of the transistor and heat sink, you don't want to actually have a coating of it. Maybe you can remove the setscrews, pull the transistors out, and clean it up some?

I'd probably try the 5V power supply first. It's probably the least important transistor.

Last edited by Ben; 10-15-2009 at 12:40 PM.
Ben is offline   Reply With Quote
Old 10-15-2009, 12:35 PM   #114
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Hi Ben,

some more questions about the sequential stuff.

What is to change in the MSQ? Alpha Firmware of course. Else?

How do you wire(jumper) the injectors? In the order of the cylinder numbers?

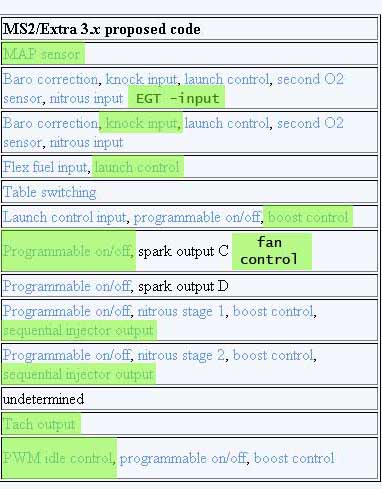

As I am running out of outputs, when I wire sequential injection AND sequential ignition - I have to choose. And I would choose to do the injection and leave it wasted spark. Dumb? Any other options? I need at least the fan output and the boost output, PWM idle valve.

Thanks for your help.
Zaphod is offline   Reply With Quote
Old 10-15-2009, 12:45 PM   #115
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I haven't read up on or completed it yet. I need to make it over to DIY to pick up my sequential card. Because sequenital injection is accomplished with an add on card, I'm not sure if there will actually be any changes to the .msq. I'm thinking there won't be.

I'd assume you'd connect them in firing order.

There is no relation between running sequential fuel and individual spark. You already have enough outputs on board for individual spark, idle control, fan control, and boost control. Sequential fueling will require the add on card.
Ben is offline   Reply With Quote
Old 10-15-2009, 01:52 PM   #116
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

You have? (enough i/o)



Zaphod is offline   Reply With Quote
Old 10-15-2009, 01:54 PM   #117
Junior Member

Join Date: Jan 2007
Location: Austria
Posts: 121
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
You're makign this too complicated. Just bring the TPS signal on the TPS wire. Everything else is handled, assuming you make the VREF and SG connections as indicated. Pull out your car's wiring diagram if you need to further clarify.
VAR TPS

I build this in the past for the MSPNP, so the harness should be correct, right?
xitsam is offline   Reply With Quote
Old 10-15-2009, 02:09 PM   #118
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Zaphod View Post
You have? (enough i/o)



You use the add-on card for seq injection, so yes there's enough I/O.

Quote:
Originally Posted by xitsam View Post
VAR TPS

I build this in the past for the MSPNP, so the harness should be correct, right?
Assuming you wired it up like stock, yes.
Ben is offline   Reply With Quote
Old 10-15-2009, 02:29 PM   #119
Junior Member

Join Date: Jan 2007
Location: Austria
Posts: 121
Total Cats: 0
Default

Here a shot of "my" DIYPNP fitting for Miata 1.6 MK1, 90-93

Stock Ignition, No MAF, VarTPS (Stock wiring), KnockSensor, LC-1, Boost-Controller



xitsam is offline   Reply With Quote
Old 10-15-2009, 03:48 PM   #120
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Ben View Post
You use the add-on card for seq injection, so yes there's enough I/O.
Ah, cool then...

@Werner - looking nice. Already wired for sequential ignition?! Why did you wire all 4 ignition outputd as well as the ign1 and ign2?

Greets
