Old 09-18-2011, 03:35 PM   #1
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 67
Total Cats: 0
Default Dwell - MS I vs. MS II

The Dwell settings on the base map for the MSPNP9495 are 4.4, and for their DIYPNP for the 9495, the dwell is set to 3.1.

Just curious why the difference?
Attached Thumbnails

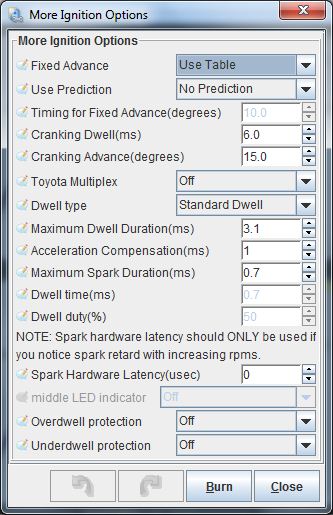

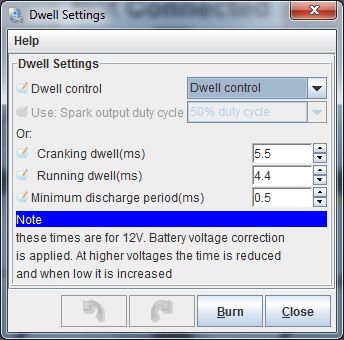

Dwell - MS I vs. MS II-dwellsettings_mspnp9495.jpg   Dwell - MS I vs. MS II-moreignitionoptions_diypnp.jpg
John151 is offline   Reply With Quote
Old 09-18-2011, 03:52 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

MSI wants the value at 12v -- MSII at 13.2v
Braineack is offline   Reply With Quote
Old 09-29-2011, 05:44 AM   #3
Newb

Join Date: Dec 2009
Location: SF, CA
Posts: 38
Total Cats: 0
Default

What Dwell setting should I have.
I'm running MSII with Toyota COPs PNP kit.
"dwell these at 3.5ms cranking, 2.5ms at 12v" That's for MSI?
"Maximum Dwell Duration" same as "running Dwell"
Thx
Wyman is offline   Reply With Quote
Old 09-29-2011, 09:32 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Well you'll first go into the dwell battery correction table and do this:

See post here:
https://www.miataturbo.net/showpost....75&postcount=8



and then you'll make the max dwell duration 2.2ms, cranking can stay around 5ms.
Braineack is offline   Reply With Quote
Old 09-29-2011, 02:14 PM   #5
Newb

Join Date: Dec 2009
Location: SF, CA
Posts: 38
Total Cats: 0
Default

Thanks again.
I will do it tonight.
Wyman is offline   Reply With Quote
