Old 05-21-2007, 10:11 PM   #21
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I got my gm solenoid from the local chevy dealer for $17 and it included the "spongy thing". and they delivered it too :gay:
Ben is offline   Reply With Quote
Old 05-22-2007, 06:12 AM   #22
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

If I paid someone through paypal would they buy one from GMParts for me and post it to the UK? Obviously I'd pay for the part, postage to you, postage to the UK and a little extra.
Any willing volunteers?

Last edited by richard_ha; 05-22-2007 at 07:08 AM.
richard_ha is offline   Reply With Quote
Old 05-23-2007, 12:36 AM   #23
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

Alright, boost control is online. I've got a bit of a spike, it goes up to 138 kpa and then settles at 134 kpa. Now I've got to get a TPS in there and make use of the rest of the table.
mschlang is offline   Reply With Quote
Old 05-23-2007, 12:40 AM   #24
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I wouldn't worry about .5 psi
Post up your boost duty target table.
Ben is offline   Reply With Quote
Old 05-23-2007, 07:47 PM   #25
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

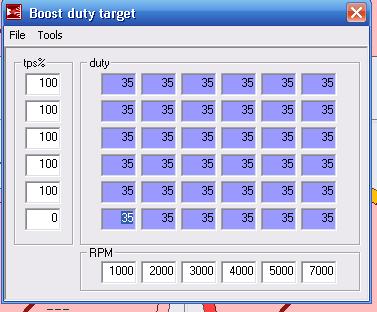

I started at 20% duty cycle and used the tools->table transform to shift the whole table rather than punching in individual values.
Attached Thumbnails

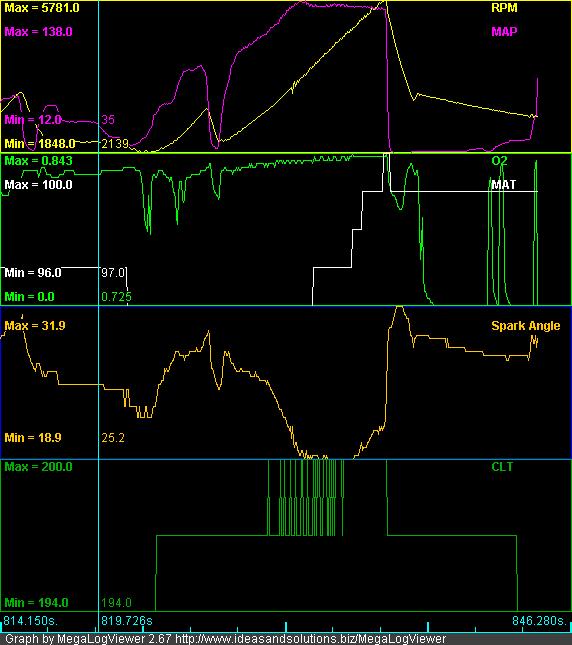

EBC mod - Writeup-duty-table.jpg   EBC mod - Writeup-boost-control.jpg
mschlang is offline   Reply With Quote
Old 05-23-2007, 07:50 PM   #26
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

try stepping it up to 40-45% as you near redline
Braineack is offline   Reply With Quote
Old 05-23-2007, 07:57 PM   #27
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Keep it at 0% dc until just under where you start making positive pressure--then go to 100% to make the turbo spool fast. To remove the overshoot, pull a tad bit of dc at the left side and if you have a little droop, add some dc on the right side

Look at my table posted earlier in the thread. You will be *amazed* how much faster you can get your turbo to spool up.
Ben is offline   Reply With Quote
Old 05-24-2007, 12:24 AM   #28
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

Yeah, I ended up with that table after exactly 2 pulls, so I've got a bit more to due. I'll wait until I get a TPS to get things really dialed in.
mschlang is offline   Reply With Quote
Old 05-24-2007, 12:27 AM   #29
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

just give it a shot
try somethign like 0 100 30 35 34 34
Ben is offline   Reply With Quote
Old 05-24-2007, 12:29 AM   #30
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

the idea of fully shutting the solenoid (100%) then allowing it to modulate the boost (35%) at the point where you should fully spool (3000, 4000, wherever) is a great idea for better spooling.
Braineack is offline   Reply With Quote
Old 05-24-2007, 03:09 AM   #31
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

so 100% is fully closed (aka wastegate sees 0psi) and 0% is fully open? Makes sense to me how modifying this could help spoolup times, especially in lower rpms
akaryrye is offline   Reply With Quote
Old 05-25-2007, 10:16 AM   #32
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

I'm willing to pay someone $10 + all costs to post a GM boost solenoid to me! I can't find this in the UK anywhere still :(
richard_ha is offline   Reply With Quote
Old 05-26-2007, 02:02 AM   #33
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

PM sent Richard.
mschlang is offline   Reply With Quote
Old 07-02-2007, 02:03 AM   #34
Junior Member
iTrader: (1)

Join Date: Apr 2006
Location: Kirkland, WA
Posts: 239
Total Cats: 0
Default

I vote for sticky.

-Mike
grippgoat is offline   Reply With Quote
Old 07-08-2007, 10:41 AM   #35
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
ok I lied, best price I could find was $27 here: http://www.grainger.com

part#6jj52 however they have the exhaust port "muffler" spongy thing, which I'm thinking about ordering if the vavle is loud at all.

FWIW, I used a new GM solenoid and it failed on me after about 2 months of use...dunno why.
Grainger only sells to other businesses and not individuals, can someone ordert his for me and send it to me or let me use their business account at grainger (my local branch) so i could buy it?
Dhaark is offline   Reply With Quote
Old 08-08-2007, 04:48 AM   #36
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

damnit ... I just cant for the life of me get the damn boost control to work. I have checked my mods which I believe are correct, and used an ohmmeter to make sure there is good connectivity between the drain pin (middle one) of the FET and the output wire. This wire is connected to the black wire on the GM pigtail that I got and the other is connected to the 12v switched AFM wire. One concern I have is that on my original hooking up, I mixed up the drain and the source, could that have fried the thing? I suppose it would make sense for a burnt up fet to cause the solenoid to fully shut as it is no longer grounding out the signal anymore.

Anyway, it seems as if the thing just closes shut completely when it is hooked up and I hit the boost cut a few times (200kpa setpoint). Unplug solenoid, no more overboosting, plug it in, overboosting. The solenoid does not click or anything and megatune is not showing anything for the duty cycle.
akaryrye is offline   Reply With Quote
Old 08-08-2007, 02:08 PM   #37
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Is the MOSFET that exact same part number? i believe if you get something other than (IRLZ44NPBF-ND) the drain the source and ground might be different.

But verify:
your "codebase ouput functions" you have boost control selected on X4.

in "boost control" increase voltage = increase boost & kPa limit for closed loop is 0.

then, in the "boost duty targets" at 0% change the first RPM number to 0 and see if your valve opens fully by blowing through it....then burn it to 100 and see if it closes. If it does you it should be working.

I suggest you change all the values at all ranges to 20 or something just to see if it will only go to wastegate pressure.
Braineack is offline   Reply With Quote
Old 08-08-2007, 02:36 PM   #38
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

It is the same part number and I did use those exact settings and it overboosted no matter what I did, set it to 0dc and still overboosted. The lil squirt isnt grounding the signal properly. Anyway im gonna swap out the FET for the spare that I got and see if that makes a difference because other than that I have no clue what to do as I have checked and double checked my board mods, setting, and wiring. Even used a multimeter to verify that the resistors were doing their job properly.

btw, mschlang how did you get your setup to work?

pss can you get your pictures back up Scott?
akaryrye is offline   Reply With Quote
Old 08-08-2007, 02:55 PM   #39
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Braineack, how much re-tuning did you have to do to go from MBC to MS EBC? I ordered the bits from Jerry yesterday, so I have to start figuring out how to tune the car for them.
Savington is online now   Reply With Quote
Old 08-08-2007, 02:56 PM   #40
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

see if there is any continuity between the DB37 Pin and the ground...if so you probably fried the FET at first.
Braineack is offline   Reply With Quote
