Default EGO Settings

Couldn't find a post on EGO settings. Should we leave this as default (from the base map on a MSPNP)? Have a 1.6 with a pnp and not getting very good gas milage. Autotune has done its job (and if anyone is sick of my frustrated posts, i have several posts on here about my black exhaust crap!). I am going to recalibrate my Innovate LC-1 tomorrow, as i think i may have some incorrect AFR readings...

Here is what i have. I live at altitude, so i have it in open loop for my idle, as the temps and elevation changes drastically during my daily drive. I also have it running below 115Kpa since its only a little bit of boost. My main question is about the events per step, auth percentage, etc settings. I think my base map had 16, but read somewhere that 28 or 29 was good for a 4 cylinder.

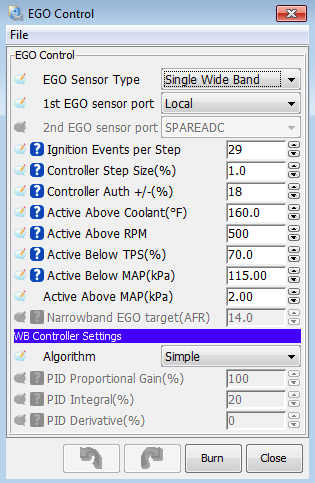

Attached Thumbnails
EGO Settings-screen-shot-2012-11-25-2.06.25-am.png
wolfram is offline   Reply With Quote
Old 11-25-2012, 10:04 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

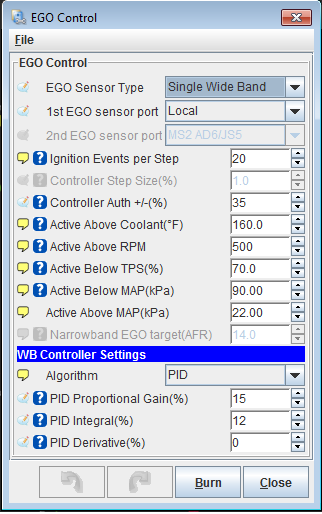

Attached Thumbnails
EGO Settings-op67v.png
hustler is offline   Reply With Quote
Old 11-26-2012, 11:25 AM   #3
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by hustler View Post
I've always left the authority at 8%, I was under the impression if your VE map was well tuned you do not need to give EGO that much authority.
Lincoln Logs is offline   Reply With Quote
Old 11-26-2012, 11:35 AM   #4
Junior Member

Join Date: Sep 2010
Location: Denmark
Posts: 79
Total Cats: 1
Default

Quote:
Originally Posted by Rokomis View Post
I've always left the authority at 8%, I was under the impression if your VE map was well tuned you do not need to give EGO that much authority.
That's my understanding too. But then again, if it's not needed, I suppose it won't get used, so why cap it in the first place? Failsafe limits in case of a WB sensor going bad? Or is there another reason?

- Tom
one-niner is offline   Reply With Quote
Old 11-26-2012, 12:05 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Rokomis View Post
I've always left the authority at 8%, I was under the impression if your VE map was well tuned you do not need to give EGO that much authority.
You're right, but when it's 107*f outside and you're parked in traffic with 205*f IATs in some sort of outer ring of "super heat soak hell", you may need more than 8% in traffic.
hustler is offline   Reply With Quote
Old 11-26-2012, 01:09 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

plus he's using PID corrections which will keep the target much better.
Braineack is offline   Reply With Quote
Old 11-26-2012, 01:42 PM   #7
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by one-niner View Post
That's my understanding too. But then again, if it's not needed, I suppose it won't get used, so why cap it in the first place? Failsafe limits in case of a WB sensor going bad? Or is there another reason?

- Tom
That is a valid point.

Quote:
Originally Posted by hustler View Post
You're right, but when it's 107*f outside and you're parked in traffic with 205*f IATs in some sort of outer ring of "super heat soak hell", you may need more than 8% in traffic.
I can definitely see that, it' something I experienced in the heat this year. I'll start playing with this more.

Quote:
Originally Posted by Braineack View Post
plus he's using PID corrections which will keep the target much better.
This is something that I need to do some research to understand better. I am not utilizing this function on my MS. Does this setting help with small +/- .2 fluctuations of the AFR under constant load?
Lincoln Logs is offline   Reply With Quote
Old 11-26-2012, 01:53 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

no, you shouldn't really be in closed loop under load.
Braineack is offline   Reply With Quote
Old 11-26-2012, 02:05 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

http://msextra.com/doc/ms3/Idle_Control.html
The following basic steps should be used for tuning the PID controller gains:

Zero all the gains - Set all the gains to 0%. This is so that the effects of tuning the I-term in the next step are not confused with the effects of any other setting.

Tune the Integral (I) gain -
The Integral gain is the only term that controls whether the code actually reaches its target. Higher values for Integral gain will result in the code being able to get closer to the commanded target; however, a value that is too high will result in oscillation. The easiest way to determine a good value for the I term is to keep increasing it until oscillation occurs, then slightly lower it. If this value is increased to 200% without reaching a point where oscillation occurs, then the RPM with valve opened setting can be decreased as far as necessary, and the open duty/steps setting and closed duty/steps setting can be made further apart to make the PID loop more sensitive.

Tune the Proportional (P) gain -
After tuning the I gain so that the RPM reaches the commanded target without oscillation, the P gain can be tuned. The best way to tune this is to set it as high as possible without getting any oscillation. After setting this, try turning on the air conditioning or other accessories that normally lower RPM or increase load. When these accessories are turned on, the RPM should dip a bit then recover (the valve position should increase significantly). Using longer PID ramp to target times can also make it so that when the PID algorithm engages, a higher P gain can be set without causing oscillation.

Tune the Derivative (D) gain -
For most users, use of the D gain should not be necessary. It substantially dampens the response of the loop.
hustler is offline   Reply With Quote
Old 11-26-2012, 02:07 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
no, you shouldn't really be in closed loop under load.
Unbelievably good AFR target achievement with the PID control on my daily.
hustler is offline   Reply With Quote
Old 11-26-2012, 02:22 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by hustler View Post
Unbelievably good AFR target achievement with the PID control on my daily.
is that the EGO settings you posted?
Braineack is offline   Reply With Quote
Old 11-26-2012, 02:41 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
is that the EGO settings you posted?
Yes
hustler is offline   Reply With Quote
Old 11-26-2012, 02:49 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

you dont have EGO enabled at full load.

it's off above 75% TPS and/or 90kPa.
Braineack is offline   Reply With Quote
Old 11-26-2012, 03:29 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
you dont have EGO enabled at full load.

it's off above 75% TPS and/or 90kPa.
Did I miss a question or something?
hustler is offline   Reply With Quote
Old 11-26-2012, 03:30 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i dunno. i like turtles.
