Default Fail noob question: What should target AFRs be?

Yes, I have my flamesuit on and will openly admit that I have never tuned a FI car and have nearly no experience with MS.

That being said, how does one know where AFRs should be at for a specific pressure?

Car is a 96, Brain built MS-I.
rider384 is offline   Reply With Quote
Old 06-06-2010, 12:37 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by rider384 View Post
how does one know where AFRs should be at for a specific pressure?
Experience.













In the cruising cells (everything that's neither boost nor idle) the low to mid 15s are a good target.

At idle, some cars like stoich (14.7) while others prefer to run a bit richer (mid 13s), which is largely a function of injector size.

In boost, you'll want to enter at the high 13s and taper down into the 12s at the top of the table. This is just a general guideline- you'll need a dyno to find the schweet schpots.
Joe Perez is offline   Reply With Quote
Old 06-07-2010, 09:34 AM   #3
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Here's a good thread to start reading.
https://www.miataturbo.net/megasquirt-18/anybody-mind-post-their-afr-target-tables-29956/

You'll notice that nobody uses the same tables as every car is different. I'm using this currently.
I'm running 160kPa so my table only goes up to 183kPa


WestfieldMX5 is offline   Reply With Quote
Old 06-07-2010, 10:00 AM   #4
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

This is what I use:

ArtieParty is offline   Reply With Quote
Old 06-07-2010, 10:02 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

and these are mine:

Braineack is online now   Reply With Quote
Old 06-07-2010, 11:09 AM   #6
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

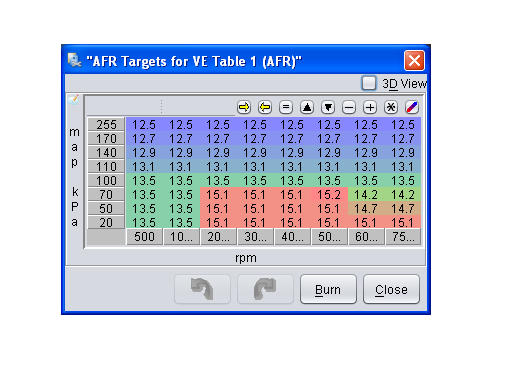

Minez:

Name:  afrtargets.bmp
Views: 229
Size:  576.1 KB

Yes, my car like the gas. It wont idle any leaner without popping.
lordrigamus is offline   Reply With Quote
Old 06-07-2010, 12:11 PM   #7
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Several respected tuners of naturally aspirated motors have said that the best range for power and safety at WOT is within a couple tenths +/- of 13:1. It seems like a bunch of you run leaner than that in your 100 kPa row and I'm curious what the reasoning behind that is.
ScottFW is offline   Reply With Quote
Old 06-07-2010, 12:15 PM   #8
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

fwiw, mine are very similar to brain's on a 1.6 greddy with begi downpipe and 2.5" turbo-back
devin mac is offline   Reply With Quote
Old 06-07-2010, 03:08 PM   #9
Newb

Join Date: Mar 2008
Posts: 20
Total Cats: 0
Default

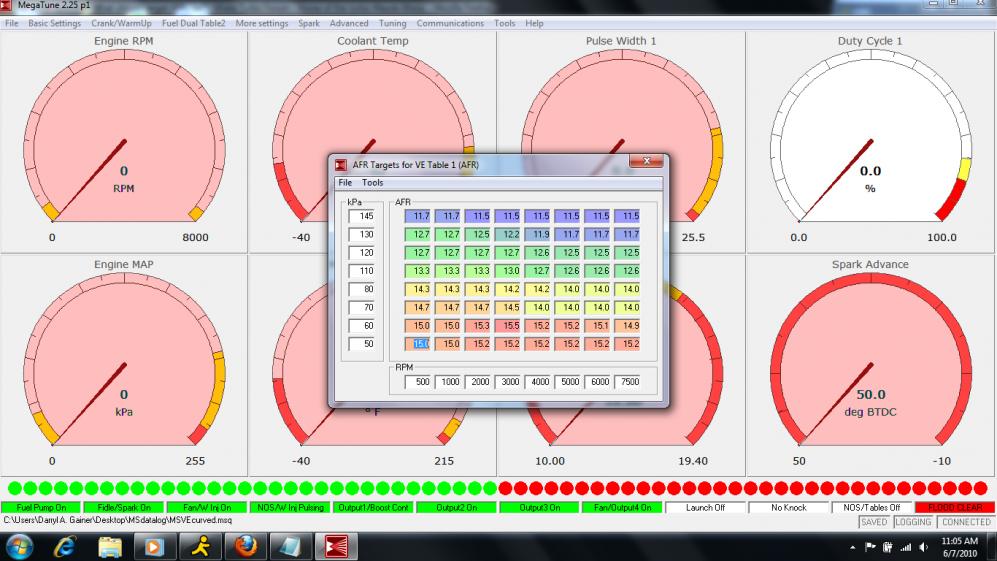

here's mine...I don't know how to get it to JUST view the AFR target window like you guys did. I'm non intercooled, so AFR's are naturally be a bit richer than those who are(those lucky low IAT seeing *****)
Attached Thumbnails
Fail noob question: What should target AFRs be?-afr-targets.jpg
