Default Fitted 36-1 trigger wheel, firing on 2 cylinders

Hi,

I have a 1996 1.6 miata running on DIYPNP. I decided to upgrade from the CAS and fit a 36-1 trigger wheel, whilst still using the cam signal form the CAS for sequential fuel. The CAS was modded by removing all but the smallest cam signal tooth.

The car now starts and runs but only on cylinders 1+4, I adjusted the #1 tooth angle so the spark angle matches my timing light but it's still the same. I have a feeling it's something to do with this number or some sequential injection settings that need changing.

I've attached my tune and a composite log.

nilefulker.msq

complog 1.csv

And here's a screenshot of my composite log



Thanks in advance for any help.

Nile
Attached Thumbnails

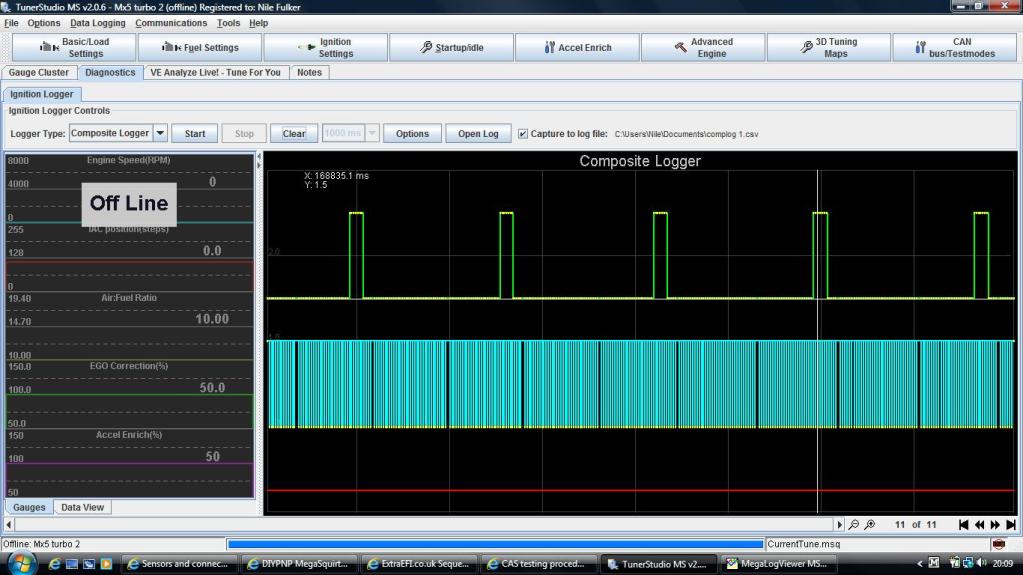

Fitted 36-1 trigger wheel, firing on 2 cylinders-compositeloggerscreenshot.jpg
mxnige is offline   Reply With Quote
Old 10-01-2012, 05:45 PM   #2
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

in ignition settings you have "single coil" - that needs to be wasted spark.
also your trigger wheel is on backwards if your angle is 246 degrees.... should be like 80-85.
finally I would change 'second trigger active on' to Rising edge instead of falling edge.
soviet is offline   Reply With Quote
Old 10-01-2012, 06:11 PM   #3
Newb
Thread Starter

Join Date: Mar 2011
Location: Sussex, England
Posts: 25
Total Cats: 0
Default

Ah! Can't believe I missed that. It's too late here to test now but i'm sure having single coil selected is the problem.

The tooth angle I got from this guide, plus some adjustment with the timing gun.
MS2-Extra Dual Wheel Manual

Thanks for your help.
mxnige is offline   Reply With Quote
Old 10-01-2012, 06:24 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Single coil is your problem.
Reverant is online now   Reply With Quote
Old 10-01-2012, 06:27 PM   #5
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I'm just saying you put the timing gear on backwards - outer side needs to be facing.. out.
soviet is offline   Reply With Quote
Old 10-01-2012, 07:46 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by soviet View Post
I'm just saying you put the timing gear on backwards - outer side needs to be facing.. out.
If it's triggering reliably, it doesn't matter.
Ben is offline   Reply With Quote
Old 10-02-2012, 07:55 AM   #7
Newb
Thread Starter

Join Date: Mar 2011
Location: Sussex, England
Posts: 25
Total Cats: 0
Default

Thanks for the help.

She now runs on all 4 cylinders, but badly. I keep getting sync losses, especially during cranking. I made sure the cam signal is not too close to the missing tooth signal so i'm not really sure why.

Here is a composite log of cranking.
cranking log.csv

Soviet, the timing wheel i'm using is a universal ring gear welded to the bottom pulley, I fitted the wheel in the Ford edis style, so tooth 9 lines up with the tdc mark at tdc.
mxnige is offline   Reply With Quote
Old 10-02-2012, 09:26 AM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The composite log looks perfectly fine.
Ben is offline   Reply With Quote
Old 10-02-2012, 09:38 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

post a screen capture of when you lose sync.
Braineack is offline   Reply With Quote
Old 10-02-2012, 10:30 AM   #10
Newb
Thread Starter

Join Date: Mar 2011
Location: Sussex, England
Posts: 25
Total Cats: 0
Default

Ok I can't even get the car to start, so both of these shots are from cranking.

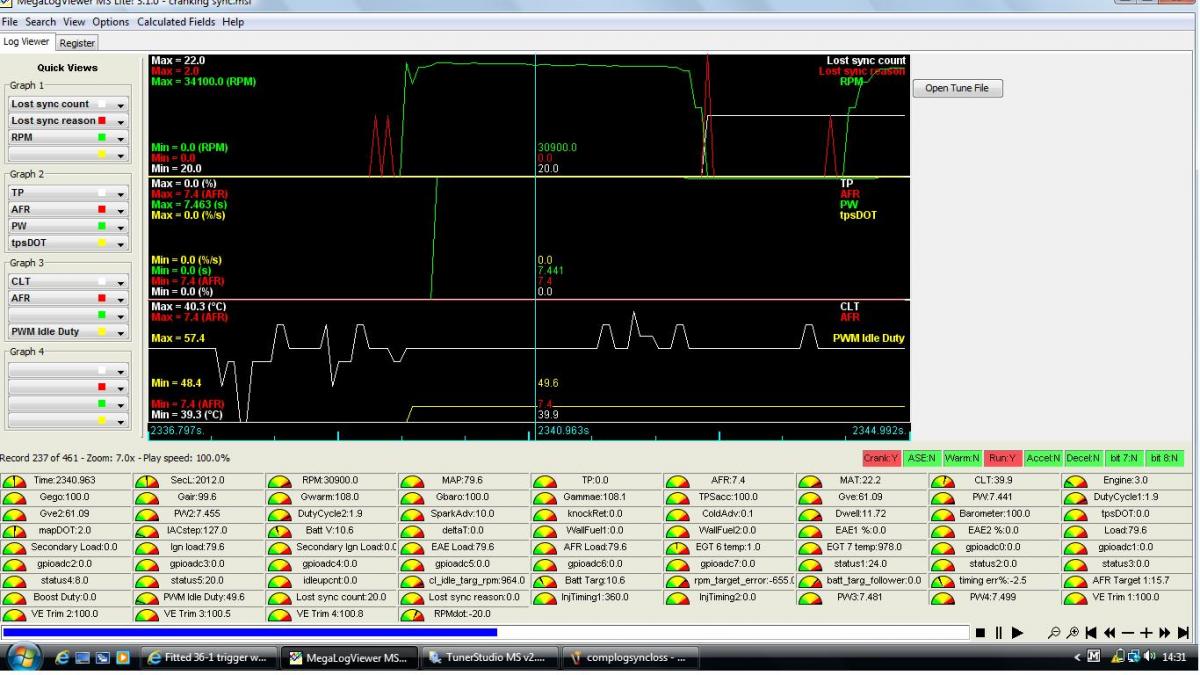

Fitted 36-1 trigger wheel, firing on 2 cylinders-complogsyncloss.jpg

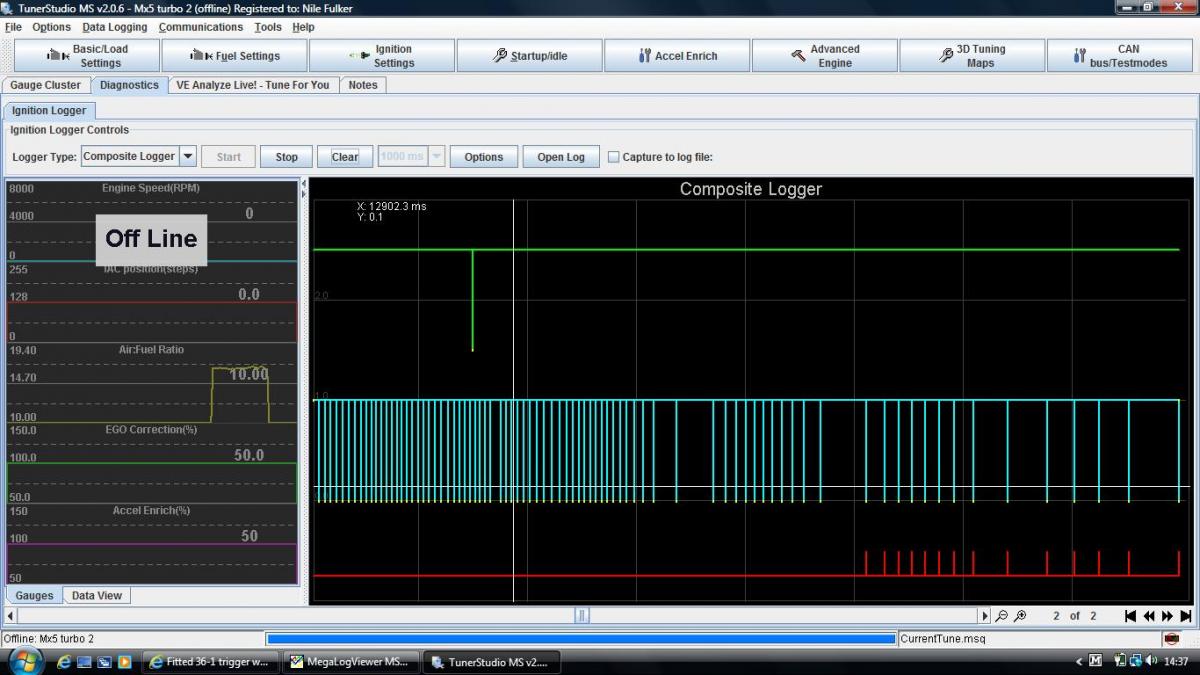

Fitted 36-1 trigger wheel, firing on 2 cylinders-cranksyncloss.jpg

I see I get error 1 and 2 for sync loss. What does error 1 init error mean?

Thanks
Attached Thumbnails

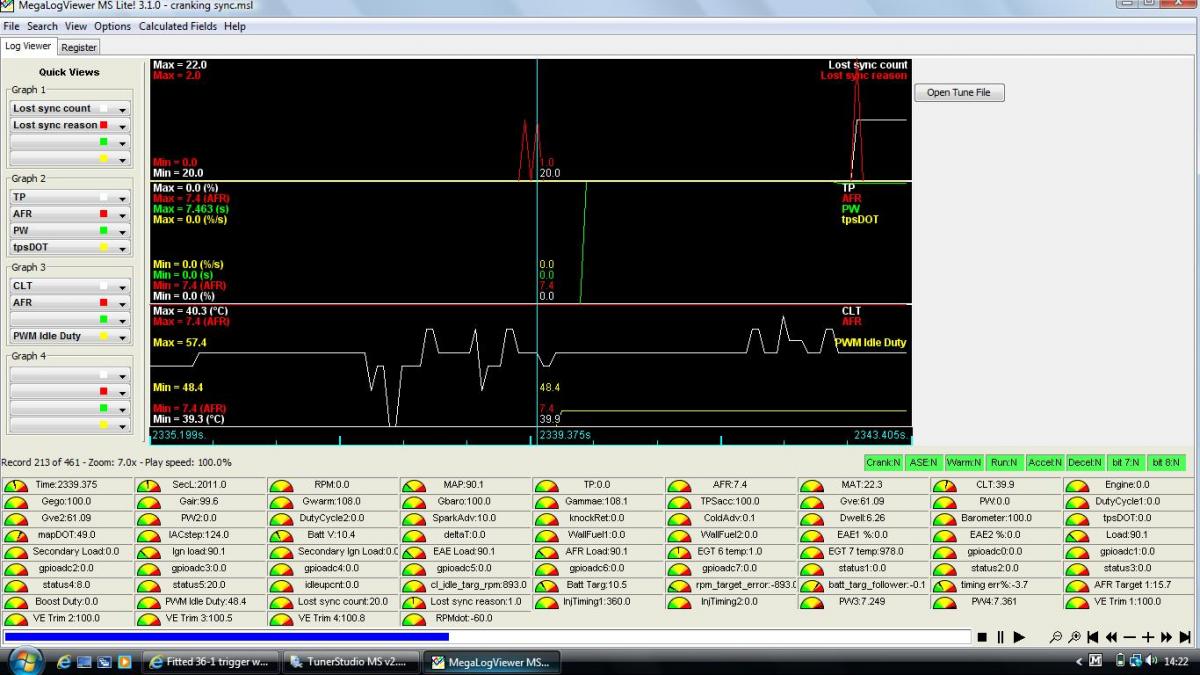

Fitted 36-1 trigger wheel, firing on 2 cylinders-cranking-lost-sync-codes.jpg
mxnige is offline   Reply With Quote
Old 10-02-2012, 10:43 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

doesnt appear to be really capturing your cam signal anymore, as well as skipping teeth on the crank.
Braineack is offline   Reply With Quote
Old 10-02-2012, 11:02 AM   #12
Newb
Thread Starter

Join Date: Mar 2011
Location: Sussex, England
Posts: 25
Total Cats: 0
Default

This is the latest comp log, it does have a regular cam posn signal.

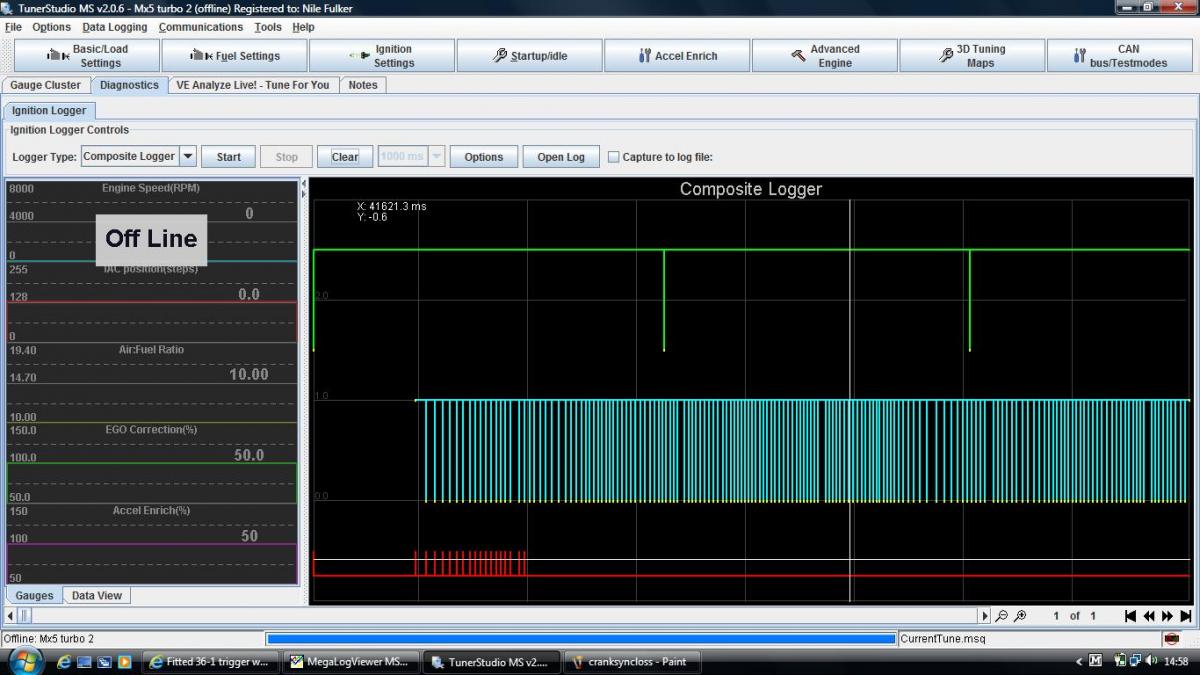

Fitted 36-1 trigger wheel, firing on 2 cylinders-complog2.jpg

I just want to confirm that the cam posn signal is supposed to be read before the missing tooth? Also that the polarity of the signals is correct?

Last edited by mxnige; 10-02-2012 at 01:20 PM. Reason: wrong screen shot
mxnige is offline   Reply With Quote
Old 10-02-2012, 11:04 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

cam needs to read anywhere but at the same time as the missing tooth, looks like you're okay juding by the above.

you have cam reading as rising and crnak as falling?
Braineack is offline   Reply With Quote
Old 10-02-2012, 11:07 AM   #14
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Ben View Post
If it's triggering reliably, it doesn't matter.
If he's using the protege 36-1 wheel, it's concave on one side, like Miata wheels. it should be mounted the right way because otherwise it pushes against the crank pulley.

OP you need to play with your VR pots.
soviet is offline   Reply With Quote
Old 10-02-2012, 11:12 AM   #15
Newb
Thread Starter

Join Date: Mar 2011
Location: Sussex, England
Posts: 25
Total Cats: 0
Default

Both are set to falling at the moment. I will try cam rising.

Does the DIYPNP have VR pots?
mxnige is offline   Reply With Quote
Old 10-02-2012, 11:16 AM   #16
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by mxnige View Post
Both are set to falling at the moment. I will try cam rising.

Does the DIYPNP have VR pots?
It should.
I just installed the same trigger wheel and had to play with pots to get it working. It still works but I have a lot of trigger error now, so I guess I need to fine-tune it.

Also, disable cam signal altogether now and just get the trigger wheel working. Switch to batch fuel and get the RPM signal nice.
And yes, cam tooth comes before missing trigger wheel tooth.
soviet is offline   Reply With Quote
Old 10-02-2012, 11:19 AM   #17
Newb
Thread Starter

Join Date: Mar 2011
Location: Sussex, England
Posts: 25
Total Cats: 0
Default

Still no start with the second trigger set to rising.

The weird thing is the car did start earlier and was idling ok.
mxnige is offline   Reply With Quote
Old 10-02-2012, 11:40 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by soviet View Post
It should.
depends on how you built it. You can add one and change the threshold of VR2 only.
Braineack is offline   Reply With Quote
Old 10-02-2012, 11:48 AM   #19
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Your previously posted composite logs looked great, but these look horrible. What has changed? Do you have a bad wire connection? Is your crank sensor not solidly mounted?

Exactly what sensors are you using? Is the CKP a VR type?
I'm assuming that CMP is hall or opto, modified from a CAS?
Ben is offline   Reply With Quote
Old 10-02-2012, 12:02 PM   #20
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I think he's using the stock 96 crank sensor which is VR.
On related note, would there be anything to gain by switching to 99-05 crank sensor? It's a hall and has same mounting and connector. Wiring would be trivial - just switch one wire from ground to 12V.
soviet is offline   Reply With Quote
