don't ground the black wire....
Braineack is online now   Reply With Quote
Old 02-21-2009, 07:50 PM   #22
Junior Member

Join Date: Sep 2007
Posts: 108
Total Cats: 0
Default

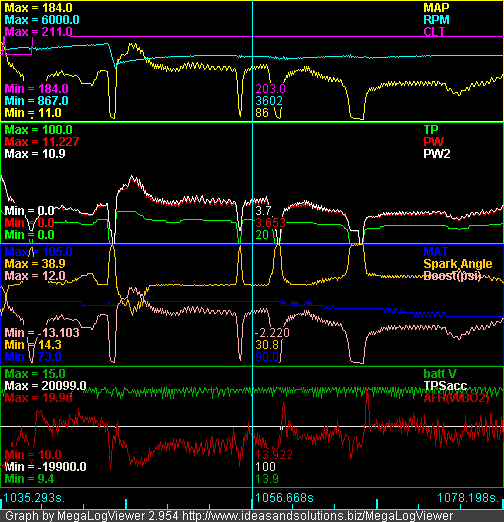

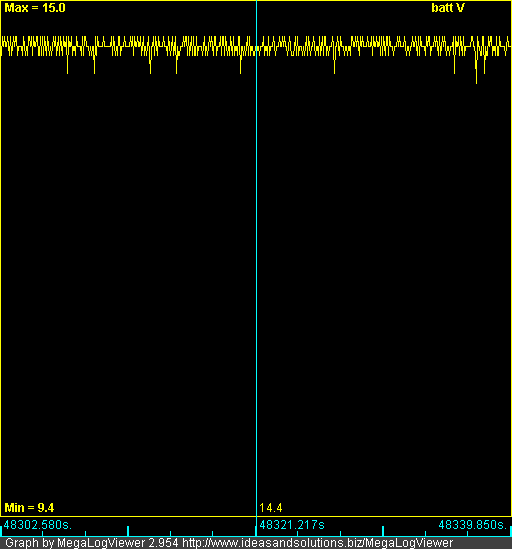

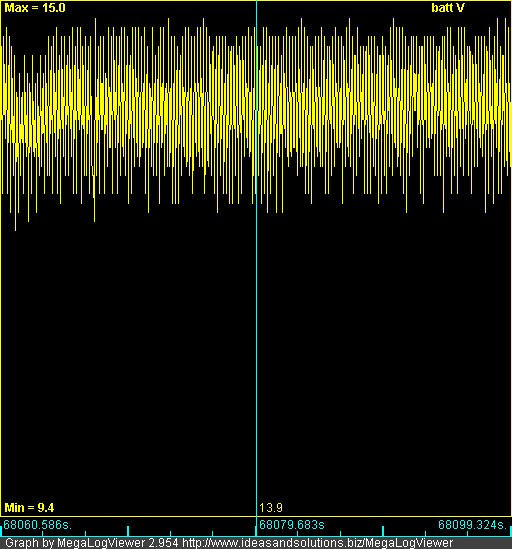

Your result was much better than mine. I had a PAC CSS12 filter installed on the power line (some other work was being done so I thought I would try and see if it helped the noise profile I was seeing). The jpg labeled Before is the BattV readout without the filter, the jpg labeled After is with the filter (it did not matter where it was grounded). It was much worse with the filter. The third jpg is the noise I am looking at trying to address, no luck so far. We pulled the noise filter.
Attached Thumbnails
FIXED my noisy MAP, TPS, AIT, CLT, and AFR signals for .50....-before.png   FIXED my noisy MAP, TPS, AIT, CLT, and AFR signals for .50....-after.png   FIXED my noisy MAP, TPS, AIT, CLT, and AFR signals for .50....-noise.png
aseer is offline   Reply With Quote
Old 02-24-2009, 10:37 AM   #23
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

One thing you can do to improve the performance of the choke (ebay "noise filter") is to add a 4700 uF / 16V capacitor across the MS.
JasonC SBB is offline   Reply With Quote
Old 02-24-2009, 11:12 AM   #24
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by JasonC SBB View Post
One thing you can do to improve the performance of the choke (ebay "noise filter") is to add a 4700 uF / 16V capacitor across the MS.
Across means between ground and +12V?
Zaphod is offline   Reply With Quote
Old 02-24-2009, 11:25 AM   #25
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Yes.
JasonC SBB is offline   Reply With Quote
Old 04-18-2009, 02:38 PM   #26
Junior Member

Join Date: Jan 2006
Location: Tucson, Az
Posts: 53
Total Cats: 0
Default

Which pins on the ECU did you install this across? 1A is listed as permanent power, 1B is 12V switched.
stinkonamonkey is offline   Reply With Quote
Old 04-22-2009, 09:58 PM   #27
Junior Member

Join Date: Dec 2008
Location: Alameda, CA & San Luis Obispo, CA
Posts: 79
Total Cats: 0
Default

You shouldn't remove the signal ground for the LC1 away from the MS, it would be wildly inaccurate if the ground potential was different between the LC1 and MS's signal ground.
djcommie is offline   Reply With Quote
Old 04-23-2009, 12:57 AM   #28
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by stinkonamonkey View Post
Which pins on the ECU did you install this across? 1A is listed as permanent power, 1B is 12V switched.

Hey stinky, Pat's been banned for a month or two now so I don't think he will be answering you anytime soon.

I miss Patrick...he was a good guy.
Stein is offline   Reply With Quote
Old 04-23-2009, 01:06 AM   #29
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Stein View Post
Hey stinky, Pat's been banned for a month or two now so I don't think he will be answering you anytime soon.

I miss Patrick...he was a good guy.
Seriously. Despite his seemingly condescending attitude he was a good member to have here.
wayne_curr is offline   Reply With Quote
