Old 05-25-2012, 09:11 AM   #41
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

post #33 in this thread - nevermind.

And, I must have had a major brainfart.. I looked at old pics of my gauge cluster (key on), I do not see a CEL there..
My bad.. Again.

Here:

Godless Commie is offline   Reply With Quote
Old 05-25-2012, 09:20 AM   #42
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

I was getting worried. Do know that your MS does have a working CEL output if you want to use it - pin 13 on the top connector.
Reverant is online now   Reply With Quote
Old 05-25-2012, 09:26 AM   #43
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

I will definitely look into that.

I also have question on knock intensity for you, but I need to finish this speech I am working on before I dig into the laptop for datalogs..
Godless Commie is offline   Reply With Quote
Old 05-25-2012, 09:27 AM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

lol he got one on post #33.
Braineack is offline   Reply With Quote
Old 05-25-2012, 09:30 AM   #45
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Why u make fun of me Brain?
Godless Commie is offline   Reply With Quote
Old 05-25-2012, 09:35 AM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

i mean its kinda funny that someone gave u a neg on that post, im hoping it was a misclick.
Braineack is offline   Reply With Quote
Old 05-25-2012, 09:39 AM   #47
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

We'll never know..
Godless Commie is offline   Reply With Quote
Old 05-25-2012, 09:50 AM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

well i mean i could figure it all out, but omg effort.
Braineack is offline   Reply With Quote
Old 05-25-2012, 09:55 AM   #49
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Would this make it worth your while?

Attached Thumbnails
General MS help please-cup_of_ice_cream.jpg
Godless Commie is offline   Reply With Quote
Old 05-30-2012, 06:13 PM   #50
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

What's intermittent here, ground or 12V?
Thanks..
Attached Files
File Type: msl highrpmmiss2012-05-30_22.41.36.msl (587.5 KB, 56 views)
Godless Commie is offline   Reply With Quote
Old 05-31-2012, 02:51 AM   #51
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Wow, I've never seen anything like this before. Did it start doing it after a while? I haven't seen this on any of your previous logs.
Reverant is online now   Reply With Quote
Old 05-31-2012, 08:31 AM   #52
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

It's gotta be one or more grounds. Values would be hitting "0" if it was the power supply.

All values seem to be skyrocketing, some in sysnc, some on their own.
Godless Commie is offline   Reply With Quote
Old 05-31-2012, 10:18 AM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

post on msextra. but im goign to say its a grounding issue, or something's shorting.
Braineack is offline   Reply With Quote
Old 05-31-2012, 05:20 PM   #54
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Found the culprit behind that weird log...

Today I checked everything and could not get the car to repeat the weirdness it had displayed.
Took a bunch of logs, did wiggle tests, did all I could, and no problems.

Then, I had an idea:
I plugged in my headphones, and the mic input to the laptop.
Bang. The problem came back in about 5 minutes.

Interference!

Over the past couple days, I built a couple of bolt on mics to listen for knock.
The idea was to plug the mic into the laptop via a two meter shielded cable, and use my headphones for listening.

I even downloaded a few programs (spectrum analyzers, etc) to play with the system.
Turns out, the setup interferes with MS big time.

Maybe I will use a second laptop (my wife's) to listen for knock.
Godless Commie is offline   Reply With Quote
Old 05-31-2012, 05:30 PM   #55
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Looks like the intereferce is on the serial port data received, not on the actual MS data, or else the engine would act really erratic.
Reverant is online now   Reply With Quote
Old 05-31-2012, 08:32 PM   #56
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Actually, it DID act funny. I had a bunch of high RPM misfires when this was happening.

I removed the microphone cable and the headphones altogether, and none of that is happening anymore.

On an unrelated note, I am making some progress..

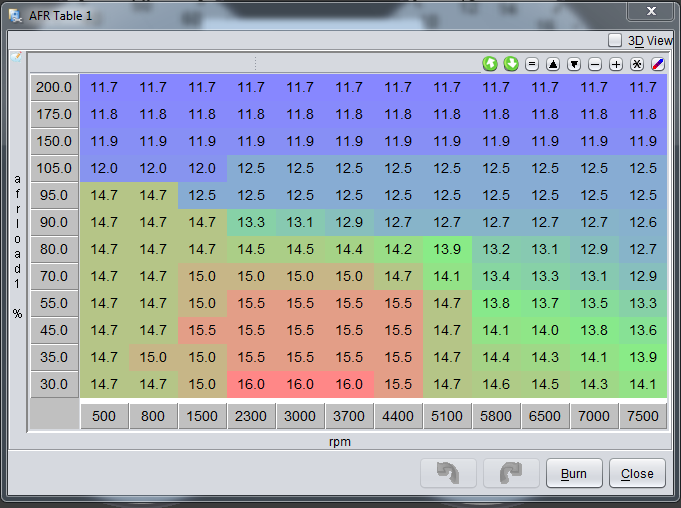

Here is my AFR table:

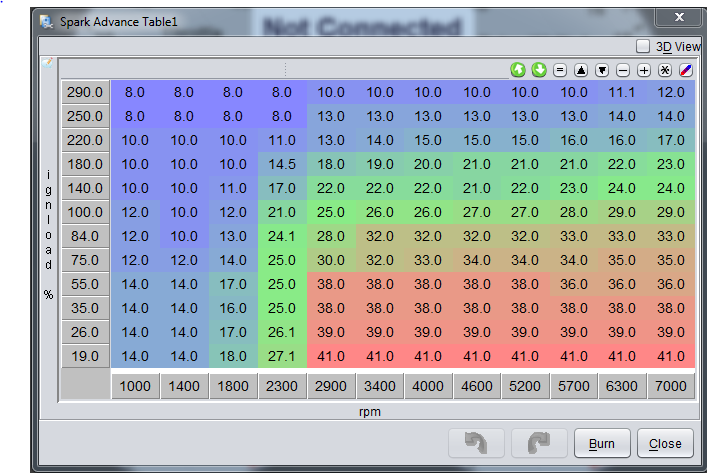

Ignition Advance:



And this is what VE looks like so far:



I still have a an unintended table switching problem. The water in the tanks may be sloshing too hard under really heavy acceleration. (I test the car on an uphill section, to really load the engine, that may be making the sloshing worse)
I can see that by examining the ign advance in the logs.
Is there a quick way to check which table is active at any given time without taking my eyes off the road for too long?
Attached Thumbnails
General MS help please-fuel.png   General MS help please-advancec.png
Godless Commie is offline   Reply With Quote
Old 05-31-2012, 08:36 PM   #57
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

On second thought, I will connect a LED to the water injection low water output to test my theory.
If that is not the case, I will have to make a manual switching system.

More stuff to play with!
Godless Commie is offline   Reply With Quote
Old 05-31-2012, 08:49 PM   #58
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

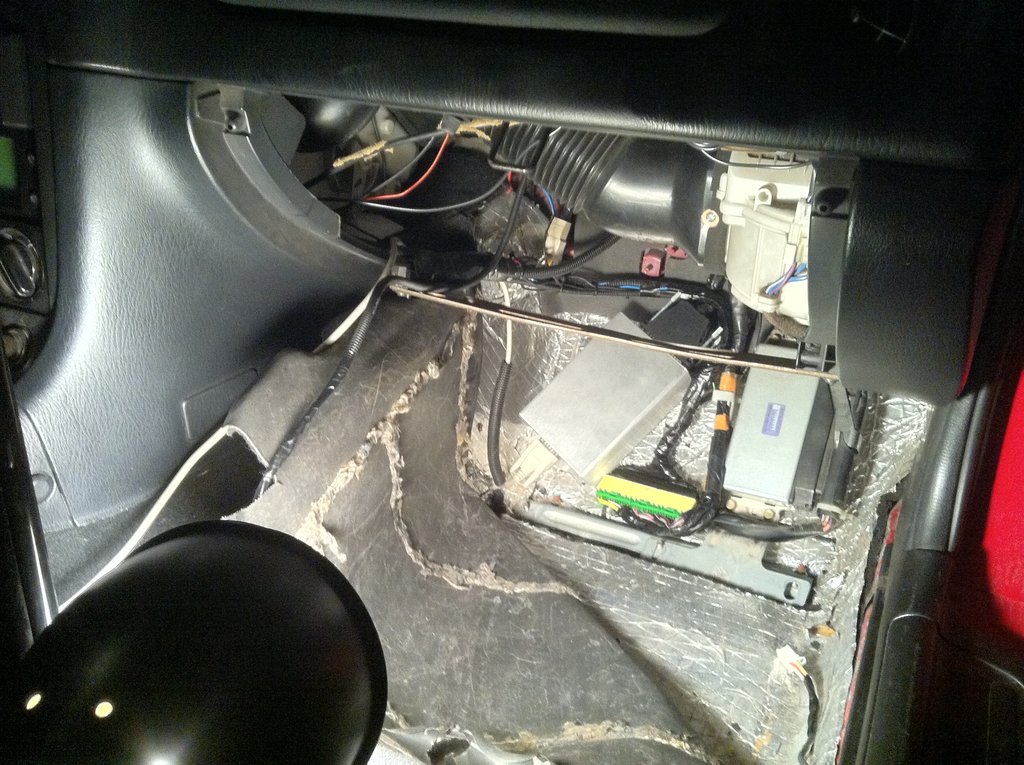

And, here is how I installed the MS:

Attached Thumbnails
General MS help please-img1828j.jpg
Godless Commie is offline   Reply With Quote
Old 06-01-2012, 03:39 AM   #59
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

I don't like the AFR table. What is your AFR at 130kPa? If it is more than 12...that's no good.

As for the table switching...there are indicators available in TS, called Fuel Tbl Sw and Spk Tbl Sw. They will go green when the switch is on.
Reverant is online now   Reply With Quote
Old 06-01-2012, 10:41 AM   #60
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

If I don't do that it dips far too low (rich) as I go past the 0psi (100kpa) mark.
