Default GM coils on a 99 turbo with MS3

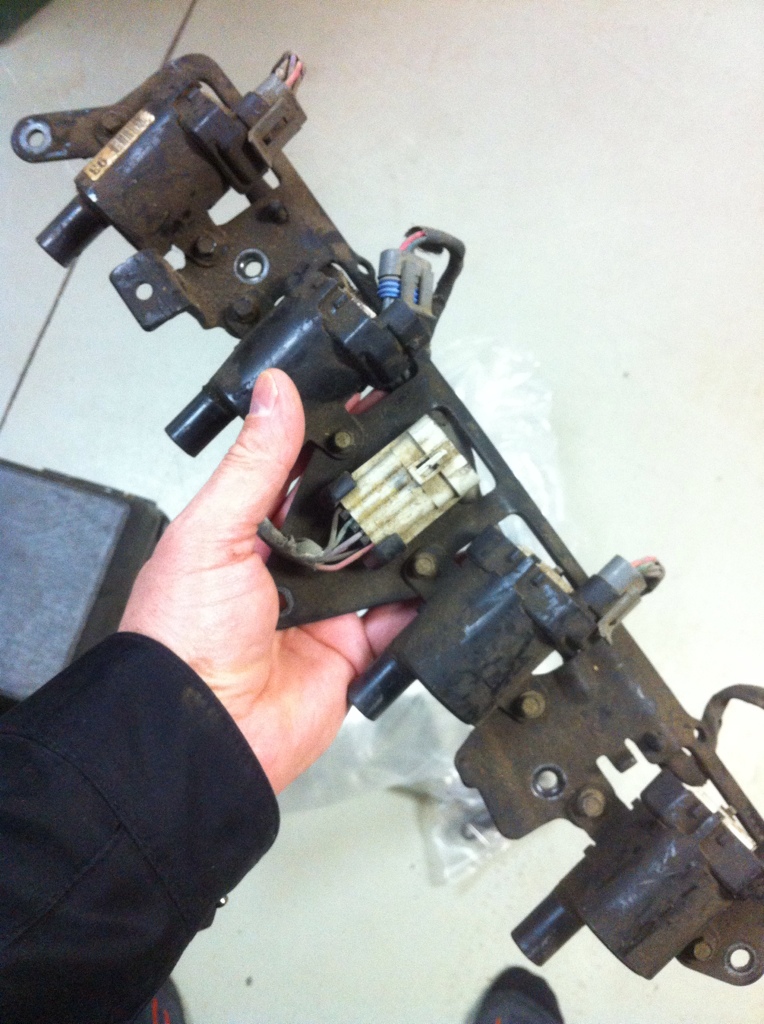

Building a 99 turbo car with MS3 and have been looking for information on wiring GM coils
So far I have the coils wiring diagram
and the car wiring diagram but I have not been able to find a wiring diagram that will tell me how to wire the secuential ignition signal from the MS3 (from Dimitris) on a 1999-2000 car and how to set it up on the MS3, perhaps some of that information will come with the MS installation instructions but I'm trying to get the wiring done now before installing the engine and getting the MS in a month
Help is greatly appreciated.
Attached Thumbnails
GM coils on a 99 turbo with MS3-4c4182a8-47c4-420e-b382-e66153770412-3266-0000066ef86da19c.jpg   GM coils on a 99 turbo with MS3-d19a9534-232a-4514-80b1-0d6cc7c375ad-3266-000006723f0e1bc1.jpg
HHammerly is offline   Reply With Quote
Old 04-01-2013, 11:47 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

all you need to know is where Dimitris has put spark C and D. otherwise the above is all you need.
Braineack is online now   Reply With Quote
Old 04-01-2013, 11:47 AM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Look in my build thread. I have details back from probably January 2012 time frame of how I wired them for my MS3x I believe. There are also a few threads about running LS coils floating around that have tons of details.
shuiend is offline   Reply With Quote
Old 04-01-2013, 12:12 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Sequential A is on "MS3X" pin 10.
Sequential B is on "MS3X" pin 29.
Sequential C is on "MS3X" pin 11.
Sequential D is on "MS3X" pin 30.
Reverant is online now   Reply With Quote
Old 04-01-2013, 03:39 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Thanks i think that this will get me going.
shuined what is the name of your build tread?
