Default GM Ebc woes

I've been working with Scott and Brian trying to figure this out and we think it's an MS problem.

I've hooked up the EBC in many different ways with my mbc and nothing seems to work. The last thing I did was hook it up alone without my mbc, and set my DC table to all 100's and it over boosts, I then tried all zeros and it still over boosts. I know the solenoid is working because it clicks when I wire it to the battery. I can blow through it when its disconnected and when it is connected it's obviously closing since I'm over boosting so the power feed is good. The only thing it could be is ms, but where in MS? The ms connection itself, a problem on the board or a problem with settings.

Anyone?

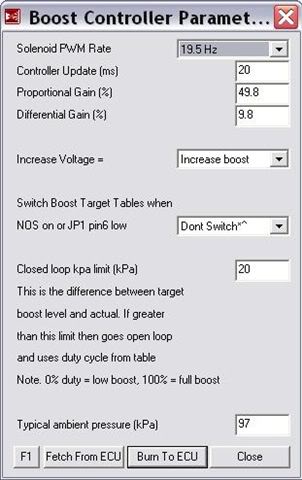

Name:  boostsettings.jpg
Views: 8

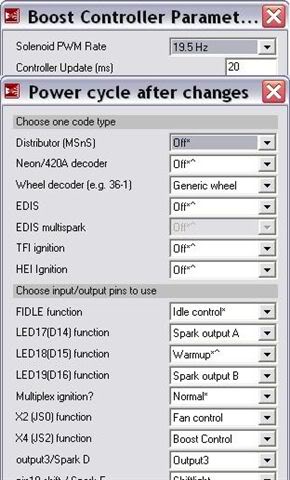

Size:  27.2 KBName:  settings.jpg
Views: 5
Size:  32.9 KB

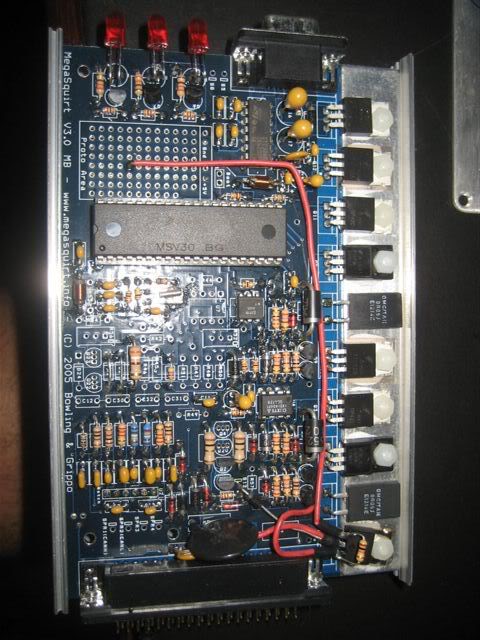

Name:  IMG_0519.jpg
Views: 5
Size:  78.4 KB

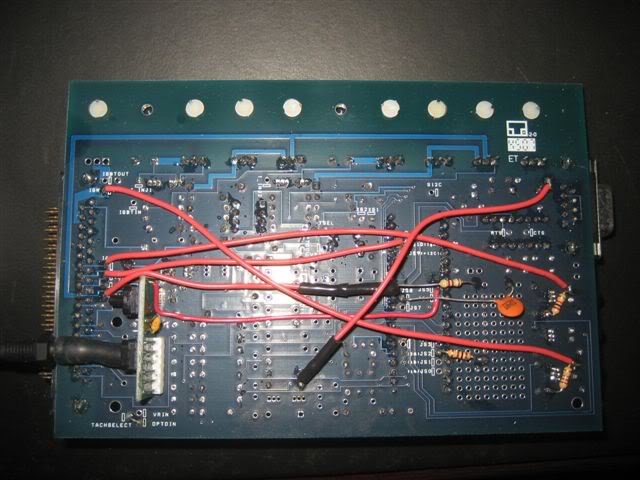

Name:  IMG_0520.jpg
Views: 3
Size:  56.4 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-04-2009, 03:04 PM   #2
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by levnubhin View Post
I've been working with Scott and Brian trying to figure this out and we think it's an MS problem.

I've hooked up the EBC in many different ways with my mbc and nothing seems to work. The last thing I did was hook it up alone without my mbc, and set my DC table to all 100's and it over boosts, I then tried all zeros and it still over boosts. I know the solenoid is working because it clicks when I wire it to the battery. I can blow through it when its disconnected and when it is connected it's obviously closing since I'm over boosting so the power feed is good. The only thing it could be is ms, but where in MS? The ms connection itself, a problem on the board or a problem with settings.

Anyone?


my closed loop KPA is 0
but i have a diff EBC
tyson87 is offline   Reply With Quote
Old 08-04-2009, 03:06 PM   #3
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Tyson, My MS wont accept anything lower than 20

Here's the 2 of the 3 ways I tried running it. The last was was without the ebc.

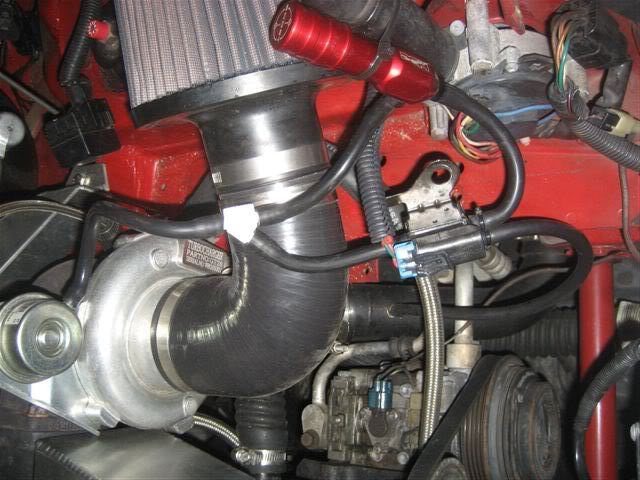

Name:  IMG_0514.jpg
Views: 3
Size:  65.5 KB

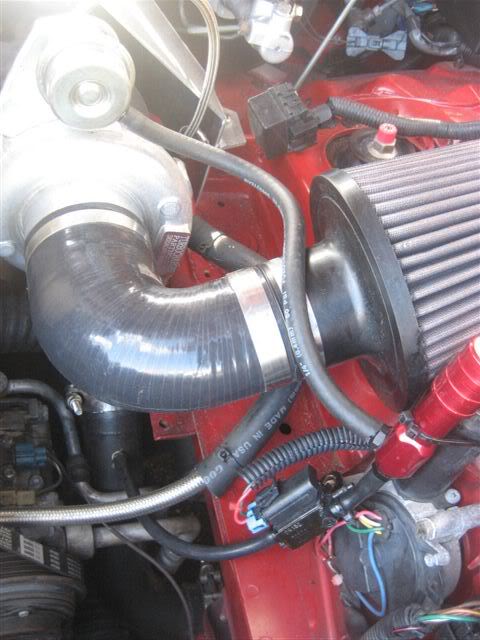

Name:  IMG_0517.jpg
Views: 5
Size:  58.1 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-04-2009, 03:10 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Swap one of the gauges to a BoostDCGauge. Are you actually getting 100% DC or 0% DC?
Matt Cramer is offline   Reply With Quote
Old 08-04-2009, 03:15 PM   #5
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

shouldnt the EBC and MBC be wired in parrellel?
tyson87 is offline   Reply With Quote
Old 08-04-2009, 03:21 PM   #6
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Matt Cramer View Post
Swap one of the gauges to a BoostDCGauge. Are you actually getting 100% DC or 0% DC?

I don't see a BoostDCGauge. I see batADCGauge, boostgauge and 3 diff baro gauges.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-04-2009, 03:30 PM   #7
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by levnubhin View Post
I don't see a BoostDCGauge. I see batADCGauge, boostgauge and 3 diff baro gauges.
i dont have this gauge either
tyson87 is offline   Reply With Quote
Old 08-04-2009, 03:41 PM   #8
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Could this problem be caused by an uncalibrated TPS?

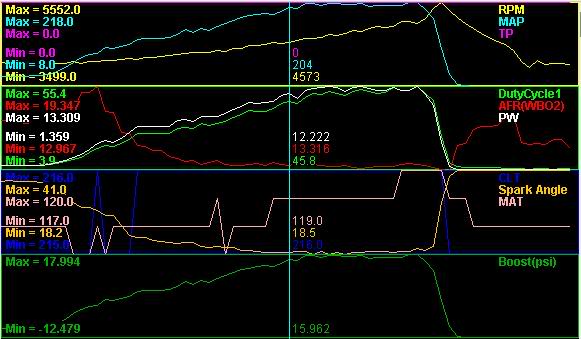

Name:  Datalogshot.jpg
Views: 4
Size:  37.0 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-04-2009, 03:42 PM   #9
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by tyson87 View Post
shouldnt the EBC and MBC be wired in parrellel?
+1

Find the other thread on this (Steins?) he finally got it working.
Laur3ns is offline   Reply With Quote
Old 08-04-2009, 03:53 PM   #10
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Looks like youre missing the diode that DIY recommends be placed at the boost controller.
Saml01 is offline   Reply With Quote
Old 08-04-2009, 04:05 PM   #11
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by tyson87 View Post
shouldnt the EBC and MBC be wired in parrellel?
Quote:
Originally Posted by Spookyfish View Post
+1

Find the other thread on this (Steins?) he finally got it working.
It isn't a problem with how the ebc is hooked up. Even when I ran it with just the ebc it didn't work.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-04-2009, 04:20 PM   #12
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sam just pointed out to me that I don't have a diode at the solenoid like in this pic. Could that be the problem?

http://www.boostedmiata.com/MS/msebcwiring.jpg
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-04-2009, 10:19 PM   #13
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 08-04-2009, 10:39 PM   #14
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
I've hooked up the EBC in many different ways with my mbc and nothing seems to work.
Did you try it Paul's way, as described in post 39 here: https://www.miataturbo.net/forum/t30067-2/#post389112 .... this works great for him, me, and probably others too.
evank is offline   Reply With Quote
Old 08-04-2009, 10:48 PM   #15
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by evank View Post
Did you try it Paul's way, as described in post 39 here: https://www.miataturbo.net/forum/t30067-2/#post389112 .... this works great for him, me, and probably others too.

My problem isn't how I'm hooking it up. MS isn't opening/closing it. I tried the most simple way (ebc alone) and nothing.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-05-2009, 01:56 AM   #16
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Come to NY, bring ur MS with you lol. Ill sort it out.
Saml01 is offline   Reply With Quote
Old 08-05-2009, 10:12 AM   #17
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Come to NY, bring ur MS with you lol. Ill sort it out.

Lol, suuuuuure.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-05-2009, 10:20 AM   #18
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Sorry, that should have read "bcDCgauge" - that's what MT is calling it with MS1/Extra.
Matt Cramer is offline   Reply With Quote
Old 08-05-2009, 11:17 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Saml01 View Post
Looks like youre missing the diode that DIY recommends be placed at the boost controller.
look at the FET itself.
Braineack is offline   Reply With Quote
Old 08-05-2009, 01:52 PM   #20
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
look at the FET itself.
so what do u recomend the problem is?
tyson87 is offline   Reply With Quote
