Default Have I built my MS1V3 incorrectly?

Hey Guys,

I have recently bought a pre assembled MS1 V3. I have carried out the Miata specific modifications as it says on the Wiki, the only problem is I followed the diagrams on on MS2 page Will this be ok or do I need to carry out the MS1 mods?
Rob E is offline   Reply With Quote
Old 01-01-2012, 10:07 PM   #2
Newb
Thread Starter

Join Date: Nov 2010
Posts: 6
Total Cats: 0
Default

Anyone help me with this?
Rob E is offline   Reply With Quote
Old 01-02-2012, 11:48 AM   #3
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

MS2 diagrams won't quite work for MS1; several pins are different.
Matt Cramer is offline   Reply With Quote
Old 01-02-2012, 12:52 PM   #4
Newb
Thread Starter

Join Date: Nov 2010
Posts: 6
Total Cats: 0
Default

Doh! Thanks for letting me know, I will rectify them before installation. I have carried out the Joe. P Spark mod too, does this need to be removed aswell?
Rob E is offline   Reply With Quote
Old 01-02-2012, 01:01 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

no that's fine. it's really only the tach input mod that matters.

that and js9 should not connect to anything.
Braineack is offline   Reply With Quote
Old 01-02-2012, 02:19 PM   #6
Newb
Thread Starter

Join Date: Nov 2010
Posts: 6
Total Cats: 0
Default

Thanks Brian, so can I just clarify if I leave the CKP mod (470 ohm resistor to D1 and D9) out, am I going to have any issues? Only reason I ask is because I ran out of 470 ohm resistors :(
Rob E is offline   Reply With Quote
Old 01-02-2012, 07:05 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

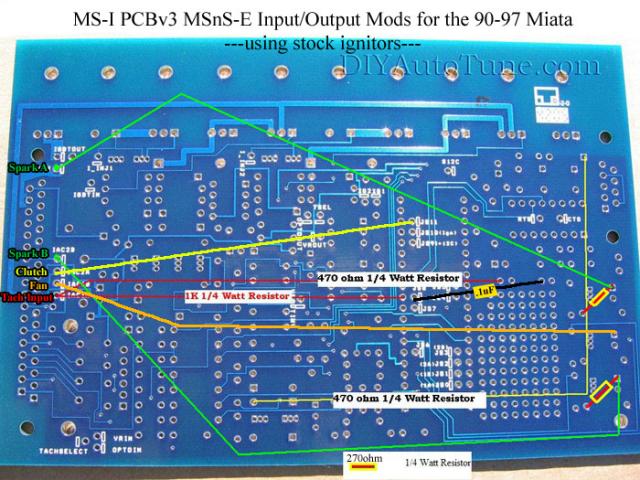

you need to follow this: Mainly the red wire/resistors/ off the labeled tach input. the yellow wire/resistor. and that .1uf cap.

the rest should matter, but if the spark outputs are crossed you should uncross them.

D1 and D2 should be jumped, and R12 should be the stock resistor.
Attached Thumbnails
Have I built my MS1V3 incorrectly?-miata_mods.jpg
Braineack is offline   Reply With Quote
Old 01-03-2012, 06:33 AM   #8
Newb
Thread Starter

Join Date: Nov 2010
Posts: 6
Total Cats: 0
Default

Great help thanks Brian. I have D1 and D2 jumped and a 470 ohm 1/4w resistor in R12. I have my spark outputs the other way round from that diagram like it said on the Joe P spark mod. Do I need to change these back even with this mod?
Rob E is offline   Reply With Quote
Old 01-03-2012, 09:31 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

yes, just change the IGN with IAC2B position (its a matter of the MS2 and MS1 having different Spark As). You can leave the 470ohm, shouldn't be a big deal.
Braineack is offline   Reply With Quote
Old 01-03-2012, 12:29 PM   #10
Newb
Thread Starter

Join Date: Nov 2010
Posts: 6
Total Cats: 0
Default

Thanks again - carried out the above modifications and she started very roughly but i think thats just down to needing to calibrate everything. Only issue I had is megatune kept reporting a conflict with signatures. The units signature kept coming up as question marks? It hooks up fine in tunerstudio
Rob E is offline   Reply With Quote
