Default help getting started

I purchased a megasquirt from a forum member. It is for a 2004 MSM. It arrived in new condition, but without any instructions or CD's. I'm not even sure if it's complete!? I've been holding onto it while I read up on what else I'll need and how to install it. If I can get it installed, and the car basically running, then I plan to take it to another local Forum member who will help with the tuning... I just don't want to bring Curly a "basket case".



Q1: Is there application specific instructions available? I figured that the install info would be online, but as of yet I'm unable to find a specific instruction set, or youtube video for my application.

Q2: What are those 4 unused wires in the harness used for?

Q3: An online tutorial for a different version said that I had to remove my "st" fuse. Is this needed for my application?

Q4: Don't I need to use a GM air temp sensor? If so, do I just wire it into the existing OEM plug?

Q5: Where does the wideband hook in?

thanks for pointing me the right direction. cj
Attached Thumbnails

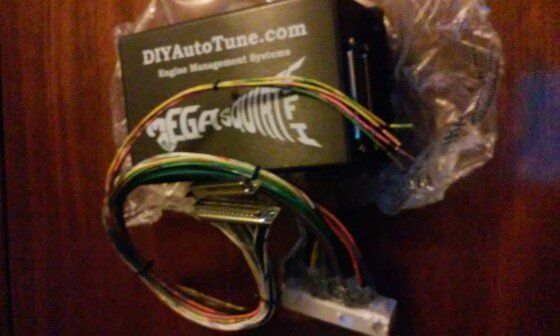

help getting started-80-1458700763668_g_09e1dc34a197a2e794d69c402dfa7d5a55651074.jpg

Last edited by gtred; 03-23-2016 at 02:23 PM.
gtred is online now   Reply With Quote
Old 03-23-2016, 04:09 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

who'd you buy it from?
Braineack is offline   Reply With Quote
Old 03-23-2016, 05:25 PM   #3
Junior Member
Thread Starter

Join Date: Apr 2011
Location: Oregon
Posts: 277
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
who'd you buy it from?
Daniel, his forum name is 95M. No complaints here; he seems to be a nice enough guy, I just didn't ask him enough questions. https://www.miataturbo.net/miata-par...s3x-msm-85646/

Last edited by gtred; 03-23-2016 at 05:43 PM.
gtred is online now   Reply With Quote
Old 03-23-2016, 05:32 PM   #4
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 874
Total Cats: 93
Default

I'd be careful using something that you don't know anything about. Not that's it's a bad Megasquirt, I'm sure it's not at all. But, the way you figure out where those 4 wires go to is follow them to the connector, figure out what pin they are on, trace that pin to the circuit board and figure out what it does. This is why it's either nice to buy a PNP, buy directly from Brain where you get instructions, buy a DIYPNP where there's pretty much one way to assembly it and you can find instructions, or you build it yourself so you learn about it.
acedeuce802 is offline   Reply With Quote
Old 03-23-2016, 05:51 PM   #5
Junior Member
Thread Starter

Join Date: Apr 2011
Location: Oregon
Posts: 277
Total Cats: 7
Default

Quote:
Originally Posted by acedeuce802 View Post
I'd be careful using something that you don't know anything about. Not that's it's a bad Megasquirt, I'm sure it's not at all. But, the way you figure out where those 4 wires go to is follow them to the connector, figure out what pin they are on, trace that pin to the circuit board and figure out what it does. This is why it's either nice to buy a PNP, buy directly from Brain where you get instructions, buy a DIYPNP where there's pretty much one way to assembly it and you can find instructions, or you build it yourself so you learn about it.
Yes. I just edited/ posted the sale thread. I hoped that since 95m referenced it as a braineack build that it would be a straightforward install process. I just need to get up to speed on the basics. Excited to finally get started!
gtred is online now   Reply With Quote
Old 03-23-2016, 06:39 PM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Braineack should get you directions. I know he has been working on baller new ones. The real question is what year miata is it going into? If it is not going into a NB2 you will most likely need a different wiring harness to make it work with whatever year your have.
shuiend is offline   Reply With Quote
Old 03-23-2016, 06:49 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Quote:
Originally Posted by shuiend View Post
The real question is what year miata is it going into? If it is not going into a NB2 you will most likely need a different wiring harness to make it work with whatever year your have.
This.

I most definitely made that MS. and I'll most definitely make it work for you.
Braineack is offline   Reply With Quote
Old 03-23-2016, 07:00 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2011
Location: Oregon
Posts: 277
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
This.
Its going into a 2004 mazdaspeed miata. The pertinent engine mods are: squaretop, bigger intake/intercooler, 450cc injectors, Walbro, garret 2860, 3" exhaust.
gtred is online now   Reply With Quote
Old 03-23-2016, 07:05 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

you should be golden. PM me.
Braineack is offline   Reply With Quote
Old 03-24-2016, 08:55 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Quote:
Originally Posted by Braineack View Post
you should be golden. PM me.
but to answer those questions for future reference:


Q1: Is there application specific instructions available? I figured that the install info would be online, but as of yet I'm unable to find a specific instruction set, or youtube video for my application.


my installation docs are available in my for sale thread sticky post.

Q2: What are those 4 unused wires in the harness used for?

the wires are labeled, but on your harness:

Yellow/Green and Yellow/Pink - Spark C and Spark D
Pink - WBo2 input
Green / Red - EBC output


Q3: An online tutorial for a different version said that I had to remove my "st" fuse. Is this needed for my application?

That is only necessary on 90-93 MSPNP units bought from diyautotune.com.


Q4: Don't I need to use a GM air temp sensor? If so, do I just wire it into the existing OEM plug?

Your harness should be wired up to your second AIT sensor, post IC. You might need to confirm the calibration values for that sensor and update your unit with them (very very very easy in software)

Q5: Where does the wideband hook in?


Pink wire on the harness.
Braineack is offline   Reply With Quote
Old 03-25-2016, 12:55 PM   #11
Junior Member
Thread Starter

Join Date: Apr 2011
Location: Oregon
Posts: 277
Total Cats: 7
Default

Thank you. I will look at this further this weekend.
