Old 01-30-2014, 06:23 AM   #41
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Zaphod View Post

Any sealed connector with enough pins that you have a male an female off...
I used weatherpack(?) connectors with new pins and seals, you can get them cheap...
Perfect. Thank you again Zaphod, can't say that enough. If ever in this part of the world feel free to stop by and drive the **** out of my car.
Jeffbucc is offline   Reply With Quote
Old 01-30-2014, 08:36 AM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Quote:
Originally Posted by Zaphod View Post
@Brain - I suspect there should be wires for the sequential injection, where could they be at the 16pin connector or at the MS3 36pin connectors?
need to trace all the wires on the 16 pin connector back to teh pins on the DB37s respectfully.



once that is done, figuring out what wire goes where will be easily.

I kinda remember making this, where someone was upgrading from a DIYPNP and he wanted me to make his 16pin connector the same.

looks like there's at least (2) 12v sources, (2) grounds, Spark C, Spark D, VICS out, WBO2 in, EBC OUT, Knock IN, maybe Tachout is the last, under sure why.
Braineack is offline   Reply With Quote
Old 01-30-2014, 09:29 AM   #43
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

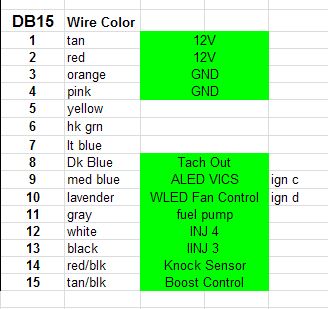

Hi I think this snipplet gives us the best starting point:



@Jeff - Please post close up pics of that 16pin connector (back) and as Brain said try to see, to which pin on the DB36 connectors the wires are going.

@Brain - I think you missed the two extra injector outputs.

I would be interested to see, how the original owner managed the connection on the two injector connectors (3/4)
Attached Thumbnails
Help tracking down MS3 wiring issues/diagram-pinout_db15_jeff.jpg

Last edited by Zaphod; 01-30-2014 at 09:49 AM.
Zaphod is offline   Reply With Quote
Old 01-30-2014, 09:53 AM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Came out of a 1.8L car right? Don't see why it would be running batch injection on a car setup to run seq.
Braineack is offline   Reply With Quote
Old 01-30-2014, 10:03 AM   #45
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Braineack View Post
Came out of a 1.8L car right? Don't see why it would be running batch injection on a car setup to run seq.
Yeah, but the car itself was a 93 including the wiring - so there have to be extra wires for the seq. injection - or am I missing something...? And you can see in the DB15 pinout of his DIYPNP that he had 2 extra injection outputs on that DB15...
Zaphod is offline   Reply With Quote
Old 01-30-2014, 10:05 AM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

oh maybe not, this is why you gotta trace the harness wires back.

i cant tell if 4Y and 4Z are populated. Doesn't seem to be enough wires on that 16pin to cover it all -- possible it doesn't have any seq. injection outputs populated. dunnoz
Braineack is offline   Reply With Quote
Old 01-30-2014, 10:15 AM   #47
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

O.K. so Jeff the Brain has spoken...- you know what to do - make some good pictures, trace the wires and do a little spreadsheet pin on the extra connector vs. pin on DB36 MS3 or MS3X
Zaphod is offline   Reply With Quote
Old 01-30-2014, 12:29 PM   #48
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Zaphod View Post
O.K. so Jeff the Brain has spoken...- you know what to do - make some good pictures, trace the wires and do a little spreadsheet pin on the extra connector vs. pin on DB36 MS3 or MS3X


Can do.
Jeffbucc is offline   Reply With Quote
Old 01-30-2014, 12:36 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

yeah cause if you're like: the pink wire on the connector goes to pin-32 on the lower db37. I'd be like: okay that's the fuel pump out.
Braineack is offline   Reply With Quote
Old 01-30-2014, 02:10 PM   #50
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Yeah but that is because you are:

Attached Thumbnails
Help tracking down MS3 wiring issues/diagram-pinky_brain.gif
Zaphod is offline   Reply With Quote
Old 01-30-2014, 02:31 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

or i have a handy spreadsheet that lists all the ms3 and expander pinouts?
Braineack is offline   Reply With Quote
Old 01-30-2014, 02:35 PM   #52
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Braineack View Post
or i have a handy spreadsheet that lists all the ms3 and expander pinouts?
I'll take it but I'll also make a spreadsheet of the pin connectors for you as well.
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 12:23 AM   #53
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

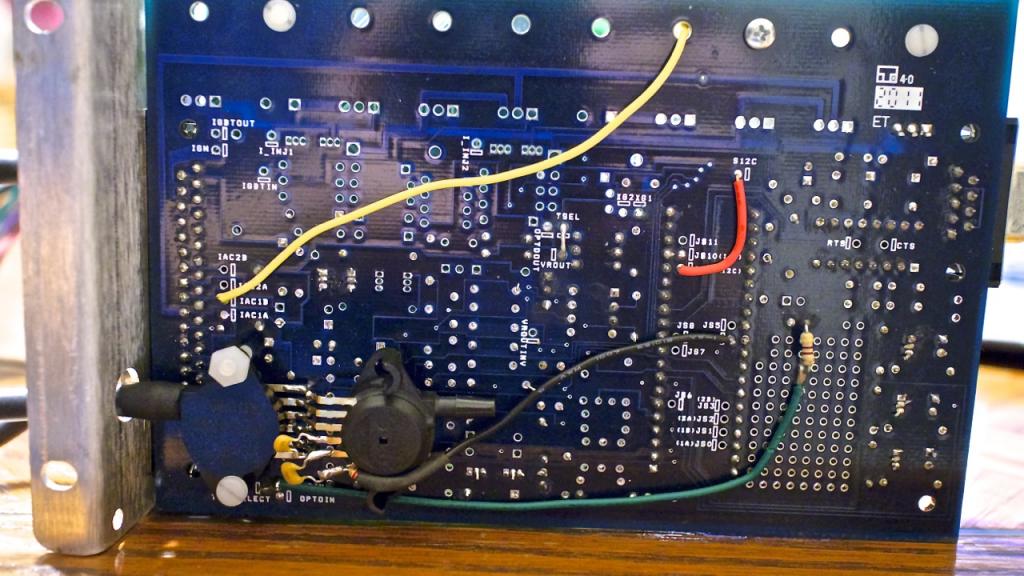

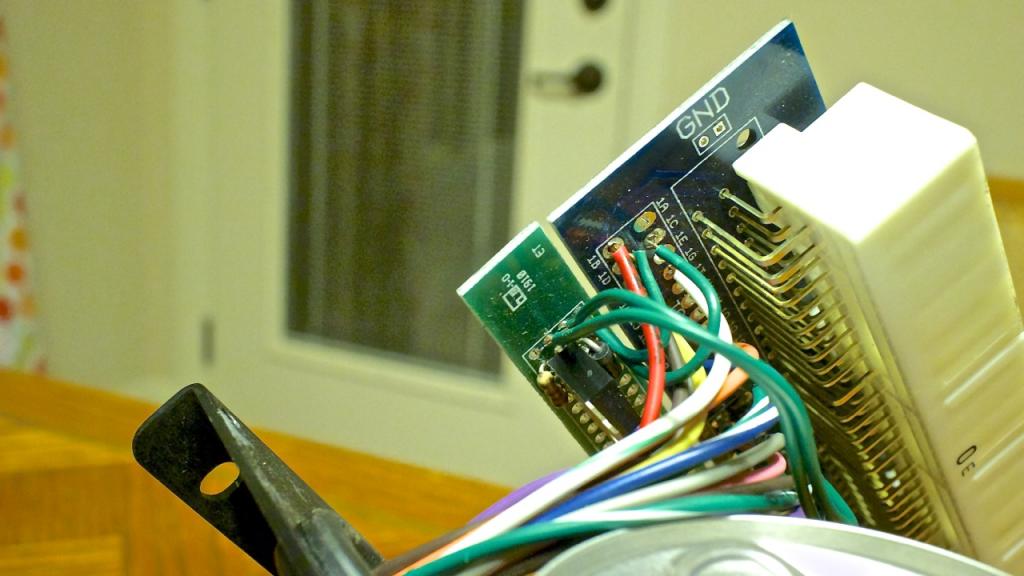

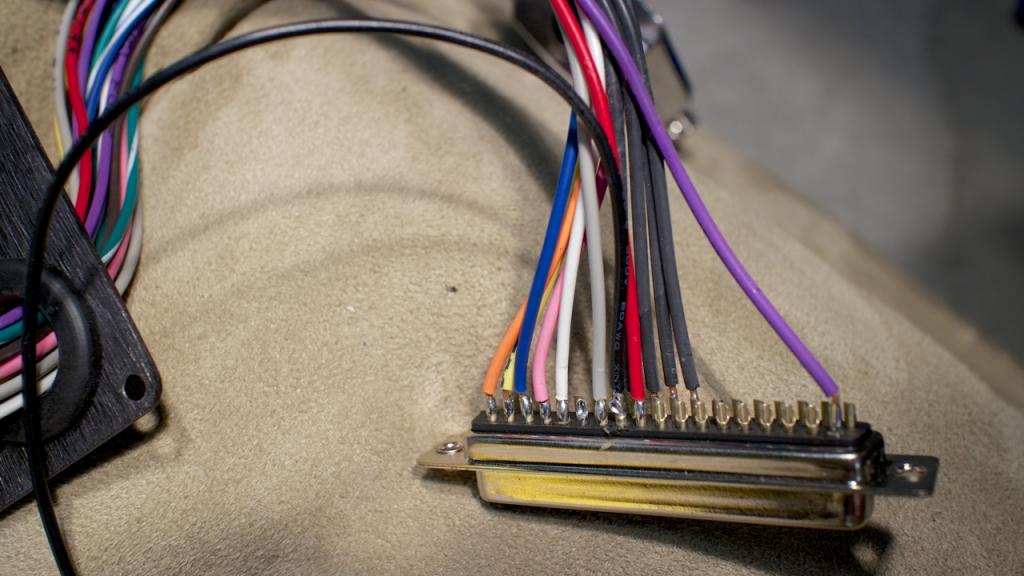

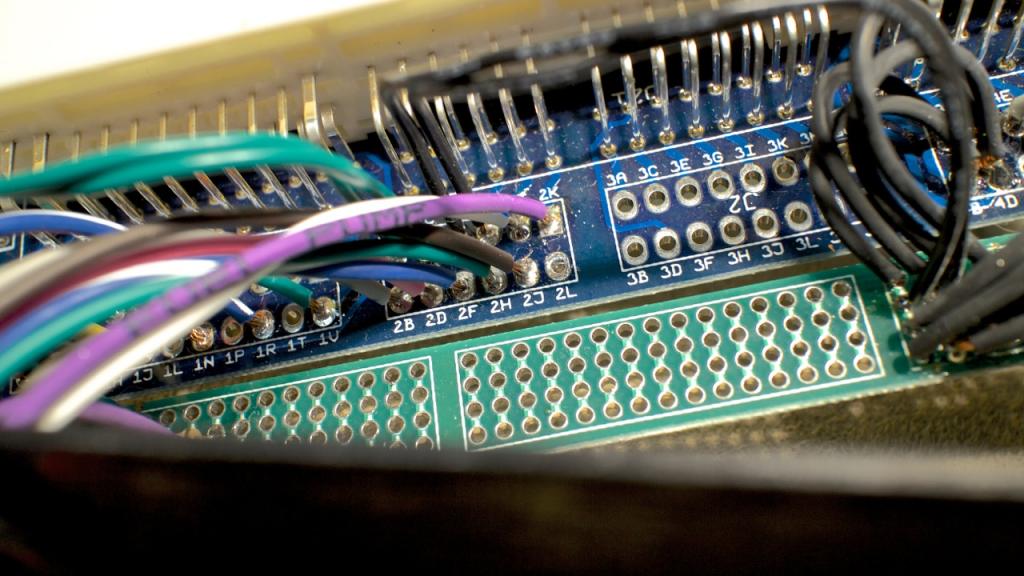

OK Brain, finally got some good pictures of the board for you. I hope this helps.

Pins are labelled as followed

2A 2C 2E 2G 2i 2K
2B 2D 2F 2H 2J 2L






2A 2C 2E 2G 2i 2K
2A-Brown(PIN35)
2C-Red(12VDC)
2E-Orange(IAT)
2G-Pink(02)
2i-Yellow(Coolant)
2K-Green/Yellow(IAC2-A)

2B 2D 2F 2H 2J 2L
2B-Blue(TPS-SIG)
2D-Blue/White(Blank)
2F-White(Blank)
2H-Black(Blank)
2J-Brown(Blank)
2L-No pin in connector


This harness has an odd single pin connector coming off the harness. It is the black wire between red & grey.

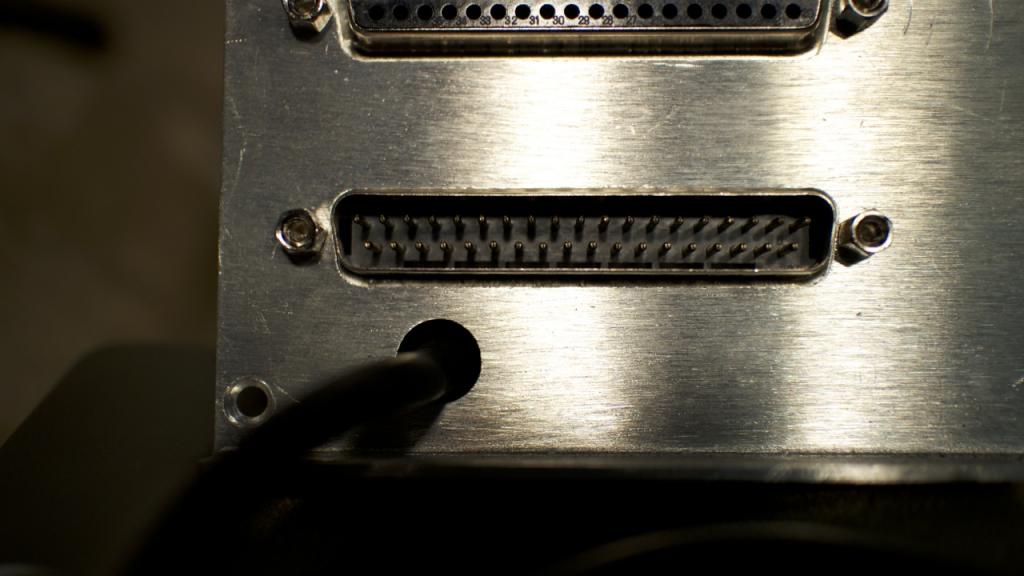

The harness goes into this lower port.

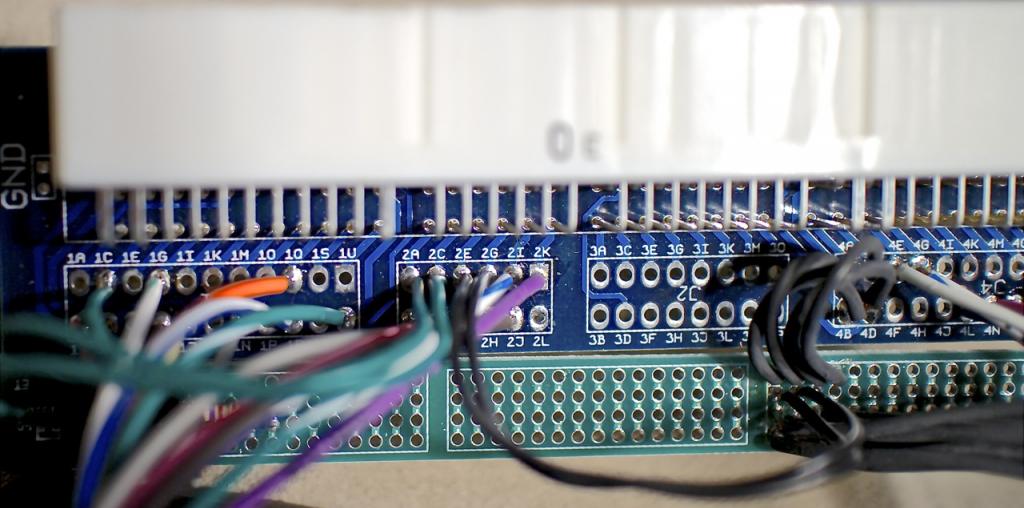

Attached Thumbnails
Help tracking down MS3 wiring issues/diagram-img_2167.jpg   Help tracking down MS3 wiring issues/diagram-img_2169.jpg   Help tracking down MS3 wiring issues/diagram-img_2172.jpg   Help tracking down MS3 wiring issues/diagram-img_2174.jpg
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 01:37 PM   #54
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

I'm still not following where the wires in the first pic end up.

the only thing I can tell from the pics is that

2E and 2G are grounds. That's it. Your pinout listing below the pics doesn't make any sense to me.

you have to trace the wires from 2A-2L all the way back to the harness they are in.
Braineack is offline   Reply With Quote
Old 03-14-2014, 02:04 PM   #55
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Braineack View Post
I'm still not following where the wires in the first pic end up.

the only thing I can tell from the pics is that

2E and 2G are grounds. That's it. Your pinout listing below the pics doesn't make any sense to me.

you have to trace the wires from 2A-2L all the way back to the harness they are in.
So you want the wires that are soldered to the BOARD rather than to the connector?

The wires on the connector are the ones I paired with the board pinouts.

2A 2C 2E 2G 2i 2K
2A-Brown(PIN35)
2C-Red(12VDC)
2E-Orange(IAT)
2G-Pink(02)
2i-Yellow(Coolant)
2K-Green/Yellow(IAC2-A)

2B 2D 2F 2H 2J 2L
2B-Blue(TPS-SIG)
2D-Blue/White(Blank)
2F-White(Blank)
2H-Black(Blank)
2J-Brown(Blank)
2L-No pin in connector


If you want the actual BOARD wires, I can get that later tonight. Sorry Brain, wasn't sure exactly what you needed.

Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 02:07 PM   #56
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

And I am starting to think the labels on the connector wires mean jack ****.
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 02:56 PM   #57
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

did i not say that like 16 times now?

i need to know where the wires INSIDE the Bob go.

so the green wire on 2A and green wire on 2C and white/blue wire on 2I, etc.
Braineack is offline   Reply With Quote
Old 03-14-2014, 03:05 PM   #58
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

OK OK, I just like to sixteen check things to make sure

It shall be done.
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 04:52 PM   #59
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

cause then once you do, and we know where the wires on the harness go back to the ECU, we can connect dots and properly setup a msq for all your i/os
Braineack is offline   Reply With Quote
Old 03-15-2014, 12:57 AM   #60
Elite Member
Thread Starter

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

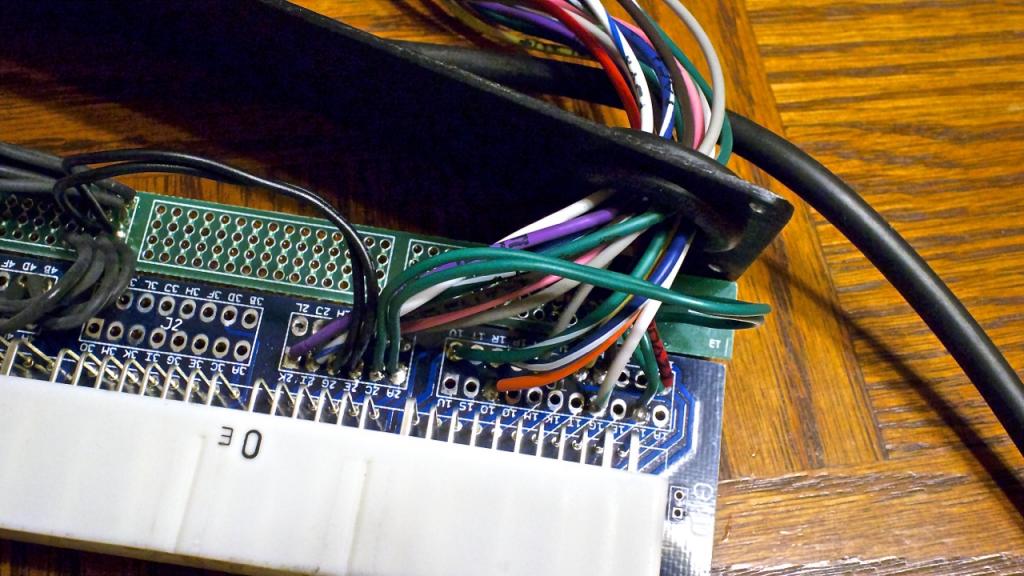

OK Brain here is your info...I hope it helps!

2A 2C 2E 2G 2i 2k
2B 2D 2F 2H 2J 2L

Harness wiring

2 Green Wires———— 2A/2C
2 Black Grounds——————2E/2G
White/blue=IAC1-B—-2I
Purple=Fuel Pump—--2K
Grey=TPS-VREF——2B
Pink=02——————-2D
Blue/white=IAC1-A—--2F
Green/white=IAC2-B—--2H
Brown=PIN36—---------2J
no wire present———2L

I was trying to find IAC2-A and found it on 1G

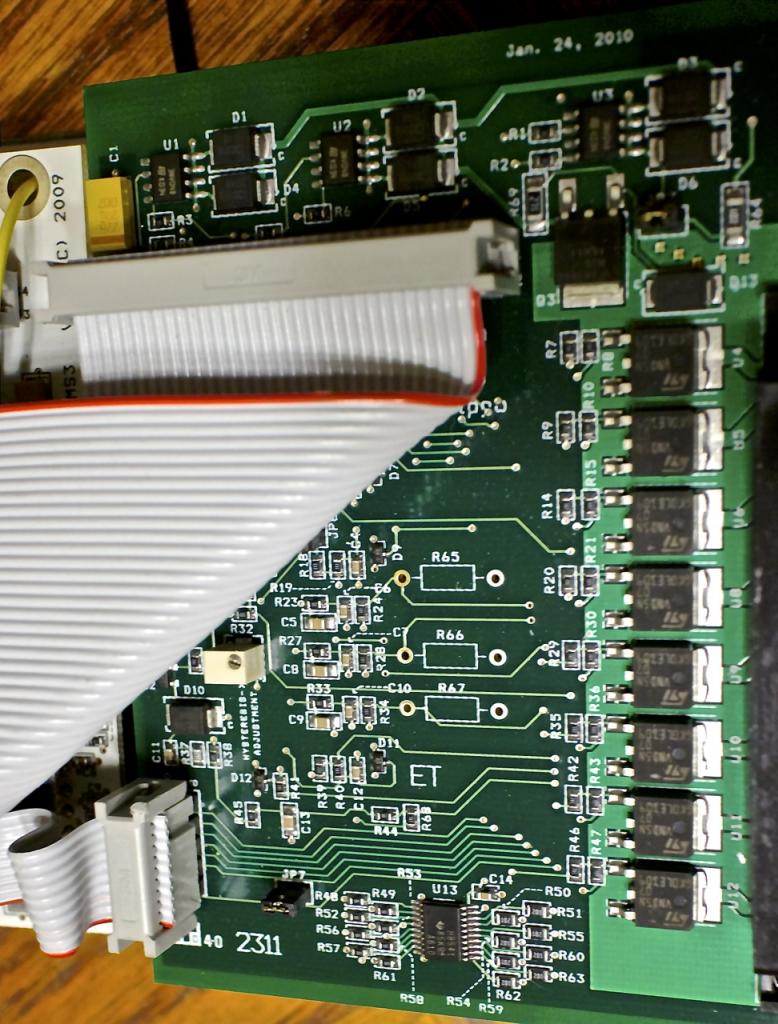

The 2 greens on 2A 2C terminate on the end of the board but there are no markings on the wires/board to indicate why.







Attached Thumbnails
Help tracking down MS3 wiring issues/diagram-img_2177.jpg   Help tracking down MS3 wiring issues/diagram-img_2183.jpg   Help tracking down MS3 wiring issues/diagram-img_2187.jpg   Help tracking down MS3 wiring issues/diagram-img_2193.jpg

Last edited by Jeffbucc; 03-15-2014 at 01:37 AM.
Jeffbucc is offline   Reply With Quote
