Default Honda CRV M12 IAT Ohm values

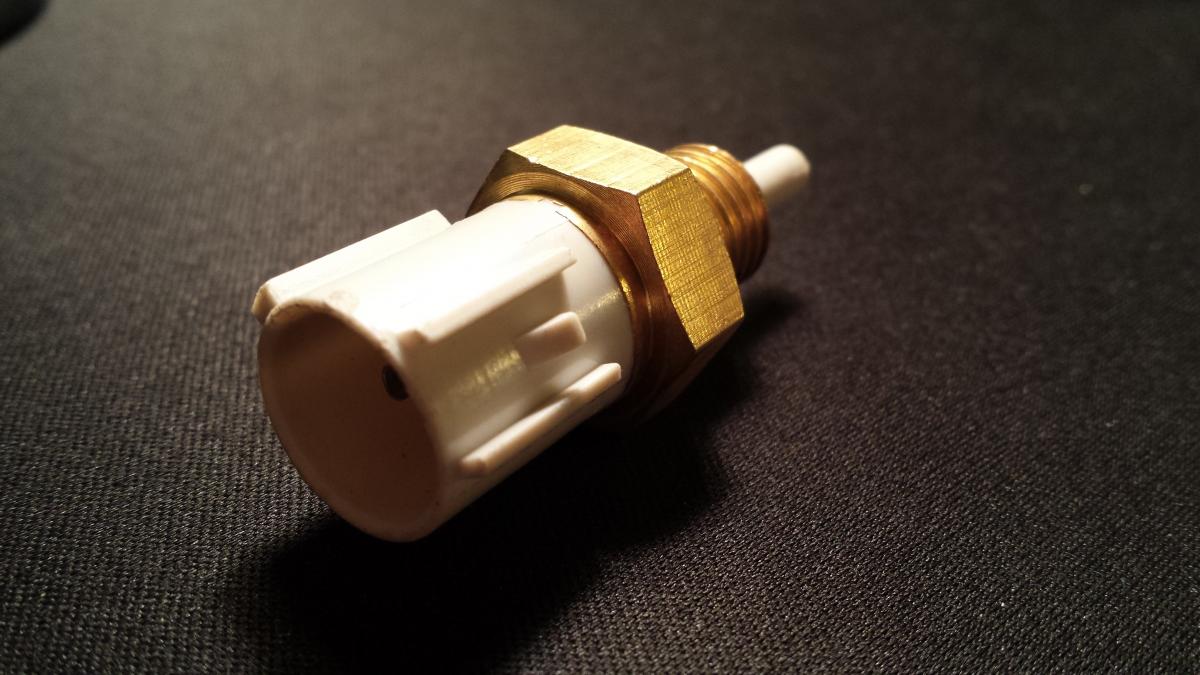

While looking for the odd-sized tap for the recommended GM open-sensor IAT that MegaSquirt recommends, I found a 97-01 Honda CRV sensor at NAPA. It is a closed-end sensor and retailed for $36 and change, but the thread pitch is a manageable M12 x 1.5 pitch.

The values for the IAT are as follows:

98 C = .154 on a 2K Ohm setting

27 C = 1.775 on a 2K Ohm setting

1 C = 6.03 on a 20K Ohm setting

As luck would have it I was able to get the intake tapped for the GM unit, but the Honda just seems like a simpler sensor to deal with mechanically.

The NAPA / ECHLIN number is TS5027
Attached Thumbnails
Honda CRV M12 IAT Ohm values-20130831_195710-copy-.jpg
cordycord is offline   Reply With Quote
Old 09-01-2013, 04:35 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

You can build your own car but can't find a 3/8 NPT tap?

Odd..

3/8 NPT Tap | eBay
richyvrlimited is offline   Reply With Quote
Old 09-01-2013, 10:49 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

DIY even sells a bung for the AIT sensor in Aluminum or SS.

plus you really want an open element for AIT.
Braineack is offline   Reply With Quote
Old 09-01-2013, 02:44 PM   #4
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Braineack View Post
DIY even sells a bung for the AIT sensor in Aluminum or SS.

plus you really want an open element for AIT.
Sometimes I have a tendency to make things more difficult for myself. When I measured the GM threads, it came out to some funky 13/16ths thread pitch, whereby I just handed it off to Dave at Bent Motorsports...he's got more tools than me.

End result is that the GM AIT is installed, so all should be well.
cordycord is offline   Reply With Quote
