Default How to do the grounds on db37

Hi,

I have seen a picture here before, where the grounds for the db37 were wired all togehter with a kind of "clamp" - at the moment I am not able to find this pic anymore (I think it was a pic Braineack made).

How did you do the ground wiring? All the wiring to the main ground point on the car or also to the OEM ECU grounds? With a "clamp" on the DB37 or all wired with a single wire?
Pics would be great.

Thanks
Zaphod is offline   Reply With Quote
Old 08-27-2008, 09:37 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

It's best to ground the DB37 ground wires to the engine block using multiple ground wires.
Matt Cramer is offline   Reply With Quote
Old 08-27-2008, 09:49 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

You could probably check out the build you own megasquirt write-up...that's where I would look.
Braineack is offline   Reply With Quote
Old 08-27-2008, 02:46 PM   #4
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Well, that was were I was looking, but most of the pictures weren't there anymore.

Greets
Zaphod is offline   Reply With Quote
Old 08-27-2008, 02:54 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

aw....my bandwidth has been exceeded!!!!! first time in over a year...ive never come close before...i wonder why, and of course i cant log into my cpanel to see.
Attached Thumbnails

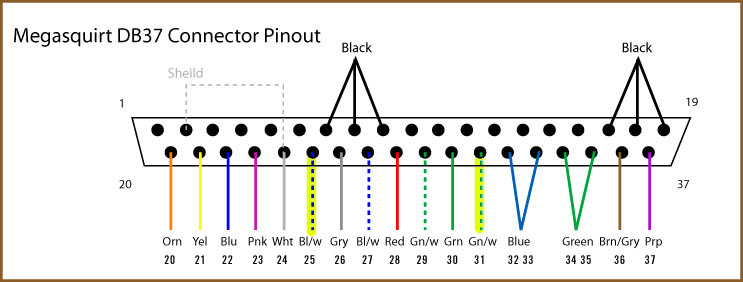

How to do the grounds on db37-db37_ms_pinouts.jpg
Braineack is offline   Reply With Quote
Old 08-27-2008, 02:56 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

technically you can run grounds for 7 - 19.
Braineack is offline   Reply With Quote
Old 08-27-2008, 03:18 PM   #7
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Thanks Braineack,

I was looking for the pic with a kind of big wire lead running over all the pins on the DB37 to one big ground wire...

But maybe I just wire the 2x3 wires together to one big ground wire for each of the 3 wires.

Greets
Zaphod is offline   Reply With Quote
Old 08-27-2008, 03:38 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

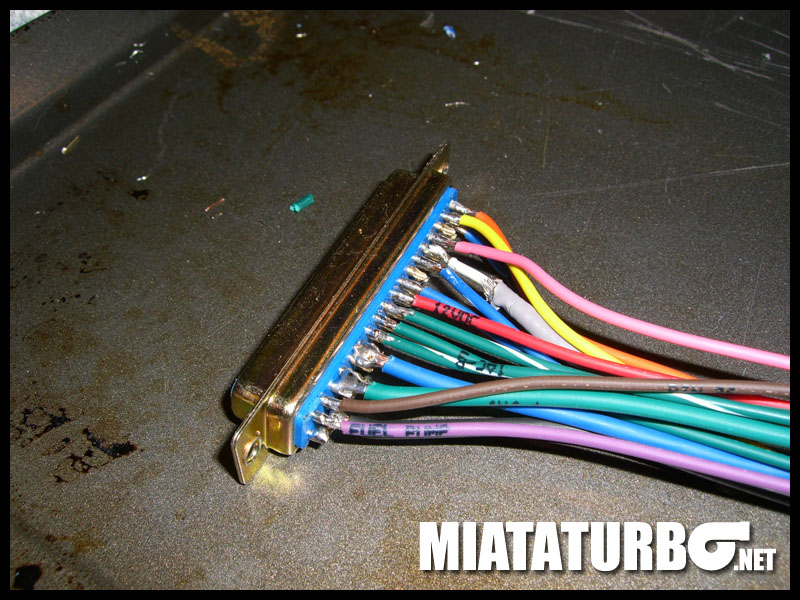

I take the 14g wire provided in the wire kit, and split the copper strands to make three points, like a trident. Stick each into 7 - 8 - 9 , then solder it all making one big blob.
Attached Thumbnails
How to do the grounds on db37-harness011.jpg
