Old 07-13-2011, 09:56 AM   #61
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by flier129 View Post
Need a MS3x? I may have one for sale
Keep me in the loop.
Quote:
Originally Posted by shuiend View Post
I mean more midrange torque in the track car is always a plus, but whatever floats your boat.
Once you put your car on the track you may agree that it's fast enough. When you can turn the car sideways on exit 5th gear on any track you run, the car is "fast enough". Also, consider the cost of tires, brakes, fuel, and transmissions.
hustler is offline   Reply With Quote
Old 07-15-2011, 12:31 AM   #62
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

Quote:
Originally Posted by jacob300zx View Post
Basically Emilio and probably William are the authority on the VVT power swaps.
my current NASA Enduro car is not VVT, which I regret. VVT gives more area under the curve. NASA PT rule is based on PEAK whp / weight ratio. so it is a disadvantage to run 99 engine.

problem with dyno numbers, is that numbers are everywhere. I've been to 3 different dynos (and 5 trips) in last 2 months. 2 Dynojet, 1 reads lower than another.

lowest reading Dynojet say 148whp, Dynapak says 169whp. the 148whp Dynojet (at 7's Only at BRP) is the one NASA often used to test suspected cheater cars. winning SM would pull ~125whp (not sure if that's done with a hidden switch or not ).

If I can start all over again, I would run a VVT motor. Emilio has 2 fresh built VVT engine sitting in his shop. we will see.
bellwilliam is offline   Reply With Quote
Old 07-15-2011, 10:44 AM   #63
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

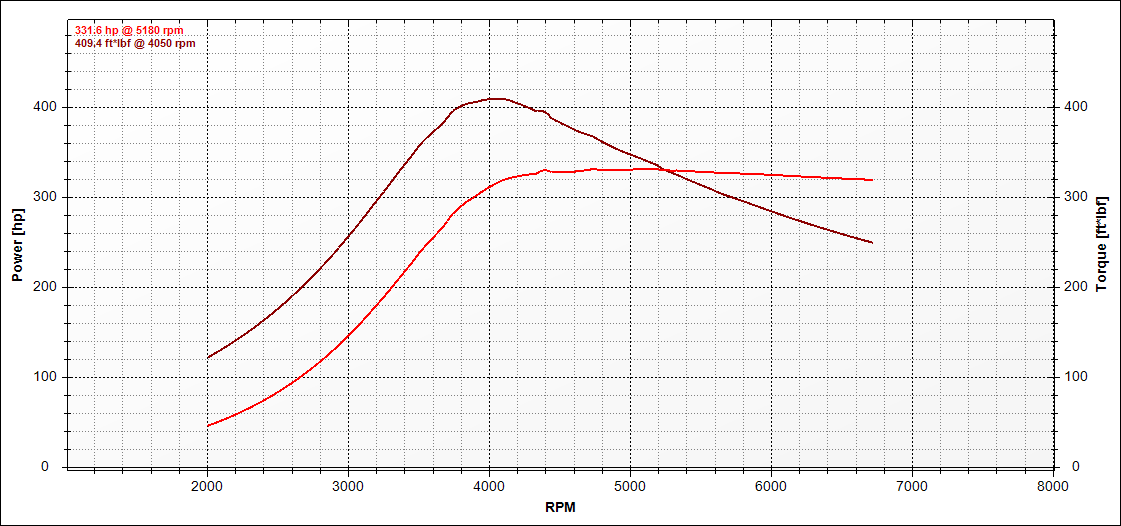

you could totally yoke a VVT motor to produce 125 hp peak and have monstrous torque. Basically it would be a rally car setup.

like this only 1/3 the power. note how "peak" means "flat"
Attached Thumbnails
I'm thinking about a VVT swap in my daily-e85%2520tuned.png
y8s is offline   Reply With Quote
Old 07-15-2011, 10:12 PM   #64
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,311
Total Cats: 1,335
Default

Quote:
Originally Posted by y8s View Post
you could totally yoke a VVT motor to produce 125 hp peak and have monstrous torque. Basically it would be a rally car setup.

like this only 1/3 the power. note how "peak" means "flat"
That's the plan
emilio700 is offline   Reply With Quote
Old 07-16-2011, 12:20 PM   #65
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by emilio700 View Post
That's the plan
curiously waiting on build thread. i'd consider ditching a turbo if it was a streetable N/A setup.
y8s is offline   Reply With Quote
Old 07-22-2011, 12:27 PM   #66
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Sorry to pollute the thread Hustlefucker.

I got a question on this swap though, my friend just bought a 90 chassis with an 03 motor swap already done, PO just didn't quite finish it and needed to sell. Anyway, PO just used the 03 rail as-is and capped the return fuel tube on the chassis. I'd guess this will kill the stock 90 pump in short order. So I'm looking to put a regulator on the rail, anyone know which stock regulator will actually fit the space it's expected to occupy on the 03 motor? I used some random regulator and rail combo on my 99 motor swap.

For more parts acquisition simplicity I'm thinking of having my friend just do an mtuned rail and an external fpr, but I'd prefer to stick with stock stuff if at all possible.

On a semi-related note, do the injector clips from the 90 inj harness pnp with the 03 injectors?

Holla.
webby459 is offline   Reply With Quote
Old 07-22-2011, 12:49 PM   #67
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Buying the rail was easier than finding other stuffs on my 99.
hustler is offline   Reply With Quote
Old 07-22-2011, 01:00 PM   #68
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

^Are you using the rail with a stock fpr, or an external regulator?
webby459 is offline   Reply With Quote
Old 07-22-2011, 01:01 PM   #69
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

FYI to the world, my car is currently semi-N/A right now.

or at least it's a 0 psi limit turbo system. i need obdii.
y8s is offline   Reply With Quote
Old 07-22-2011, 01:07 PM   #70
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

it was funny slow.


hey remember last night when i blew you

































...r meter fuse?
Braineack is offline   Reply With Quote
Old 07-22-2011, 01:13 PM   #71
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by webby459 View Post
^Are you using the rail with a stock fpr, or an external regulator?
M-tuned rail with the stock FPR bent to clear the plenum. I'll convert to ss lines and an external FPR in the new few years.
hustler is offline   Reply With Quote
Old 07-22-2011, 02:40 PM   #72
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
it was funny slow.


hey remember last night when i blew you
yeah i totally came

































Quote:
Originally Posted by brainy-ack
...r meter fuse?
.... to the conclusion that you shorted my diagnostics port.
y8s is offline   Reply With Quote
Old 07-22-2011, 02:44 PM   #73
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by y8s View Post
yeah i totally came
Do you guys like to play with each other...



































...period.
Reverant is offline   Reply With Quote
Old 07-22-2011, 03:19 PM   #74
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

I'm pretty sure my one question may have gotten lost in the ghey.

Are 03 injectors pnp with the 90 injector harness clips?
webby459 is offline   Reply With Quote
Old 07-22-2011, 03:36 PM   #75
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by webby459 View Post
I'm pretty sure my one question may have gotten lost in the ghey.

Are 03 injectors pnp with the 90 injector harness clips?
I thought all 90-05 injectors all used the same harness clips.
shuiend is offline   Reply With Quote
Old 07-22-2011, 03:38 PM   #76
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by webby459 View Post
Are 03 injectors pnp with the 90 injector harness clips?
Yes.
Ben is offline   Reply With Quote
Old 07-22-2011, 04:19 PM   #77
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Baller, thanks.
webby459 is offline   Reply With Quote
Old 09-29-2011, 12:14 AM   #78
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
For the Cam and Crank sensors I ran them through my stock CAS wires. There are 4 wires for the stock CAS. 12v, ground, cam, crank. You can find out which is which in one of the MS threads. Basically you hook the 2 grounds from the NB cam and crank sensors to the grounds CAS wires. Then do the same with the 12v wire, you can also attach the VVT power wire to this. Then attach the cam signal wire to the correct wire on the CAS plug, them do the same with the crank.
The stock CAS has a crank signal and a cam signal?
As I understand it:
NA-CKPgnd~NB-CKPgnd
NA-CMPgnd~NB-CMPgnd
NA-CMPsignal~NB-CKPsignal(tach)
NA-power~NB-VVT

Which wire is signal and which is gnd for the VVT? I guess I'm confused. I thought these sensors used a gnd from the computer and a signal wire for the output back to the computer.

I have a very rudimentary understanding of electronics.
hustler is offline   Reply With Quote
Old 09-29-2011, 12:40 AM   #79
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

VVT doesn't care what gets +12v and what gets connected to the ECU.

Stock CAS has separate cam and crank signals. No tach signal from the CAS, the four wires are power, ground, cam signal, and crank signal.
Savington is offline   Reply With Quote
Old 09-29-2011, 12:55 AM   #80
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
VVT doesn't care what gets +12v and what gets connected to the ECU.
So I assume the computer reads off the GND wire for signal? What about the CKP?
Quote:
Originally Posted by Savington View Post
Stock CAS has separate cam and crank signals. No tach signal from the CAS, the four wires are power, ground, cam signal, and crank signal.
Why does the stock CAS have a CKP and CMP signal? I don't get it.
hustler is offline   Reply With Quote
