Question Injector information required for v3.0 install

im just about to fit my megasquirt, it has v3.0 on the board.

i have a set of 4 440cc black top supra injectors that iv just had reconditioned.

Am i right in saying they are low impendance?
i was under the imporession they where plug and play but im now concirned there not and im going ot have problems if i just fit them as they are, if you have any information redarding this i would realy appreciate it.

Iv just read a handful of threads about resistor packs but am not sure what resistors to use or where to get them from i i need them.

The code on the side of the injector is: 23250-42010

Iv just payed out to get these proffesionally cleaned so i would rather keep them and fit them even if it requires modifications.

Please let me know if you can shead light on the metter

Thanks
Viper is offline   Reply With Quote
Old 05-31-2010, 11:42 AM   #2
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

If you have the flyback circuit built into your MS3 board then you can use low z injectors. The injectors that you have are definitely low z and if the miata connectors will connect to them then they should work.

Here is some info on the dead time that I found via google search:
430cc as on st185 are about give or take. # 12 v 0.75 - 14 v 0.55 ms .

Use the above numbers as a starting point.
redrider706 is offline   Reply With Quote
Old 05-31-2010, 12:12 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

The flyback circuit typically requires major re-grounding work, and even then doesn't tend to get the job done. You could totally rework the MS to run the go to the jbperf.com peak and hold board or simply run some resistors inline on each injector...
Braineack is offline   Reply With Quote
Old 05-31-2010, 10:51 PM   #4
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
simply run some resistors inline on each injector...
what resistors would i need, and how would i fit them.

Thanks for all the advice
Viper is offline   Reply With Quote
Old 05-31-2010, 10:55 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

50watt 10ohm resistors...preferably with built in heatsinks. put one on each negative wire to each injectors.

http://jgsturbo.com/mx5bp.html
Braineack is offline   Reply With Quote
Old 06-01-2010, 06:16 AM   #6
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
50watt 10ohm resistors...preferably with built in heatsinks. put one on each negative wire to each injectors.

http://jgsturbo.com/mx5bp.html
thank you very much for that buddy, i was getting very worried theyed be useless.

i realy appreciate it

Any more advice please let me know

Thanks
Viper is offline   Reply With Quote
Old 06-01-2010, 06:33 AM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

You really need to find out if your MS has been modified correctly for the MX5.

High quality in focus shots of the front and back of the board and we can tell you either way.
richyvrlimited is offline   Reply With Quote
Old 06-01-2010, 03:07 PM   #8
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

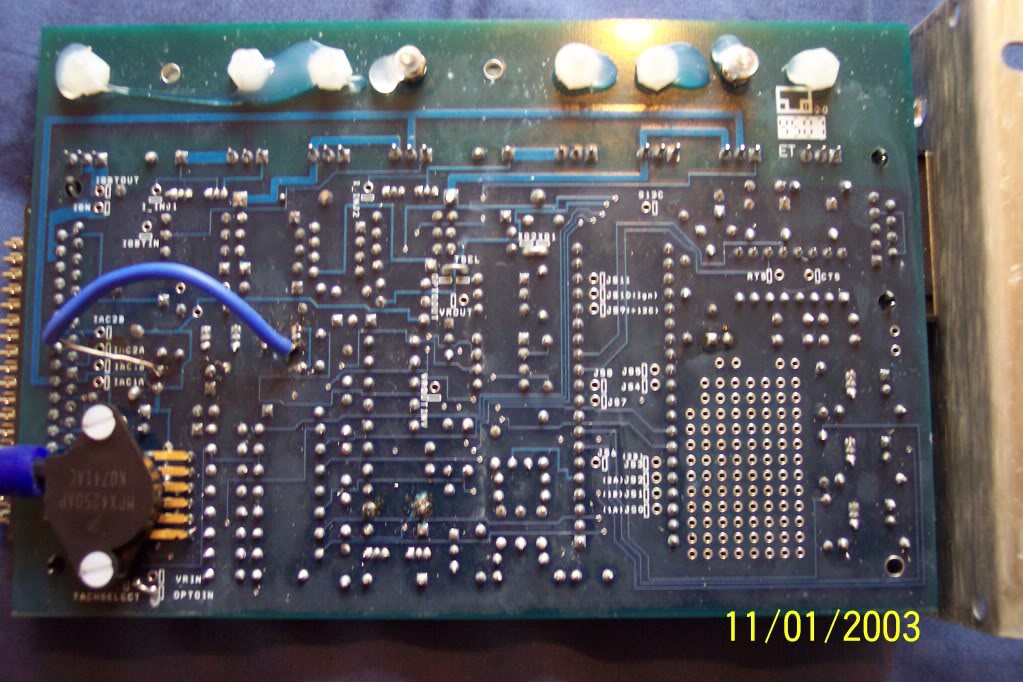

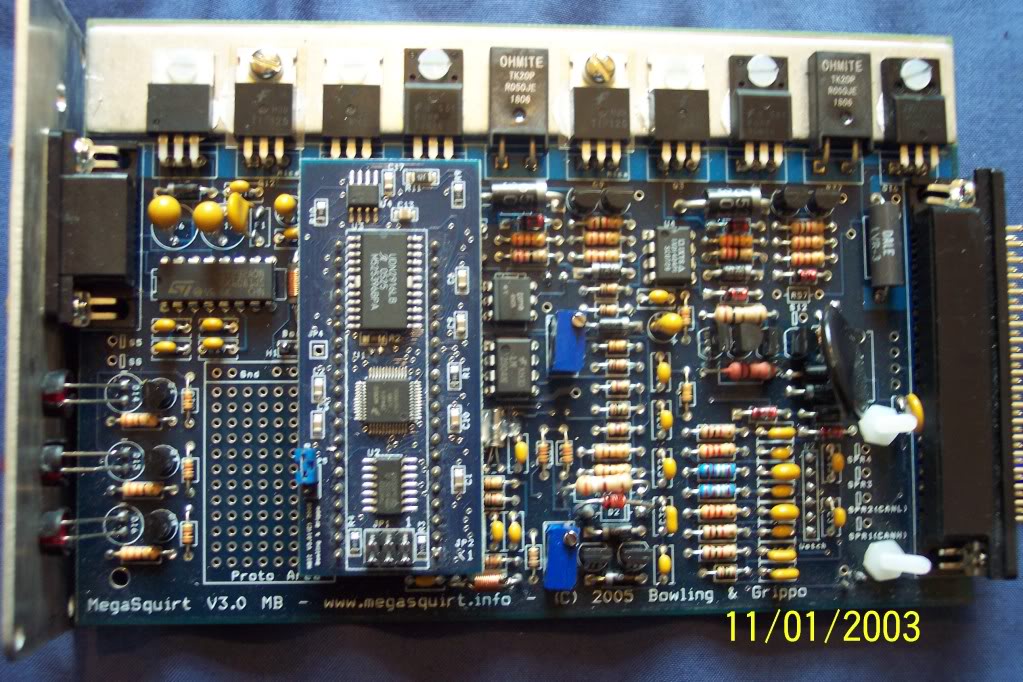

heres some better pictures

Name:  100_3985.jpg
Views: 6
Size:  133.6 KB

Name:  100_3986.jpg
Views: 6
Size:  170.2 KB
Viper is offline   Reply With Quote
