Injector and Regulator Recommendation - Page 3 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 10-31-2012, 03:26 PM   #41
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Oscar View Post
So what are the options for a <200hp motor that wants to use seq fuel with an ev14 style injector but doesn't need 750ccs of it every squirt? Get 1000s anyway (because last set you'll ever buy yada yada) and run them on 10% duty cycle all the time?
Pretty much. We are the extreme minority of the quality fuel injector market, ID doesn't care about poverty people.
hustler is offline   Reply With Quote
Old 10-31-2012, 03:49 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

running a 240rwhp miata with 1000cc injectors is not the correct way.

they might be the best injectors, but that's not correct.


running a 240rwhp miata with 550cc ID injectors WOULD be correct.


hell running a 1.6L turbo is not even correct. Mikelly, nor myself, will ever come close to maxing 1000cc injectors, let alone 725cc injectors. And if running 1000cc injectors causes bad idle problems in his case, how is that correct?

just because the solution works for you, does not make it the universal solution. I have no problems suggesting the 725cc injectors, however.
Braineack is offline   Reply With Quote
Old 10-31-2012, 04:03 PM   #43
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
running a 240rwhp miata with 1000cc injectors is not the correct way.

they might be the best injectors, but that's not correct.


running a 240rwhp miata with 550cc ID injectors WOULD be correct.


hell running a 1.6L turbo is not even correct. Mikelly, nor myself, will ever come close to maxing 1000cc injectors, let alone 725cc injectors. And if running 1000cc injectors causes bad idle problems in his case, how is that correct?

just because the solution works for you, does not make it the universal solution. I have no problems suggesting the 725cc injectors, however.
Well Mikelly was originally looking at DW700's, which will idle like complete crap on his setup. I 100% will say that ID1000's will idle 10x better then he will ever get those DW700's.

So in his case the ID725's would be the most comparable to the DW700's. The problem is that I do not think there is a price difference between the ID725's and ID1000's and if there is it is extremely minimal. So do I spend the same money on smaller injectors that will idle the same as the larger injectors?
shuiend is offline   Reply With Quote
Old 10-31-2012, 04:33 PM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

because there may be a huge difference in how well his old MSPNP on his batch injection might be able to control/handle either injector...regardless of the trivial cost difference.
Braineack is offline   Reply With Quote
Old 10-31-2012, 06:55 PM   #45
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by hustler View Post
I spoke with Five 0. They replace the atomizing caps with their own and check flow at 3 different duty rates. I still wish I had gone with ID.
hey trey, any chance you can post a picture of one of the tips on the five 0 injectors?
I am curious how they do it as the original cap is laser welded.
sturovo is offline   Reply With Quote
Old 10-31-2012, 08:15 PM   #46
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

Scott I appreciate your weighing in on this issue.

Guys I asked about injectors and regulators, and appreciate all the perspectives. I want to make sure the "right" parts for the right current setup will work the best. I have no problem spending $450 on injectors. I have a big problem spending that money on injectors that will make this car run more poorly.

Mike

Quote:
Originally Posted by Braineack View Post
because there may be a huge difference in how well his old MSPNP on his batch injection might be able to control/handle either injector...regardless of the trivial cost difference.
Mikelly is offline   Reply With Quote
Old 10-31-2012, 08:30 PM   #47
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

id725
18psi is offline   Reply With Quote
Old 10-31-2012, 09:27 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

the 725s will be good. I've tuned shitty old 550s on MS1s and they could idle just fine, but those required slightly richer idle...around 13.5-14.
Braineack is offline   Reply With Quote
Old 11-02-2012, 04:00 AM   #49
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by hustler View Post

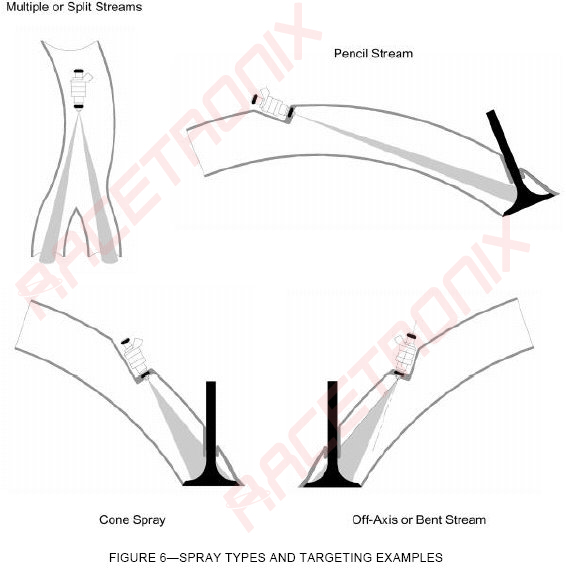

How does the spray of an injector vary with and without the atomizing plate?
I guess the atomizing plate on the stock denso injectors is designed to split the flow in two and direct it towards both of the intake valves.
Modified injectors will not do this. Also my guess is that the ev14 injector atomizing effect will be superior when the Bosch atomizing plate is left intact.



For me modified injector solutions look silly. It makes more sense to get an original Bosch part that would suit the application without having to hack the most critical and precise part off. This is especially true when you look how inexpensive suitable original injectors can be got for. Ford Racing 47lb Fuel Injectors - Set of 8 - Home for your Ford Mustang
The ev14's in the link (part 0 280 158 117) are rated at 525 cc at 43.5 psi (615 cc at 60 psi) and cost 30$ each delivered.
Attached Thumbnails
Injector and Regulator Recommendation-injector-spray-pattern-01.jpg

Last edited by sturovo; 11-02-2012 at 04:45 AM. Reason: anticipation of 18psi "part number?"
sturovo is offline   Reply With Quote
Old 11-02-2012, 09:13 AM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Injector Dynamics doesn't use the plate.
Are you saying they are inferior to your cheap bosch injectors?
18psi is offline   Reply With Quote
Old 11-02-2012, 09:37 AM   #51
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
Injector Dynamics doesn't use the plate.
Are you saying they are inferior to your cheap bosch injectors?
I never said anything about ID being inferior to my cheap bosch injectors?

From what I can see, at least ID replaces the atomizing plate with a cap orifice which may explain if the performance of IDs is better than other butchered injectors.

What I'm saying is I would prefer an original unmodified bosch injector rather than any aftermarket modified one sold at the same flow rates.


Attached Thumbnails

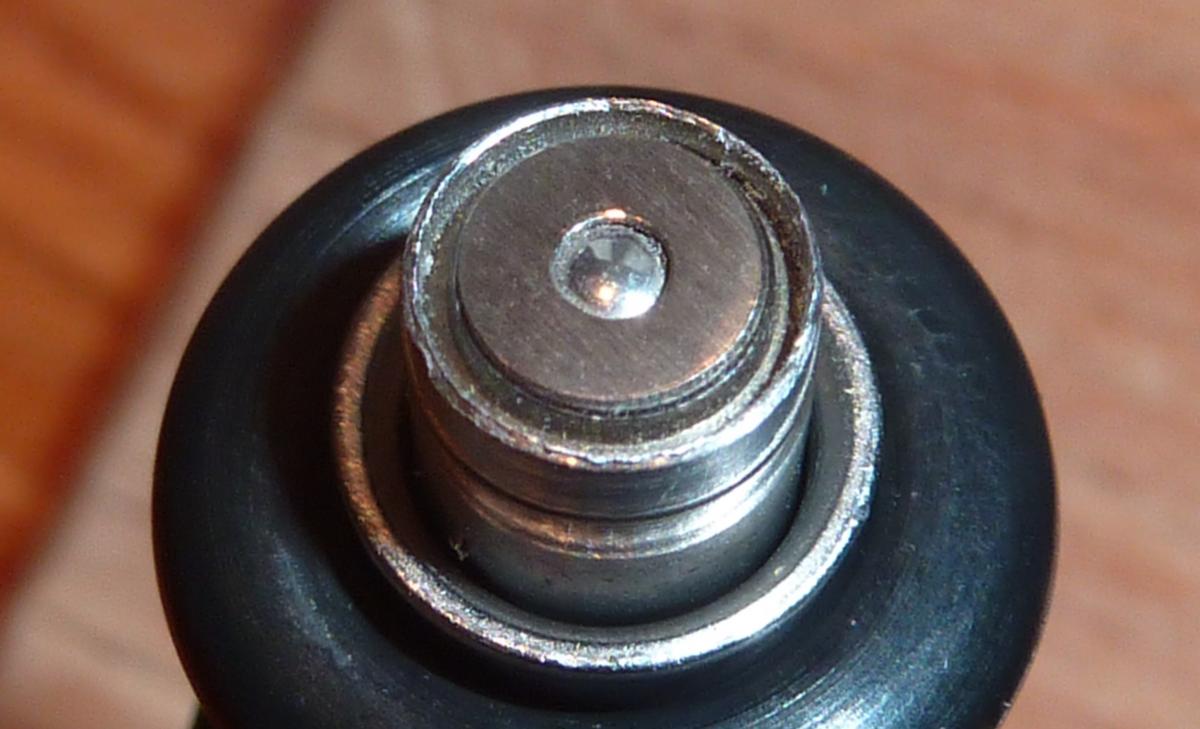

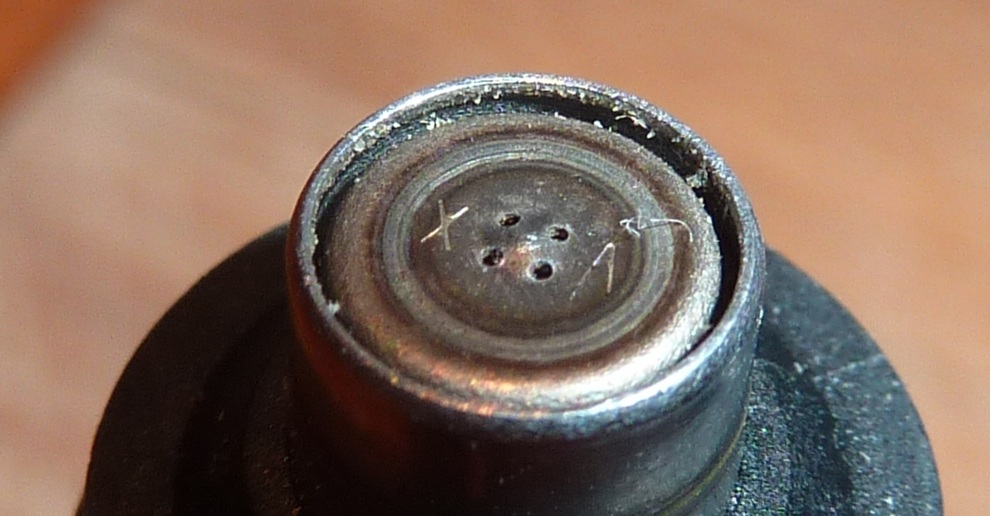

Injector and Regulator Recommendation-p1030084.jpg   Injector and Regulator Recommendation-p1030082.jpg

Last edited by sturovo; 11-02-2012 at 12:27 PM. Reason: added closeup before and after photos
sturovo is offline   Reply With Quote
Old 11-02-2012, 11:53 AM   #52
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

I have ID1000 injectors, Deatschwerks DW300 pump, stock NA fuel regulator (90-97) and stock 99 fuel rail.

So, you don't need an aftermarket regulator, really. I plan on getting one anyways, but simply for E85.
soviet is offline   Reply With Quote
Old 11-02-2012, 01:56 PM   #53
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Sturvo, have fun buying two dozen injectors and having them all flow-tested so you can get a set that actually flows the same at both high and low duty cycles.
Savington is online now   Reply With Quote
Old 11-02-2012, 02:04 PM   #54
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Andrew, is it necessary to flow test brand new unmodified bosch ev14 injectors as you are suggesting?
sturovo is offline   Reply With Quote
Old 11-02-2012, 02:08 PM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

yes, and that's what ID does.
Braineack is offline   Reply With Quote
Old 11-02-2012, 02:15 PM   #56
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default



Interesting. So ID flow tests the injectors before their modification?
In my experience stock unmodified injectors are sold by the piece and do not have any "Must flow test before use" requirements attached.
Attached Thumbnails
Injector and Regulator Recommendation-v-day-2.jpg

Last edited by sturovo; 11-02-2012 at 02:43 PM.
sturovo is offline   Reply With Quote
Old 11-02-2012, 05:41 PM   #57
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

...which is why ID's testing and matching process produces a superior product.

This really isn't hard.
Savington is online now   Reply With Quote
Old 11-02-2012, 06:18 PM   #58
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Savington View Post
...which is why ID's testing and matching process produces a superior product.

This really isn't hard.
Do you really think that modified injectors perform better up to the flow rating of the stock ones they are based on?
sturovo is offline   Reply With Quote
Old 11-02-2012, 06:22 PM   #59
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

yes.
Braineack is offline   Reply With Quote
Old 11-02-2012, 06:33 PM   #60
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default



Quote:
Originally Posted by Braineack View Post
yes.
Scott, care to elaborate?

Last edited by sturovo; 11-02-2012 at 08:05 PM.
sturovo is offline   Reply With Quote
