Default Installing ms3x...crazy noise when key on...

Wtf is this noise?!?!

Ms3x install noise:
BTMiata is offline   Reply With Quote
Old 04-08-2014, 05:47 PM   #2
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,700
Total Cats: 319
Default

IACV?
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 05:47 PM   #3
Junior Member

Join Date: Jan 2014
Location: Madison
Posts: 153
Total Cats: 7
Default

IAC? Pull ze plug.
jt@namiata.com is offline   Reply With Quote
Old 04-08-2014, 05:51 PM   #4
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

IAC. Check the frequency setting.
dieselmiata is offline   Reply With Quote
Old 04-08-2014, 05:53 PM   #5
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ahh ok thanks guys! It's not going to hurt anything buzzing like that is it? I was concerned something was wrong so I shut the car down right after recording the clip
BTMiata is offline   Reply With Quote
Old 04-08-2014, 05:55 PM   #6
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,700
Total Cats: 319
Default

shouldn't hurt but don't want to roast it. maybe this helps?

https://www.miataturbo.net/megasquir...equency-48120/
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 05:56 PM   #7
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Not right away, no. If you don't use the correct frequency setting it will kill the valve.
dieselmiata is offline   Reply With Quote
Old 04-08-2014, 06:00 PM   #8
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ok thanks again! I'm going to unplug it until I get the setting correct... Getting back out in the garage after dinner and wife-time lol
BTMiata is offline   Reply With Quote
Old 04-08-2014, 06:02 PM   #9
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,700
Total Cats: 319
Default

"wife time"
psyber_0ptix is offline   Reply With Quote
Old 04-08-2014, 08:51 PM   #10
Junior Member

Join Date: Jan 2014
Location: Madison
Posts: 153
Total Cats: 7
Default

FWIW, mine was noisy in my basemap from Rev @ 313hz, bumped to 480hz (per 500hz suggestion in linked thread above... it's as high as I can go) and is a low hum now.
jt@namiata.com is offline   Reply With Quote
Old 04-08-2014, 09:38 PM   #11
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
"wife time"
Bahahahaha I tried but she said no :-/

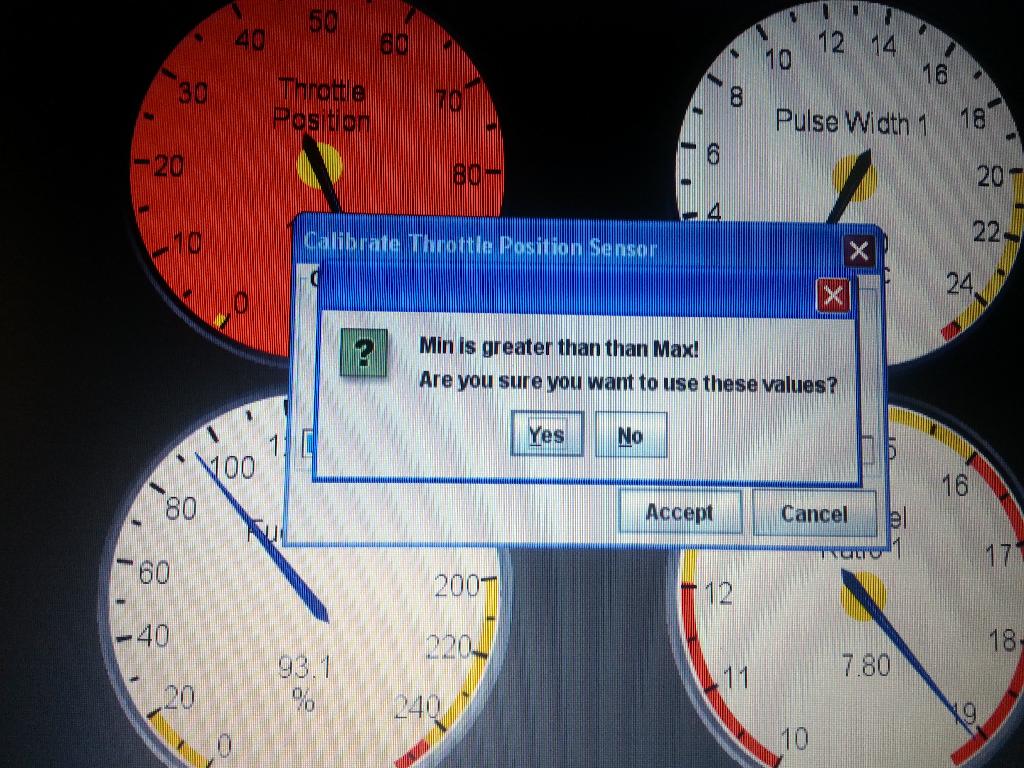

Ok next dumb question... Did I do something wrong? Are wires backwards on my TPS? I have a pnp TPS sensor from the guy on here who sells them all the time, so I doubt he wired it wrong


Attached Thumbnails
Installing ms3x...crazy noise when key on...-20140408_202555_zpsgod8zqqm.jpg
BTMiata is offline   Reply With Quote
Old 04-08-2014, 10:34 PM   #12
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ok so also I ended up bumping the Inc frequency to 503hz.much quieter now... Hopefully that's not too high of a setting.

Off work tomorrow and can't wait to VE analyze and drive around and see what it does!
BTMiata is offline   Reply With Quote
Old 04-08-2014, 10:37 PM   #13
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

Don't VE analyze anything until everything is calibrated properly.
thirdgen is offline   Reply With Quote
Old 04-08-2014, 10:39 PM   #14
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by thirdgen View Post
Don't VE analyze anything until everything is calibrated properly.
I have everything else calibrated... I just need to find out about that TPS message I had pop up
BTMiata is offline   Reply With Quote
Old 04-08-2014, 10:43 PM   #15
Junior Member

Join Date: Jan 2014
Location: Madison
Posts: 153
Total Cats: 7
Default

Right. You either wired it wrong or calibrated it wrong.
jt@namiata.com is offline   Reply With Quote
Old 04-08-2014, 10:52 PM   #16
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I'll see if I can either flip the connector or maybe I misunderstood brains instructions
BTMiata is offline   Reply With Quote
Old 04-09-2014, 01:13 AM   #17
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

Quote:
Originally Posted by BTMiata View Post
I have everything else calibrated... I just need to find out about that TPS message I had pop up
On the dashboard screen of TS, TPS should read 0 with your foot off the gas. Press the pedal and watch it change.
If it's not reading 0 when closed, and doesn't go positive numbers when you hit the pedal, something is wrong.
thirdgen is offline   Reply With Quote
Old 04-09-2014, 08:34 AM   #18
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ok so the plug is not backwards... Its either incorrect wiring or I improperly did the procedure. I'm pretty sure I followed brains instructions exactly though
BTMiata is offline   Reply With Quote
Old 04-09-2014, 08:50 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

did you actually install a vTPS?

the buzzing is actually a bit bothersome, since the freq you should be using is whatever was loaded (something like 100Hz).
Braineack is offline   Reply With Quote
Old 04-09-2014, 08:58 AM   #20
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
did you actually install a vTPS?

the buzzing is actually a bit bothersome, since the freq you should be using is whatever was loaded (something like 100Hz).

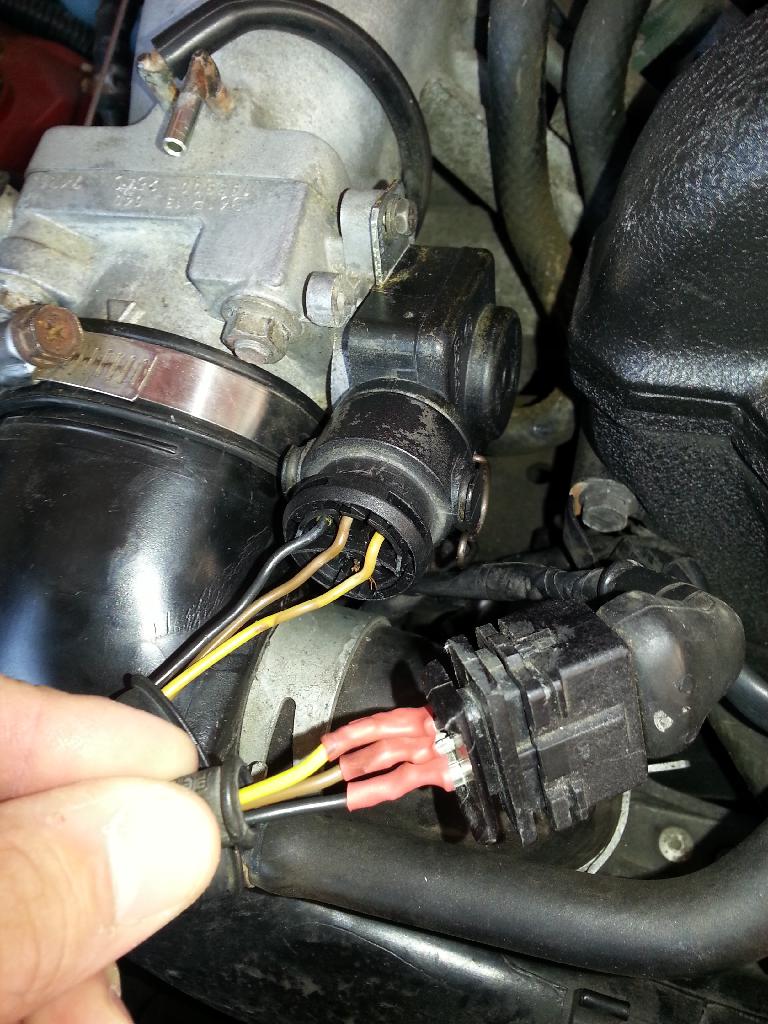

Yes I have a TPS from railz on the forum. Here is how he has it wired...



Attached Thumbnails
Installing ms3x...crazy noise when key on...-20140409_075127_zpspgnw6fzc.jpg
BTMiata is offline   Reply With Quote
