Default ITT we discuss knock windowing

And when I say 'we' I mean other people much smarter than me.

Seriously though, has anyone figured out MS3's knock windowing and got good settings that work well?

Failing that can someone explain how I would go about tuning it, as I haven't the first clue where to start.
richyvrlimited is offline   Reply With Quote
Old 03-04-2013, 12:37 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

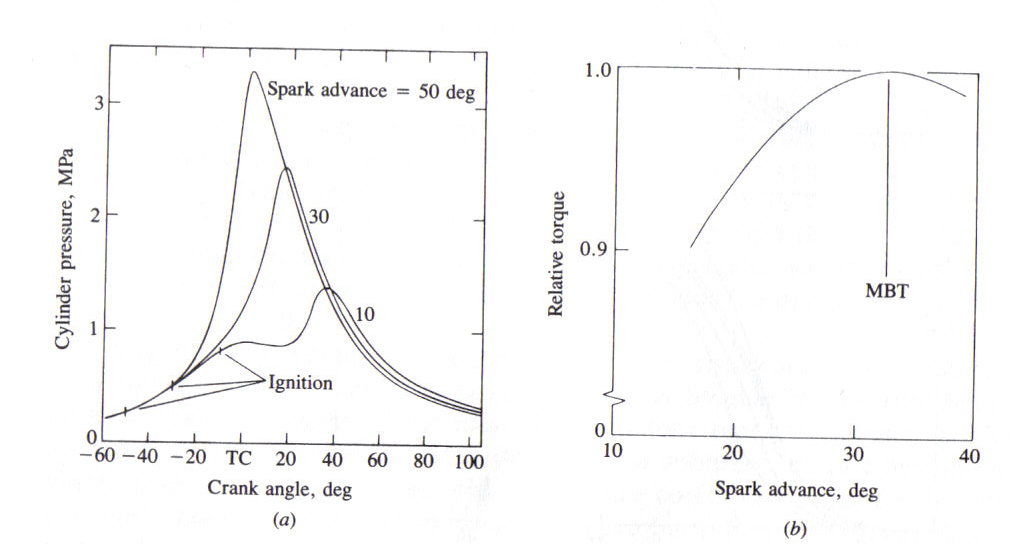

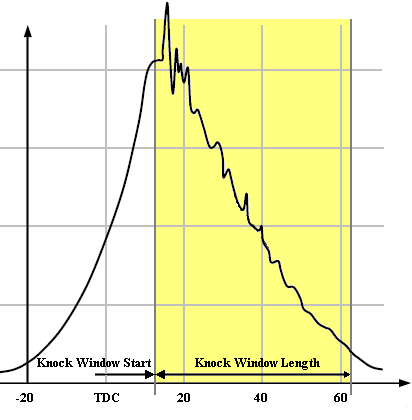

Google source information A suggests peak cylinder pressures are somewhere between 20 BTDC and 60 ATDC (fig 1) depending on spark advance. The anecdotal google sourced reference (fig 2) below suggests that knock occurs in the latter 2/3 of that. It was a VEMS isntallation page I think.

they used 12-60 ATDC.


FIGURE 1



FIGURE 2
Attached Thumbnails
ITT we discuss knock windowing-pressure4.jpg   ITT we discuss knock windowing-cylinderpressurecurve.png
y8s is online now   Reply With Quote
Old 03-06-2013, 05:19 AM   #3
Elite Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Thanks Y8s.

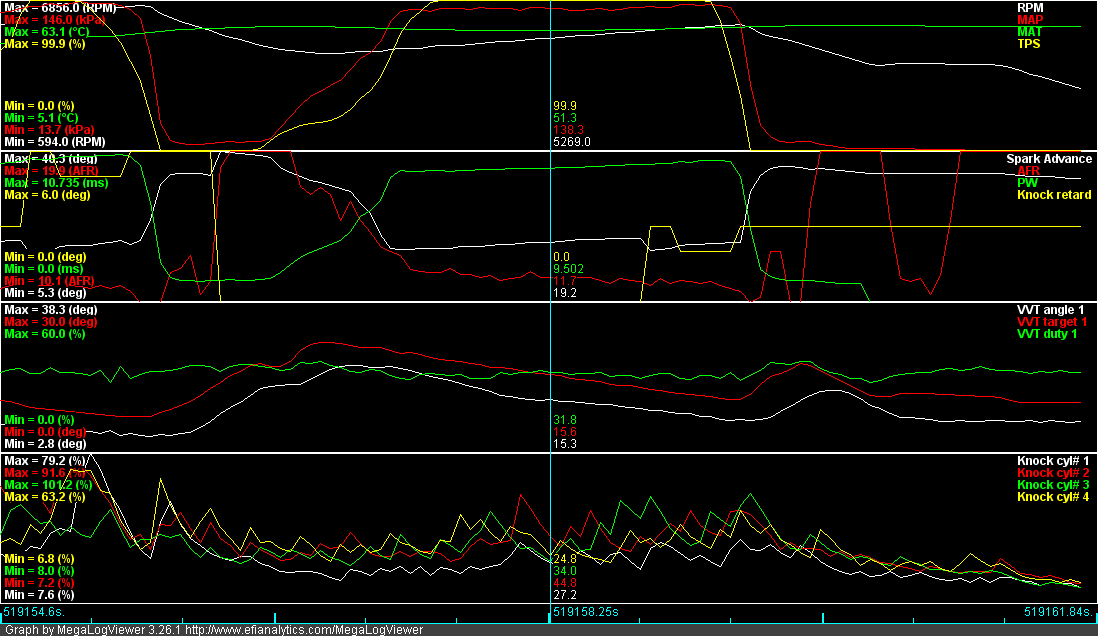

This is what my knock output looks like with the settings from a non tuned basemap:

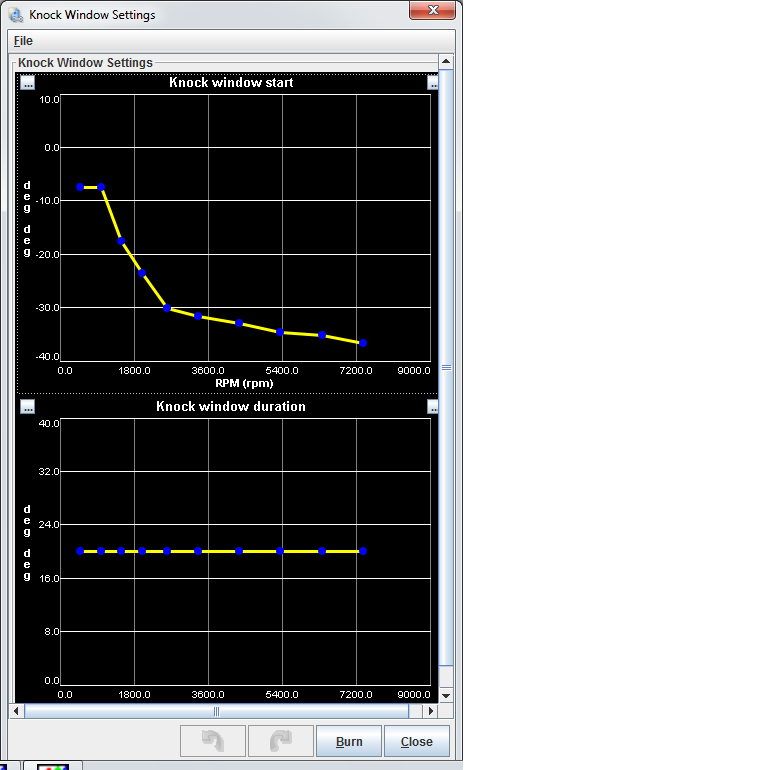

Yesterday I created this based on Reverants guidelines, (take the timing at 75kpa as the knock window start)

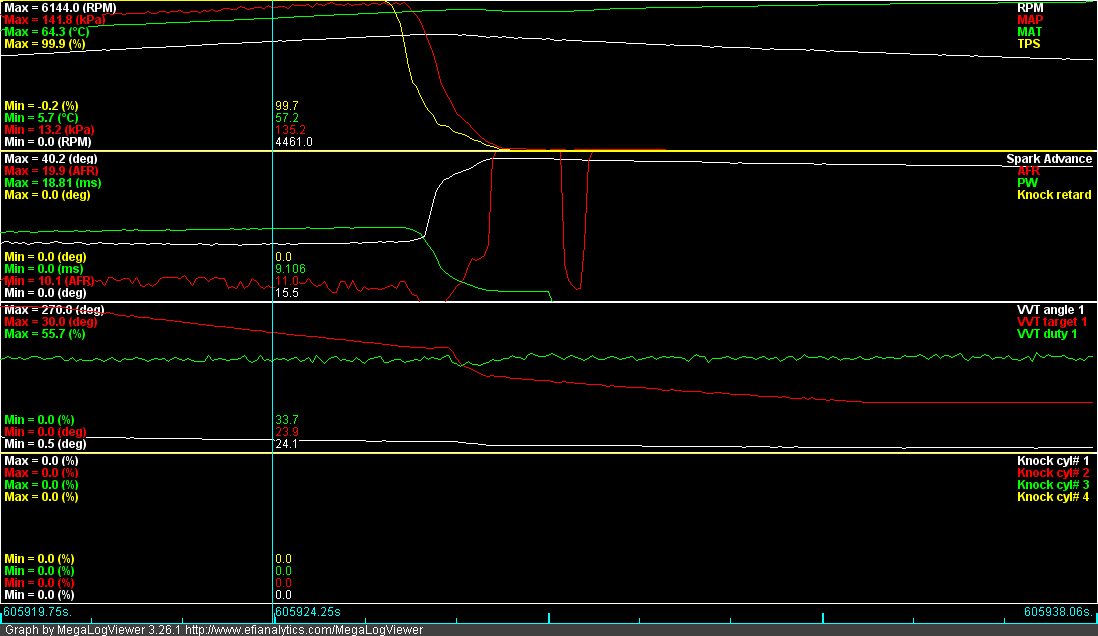

Which resulted in this rather surprising result..... I was hoping for less on the graph, but literally nothing is very surprising, surely there must be some noise during these windows?
Attached Thumbnails
ITT we discuss knock windowing-knock.png   ITT we discuss knock windowing-knock%2520window%2520settings.png   ITT we discuss knock windowing-knock2.png
richyvrlimited is offline   Reply With Quote
Old 03-06-2013, 10:08 AM   #4
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

subscribed
miatauser884 is offline   Reply With Quote
Old 02-26-2015, 09:58 PM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Bump.

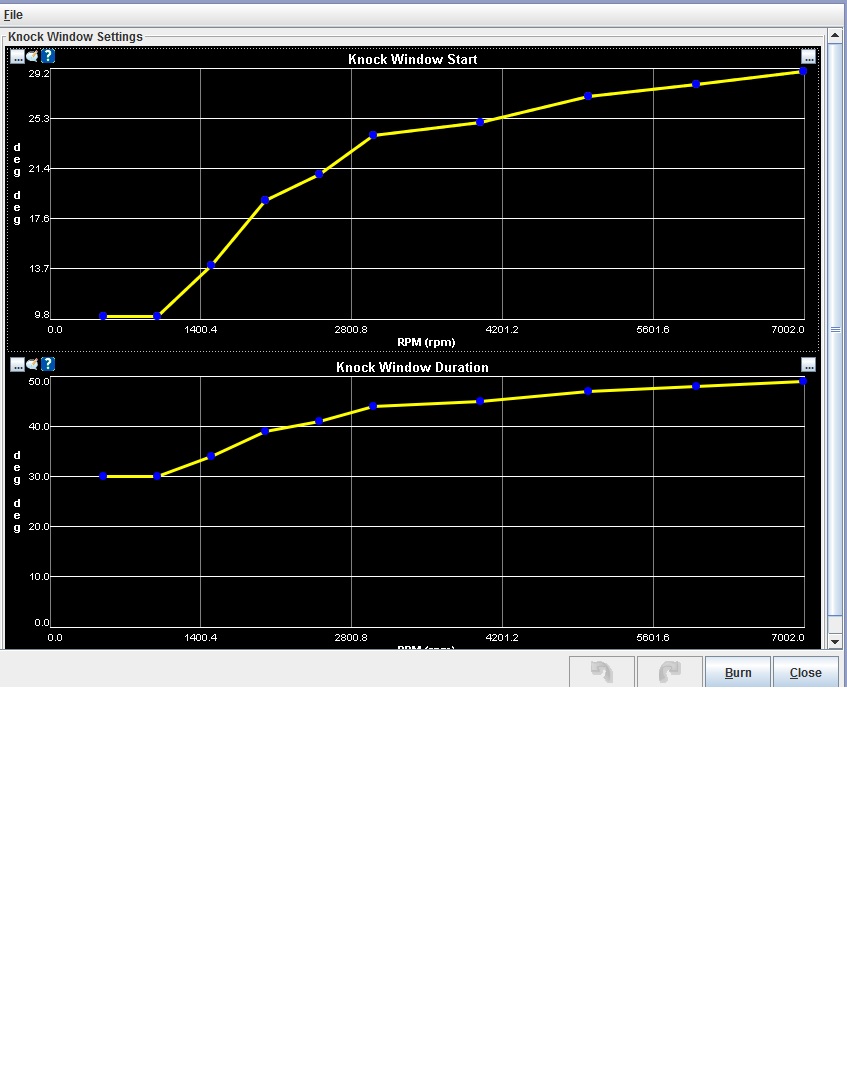

What is everyone using now? I just started up my engine on Rev's BASIC MS3 base map today. I noticed the Knock window start's later (further after TDC) as RPM increases. I guess that makes sense because max cylinder pressure shifts the same way as you retard timing towards TDC. It just seem's to be a fairly large change. At redline the window doesn't start till 30* AFTER TDC.

So now that a lot of you are playing with knock windowing, what are your results?
Attached Thumbnails
ITT we discuss knock windowing-base-map-windowing.jpg
240_to_miata is offline   Reply With Quote
