Default Just Built a Jim Stim

And it worked!
flying_solo is offline   Reply With Quote
Old 12-20-2011, 10:01 PM   #2
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Thread needs filler.
Tw34k is offline   Reply With Quote
Old 12-20-2011, 10:04 PM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

I've never solder anything and want to do my own MS3X. I followed the advice from the forums and tried out the Jim Stim. Soldering really isn't too hard with a little practice I have learned.

Next up is the JimStimX and then BoomSlang before I tackle the big boy the MS3X itself.
flying_solo is offline   Reply With Quote
Old 12-20-2011, 11:35 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Attached Thumbnails
Just Built a Jim Stim-8n4py.jpg
Joe Perez is offline   Reply With Quote
Old 12-20-2011, 11:40 PM   #5
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

New to electronics ehh? welcome to a wonderful life of solitude!
Tw34k is offline   Reply With Quote
Old 12-21-2011, 12:18 AM   #6
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Hah, doesnt sound all that bad.
flying_solo is offline   Reply With Quote
Old 12-21-2011, 12:20 AM   #7
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Attached Thumbnails
Just Built a Jim Stim-alone1.jpg
gearhead_318 is offline   Reply With Quote
Old 12-21-2011, 01:01 AM   #8
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

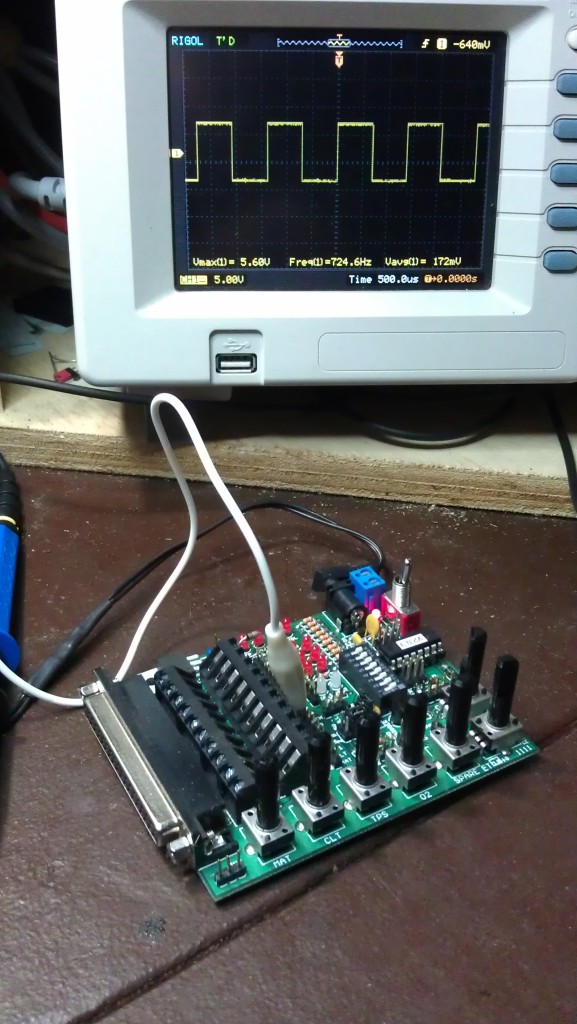

Here is a picture of mine to supplement the lack of pics in this thread.

Attached Thumbnails
Just Built a Jim Stim-imag0284.jpg
Tw34k is offline   Reply With Quote
Old 12-21-2011, 01:23 AM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Tw34k View Post
(picture of a scope that looks somewhat like a Tektronix TDS series.)


In all seriousness, though, welcome aboard, Adam. It's always a great feeling when something works.

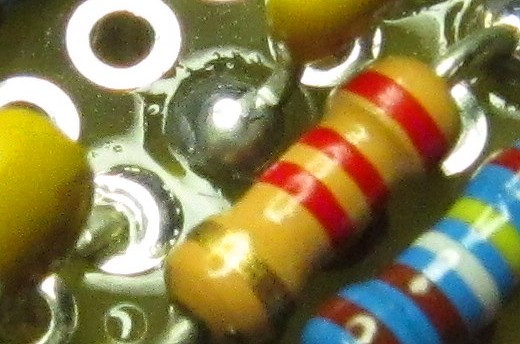

I've been working on a new project myself. Here's a sneak peek:

Attached Thumbnails
Just Built a Jim Stim-90kid.jpg   Just Built a Jim Stim-rlngo.jpg
Joe Perez is offline   Reply With Quote
Old 12-21-2011, 01:24 AM   #10
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Soldering is a really useful, highly applicable skill. And its not that hard with practice. When my brother "didn't see" my ******* wheel and pedal setup plugged into the PS3 and ripped that bitch a new one I spent an hour permanantly soldering the pedal wires into the wheel. Same for the old wore out controller connection on my PS2.
mx5autoxer is offline   Reply With Quote
Old 12-22-2011, 10:53 AM   #11
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Quote:
Originally Posted by mx5autoxer View Post
Soldering is a really useful, highly applicable skill. And its not that hard with practice. When my brother "didn't see" my ******* wheel and pedal setup plugged into the PS3 and ripped that bitch a new one I spent an hour permanantly soldering the pedal wires into the wheel. Same for the old wore out controller connection on my PS2.
Good point, I've had need to fix small things like this in the past.
flying_solo is offline   Reply With Quote
Old 12-22-2011, 10:56 AM   #12
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

So question Experts of Electronics. What size and type of solder do you use?

I purchased a 60/40 Rosin Core .061" by Alpha Fry from Amazon. I think it's too big and feel the .20" or .31" would be a better choice. I'm wondering what your opinion is as well as where you purchase your solder. I found 63/37 Kester .031" but it's a 1 lb spool for $40 shipped. I think that would be enough solder for life!
flying_solo is offline   Reply With Quote
Old 12-22-2011, 02:23 PM   #13
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

It's mostly preference, I like most prefer a thinner solder for most jobs (.032) but there are some out there who like the thick stuff.

Composition of the solder will boil down to a few things like what you are soldering and how durable the joint needs to be. As a hobbyist though, I recommend a nice rounded solder that will work well for all sorts of applications. A fairly new hobby electronics company has been getting pretty big called sparkfun. There are better retailers out as well so feel free to look around.

http://www.sparkfun.com/products/10243

Mix: 96.35% Sn (Tin), 3.0% Ag (Silver), 0.5% Cu (Copper), 0.15% Sb (Antimony).


In my opinion the thing any beginner should be worried about when getting into soldering is having a decent enough iron to get the job done. Throw those 15watt radioshack pencil irons in the trash. A nice entry level soldering station is only $50-$100.

Last edited by Tw34k; 12-22-2011 at 02:35 PM.
Tw34k is offline   Reply With Quote
Old 12-22-2011, 02:25 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I use the smallest tip and thinnest solder you can find.

.033" here.
Braineack is offline   Reply With Quote
Old 12-22-2011, 02:31 PM   #15
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Quote:
Originally Posted by Joe Perez View Post

In all seriousness, though, welcome aboard, Adam. It's always a great feeling when something works.

I've been working on a new project myself. Here's a sneak peek:

LOL nice sneak peak there, I may just have enough info now to steal your design . The scope is a Chinese brand Rogol DS1052E 50MHz entry level model. I purchased it due to its ability to easily be hacked into a 100MHz model with a terminal window and a serial cable.
Tw34k is offline   Reply With Quote
Old 12-22-2011, 02:36 PM   #16
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by flying_solo View Post
What size and type of solder do you use?
Copied and pasted from my diatribe on solder in DIY's "kit" thread:

Quote:
Originally Posted by Joe Perez View Post
Now, I will differ slightly on the matter of solder. Silver-bearing solder, and especially the lead-free variety, just isn't as good as the old stuff. The absolute best solder for general-purpose electronics work is what's known simply as 63/37 (63% tin, 37% lead).

Why is this? Because it's idiot-proof. 63/37 has the lowest melting point of all solder alloys, and more importantly, it has virtually no plastic range. Most solder alloys go through a gradual phase change from liquid to solid as they cool, and so there's a point where, if you move the parts at all, you wind up with a crappy, crystalline-looking joint which is likely to break. 63/37 is unique in that it transitions from a liquid to a solid almost in a single step, so the chance of producing a bad joint is reduced.

60/40 is the more traditional blend for electronics work, and it's fine, too. Still has a low melting point, you just have to be more careful with it as it solidifies.

Also, don't screw around with the fancy "clear flux" or "no-kleen" ****. You want plain ole' rosin core, icky-brown-flux solder.

Diameter-wise? .062" seems to still be the most common, and this was fine back in the days of tabbbed point-to-point wiring inside console radios (eg: the 60s.) For delicate stuff, you want something in the vicinity of .020" to .032". You have to feed a lot more of it in to cover large joints (like the legs of TO220 FETs) however it makes things a lot easier on small parts, especially those damn TO-92 transistor pads on the 3.0 board. (I don't know why they designed the pads that way. TO-92s are a lot easier to solder when the pads are spaced out in a triangular shape.)

If you live in an area where Radio Shack is the only option, they only have one solder that you'll want: http://www.radioshack.com/product/in...erValue=Solder It's a 60/40 blend at .032", so it's not perfect, but it's good enough.
Joe Perez is offline   Reply With Quote
Old 12-22-2011, 02:39 PM   #17
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Braineack View Post
I use the smallest tip and thinnest solder you can find.

.033" here.
0.020" is more like it.
Reverant is offline   Reply With Quote
Old 12-22-2011, 02:41 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

see joes post above about 60/40 .032" radio shackness.
Braineack is offline   Reply With Quote
Old 12-22-2011, 02:43 PM   #19
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Thanks Guys! Great write up Joe. Idiot proof is exactly what I'm going for. I didn't get a solder station but I did buy a 35 Watt Weller and a 0.03" x 0/9mm Conical tip.
flying_solo is offline   Reply With Quote
Old 12-22-2011, 04:11 PM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Braineack View Post
see joes post above about 60/40 .032" radio shackness.
I waffle back and forth on this.

.032 is fine for through-hole parts. At the lab, we have .020 and .015 at the surface-mount bench, and while those are great for small parts, they're slightly tedious for use with big stuff as you have to feed a lot more of it in.

Anything in this range will be fine for 99% of uses.
Joe Perez is offline   Reply With Quote
