Default Low RPM signal, no spark

Alright this is the first megasquirt I've ever done, ever. Total noob here. Not sure on anything I'm doing tuning wise so bear with me.

So I have a 1990 1.6L stock miata, trying to run a MS1 v2.2 that I built, tested with stim (works). Modded per diyautotune's Instructions Only thing not stock about it is the GM AIT I put in place of the AFM box, and wired into stock harness (AIT tested and works)

My problem is that I barely get any rpm signal when I'm cranking, no spark. I was getting absolutely 0 rpm before I jumped XG1 and XG2. After that I get around 1600 rpm the second I turn the key then it goes down to 300 then 200 rpm where it sits till I turn the key off and all the relays die.

I've scoured the internet for hours on this and the only advise I've found so far is should have bought a MS2.

Any help is greatly appreciated. Thanks guys
macman2212 is offline   Reply With Quote
Old 04-04-2016, 05:43 AM   #2
Junior Member

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

charge your battery?
omnia is offline   Reply With Quote
Old 04-04-2016, 09:12 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

sounds like you didnt do the cmk/cmp input mods correctly.


here's how i had done it:

https://www.miataturbo.net/megasquir...30/#post673322
Braineack is offline   Reply With Quote
Old 04-04-2016, 01:11 PM   #4
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

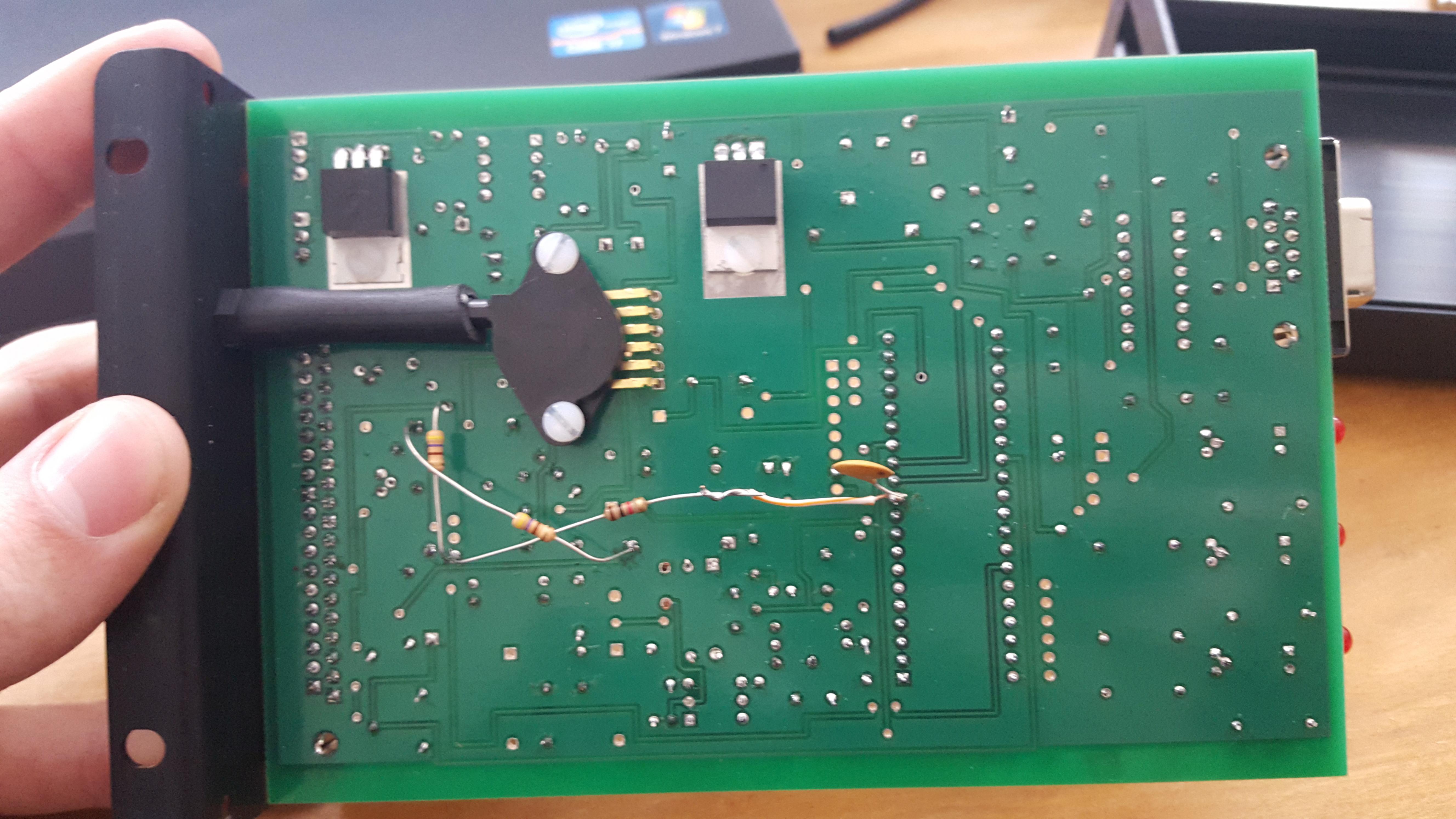

Here's how I have the mods done.

.1uf cap from CPU pin 11 to gnd
1k resistor from X11 to CPU pin 11
470ohm resistor from x11 to scrandy hole above and to right of D9

Those are done exactly like your linked mods. Should I go ahead and mod the rest like you did or....?
Attached Thumbnails
Low RPM signal, no spark-20160404_115938.jpg
macman2212 is offline   Reply With Quote
Old 04-04-2016, 01:49 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

you pullup for the crank input is on the wrong side of d9. Needs to be on the positive voltage side to provide the pull up for the signal.


Attached Thumbnails
Low RPM signal, no spark-80-blob_50d2b9d110e9627630f7f3cef8bf8002a0856bc8.png
Braineack is offline   Reply With Quote
Old 04-04-2016, 02:29 PM   #6
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

Moved the resistor leg to correct side of D9

Now I get no tac at all again. With and without XG1 and XG2 jumped

I'll post my .msq, hopefully the right file. I'm thinking something with ignition and decoder wheel settings
Attached Files
File Type: msq CurrentTune.msq (42.4 KB, 56 views)
File Type: msq 2015-12-30_13.15.25.msq (42.7 KB, 66 views)
macman2212 is offline   Reply With Quote
Old 04-04-2016, 04:16 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

should be using 4G63
Braineack is offline   Reply With Quote
Old 04-04-2016, 05:57 PM   #8
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

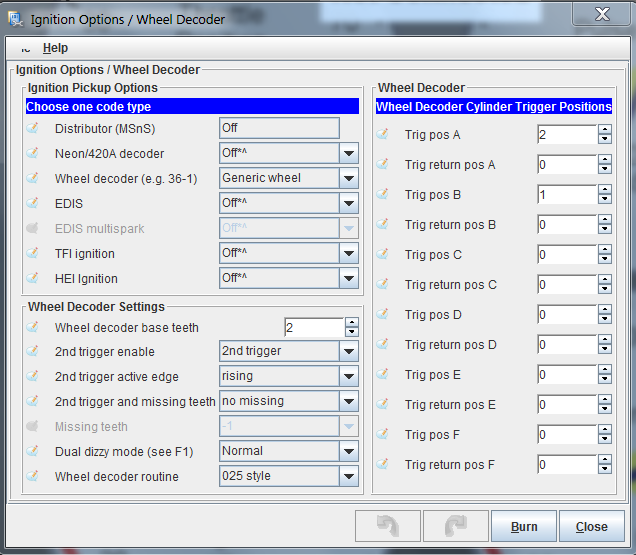

Wrong firmware? Dont see an option anywhere for 4G63
Attached Thumbnails
Low RPM signal, no spark-80-mssettings_49e1613da3f5248f57634ea0dbcc6a8a1cd28b1e.png
macman2212 is offline   Reply With Quote
Old 04-04-2016, 09:00 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

sorry, forgot youre MS1. Been like over 10 years since I looked at that firmware.

that looks correct.
Braineack is offline   Reply With Quote
Old 04-04-2016, 09:35 PM   #10
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

Ok, I was about the flash the hr_10g firmware, guess I won't.

Set up like this I get 0 tach signal, should I go ahead and do all the mods in that linked post? Jump D5, D8, put leds to coils and such? All I have done now are those on the backside of the board.
macman2212 is offline   Reply With Quote
Old 04-04-2016, 10:18 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

The two jumpers are needed for tach.
Braineack is offline   Reply With Quote
Old 04-05-2016, 03:31 PM   #12
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

Alright I've jumped D5 and D8 as well as XG1 and XG2.

On tuner studio I'm getting 200-260 rpm cranking, getting fuel but still no spark.

Should I do the coil output and PWM mods shown in your example?
macman2212 is offline   Reply With Quote
Old 04-05-2016, 06:47 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

You don't have the spark outputs wired to your harness...
Braineack is offline   Reply With Quote
Old 04-05-2016, 09:29 PM   #14
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

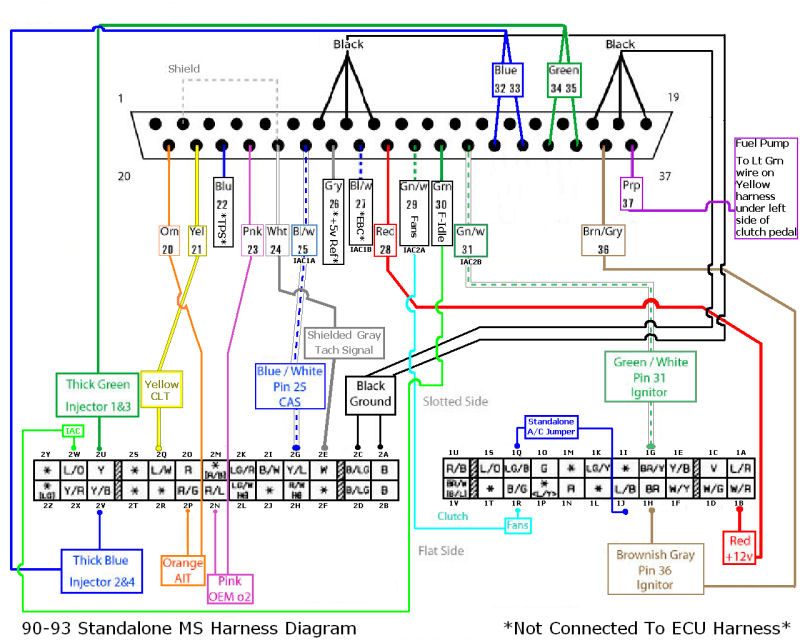

This is how I wired my harness


Attached Thumbnails
Low RPM signal, no spark-80-90_93_miata_standalone_ms_45054908aa23948c4e8e6dae94723a36a7bcd8ba.jpg
macman2212 is offline   Reply With Quote
Old 04-06-2016, 09:32 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

but you don't have the LEDs connected to pins 31 and 36.


and yuk that's an awful diagram. At least wire pin 27 to 2O and then run a small jumper wire in the AFM connector.
Braineack is offline   Reply With Quote
Old 04-06-2016, 01:43 PM   #16
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

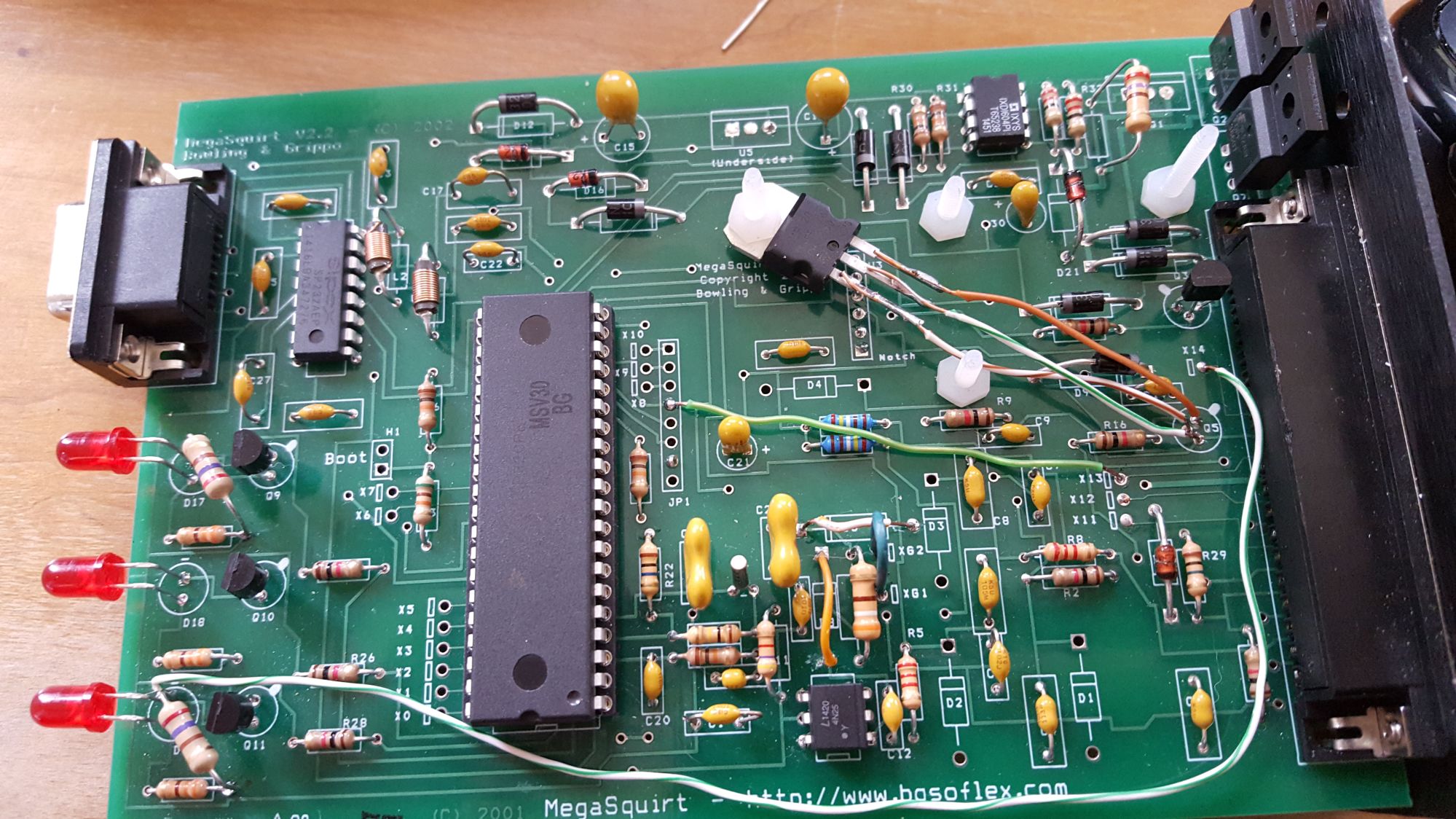

I've made all the coil connections on the ms board and hooked up pin 27 to 2O on the harness. I also did the launch in mod for the heck of it.

I have my AIT plugged into the 1st and 6th slot on my AFM connector, which slots should I jumper?

I set spark output A and B to the correct outputs, not sure how to setup fan.

Edit: When I crank with this setup, the fans run as soon as I turn the key to on,

Got engine to start idled like ****, then smoke came out of my board so I shut it down. Still powers up, any thoughts? 24 gauge wire too small?

Also did the PWM idle mod afterwords with a TIP120 transistor from radio shack, not 100% for the settings on that.





Edit: set up like this with idle set to pwm at 62% hertz car runs. Idles kind of high around 1600-1900. Working in it, making progress.

Edit: moved car, stalled out, wont start again.
Attached Thumbnails
Low RPM signal, no spark-80-20160407_101405_dc0bef17be658bffd76ec3f82210fe0dc690cedf.jpg

Last edited by macman2212; 04-07-2016 at 07:55 PM.
macman2212 is offline   Reply With Quote
Old 04-10-2016, 12:49 PM   #17
Newb
Thread Starter

Join Date: Apr 2016
Posts: 14
Total Cats: 0
Default

I got the car to idle where it should at around 1100rpm for warmup by adjusting the idle valve dc, still oscillates a little. I think the cause of some of my problems are caused by my coolant temp staying at -40F at all times. Checked my harness, getting ~4.97 volts from the car, no difference cold or hot on the stock gague. And at one point the stock tach was working, now is not.
macman2212 is offline   Reply With Quote
