Default M.S Virgin modifying a 2nd hand MS 1v3

I have been converted!!!

After lurking for 3-4months and a series of [email protected] noob questions I've decided M.S is best.

The Scenario:
I have bought a MS1v3 here in NZ that has the following options added

"4 ingiters and spark outputs
fan control
boost control with two switchable boost tables.
water injection ouput
idle control valve output
Have a loom wired up to the plug already to make splicing it into something easy."


It has been setup for an EJ20T Subaru.

Q.1 Should I go all the way through the megamanual and attempt to resolder/ desolder anything different, or is there another easier way to get the M.S setup for a 1991 B6ZE???

Q.2 I was thinking all I need now from autotune to complete the installation is:
Boost solenoid
LC1
IAT Gm sensor
Then i'm set right?? havn't forgotten anything??

P.s am going diy acoustic earmuffs for the knocksenser and don't see sense in getting a stim since 90% of the work has been done and guaranteed by a pro.
Attached Thumbnails

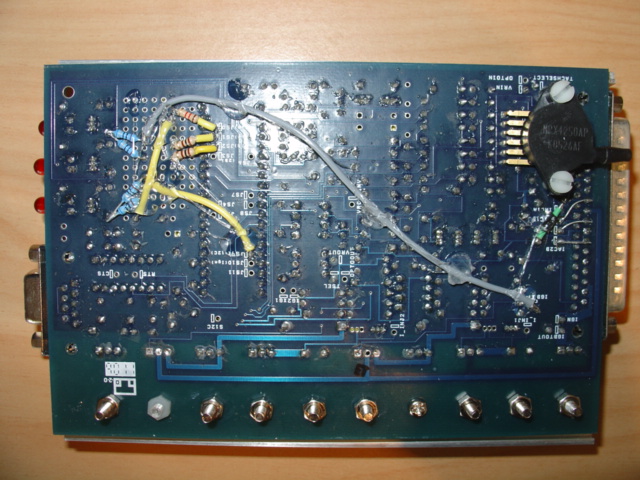

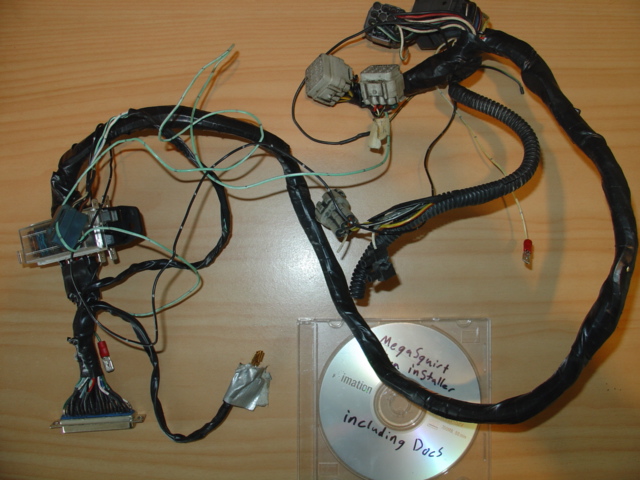

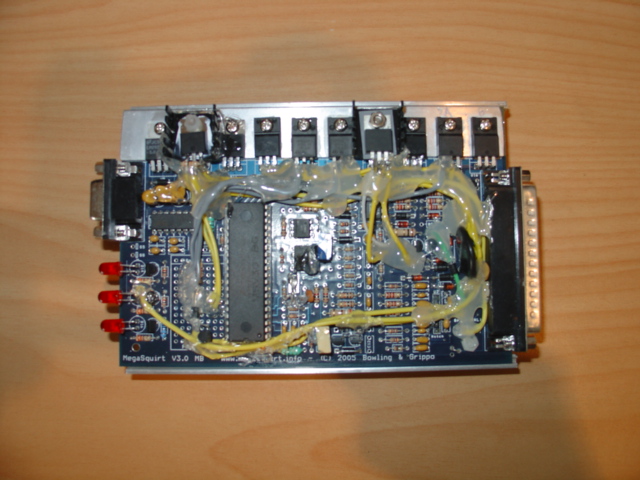

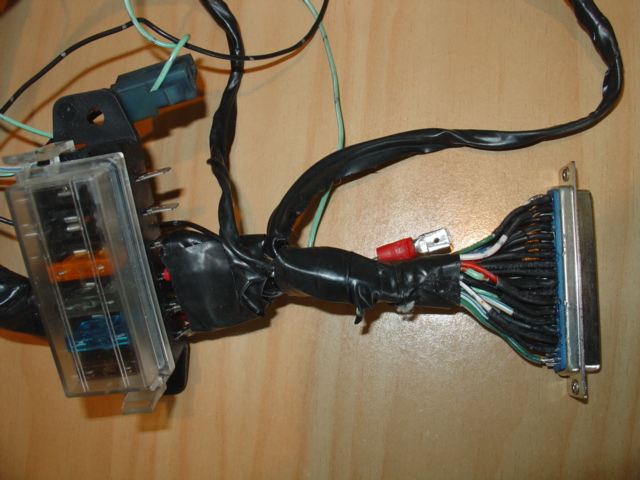

M.S Virgin modifying a 2nd hand MS 1v3-dsc04433.jpg   M.S Virgin modifying a 2nd hand MS 1v3-dsc04434.jpg   M.S Virgin modifying a 2nd hand MS 1v3-dsc04435.jpg   M.S Virgin modifying a 2nd hand MS 1v3-dsc04436.jpg
ogwazza is offline   Reply With Quote
Old 10-23-2008, 10:32 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

DIY is out of the boost solenoid. GM decided the part needed to cost $40 not $15.

this is a good soultion: http://airinc.thomasnet.com/Item?cid...7&assetid=spec $30 shipped and needs two 1/8" fittings of your choosing.


The MS looks almost ready to go. Rip out everything that's yellow and held down by superglue. The two FETs with the heatsinks can go if you plan on using High-Res code. Give you room to add boost control if you'd like. Is this a standalone install? you can use on of the TIP125 on Q12 or Q3 to control the idle valve. I've heard you can use them for the boost solenoid, but I don't know of anyone who has.

You gotta change the tachselect options on the board. XG1 and XG2 need to be jumped. TSEL needs to jump to OPTOOUT. TACHSELECT needs to jump to OPTOIN.

Once you remove all the jumpers and extra components you should do the standard miata mods.
Braineack is offline   Reply With Quote
Old 10-23-2008, 11:03 AM   #3
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

We still have a few boost solenoids, but they have been discontinued; it wasn't just a price hike. We plan on testing out Braineack's substitute part pretty soon.
Matt Cramer is offline   Reply With Quote
Old 10-23-2008, 11:13 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

gotcha.


The fast-acting valve works great. Plus since it uses fittings you can size the barbs properly to your setup; I know some people with EWGs complain about the small port size of the GM solenoid.
Braineack is offline   Reply With Quote
Old 10-23-2008, 07:05 PM   #5
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Cheers Brain- you're the man!

Yep I am going standalone (don't need powersteer or A/C). I wan't planning on using high res because I was following Diyautotunes setup but I will convert when I search/find a high res setup then.

I will start taking out all the yellow wires as well as the jumpers on the back of the MS tonight, as well as the FET things.

Will order the boost solenoid once I am 100% that I dont need anything else from Diy (since it has to come from the other side of the world!)

Dam my MS makes me feel like christmas has come early- I'm wearing a permanant grin!
ogwazza is offline   Reply With Quote
Old 10-23-2008, 07:53 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

well there you go. use one of the TIP125s you removed & use it to control the idle valve. saves you a few bucks.
Braineack is offline   Reply With Quote
Old 10-25-2008, 03:24 AM   #7
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

OK- A little confused now.
Quote:
Originally posted by Braineack
Rip out everything that's yellow and held down by superglue. The two FETs with the heatsinks can go if you plan on using High-Res code. Give you room to add boost control if you'd like. Is this a standalone install? you can use on of the TIP125 on Q12 or Q3 to control the idle valve. I've heard you can use them for the boost solenoid, but I don't know of anyone who has.
I have ripped out all the yellow , but now I have realised that the Fet things are Boost control and idle valve. so can I still leave them out if I want these options with high-res code??.... I'm guessing I put them back in.

The other thing I want to double check is Q12, R38 Q9 & R37 have been jumped in some way or another- eg: currently R37 has both pins jumped,as well as R38. Should I make these all un jumped? The other stress is that R38 and R37 have 3 prongs, and the ones in brains 'custom built megasquirts only have 2 prongs.



Cheers

Last edited by ogwazza; 10-25-2008 at 05:54 AM. Reason: not wanting to sound dumb
