Old 02-24-2014, 12:03 PM   #1
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default Making an ignition table more conservative - need feedback

I recently replaced my motor after a lubrication-related catastrophic failure of my last motor. The last motor was tuned at DIYAutoTune after installing a Megasquirt PNP V2.

I'm doing a track day this weekend and won't have time to get to the dyno between now and then, so I'm looking to make my ignition table more conservative to give a little bit of cushion.

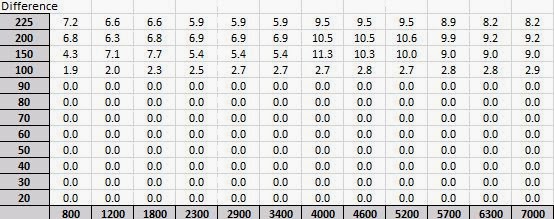

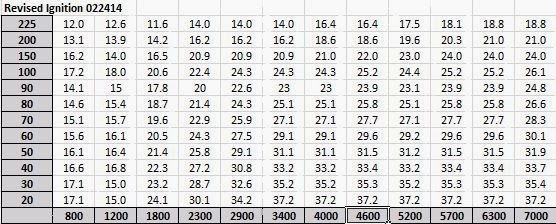

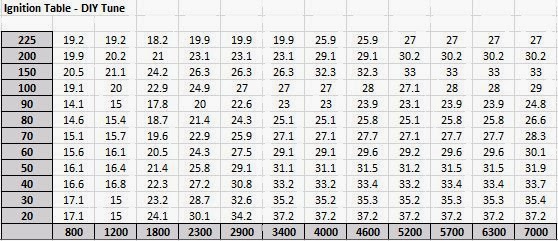

The three tables below show 1) the original dyno tune, 2) my proposed changes, and 3) the difference between the two. I scaled back the timing in the boosted rows (the 100+ rows) since I figured that's where there was potential for knock.

Any critique or feedback on the approach?






Attached Thumbnails
Making an ignition table more conservative - need feedback-diy%252520ignition%252520table.jpg   Making an ignition table more conservative - need feedback-revised%252520ignition%252520table.jpg   Making an ignition table more conservative - need feedback-difference%252520-%252520ignition%252520table.jpg
nickt93 is offline   Reply With Quote
Old 02-24-2014, 02:17 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

is this thing meth cooled?
Braineack is offline   Reply With Quote
Old 02-24-2014, 02:33 PM   #3
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default

No. Why, timing looks too aggressive?
nickt93 is offline   Reply With Quote
Old 02-24-2014, 02:42 PM   #4
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

fwiw my max advance at 200kpa was 19. I stopped there basically because I hit my power goal and figured that was conservative street timing at that level and our fuel.
m2cupcar is offline   Reply With Quote
Old 02-24-2014, 02:47 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

at 200kPa my 1.6L was safely agressive at 16.
Braineack is offline   Reply With Quote
Old 02-24-2014, 03:02 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

IIRC the maximum timing I was able to pull on a 1.6L using the best pump gas available and some octane booster was something like 24* at 160kPa. Now 33* is full-det area, unless of course the base was not calibrated.
Reverant is offline   Reply With Quote
