Default Megasquirt in... car won't start. Help.

So I have a Brainbuilt MS3x and I followed all his instructions but I can't get the car to start. Turns over but I get nothing but but a few backfires. Not sure if the base tune is built in or what.

PS: I'm dumb. I've got this far though, so I can't be entirely stupid.

Last edited by _spyder; 07-04-2012 at 11:50 PM.
_spyder is offline   Reply With Quote
Old 07-05-2012, 12:06 AM   #2
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

datalog while cranking and tune
Techsalvager is offline   Reply With Quote
Old 07-05-2012, 12:28 AM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

I don't even know how to datalog. I got the sensors calibrated in Tuner Studio and then tried turning it over. The AEM Wideband is off by almost 1.
_spyder is offline   Reply With Quote
Old 07-05-2012, 12:33 AM   #4
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

at top of tunerstudio there is button with wording on it "data logging"
Click it and click "start logging"
Save as whatever name you want it to be.
Try to crank it a couple times while its data logging, then stop the data log ( click data logging, click stop ) and upload it here with your tune.
Techsalvager is offline   Reply With Quote
Old 07-05-2012, 12:41 AM   #5
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Techsalvager View Post
at top of tunerstudio there is button with wording on it "data logging"
Click it and click "start logging"
Save as whatever name you want it to be.
Try to crank it a couple times while its data logging, then stop the data log ( click data logging, click stop ) and upload it here with your tune.
I don't know if Brain was supposed to send me a tune, but I don't have one as far as I know. I'll go out tomorrow and datalog it after work and post it up here. I should be able to figure that out.
_spyder is offline   Reply With Quote
Old 07-05-2012, 12:43 AM   #6
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

if you can interface with the ecu and tweak settings there is a tune in it. Just save tune or copy current tune
Techsalvager is offline   Reply With Quote
Old 07-05-2012, 12:44 AM   #7
Junior Member

Join Date: Aug 2009
Location: Lake Jackson, TX
Posts: 161
Total Cats: 3
Default

Suggestion. Check to see if your spark wires got hooked up backwards. Despite double-checking and triple-checking when I hooked up my MS1, I still somehow ended up with IGN1 and IGN2 being swapped by accident and I had the symptoms that you're having. Swapped them and everything fired up perfectly on the first try.
jnshk is offline   Reply With Quote
Old 07-05-2012, 12:55 AM   #8
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by jnshk View Post
Suggestion. Check to see if your spark wires got hooked up backwards. Despite double-checking and triple-checking when I hooked up my MS1, I still somehow ended up with IGN1 and IGN2 being swapped by accident and I had the symptoms that you're having. Swapped them and everything fired up perfectly on the first try.
I had the problem once, never forget to double check them since. They're good.
_spyder is offline   Reply With Quote
Old 07-05-2012, 09:42 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

Quote:
Originally Posted by _spyder View Post
Turns over but I get nothing but but a few backfires.
so youre igniting a bunch of fuel. sounds like we miscommunicated on what injector size you're currently running or the map sensor is not hooked up.

correcting the wideband is easy, considering I calibrated it up for the lc-1

are all other gauges/sensors/tps reading correctly?
Braineack is online now   Reply With Quote
Old 07-05-2012, 11:42 AM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Threads like this make me put a gun in my mouth.
hustler is offline   Reply With Quote
Old 07-05-2012, 02:18 PM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by hustler View Post
Threads like this make me put a gun in my mouth.
What would it take to get you to "squeeze"?
hornetball is offline   Reply With Quote
Old 07-05-2012, 07:50 PM   #12
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

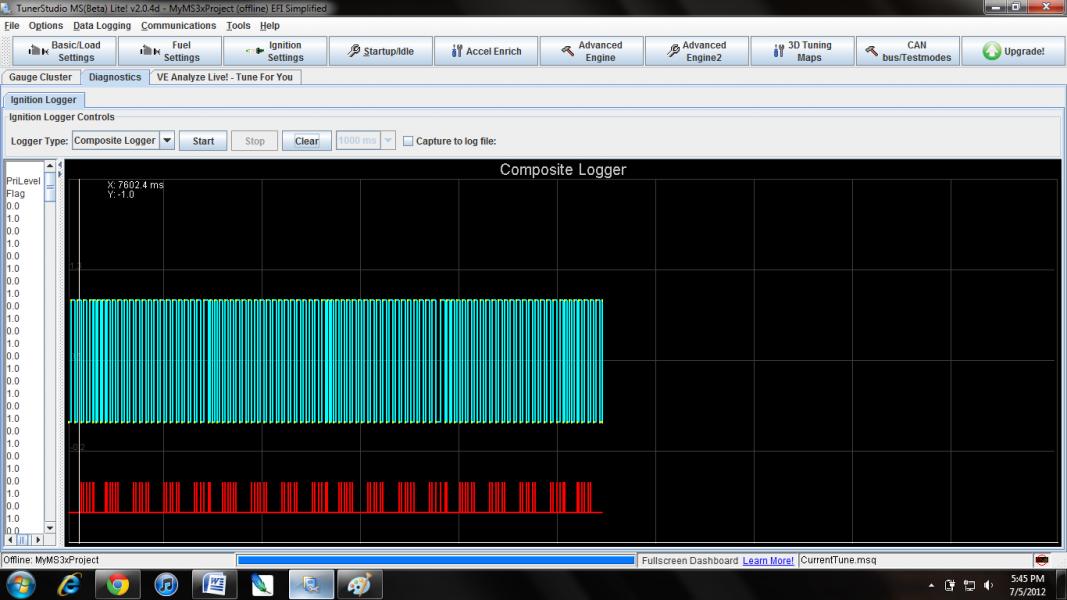

Attached is a screen shot of what I am seeing in the composite logger in the Diagnostics tab. Then I also attached a datalog of me cranking the car over for a few seconds.

I wanna get this thing running tonight.
Attached Thumbnails
Megasquirt in... car won't start. Help.-diagnostics.jpg
Attached Files
File Type: msl 2012-07-05_17.47.28.msl (102.4 KB, 101 views)
_spyder is offline   Reply With Quote
Old 07-05-2012, 07:56 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by hornetball View Post
What would it take to get you to "squeeze"?
A toothbrush, toothpaste, a flannel for my face.
hustler is offline   Reply With Quote
Old 07-05-2012, 08:27 PM   #14
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

It also says Not Synced in a red box at the bottom of TunerStudio studio. Not sure if that's got anything to do with anything.
_spyder is offline   Reply With Quote
Old 07-05-2012, 10:21 PM   #15
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

$5 PayPal to anyone who can help me get this started tonight.
_spyder is offline   Reply With Quote
Old 07-06-2012, 12:54 AM   #16
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Obviously something is wrong if things aren't syncing. Here is a video of what's going on outside of the car. I'm still a noob with all of this stuff, but I think I should be able to figure stuff out with a little guidance.

CLICK HERE FOR COOL VIDEO OF ME TRYING TO START THE CAR AND FAILING WHILE IT BACKFIRES
_spyder is offline   Reply With Quote
Old 07-06-2012, 11:26 AM   #17
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Any one have any ideas? I'm gonna have at it again today after work at 5:30. I wanna have it running so I can go to an event next weekend. Its been 2 months since I started tearing into this car, and I wanna get rid of the ---- piggyback. Help a brother out with this mighty MS3x.
_spyder is offline   Reply With Quote
Old 07-06-2012, 11:48 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

its not getting the cam signal, see PM.
Braineack is online now   Reply With Quote
Old 07-06-2012, 11:55 AM   #19
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

I emailed you.
_spyder is offline   Reply With Quote
Old 08-08-2012, 08:32 AM   #20
Junior Member

Join Date: May 2010
Location: Temecula, CA
Posts: 147
Total Cats: 2
Default

Bumping this up to the top.
I'm experiencing a very similar - maybe the same- issue on my 90 with MS3. The video is just what my car is doing as well.

Spyder, what was the fix on this?
I'm stuck on the first start- TS is set to fixed 10* timing, the car is set to ~14* (on stock ECM). I noticed a field under Combined Ignition Options-> Change Crank Advance--- this is set to 15*. Maybe the combo of the advanced static timing of the engine + MS not being set yet = too advanced to start?
vortexblue is offline   Reply With Quote
