MS issue/question/CAS going bad?
Thread Starter
Senior Member
iTrader: (6)
Joined: Aug 2009
Posts: 924
Total Cats: 16
From: Charlotte, NC
MS issue/question/CAS going bad?
After getting MS in and running in my 93 I have found a strange occurance. There is no obvious cause for this problem but it seems to occur the most while cruising at highway speeds in 5th gear.
What will happen is the car will lurch randomly, When the car lurches the Odometer will quickly fall and then rise back to its previous reading as if nothing had happened. It will sometimes never happen, and other trips it will happen multiple times. During my most recent log the car lurched at least 10 times during my 15 minute highway commute.

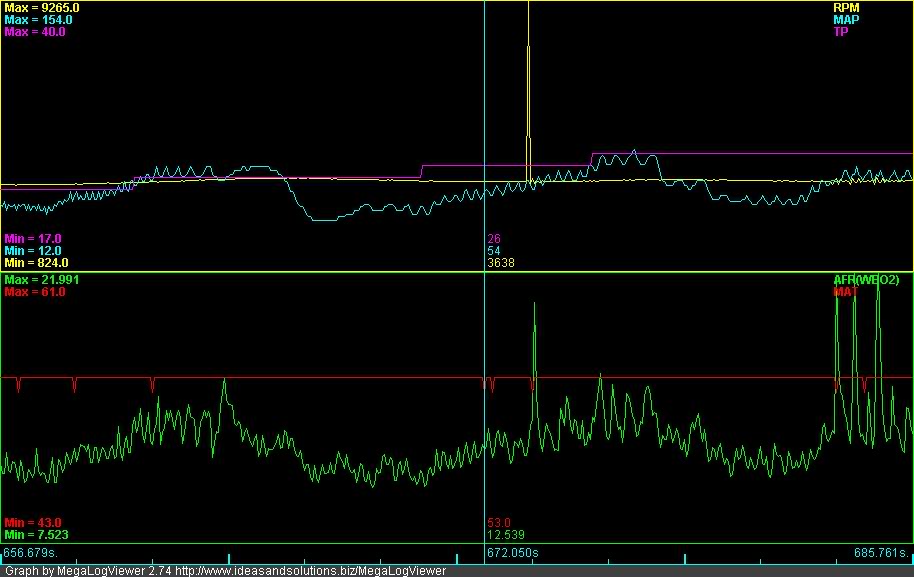

This spike in the middle of the image shows a RPM of 9265. The other spikes show similar numbers. Any ideas on what my problem might be?
What will happen is the car will lurch randomly, When the car lurches the Odometer will quickly fall and then rise back to its previous reading as if nothing had happened. It will sometimes never happen, and other trips it will happen multiple times. During my most recent log the car lurched at least 10 times during my 15 minute highway commute.
This spike in the middle of the image shows a RPM of 9265. The other spikes show similar numbers. Any ideas on what my problem might be?
Reply
0
0
Joined: Sep 2005
Posts: 34,402
Total Cats: 7,523
From: Chicago. (The less-murder part.)
The log you have shown is indeed suggestive of a noisy CAS signal.
I also find the lean spikes in your AFR at the right side of the image intriguing.
I also find the lean spikes in your AFR at the right side of the image intriguing.
Reply
0
0
It'd clean up the CAS signal.
I had a random miss for years on the high_res code, (but not the standard code weirdly) which bugged the hell out of me.
Till I fitted the cap.
I had a random miss for years on the high_res code, (but not the standard code weirdly) which bugged the hell out of me.
Till I fitted the cap.
Reply
0
0
filters the second trigger for noise...
Originally Posted by found soul
The real resolution for my issue at least, was noise on the 2nd trigger input signal coming from the CAS. You're need a really high resolution scope to capture the noise, the noise blips I captures were roughly 4us (4 millions of a second) wide, but it was enough to present an additional, or in some cases simply a mis-timed rising/falling edge to the CPU which triggered it either at the wrong time or an additional time causing a misfire. I could see this clear as day in the scope traces once I cranked the sample rate up high enough to get a look at it.
Long story short we needed to filter the noise out without filtering the signal out or negatively effecting it. Math happened and we started trying a few capacitor values and landed at .1uf between the processor input and GND. A much smaller value seemed to solve the issue, but the .1uf did as well and provided some leeway in case the noise ever worsened, and it had no negative effect on the signal at any RPM this engine will ever see.
Long story short we needed to filter the noise out without filtering the signal out or negatively effecting it. Math happened and we started trying a few capacitor values and landed at .1uf between the processor input and GND. A much smaller value seemed to solve the issue, but the .1uf did as well and provided some leeway in case the noise ever worsened, and it had no negative effect on the signal at any RPM this engine will ever see.
Reply
0
0
I haven't had a chance to take a look at his to see where all the noise is coming from in Gryff's setup, but it effects all sensor inputs; Not just map.
He has a cap in place between JS8 and ground so the problem comes from somewhere else.

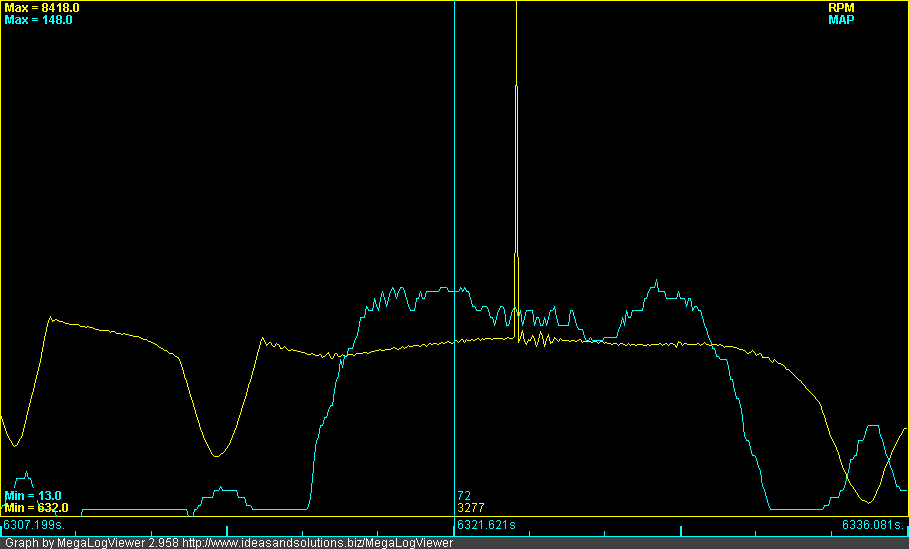

Attached is a little better detail as to what it is doing
He has a cap in place between JS8 and ground so the problem comes from somewhere else.
Attached is a little better detail as to what it is doing
