Default MS serial to OBD2 connection

So I'm looking at getting the iPhone and making the migration from TrackMaster to Harry's Laptimer and I would like to take advantage of the Sensor Wizard feature (OBD II) so I can get an overlay with the GPS telemetry.

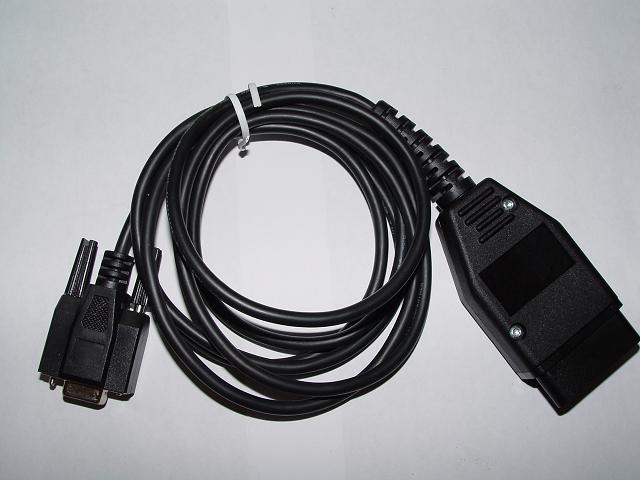

My question is, has anyone been able to successfully configure a serial to OBDII connector similar to this

Attached Thumbnails
MS serial to OBD2 connection-dsc08869a.jpg
v01canic is offline   Reply With Quote
Old 07-16-2012, 03:46 AM   #2
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

It wouldn't be that simple. You'd need a piece of hardware in between to poll the MS, store the realtime variables, and construct OBD-II packets for the reader to consume.
Jeff_Ciesielski is offline   Reply With Quote
Old 07-16-2012, 03:50 AM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

My new Enhanced MS2/MS3 will likely return OBD-II data.
Reverant is offline   Reply With Quote
Old 07-16-2012, 08:46 AM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Reverant View Post
My new Enhanced MS2/MS3 will likely return OBD-II data.
Just FYI you might want to watch out with that if you are planning on selling your new MS's in the USA. I could see some parts of the US Gov not liking that and giving you trouble.

It would be an AMAZING feature though.
shuiend is offline   Reply With Quote
Old 07-16-2012, 09:28 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

it wouldn't report emissions data, so, iirc, it's still okay for offroad use.
Braineack is offline   Reply With Quote
Old 07-16-2012, 01:05 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
It wouldn't be that simple. You'd need a piece of hardware in between to poll the MS, store the realtime variables, and construct OBD-II packets for the reader to consume.
completely agree, just amazed that no one has thought of this yet.

Scott, i dont know if you keep records of this but do you know what version you sold me.
v01canic is offline   Reply With Quote
Old 07-16-2012, 01:15 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

without looking, im assuming the diypnp; runs on the ms2 microquirt module.
Braineack is offline   Reply With Quote
Old 07-16-2012, 01:18 PM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by v01canic View Post
Scott, i dont know if you keep records of this but do you know what version you sold me.
Actually, the ECU you bought was from me. It is an MS2 V3.0.
Reverant is offline   Reply With Quote
Old 07-18-2012, 01:10 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
Actually, the ECU you bought was from me. It is an MS2 V3.0.
LOL my bad. It works flawless by the way. The switching between the e85 and pump gas maps is money.
v01canic is offline   Reply With Quote
