Hey guys im helping a local get his miata back running its a 92 with a greddy kit, devils own water meth, a trigger wheel instead of a cam sensor and an ms2. He pulled the harness because the wiring was screwed up without labeling the ms harness, it was hardwired into the car. Now im helping him get the thing back up snd running. Im working on labeling the harness, but as im looking at the ms2 pinout located here this model has a few extras that im not quite sure what they go to. I have pins pins 3-6 in use where the guide doesnt call for anything. The guide im using http://www.megamanual.com/ms2/V3assemble.htm

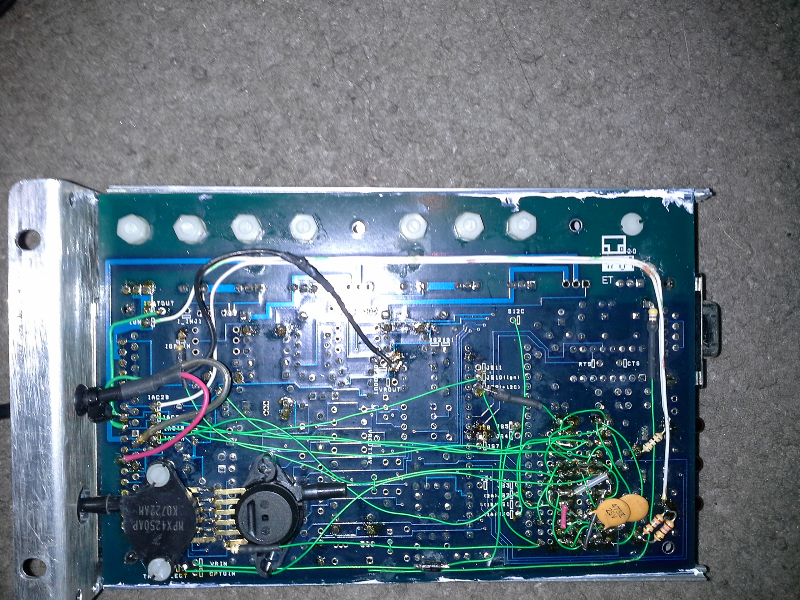

ms2 assistance-forumrunner_20130926_202732.png

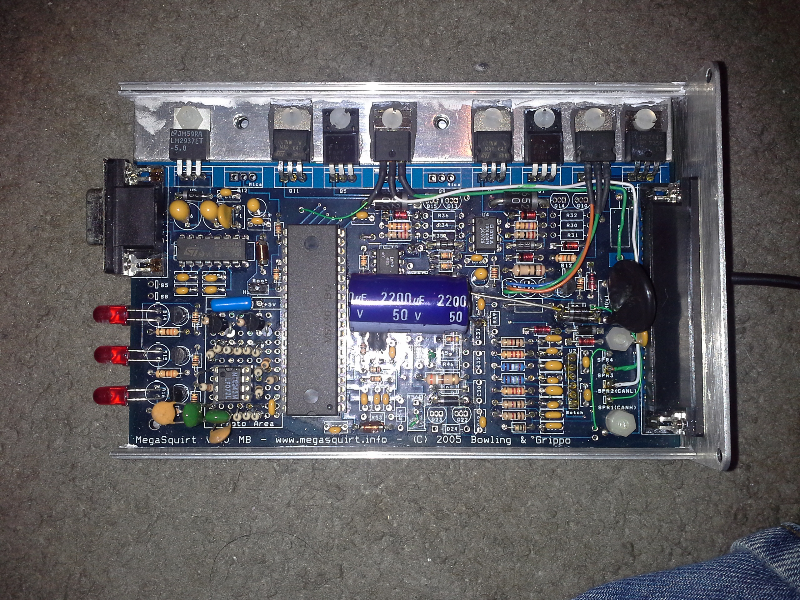

ms2 assistance-forumrunner_20130926_202740.png


Ps: sorry if stuff is misspelled im using a tablet
redturbomiata is offline   Reply With Quote
Old 09-26-2013, 09:53 PM   #2
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Also pin 36 says ignition module, on the guide. Which pin on the module is this.
redturbomiata is offline   Reply With Quote
Old 09-26-2013, 10:42 PM   #3
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Sorry I'm no help. But damn there is a lot of stuff on in that proto area lol. So glad I have an MS3x. Good luck
FRT_Fun is offline   Reply With Quote
Old 09-27-2013, 03:27 PM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Bump
redturbomiata is offline   Reply With Quote
Old 09-27-2013, 04:50 PM   #5
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

The standard manual doesn't cover optional mods; those are covered in the MS2/Extra manual:

Megasquirt MSEXTRA Manual Index
Matt Cramer is offline   Reply With Quote
Old 09-27-2013, 06:49 PM   #6
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

I do not see a ms2 cpu on that board.

Your best bet is to contact whomever built the MS.
southernmx5 is offline   Reply With Quote
Old 09-27-2013, 09:26 PM   #7
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by southernmx5 View Post
I do not see a ms2 cpu on that board.

Your best bet is to contact whomever built the MS.
No markings by builder. I'm leaning towards a diy unit. And thanks matt

Last edited by redturbomiata; 09-27-2013 at 10:22 PM.
redturbomiata is offline   Reply With Quote
Old 09-28-2013, 11:12 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I wouldnt touch that MS. what does that say to you?
Braineack is online now   Reply With Quote
Old 09-28-2013, 11:56 AM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

That's an MS1; upgrade to MS2 or MS3.
Reverant is offline   Reply With Quote
Old 09-28-2013, 03:17 PM   #10
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Yea Its kind of a mess
redturbomiata is offline   Reply With Quote
Old 09-28-2013, 04:36 PM   #11
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

I meant try to contact the builder to get "SKImatics" of the custom ckts. Otherwise it is going to take so much time to figure out the nonstandard ckts that you will be better off to just desolder that stuff and upgrade OR even better just build a new megasquirt.

It's like reverse engineering a Pentium 2 cpu when you could get a quad core i7.
southernmx5 is offline   Reply With Quote
Old 09-28-2013, 09:48 PM   #12
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

He hss no idea who built it, and I may suggest the upgrade if I cant figure out all the extra stuff.
redturbomiata is offline   Reply With Quote
