Default MS3+MS3x Lost Fan Control

To start things off I have my fan output wired to INJG as in Westfields build guide. And it was working. Randomly it stopped working and the fan has been always on ever since. As soon as the key is on the fan is on.

List of things I have checked.

-Fan Relay Clicks when unplugged and plugged.
-Fan does not turn on when ECU is not connected.
-Thermoswitch disconnected

Attached is my msq. I'm assuming something on the board is fried, or I have a setting wrong. Any input is appreciated.

ADJ
Attached Files
File Type: msq 2014-09-30_12.17.53.msq (218.2 KB, 34 views)
aidandj is offline   Reply With Quote
Old 09-30-2014, 04:38 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Injector driver is dead.
Reverant is online now   Reply With Quote
Old 09-30-2014, 04:39 PM   #3
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

What would have caused this?
aidandj is offline   Reply With Quote
Old 09-30-2014, 04:49 PM   #4
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

Once again my problem stems from my failures, not the failures of the components.

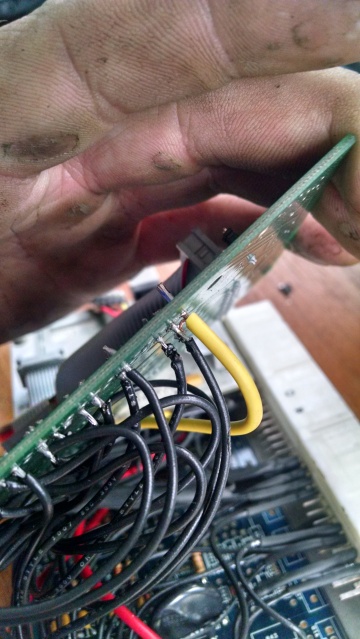

Somehow I missed this when I was putting it together. Fan output shorted straight to ground...

Attached Thumbnails
MS3+MS3x Lost Fan Control-2ebu1cw.jpg
aidandj is offline   Reply With Quote
Old 09-30-2014, 04:50 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

These drivers are known to randomly fail.
Reverant is online now   Reply With Quote
Old 09-30-2014, 04:51 PM   #6
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

Quote:
Originally Posted by Reverant View Post
These drivers are known to randomly fail.
Check my reply above.
aidandj is offline   Reply With Quote
Old 09-30-2014, 04:54 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Looks good lol.
Reverant is online now   Reply With Quote
Old 09-30-2014, 06:37 PM   #8
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

If an injector driver fails on the expander board is the only solution to buy a new board? I have already replaced so many items on my megasquirt that I am afraid of this happening to me. If so, I will have replaced nearly everything on my MS3 at least once...
Chiburbian is offline   Reply With Quote
Old 09-30-2014, 09:32 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Chiburbian View Post
If an injector driver fails on the expander board is the only solution to buy a new board? I have already replaced so many items on my megasquirt that I am afraid of this happening to me. If so, I will have replaced nearly everything on my MS3 at least once...
They are under warranty for 1 year. If not under warranty (and if you are unable to handle the re-work/soldering yourself), the easiest solution is to buy a new card.

The VNDs fail pretty rarely actually. The only exception is there seems to have been a small bad batch of them about 4+ years ago.
Ben is offline   Reply With Quote
Old 09-30-2014, 11:33 PM   #10
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

Quote:
Originally Posted by Ben View Post
They are under warranty for 1 year. If not under warranty (and if you are unable to handle the re-work/soldering yourself), the easiest solution is to buy a new card.

The VNDs fail pretty rarely actually. The only exception is there seems to have been a small bad batch of them about 4+ years ago.
Are they surface mount or through hole?
aidandj is offline   Reply With Quote
Old 10-01-2014, 02:52 AM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

SMD.
Reverant is online now   Reply With Quote
Old 10-01-2014, 08:57 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

That's exactly why I never opted to build MS3 harnesses like Frank's writeup. As much as I like the solution, I hate it.

The driver is $1.65 at digikey or mouser. it's probably the easiest SMD component to replace; or just move the output to any spares you might have.
Braineack is online now   Reply With Quote
Old 10-01-2014, 02:25 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by aidandj View Post
Are they surface mount or through hole?
Surface, but it's easy to work with as it's a large component with large pins.
Ben is offline   Reply With Quote
Old 10-01-2014, 11:06 PM   #14
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

Quote:
Originally Posted by Braineack View Post
That's exactly why I never opted to build MS3 harnesses like Frank's writeup. As much as I like the solution, I hate it.

The driver is $1.65 at digikey or mouser. it's probably the easiest SMD component to replace; or just move the output to any spares you might have.
It seems a lot better in concept than it does in practice. It limits your mounting possibilities, and really crowds the case. Oh well it was a good experience. The next one I build will use a DB-37 for sure.
aidandj is offline   Reply With Quote
Old 10-02-2014, 09:27 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

I would even rather drill a hole through the case and run the wires out the db37 and then back into the case to the connector before I desoldered the expander board like that.
