Question MS3 + MS3X for Mk1 1.8

Planning on building this sometime and have trawled through reams of information.

I'll need:
MS330K
MS 23" wiring bundle
MS3x
DB37 for the MS3X
23" wiring bundle for MS3X
Wideband LC1 + G5
IAT Kit w/ally bung

This CABLE

Anything else to add???

If I follow the msextra Guide, what to do in sections 26,27,28. I'll want to run as much as possible from MS3X board, IGN, Inj, Cam, A/C, Idle and Fans.
Step 22, Do I leave out Q16 and jump R43 ?

If I follow Franks' guide,
Step 50, Do I install his Cam/Crank circuit even though I'll use the MS3x Cam ???
Step 65, as per 22 above. Also IGBTIN to JS10 and IGBTOUT to IGN ???
Would I also need to do the PWM converter mod?

Please bear in mind I am nowhere near an electronics expert

P.S. It's a 1995 Eunos V-SpecII

Last edited by Freaky Roadster; 03-10-2011 at 05:02 AM.
Freaky Roadster is offline   Reply With Quote
Old 03-13-2011, 09:34 PM   #2
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

After more reading and help from Braineack, the V3,0 board should look like this with the 4g63 CAS circuit.

Now to sort out the jumpers.

For the 4g63 it's:
TSEL to OPTO OUT
TACHSELECT to XG1
5v from PROTO to top hole of C30

Other Jumps:
s12c to JS9 ? Yes
IAC1A to JS10 ? Yes
5v to JS10 + 470R ? Yes
Pull up Mods ????? Noooooooooooo.

Any help would be much appreciated.
Attached Thumbnails
MS3 + MS3X for Mk1 1.8-v3components.gif

Last edited by Freaky Roadster; 03-14-2011 at 09:14 PM. Reason: Got some answers.
Freaky Roadster is offline   Reply With Quote
Old 03-14-2011, 06:56 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Freaky Roadster View Post
After more reading and help from
s12c to JS9 ?
Yes, or any circuit you use from the 'IAC' pins won't work


Quote:
IAC1A to JS10 ?
5v to JS10 + 470R ?
No, that's the cam input for the V3 board, you're getting the MS3x so use the cam input on that instead

Pull up Mods ?????
[/QUOTE]

The pull up mods you are on about are probably ignition out, as above don't bother and use the MS3x instead.
richyvrlimited is online now   Reply With Quote
Old 03-14-2011, 12:17 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

you have to build the input circuit for the NB crank already. Build it for the cam too and save the MS3X cam input for something fun like traction control.
y8s is offline   Reply With Quote
Old 03-14-2011, 12:23 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

Quote:
Originally Posted by Freaky Roadster View Post
After more reading and help from Braineack, the V3,0 board should look like this with the 4g63 CAS circuit.

Now to sort out the jumpers.

For the 4g63 it's:
TSEL to OPTO OUT
TACHSELECT to XG1
5v from PROTO to top hole of C30

Other Jumps:
s12c to JS9 ?
IAC1A to JS10 ?
5v to JS10 + 470R ?
Pull up Mods ?????
Any help would be much appreciated.

For the 4G63 input circuit follow this:




R12 gets a 470ohm resistor.




and do the mods in RED, GREEN, and PURPLE.
Braineack is online now   Reply With Quote
Old 03-14-2011, 12:34 PM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by y8s View Post
you have to build the input circuit for the NB crank already. Build it for the cam too and save the MS3X cam input for something fun like traction control.
It's an NA...
richyvrlimited is online now   Reply With Quote
Old 03-14-2011, 12:58 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

oh whoops... change "NB crank" to "NA CAS". the circuit is different but for sequential I still like the idea of using the main board tsel and js10 for standard inputs and letting the xpander do more fun things.
y8s is offline   Reply With Quote
Old 03-14-2011, 09:13 PM   #8
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Cheers guys and thanks again Brain, I wasn't sure of the RED jumps.
Although Richy has a point, I was going to use the CAM input on the 3X.

p.s. edited other post.

Just did a check on 3X Wiring
http://www.msextra.com/doc/ms3/spareports.html#wiring

Part of reply from DIYautotune
"and any of your medium current outputs (24, 6, 25, 26, 27, but I'd save 9 for the IAC valve) may be used for fan or A/C output."

Doesn't mention relay switch or driver but the guide sounds like I'll have to build the circuits, where though?

Last edited by Freaky Roadster; 03-14-2011 at 09:36 PM.
Freaky Roadster is offline   Reply With Quote
Old 03-14-2011, 10:21 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

youll use the built in driver on MS3x. like a spare INJ driver for fan.
Braineack is online now   Reply With Quote
Old 03-14-2011, 10:29 PM   #10
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Thanks Brain, oooooooooooo six spare to choose from now which one to use
Might be best to use one for Air Con as well.
Freaky Roadster is offline   Reply With Quote
Old 05-15-2011, 11:59 AM   #11
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

I have a box of bits, not to find the time to assemble
Freaky Roadster is offline   Reply With Quote
Old 05-17-2011, 10:02 PM   #12
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Does R12 have to be a 1/2W 5% resistor or can I use one the same as the jumper from 5v to JS10 - 470R, 1/4W, 1%.
Freaky Roadster is offline   Reply With Quote
Old 05-17-2011, 10:27 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,823
Total Cats: 1,781
Default

i use 1/4watt 5%
Braineack is online now   Reply With Quote
Old 05-21-2011, 08:33 PM   #14
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Glad I checked the resistors, the muppets at Maplin gave me 470K, swapped them for 1/2w 470 5%, so no problems now
Part way through, and for my first circuit board, I reckon I've got some really neat solders Does help being a goldsmith
Freaky Roadster is offline   Reply With Quote
Old 05-27-2011, 05:22 AM   #15
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Can someone double check this loom set up before I make a huge **** up.
Not 100% sure on the ones highlighted in blue.
Attached Files
File Type: xls Squirt-pinsxls.xls (15.5 KB, 220 views)
Freaky Roadster is offline   Reply With Quote
Old 05-30-2011, 08:09 PM   #16
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Bump, anyone ??? Brain??? not 100% sure I'll be wiring the fans and AC up properly.
Freaky Roadster is offline   Reply With Quote
Old 06-04-2011, 09:09 PM   #17
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

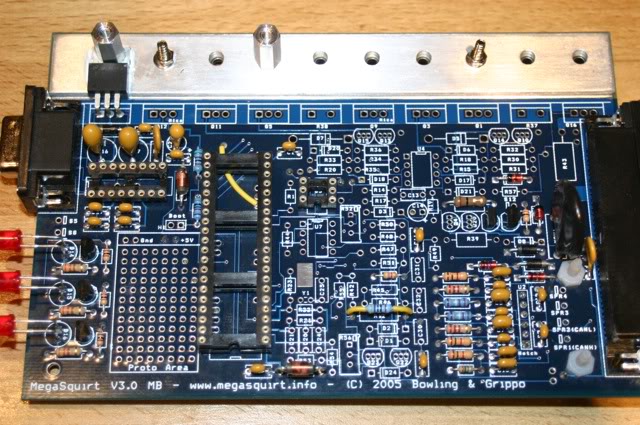

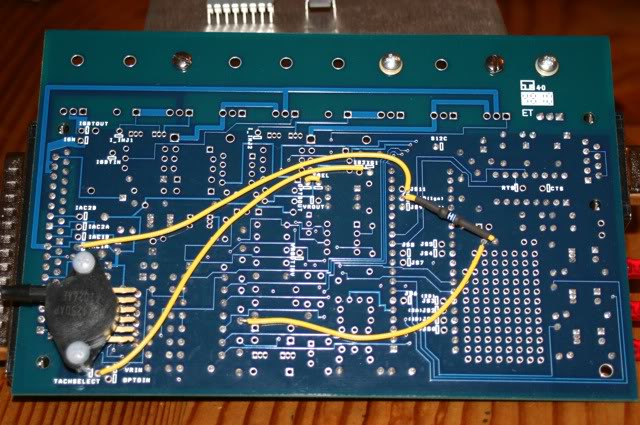

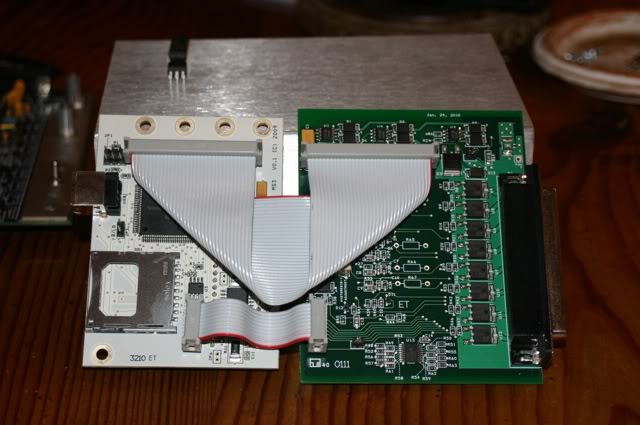

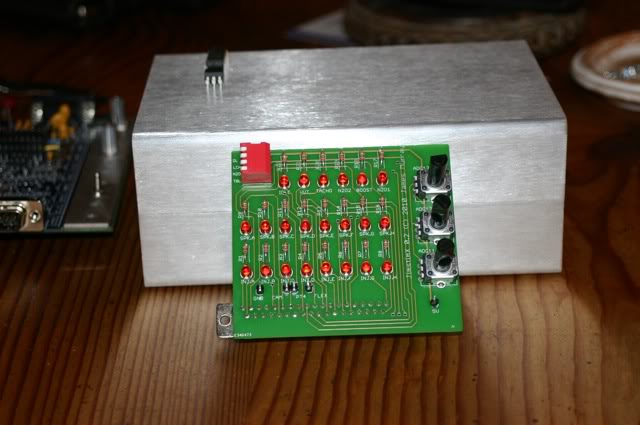

Built my MS3 now and also a JimstimX, just need to benchtest.

Name:  e167879f.jpg
Views: 14
Size:  44.6 KB
Name:  3f554149.jpg
Views: 13
Size:  49.7 KB
Name:  0aeb82f6.jpg
Views: 16
Size:  79.1 KB
Name:  34042cc1.jpg
Views: 16
Size:  97.8 KB
Freaky Roadster is offline   Reply With Quote
Old 06-08-2011, 09:58 PM   #18
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Am I correct in saying you do not jump 1Q to 1J or 1L to 2S
1Q= A/C Output, goes to pin 29 on the 3X for A/C input to the MS
1J= A/C Input, goes to pin25 on the 3X for A/C output from the MS
2S= A/C Fans, driven by pin 20 on 3X Inj H driver
1L= Fans Cooling, driven by pin 1 on 3X Inj G driver
2K= 5v Ref connect to pin 25 on the MS3

I'll have wideband o2 so 2N=OEM NB is not connected ?
Freaky Roadster is offline   Reply With Quote
Old 06-18-2011, 06:18 PM   #19
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

That looks really tidy, do you do lots of soldering?
timk is offline   Reply With Quote
Old 06-18-2011, 06:39 PM   #20
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Quote:
Originally Posted by saboteur View Post
That looks really tidy, do you do lots of soldering?
Sure do, but it's usually gold or silver with a gas/oxy torch.
Smallest pieces of solder I use go down to less than 0.2 Sq MM and approx 0.1mm thick. That's for really lightweight chains, eyes are on the way out so I'm starting to have to use an opti-visor for the real small stuff.
