Been studying the Madracki.com wiring diagrams (very useful) and it appears 2f and 1k are also sensor grounds.
Is there any reason not to use them as well to spread out the loom a bit?
Freaky Roadster is offline   Reply With Quote
Old 01-27-2012, 03:02 PM   #22
Newb
iTrader: (1)

Join Date: Mar 2011
Location: San Diego
Posts: 43
Total Cats: 1
Default

Rather than a new thread, I am going to bump this old thread because I have a couple of questions related to this wiring setup.

1) I set my board up exactly like Freaky Roadster (MS3 with MS3X for a '94), and my wiring is very similar as well. This shows running the fuel pump off of the MS3 pin 37 (as do all MS guides). However, what circuitry on the board runs the pump? I did not add any transistors, so I'm curious as what exactly is fuel pump related on the MS3 board. For reference:





2) Can you run two injectors off of a single MS3X injector output? This link states, "MS3X fuel - Use the MS3X expansion board's outputs to drive the fuel injectors. Only one injector should be used per output. " I believe the MS3X injector outputs are rated to 5A, so is this adequate to drive two injectors? Eventually I'll go sequential, but I'm just trying to get started with a stock car for now.
Attached Thumbnails

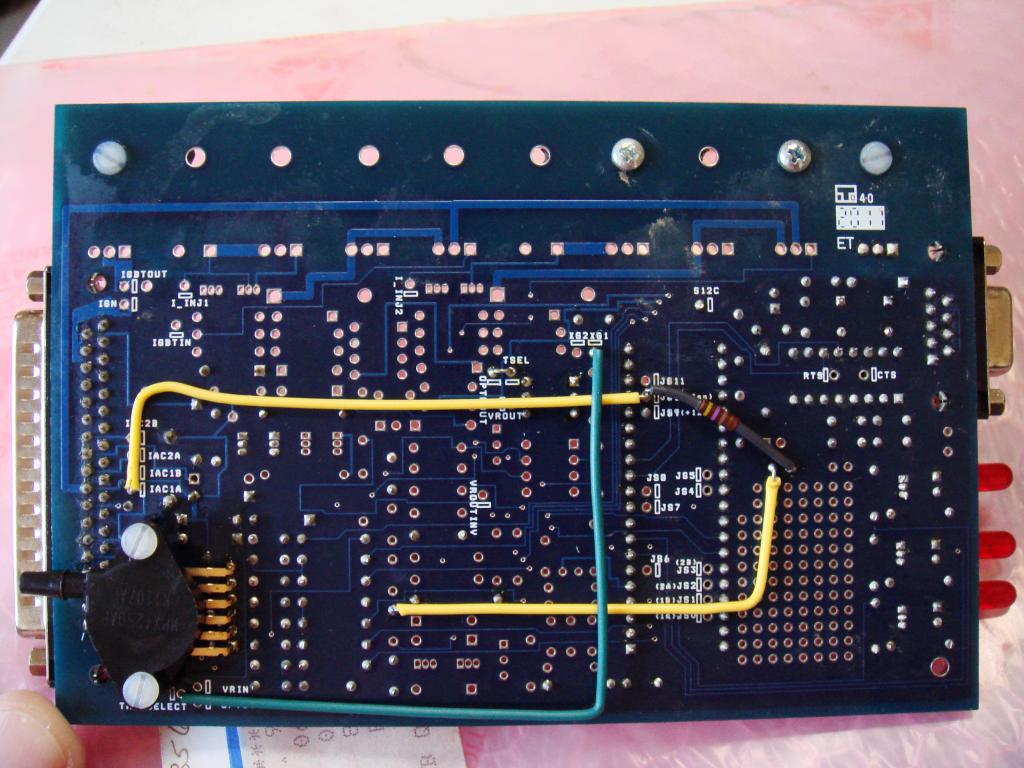

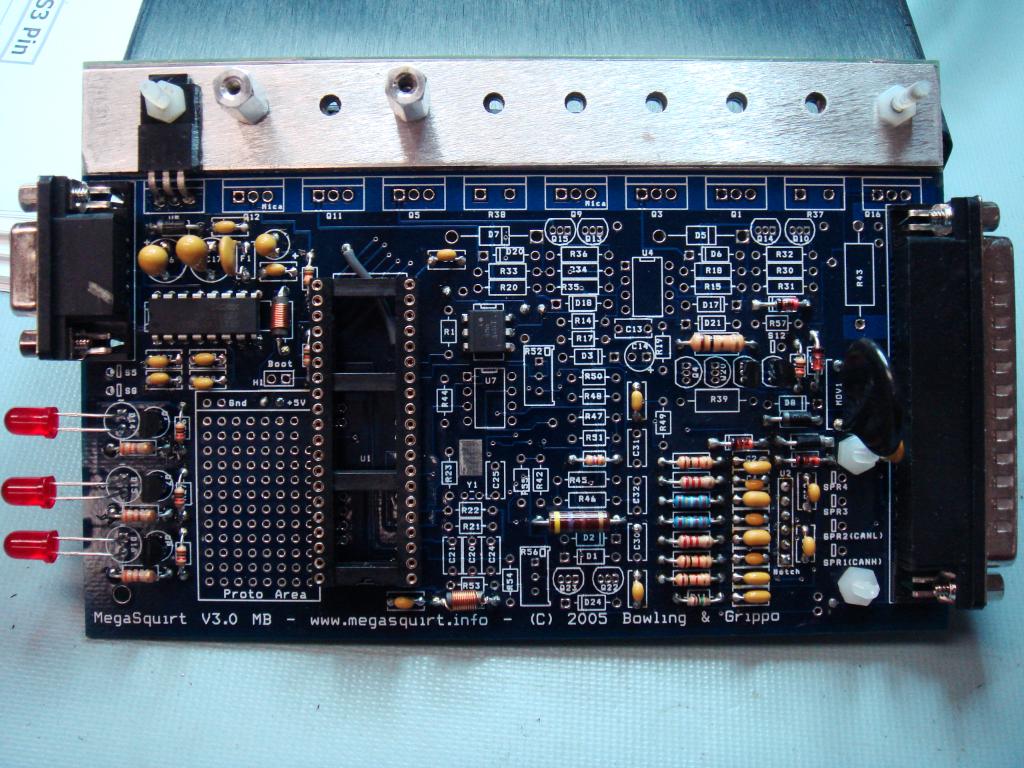

MS3 + MS3X for Mk1 1.8-dsc02145.jpg   MS3 + MS3X for Mk1 1.8-dsc02149.jpg
stucky is offline   Reply With Quote
Old 01-27-2012, 03:24 PM   #23
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by stucky View Post
1) (...) However, what circuitry on the board runs the pump? I did not add any transistors, so I'm curious as what exactly is fuel pump related on the MS3 board.
The FP driver on the main board consists of R16, R40, Q2, Q19, and D4. These are all clearly installed in the first of the two images which you posted:



Specifically, Q2 provides a closure to ground to turn the pump on. R16 is between it and the CPU. R40 and Q19 form a protection circuit which limits the maximum current that can flow through Q2, and D4 is a zener diode installed as a flyback diode.



Quote:
2) Can you run two injectors off of a single MS3X injector output?
I can't imagine why you'd want to, however I also can't imagine why you could not, provided they they are high-impedance injectors. A typical hi-z injector will have a steady-state current draw of only about 1 to 1.5A.

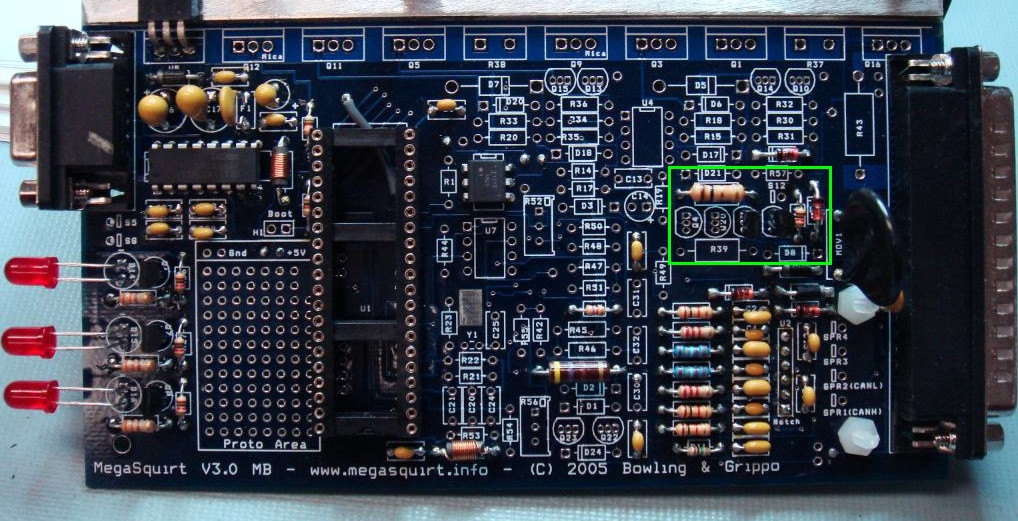

Attached Thumbnails
MS3 + MS3X for Mk1 1.8-ih4rf.jpg
Joe Perez is offline   Reply With Quote
Old 01-27-2012, 03:25 PM   #24
Newb
iTrader: (1)

Join Date: Mar 2011
Location: San Diego
Posts: 43
Total Cats: 1
Default

Thanks Joe. I have a better understanding of both of my questions now.
stucky is offline   Reply With Quote
Old 01-27-2012, 03:59 PM   #25
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Joe Perez is offline   Reply With Quote
Old 01-27-2012, 04:05 PM   #26
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by stucky View Post
Eventually I'll go sequential, but I'm just trying to get started with a stock car for now.
Dude, go sequential now. Your 94 already has individual wires for each injector in the stock harness to the ECU. All you have to do is move the two existing wires and then run two new (short) wires to the MS3X and change of couple of settings in TS. You don't have to touch anything under the hood. To leave you no excuse I'll even spoon/force-feed you everything you need to know.

Wiring:
InjA = pin 19 to 2U (yel)
InjB = pin 16 to 2Y (grn/wht)
InjC = pin 13 to 2Z (grn)
InjD = pin 10 to 2V (yel/blk)

Then under "engine & sequential settings" in TS,
main fuel outputs = MS3X fuel
sequential on = fully sequential
angle specifies = end of squirt
Firing order is A=1, B=3, C=4, D=2
Done.

Whichever route you go, make sure to add ground wires to the MS3X connector- pins 2, 3, 8, 12 and 17. If you don't, your car will probably run like crap. BTDT.
ScottFW is offline   Reply With Quote
Old 01-27-2012, 04:19 PM   #27
Newb
iTrader: (1)

Join Date: Mar 2011
Location: San Diego
Posts: 43
Total Cats: 1
Default

Quote:
Originally Posted by ScottFW View Post
Dude, go sequential now. Your 94 already has individual wires for each injector in the stock harness to the ECU. All you have to do is move the two existing wires and then run two new (short) wires to the MS3X and change of couple of settings in TS. You don't have to touch anything under the hood. To leave you no excuse I'll even spoon/force-feed you everything you need to know.

Wiring:
InjA = pin 19 to 2U (yel)
InjB = pin 16 to 2Y (grn/wht)
InjC = pin 13 to 2Z (grn)
InjD = pin 10 to 2V (yel/blk)

Then under "engine & sequential settings" in TS,
main fuel outputs = MS3X fuel
sequential on = fully sequential
angle specifies = end of squirt
Firing order is A=1, B=3, C=4, D=2
Done.

Whichever route you go, make sure to add ground wires to the MS3X connector- pins 2, 3, 8, 12 and 17. If you don't, your car will probably run like crap. BTDT.
Thanks. After I read Joe's post I looked through the car's wiring diagram and realized each injector has an individual wire. I am definitely going sequential fuel. I think in my head I was getting fuel and spark confused. Regardless, I appreciate the help.


-Mike
stucky is offline   Reply With Quote
Old 01-27-2012, 04:35 PM   #28
Newb
iTrader: (1)

Join Date: Mar 2011
Location: San Diego
Posts: 43
Total Cats: 1
Default

Also for future searchers benefit, the information Scott mentioned is all available in the link I posted in my original post.
stucky is offline   Reply With Quote
Old 01-27-2012, 04:50 PM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Just as an FYI, it appears that you are using the OPTO input circuit for the crank sensor as per the instructions in post #2.

Don't do that.

Honestly, that circuit is horrible and should die in a fire.

Build (and use) the VR circuit instead. Connect TachSelect to VrIn, and VrOut to Tsel. Adjust R56 so that you get about 2.5 volts at R54. Apply a 1k pullup from Vcc to TachSelect.
Joe Perez is offline   Reply With Quote
Old 01-27-2012, 07:15 PM   #30
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Ok, embarrassment time, still not had the time to install it.

So the VR is superior than the 4g63 set up, what do I need to unplug before installing the VR mods on the V3 board? Help needed please Joe due to being in a hazy alcoholic induced stupor.
Freaky Roadster is offline   Reply With Quote
Old 01-27-2012, 07:21 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

first you need to populate the VR circuit, or just go on with it--since it works.
Braineack is online now   Reply With Quote
Old 01-27-2012, 08:33 PM   #32
Newb
iTrader: (1)

Join Date: Mar 2011
Location: San Diego
Posts: 43
Total Cats: 1
Default

Freaky Roadster, follow this link.
stucky is offline   Reply With Quote
Old 02-19-2012, 08:40 PM   #33
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Cheers guys, added the VR + Pull Up circuit but left in the 4g63 components as it's a pain getting stuff out safely.
Pulled Tachselect to XG1
Pulled TSEL to OPTOUT
Pulled 5v to top of C30

Do I pull IAC1A to JS10 and 5v to JS10 through 470 Ohm resistor or leave them in?

Do I change any settings in TunerStudio? Currently set to 4g63

Last edited by Freaky Roadster; 02-19-2012 at 09:59 PM.
Freaky Roadster is offline   Reply With Quote
Old 02-20-2012, 07:44 PM   #34
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Just found that Frank's used one of my pics on his MS2 90-97 album, must have been impressed by the neatness.
Freaky Roadster is offline   Reply With Quote
Old 02-21-2012, 04:22 PM   #35
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

You are correct sir. When I come across a picture that's more clear or more tidy than what I have, I usually steal it .
In the case of a 90-97, I need to steal it all as I haven't actually built one. I just gather the info for my build how-to's, hoping someone can benefit from them. FWIW, I used one of Stucky's pics as well .
WestfieldMX5 is offline   Reply With Quote
Old 02-21-2012, 07:11 PM   #36
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

No problem Frank, some people get a bit nasty when using pictures without consent but I'm glad it was of use for you.

For my last questions in post #33, no mention of using the jumpers and pull up from 5v to JS10 to IAC1A on your build, so I reckon I'll disconnect that.

No idea though, if I need to change Tunerstudio settings from 4g63 to ??? or leave it.
Freaky Roadster is offline   Reply With Quote
Old 02-21-2012, 07:49 PM   #37
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

If you use the MS3X VR circuit + pullup for your cam in, then you don't need JS10 on the mainboard, so you can remove that stuff. The type of input circuit has no effect on the wheel decoder so leave it at 4G63.
WestfieldMX5 is offline   Reply With Quote
Old 02-21-2012, 08:50 PM   #38
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Thank you very much

After looking at the way you have the loom connector built into the box, I was wondering if it's also possible to lay out the MS3 and 3X side by side to the V3 board. Possibly using jumper wires to a break out board for the 40 pin connections. Or maybe some type of ribbon cable.

I remember some people having problems in where to put the MS3 due to the extra thickness of the box.
Freaky Roadster is offline   Reply With Quote
Old 02-22-2012, 12:54 PM   #39
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

You could build a cable like this http://ist.uwaterloo.ca/~schepers/1541par.html


Or you can get creative and move the map sensor away from the underside and lower the mainboard one or 2 steps, creating more room on top for the MS3 board.
Then try to lower the MS3 cpu as much as possible by either removing one of extra 40 pin dips or using a 40pin dip with very long pins so you can adjust the height.
It'll be a close fit, but you might be able to squeeze the MS3 board in a normal height case that way. The usb connector is a big wart though.
And of course you'd still have to find a solution for the X.
Attached Thumbnails
MS3 + MS3X for Mk1 1.8-pic02th.jpg

Last edited by WestfieldMX5; 02-22-2012 at 01:04 PM.
WestfieldMX5 is offline   Reply With Quote
Old 02-22-2012, 07:37 PM   #40
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

That's the sort of idea I had, nice find.
I think the boards would go side by side, V3 to the right and MS3 and 3X to the left. Each side being one half of the MS3 box. Then figure out best place for the 64 pin connector.
That's just a little idea to mull over.
Freaky Roadster is offline   Reply With Quote
