Default ms3x install/setup issue

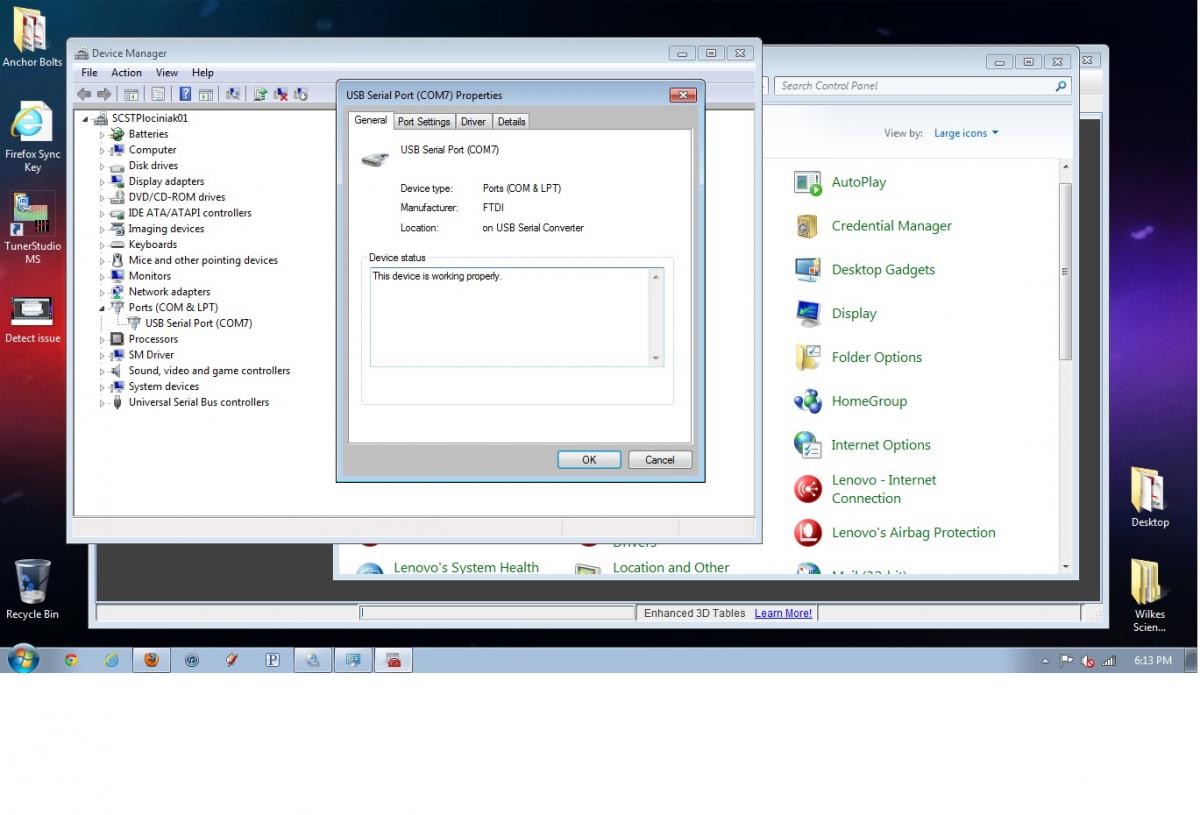

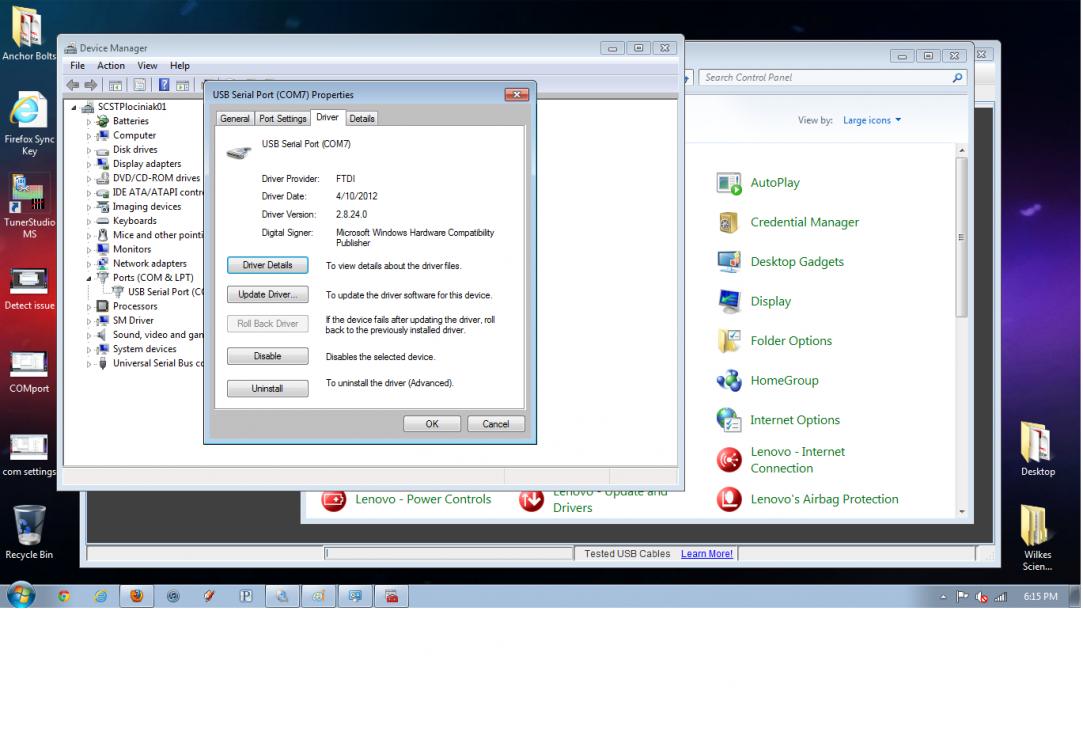

I believe I have everything installed per the directions I was sent by Brain, I connected my usb cable to the MS box, updated the drivers and it was assigned
COM 7, I opened tunerstudio, created a new project and when I did the

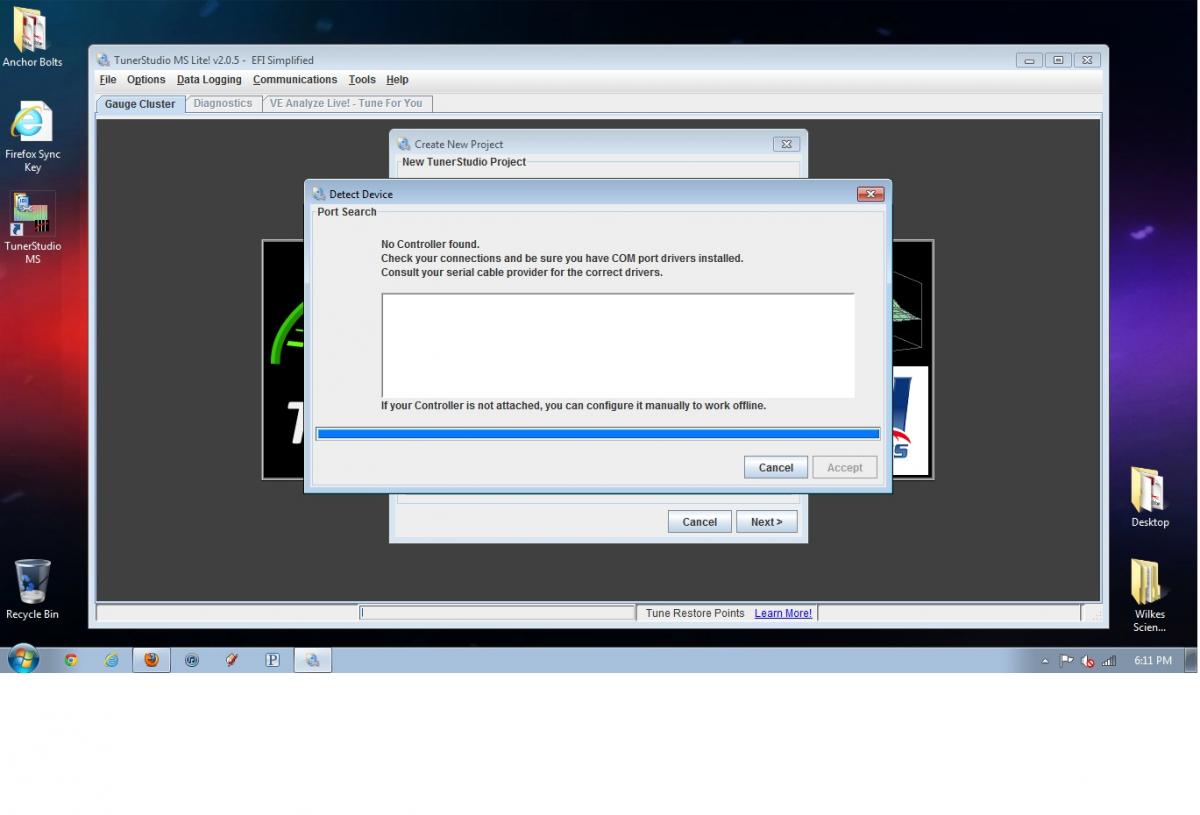

"detect" it did not find my box. When it is searching it does pause at COM 7 the longest but then continues on. I have attached a few screen shots
to hopefully help you understand where I am stuck, not sure what I
should do next. Thanks for the help
Attached Thumbnails
ms3x install/setup issue-detect-issue.jpg   ms3x install/setup issue-comport.jpg   ms3x install/setup issue-com-settings.jpg   ms3x install/setup issue-driver-details.jpg
tplociniak is offline   Reply With Quote
Old 07-29-2012, 08:55 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

Was the MS powered on?
Braineack is offline   Reply With Quote
Old 07-29-2012, 11:11 AM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

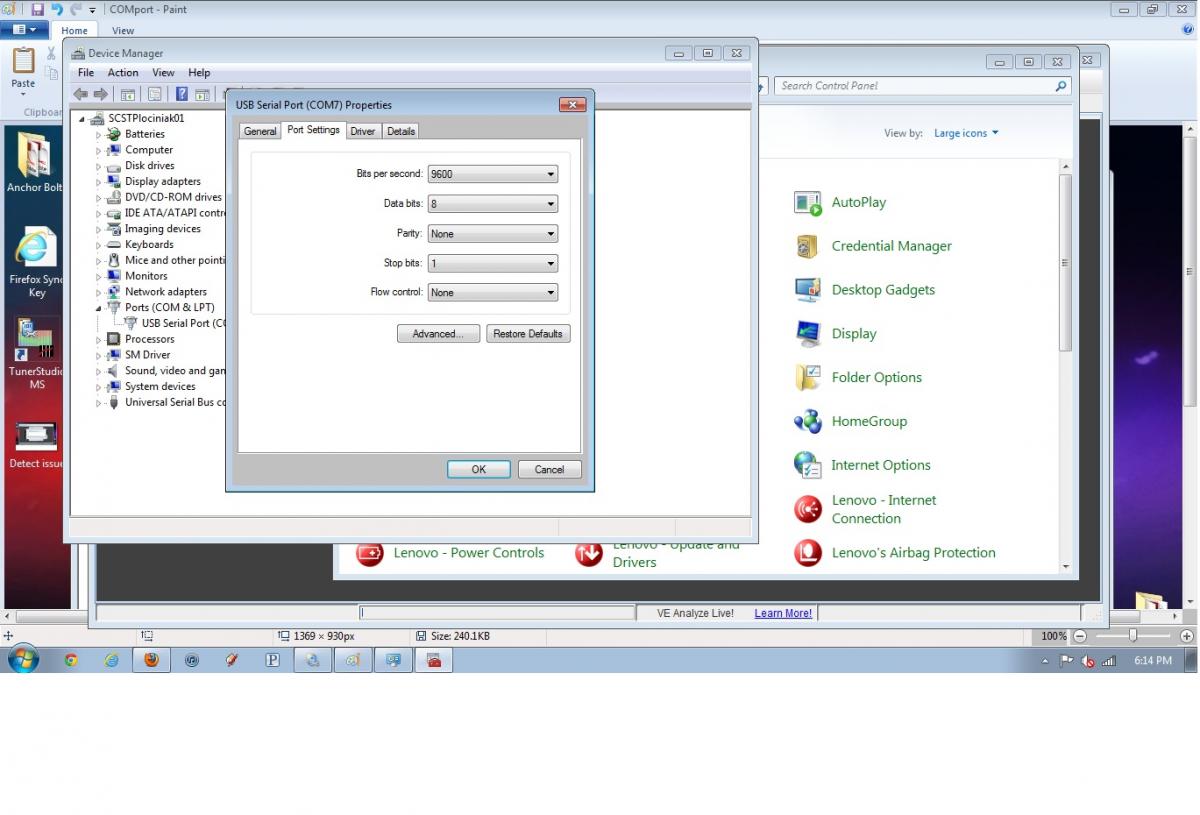

That, and the baud rate (bits per second) needs to be set to 115200.
Ben is offline   Reply With Quote
Old 07-29-2012, 11:22 AM   #4
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

Brain walked me through some things this morning, it was my TPS. My wells vTPS did not arrive yet and my MS was wired for it, leaving the stock TPS connected was causing a short, once I disconnected that everything worked. Thanks again Brain
tplociniak is offline   Reply With Quote
