Default MS3X no start with "Miata 99-05" mode

New MS3X on 94 motor with VVT head.
run ok with 4g63 mode with stock CAS.
switch to Miata 99-05, no luck.
CKS and CMS works.
No idea how the trigger setting work. please point me to the right direction.


attached log file from composite logger and tune.


Please help.

Thanks
Attached Files
File Type: csv 2013-11-22_13.48.36.csv (10.5 KB, 53 views)
File Type: msq Miata spark.msq (177.9 KB, 69 views)
oprso is offline   Reply With Quote
Old 11-22-2013, 02:54 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Are you using all NB sensors?
18psi is offline   Reply With Quote
Old 11-22-2013, 02:55 AM   #3
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
Are you using all NB sensors?
cam sensor came with the head so i suppose it's stock nb sensor. crank sensor from DIYautotune.
trigger wheel was from a 323. which look the same as the NB one.
oprso is offline   Reply With Quote
Old 11-22-2013, 08:15 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it appears to be syncing in that log you sent, cant you post a screenshot of the composite log? i cant view it in software here. you probably just need to fine tune your crossoverpoint pots.
Braineack is offline   Reply With Quote
Old 11-22-2013, 09:33 AM   #5
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
it appears to be syncing in that log you sent, cant you post a screenshot of the composite log? i cant view it in software here. you probably just need to fine tune your crossoverpoint pots.
thanks.
Attached Thumbnails

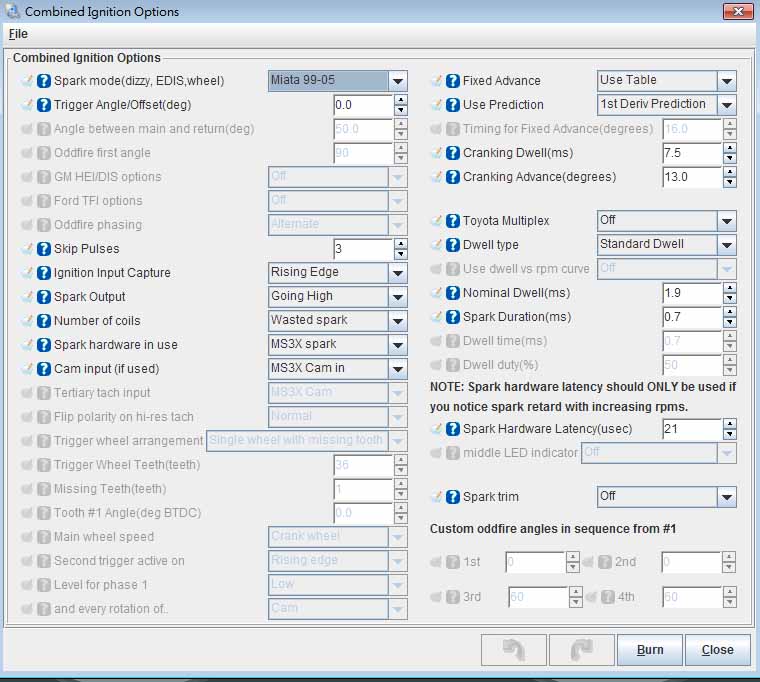

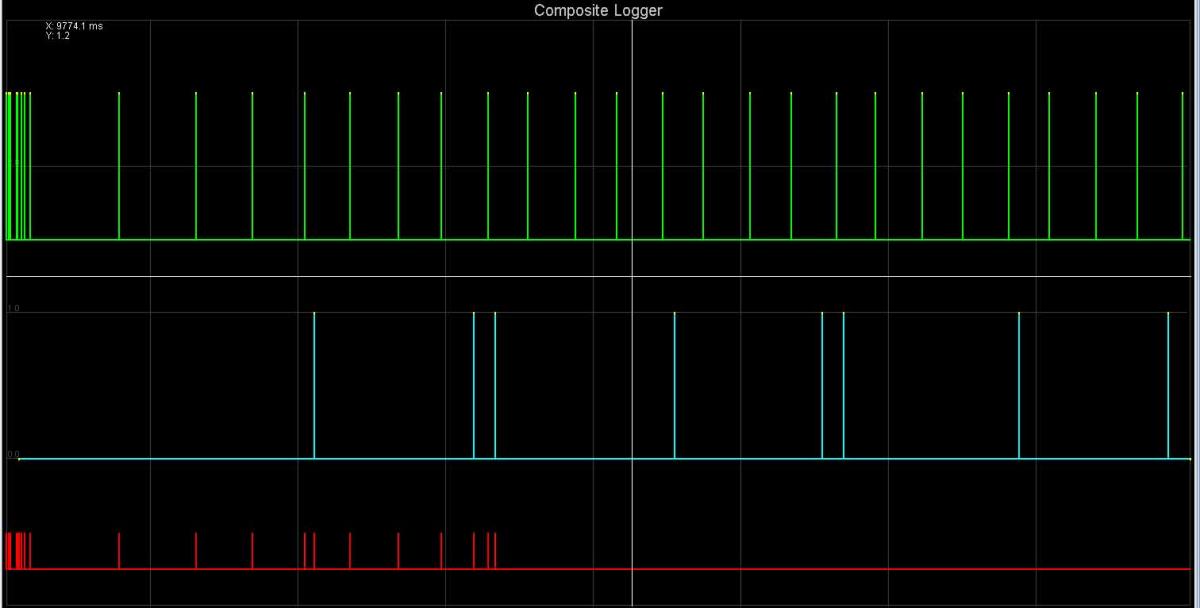

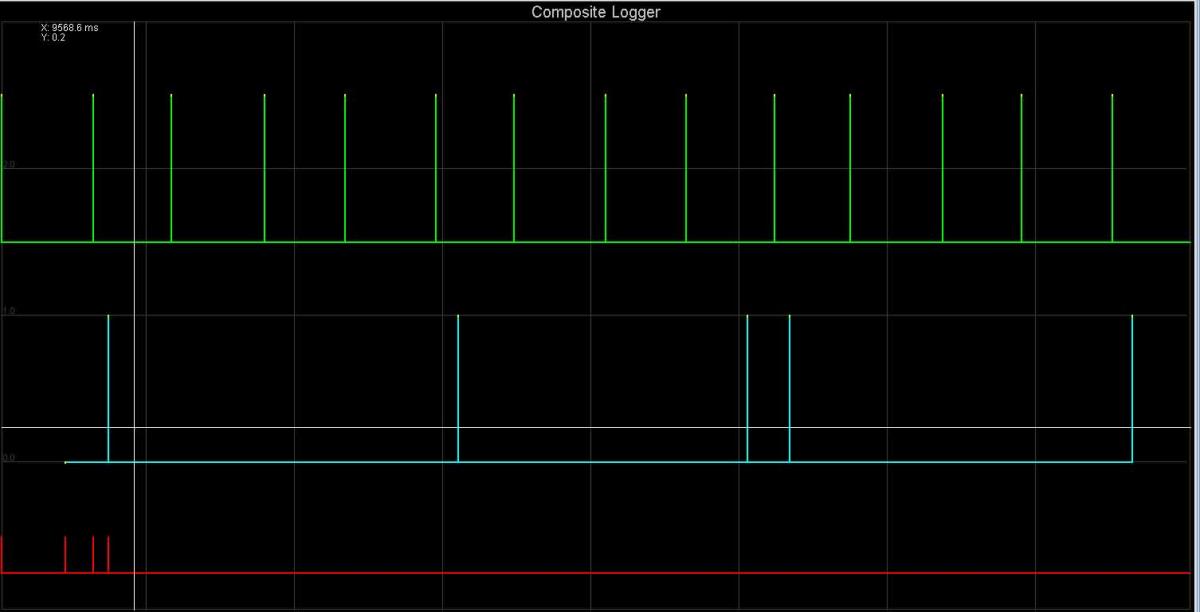

MS3X no start with "Miata 99-05" mode-1.jpg   MS3X no start with "Miata 99-05" mode-2.jpg   MS3X no start with "Miata 99-05" mode-ss.jpg
oprso is offline   Reply With Quote
Old 11-22-2013, 10:16 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

looks like you're syncing.
Braineack is offline   Reply With Quote
Old 11-22-2013, 10:24 AM   #7
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
looks like you're syncing.
so the sensor and the trigger is installed correctly?
what i should play with then?
oprso is offline   Reply With Quote
Old 11-25-2013, 02:44 AM   #8
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

is the green line suppose to be CAM?
oprso is offline   Reply With Quote
Old 11-25-2013, 08:36 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

oh yeah. looks like you have your sensors reversed.
Braineack is offline   Reply With Quote
Old 11-25-2013, 09:34 AM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Per your log, you have your crank sensor wired to your cam input and your cam sensor wired to your crank input.

Ben is offline   Reply With Quote
Old 11-26-2013, 01:04 AM   #11
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Per your log, you have your crank sensor wired to your cam input and your cam sensor wired to your crank input.

yes. i finally notice this problem and I just killed my starter........
oprso is offline   Reply With Quote
Old 11-26-2013, 01:00 PM   #12
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

new starter installed. wire swapped. Started to combust but still no start.
I can start the engine in 4g63 mode, so i suppose the fuel figure should work in miata 99-05 mode. <-- is this correct?
i hooked up the timing light but it didnt work at cranking speed. how can I get the base timing right?
What else can I go wrong?

For the "Ignition Input Capture" should I use Rising edge or Falling edge?

Last edited by oprso; 11-26-2013 at 01:20 PM.
oprso is offline   Reply With Quote
Old 11-26-2013, 11:15 PM   #13
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

here is another 2 log.
I got combustion but it didn't start.
is there anything to do with the "Trigger angle/offset" ? I set it to 0
also I haven't connect the vvt control. will it affect?

video clip of my cranking
Attached Files
File Type: csv 2013-11-27_09.46.54.csv (19.4 KB, 41 views)
File Type: csv 2013-11-27_09.51.42.csv (10.4 KB, 41 views)

Last edited by oprso; 11-27-2013 at 05:31 AM.
oprso is offline   Reply With Quote
Old 11-30-2013, 11:07 AM   #14
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I can't view your trigger logs on my desktop at home, but you're still not syncing.
Ben is offline   Reply With Quote
Old 11-30-2013, 01:01 PM   #15
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
I can't view your trigger logs on my desktop at home, but you're still not syncing.
Its still not working. I have no idea what to do. Is it the problem of the hardware adjustment or its the software tune problem?
oprso is offline   Reply With Quote
Old 12-02-2013, 07:54 AM   #16
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

I custom made the sensor mount. Do I need a calibration ?

Last edited by oprso; 12-02-2013 at 08:57 AM.
oprso is offline   Reply With Quote
Old 12-02-2013, 10:13 AM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Your cam and crank inputs are still wired backwards. It's not going to start until you fix that.
Ben is offline   Reply With Quote
Old 12-02-2013, 10:17 AM   #18
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Your cam and crank inputs are still wired backwards. It's not going to start until you fix that.
arrr.. OMG.. i made this mistake again.... Sorry, i will fix it and mark the cable tomorrow.
oprso is offline   Reply With Quote
