Old 04-04-2008, 10:04 PM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

im looking at the pictures i took of your board and harness...i need to you to swap number 1 & 4 spark plug wires with 2 & 3....
Braineack is offline   Reply With Quote
Old 04-04-2008, 10:09 PM   #42
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Swap them on the coils?
miataspeed1point6 is offline   Reply With Quote
Old 04-05-2008, 12:49 PM   #43
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by miataspeed1point6 View Post
Swap them on the coils?
Sorry, dumb question. I was frustrated.

Anyway, I swapped them, IT RUNS!.....like ****. But its ok, it runs. Right now I have the intercooler off, no open vacuum lines after the TB. I crank and it starts really quickly, but it won't idle. It stumbles when I rev it but it will rev to at least 2k rpm (I didn't want to go any higher).

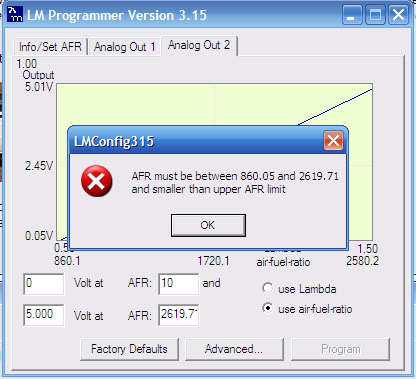

Now I need to fix my wideband because I know its WAY off. This is a screen shot from when I tried to reset it to 0-5v 10-20afr. It says I cant?
Name:  afr.jpg
Views: 1
Size:  39.0 KB
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 01:26 AM   #44
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I spent about an hour trying to figure this damn thing out. No matter what I do it won't let me input the 0-5v 10-20 afr. It keeps saying the damn 860.5 or higher. I don't know what else to do.
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 11:26 AM   #45
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

why dont you just leave it at default and change the megatune settings accordingly?
The_Pipefather is offline   Reply With Quote
Old 04-07-2008, 04:24 PM   #46
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Because I have no idea what AFR is at 860 and 2619.

I'm seriously out of ideas. Do I need to unplug the sensor and do a full reboot? I need help!! I have found tutorials for tuning the rest of it, but I can't get started until I sort this out.
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 04:28 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

call innvoative....they have great customer service....ask for Felipe.
Braineack is offline   Reply With Quote
Old 04-07-2008, 04:56 PM   #48
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I'm stoopid. I forgot about their forum (I'm on too damn many). That also reminded me I had this problem before. On the first page there is that pull down tab. On mine it says custom, it needs to say gasoline.

Hopefully when I get home thats the problem.
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 06:36 PM   #49
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

That was the problem with the LC-1. I looked at that and it seemed familiar.

I'm not getting spark on the 1 & 4 coil. I let it "idle" and I pulled all the plug wires out. 2 & 3 will stall the engine, 1 & 4 have no effect.

I'm taking it apart right now to check if the harness has continuity with the pins off the ecu board. My multimeter probes are too big, so I couldn't get in there. Let me know what to do/check and I will.

Thanks.

Last edited by miataspeed1point6; 04-07-2008 at 06:53 PM.
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 07:07 PM   #50
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

see the two wires going onto the resistors....check to make sure those didn't come up somehow in shipping



also make sure the little legs of the transistors just below each aren't making contact.
Braineack is offline   Reply With Quote
Old 04-07-2008, 07:36 PM   #51
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Those wires were good and tight. However, the long chip on the other side was loose and had a bent out tooth. I straightened the tooth and pushed it back in. I'm going out now to check if it works.
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 08:03 PM   #52
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

That wasn't it. Still no spark. Anything else I should look at? I'll do another look over and snap some pictures.
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 08:25 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

well there is something going on with the board if the one LED isnt lighting...i was certain it was when i bench tested it here.

the entire spark output goes from the chip to R26 & R29, the transitor (q8 and q6), and then r28 and r24...I could see the one light being dim if some sort of solder flux or leg is making contact where it shouldnt.

i cant see anythign from the pictures i took.
Braineack is offline   Reply With Quote
Old 04-07-2008, 09:16 PM   #54
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I traced all the wires, I can't see any loose ones. Looking head on at the MS the right LED is really bright, the middle is off, and the left is dimmer than the other by about half.

I should be looking for solder or wire contact?
miataspeed1point6 is offline   Reply With Quote
Old 04-07-2008, 09:43 PM   #55
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
this assumes you are running those 550s. also make sure 5.6 is used for req_fuel.
I'm reworking my MS map for the miata and saw this... I have 4.9 down for req fuel... is 5.6 more appropriate? rx7 560s.
Splitime is offline   Reply With Quote
Old 04-07-2008, 09:57 PM   #56
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Im using 6.1 for my 440cc
miataz is offline   Reply With Quote
Old 04-08-2008, 02:45 PM   #57
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Right now my TB pipe is at the shop getting the RS flange and AIT bung welded on. Once I get it back I'm going to put the stock computer back in to see if it works.
miataspeed1point6 is offline   Reply With Quote
Old 04-08-2008, 03:00 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

well something is wrong with it if the one led is dim....you can send it back to me and i can take another look at it at least.

as far as req_fuel, it doesn't really matter...but since I used a DIY fuel map for his base, then i need to use 12.7 AFR in the calcs.
Braineack is offline   Reply With Quote
