Old 04-02-2008, 09:27 PM   #21
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Well, I had some COM port issues and fixed them. I installed the files from the mspnp9093 and now the computer won't talk to the MS at all again.

Right now I'm stuck after the copyini part of the FAQ.

This part-
Create a File called "EFI" on your C: drive and copy the zip file of your MSnSE 029v.zip into that file. Then un-zip the file into the C:\EFI\ folder.

My file wasn't zipped. I ran the copyini app, but I don't have the "edit-settings" app.

I don't know why I always have so much trouble with the software.
miataspeed1point6 is offline   Reply With Quote
Old 04-02-2008, 09:48 PM   #22
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Delete all your MS software garbage. Then download the .exe for your car from mspnp.com.
Make the appropriate adjustments and use their folders. That software install FAQ you're following is bogus and difficult to follow. You don't need to do all that crap. You only need one folder. The one that says Megasquirt, inside that you will have your project folder and megatune and a bunch of crap like that.
Make sure you use the correctly easythermed file and .inc files though as well. Stay away from that FAQ, its bogus.
cjernigan is offline   Reply With Quote
Old 04-02-2008, 10:25 PM   #23
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Yeah it is. Thanks for helping.

I deleted all my old stuff, and got the new pnp stuff. Now when I open megatune it asks for afm or not, I chose no. I changed the COM to 1 and 9600, still "no response!" from the test.

Do I need to modify the pnp files? I don't get it, my computer talked to the MS just a while ago.
miataspeed1point6 is offline   Reply With Quote
Old 04-02-2008, 10:44 PM   #24
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Are you sure you should be using com 1? Go into your hardware profile and make sure that is the comport being used.
cjernigan is offline   Reply With Quote
Old 04-02-2008, 10:50 PM   #25
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I'm sure COM 1 is correct. It's an old laptop with a serial port, and sam told me it was COM 1. I had it working before.
miataspeed1point6 is offline   Reply With Quote
Old 04-02-2008, 10:52 PM   #26
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I have a feeling you corrupted the firmware and need to try to reflash it with the .bat included in the MSPNP folder just to get it to communicate again.
When firmware corruption takes place you can still connect to it but not with megatune. Try that.
cjernigan is offline   Reply With Quote
Old 04-02-2008, 11:21 PM   #27
Newb

Join Date: Apr 2008
Posts: 1
Total Cats: 0
Default

Is this a common problem with MS?

I am thinking of going down the MS route soon, though I think most of the install & tunning will be done by my mechanic.
DropTop is offline   Reply With Quote
Old 04-02-2008, 11:23 PM   #28
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I suppose that is possible. When I connected the first time it said that if I didn't close megatune it would corrupt it. I closed it, but maybe it corrupted it anyway?

Sorry to be such a pain, but is there a writeup I should follow now? I'm really confused by the programs.
miataspeed1point6 is offline   Reply With Quote
Old 04-03-2008, 01:05 AM   #29
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by DropTop View Post
Is this a common problem with MS?

I am thinking of going down the MS route soon, though I think most of the install & tunning will be done by my mechanic.
I doubt it. I always have a hard time with the software side of tuning. It took me a million tries before my Emanage blue would work. I bet I'm just doing something stupid wrong.
miataspeed1point6 is offline   Reply With Quote
Old 04-03-2008, 02:47 PM   #30
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

For anyone following this, it works! Hasn't started yet, but their talking. The problem was the com port buffer. I had to lower them. It worked before on the high ones, but on medium it works just fine. Turn the key and the gauges move and the com test is a "success!".

With brains help I'm going to figure out if my timing or injector size is wrong, then hopefully start it. Then I get to redo all my joints and run the wires where I want them and get set for tuning.
miataspeed1point6 is offline   Reply With Quote
Old 04-03-2008, 02:49 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

hold on ill make a quick map for you to load as a base....

it will be for a 90-93, stock injectors, and high res code.
Attached Files
File Type: zip high_res_base_9093.zip (5.6 KB, 32 views)
Braineack is online now   Reply With Quote
Old 04-03-2008, 03:23 PM   #32
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I burned it and it cranks alot easier and faster. It still wouldn't start though. Would a vacuum leak or anything be causing it?

It said my timing advance is 17.something. Isn't that high?
miataspeed1point6 is offline   Reply With Quote
Old 04-03-2008, 03:48 PM   #33
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That timing advance is fine. We run 14-20 at idle with the MS's successfully. Even the MSPNP runs 20&17 at idle.
cjernigan is offline   Reply With Quote
Old 04-03-2008, 04:48 PM   #34
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Turns out I forgot to set the LC-1 in the configurator. I also forgot to scale the LC-1 output. I'll search for the voltage settings later, I have seen them here before. Mine should be the same right?

I have class now, so I have to wait until tommorow. Damn.
miataspeed1point6 is offline   Reply With Quote
Old 04-03-2008, 04:59 PM   #35
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

0-5v 10-20 afr is what the linear setting uses
cjernigan is offline   Reply With Quote
Old 04-04-2008, 06:18 PM   #36
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

My LC-1 won't let me input those voltages. It says that 0 volts at 10 afr won't work the afr needs to be between 860.5 and something else. I have my autometer NB gauge on output 1, I think it reset itself. Anyone have those settings as well?
miataspeed1point6 is offline   Reply With Quote
Old 04-04-2008, 08:34 PM   #37
Junior Member

Join Date: Dec 2007
Location: San Diego to LA, CA
Posts: 297
Total Cats: 0
Default

Quote:
Originally Posted by miataspeed1point6 View Post
My LC-1 won't let me input those voltages. It says that 0 volts at 10 afr won't work the afr needs to be between 860.5 and something else. I have my autometer NB gauge on output 1, I think it reset itself. Anyone have those settings as well?
It doesnt work when you are trying to set them using the Innovative Software?
91NApeewee is offline   Reply With Quote
Old 04-04-2008, 08:40 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

change the bullet to AFR not lambda....
Braineack is online now   Reply With Quote
Old 04-04-2008, 09:09 PM   #39
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I did. I don't get it.

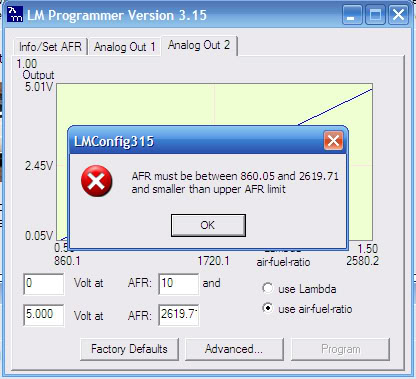

Name:  afr.jpg
Views: 1
Size:  39.0 KB
miataspeed1point6 is offline   Reply With Quote
Old 04-04-2008, 09:46 PM   #40
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Something has to be off somewhere. The first time I tried cranking I got a backfire that could wake up the neighbors. I heard some weird noise up front so I took off the intercooler pipes and cranked. It turns over fast then just stops and I hear a big "psh" from the intake. I get maybe 3 cranks then the psh.

When I crank the dash tach isn't moving but the MS tach is. I unplugged my ignitor everytime I modified a setting in the MS so I doubt it's the ignitor. I noticed the left LED is on when the ignitor is plugged in.

I did do the " set" for the LC-1 0-5v o2 in the configurator. Under spark settings my "cranking advance angle" is 12, in the FAQ it says it should be 18. My trigger angle addition is +22.5.

I'm so frustrated. I want to fix something, but nothing is working with me. I need to fix one thing at a time, but nothing is fixing. Its the emanage all over again.
miataspeed1point6 is offline   Reply With Quote
