So far I've used up all of my easy digital inputs

Tableswitch: Pit Lane Limiter
Datalog: VSS
Launch In: Launch Control

So my question is can I use Nitrous In by just giving 12v on one side of a switch, and then the other side to the Nitrous In pin?

Also to use the PT4 input from what I've read I need a 5v pull up. Can that be put on the board somewhere? I have an MS3+MS3x so I haven't had to do any proto area stuff yet.
aidandj is offline   Reply With Quote
Old 03-31-2015, 12:27 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

what's the input for? th
Braineack is offline   Reply With Quote
Old 03-31-2015, 12:29 PM   #3
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Either SD Card Datalog or Boost table switching. More just in the planning stages, and wanting to understand how those inputs work.

Megasquirt Support Forum (MSEXTRA) ? MS3X outputs and acceptable application (View topic)

That pretty much tells me everything I need to know except where the pull-up goes.

The nitrous input has confused me some because I have seen different stuff different places. I think it has changed over the years.
aidandj is offline   Reply With Quote
Old 03-31-2015, 12:36 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

I'd be able to tell you quickly, but they took down their scehmatics and put them into word docs that you cant even read because the jpg resolution is so poor. Beyond that they make in incredibly hard to find the most basic information anymore--even for someone like me who's been building them for 8 years and knows what to actually look for.

I believe PT4 would need a pull up.

If you're going to bother added things, might as well add a input circuit to your mainboard and use the JS inputs.

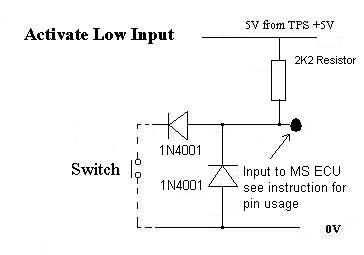

so like this:



to JS6, JS8, or JS10 or something.
Attached Thumbnails
Need another MS3 Input-lowinput2_zps6f0c92a9.gif

Last edited by Braineack; 03-31-2015 at 01:00 PM.
Braineack is offline   Reply With Quote
Old 03-31-2015, 12:50 PM   #5
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Braineack View Post
I'd be able to tell you quickly, but they took down their scehmatics and put them into word docs that you cant even read because the jpg resolution is so poor. Beyond that they make in incredibly hard to find the most basic information anymore--even for someone like me who's been building them for 8 years and knows what to actually look for.
I've noticed...

So JS inputs with that circuit, PT4 with a pull-up, or figuring out Nitrous in should work.

Here is the thread that makes Nitrous In even more confusing:

Megasquirt Support Forum (MSEXTRA) ? MS3X Pin 29 (N2O 12v input) is actually outputting 10v? (View topic)
aidandj is offline   Reply With Quote
Old 03-31-2015, 01:01 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

you can't use nitrous in as an active low.*

Last time I spoke to James, Nitrous IN had to be used as a 12v input, even if you don't want to.

So to use it, you'd have to remove the expander JS8 pull-up. Then wire a 12v pullup on the other side of your switch. I wouldn't bother doing this. And would just build the circuit I posted above in your proto area on teh v3.0 board and input into the v3.0 board, not the expander.


*unless they finally changed the firmware.
Braineack is offline   Reply With Quote
Old 03-31-2015, 01:03 PM   #7
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Thats my understanding about the nitrous. If I can use PT4 and that circuit then I should be fine.

Can that circuit be built in the proto area? I'll do some reading up on mainboard inputs, I've never had to use that.
aidandj is offline   Reply With Quote
Old 03-31-2015, 01:05 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

adding the pullup to PT4 would be pretty easy I guess. you could do it directly on the expander board itself using a 1K resistor to 5v.
Braineack is offline   Reply With Quote
Old 03-31-2015, 01:07 PM   #9
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'll try that and report back.
aidandj is offline   Reply With Quote
Old 03-31-2015, 01:37 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

there's already a VCC hole on the expander, so you need to find where PT4 comes in and jump to that through a 1K resistor.

similar to this:

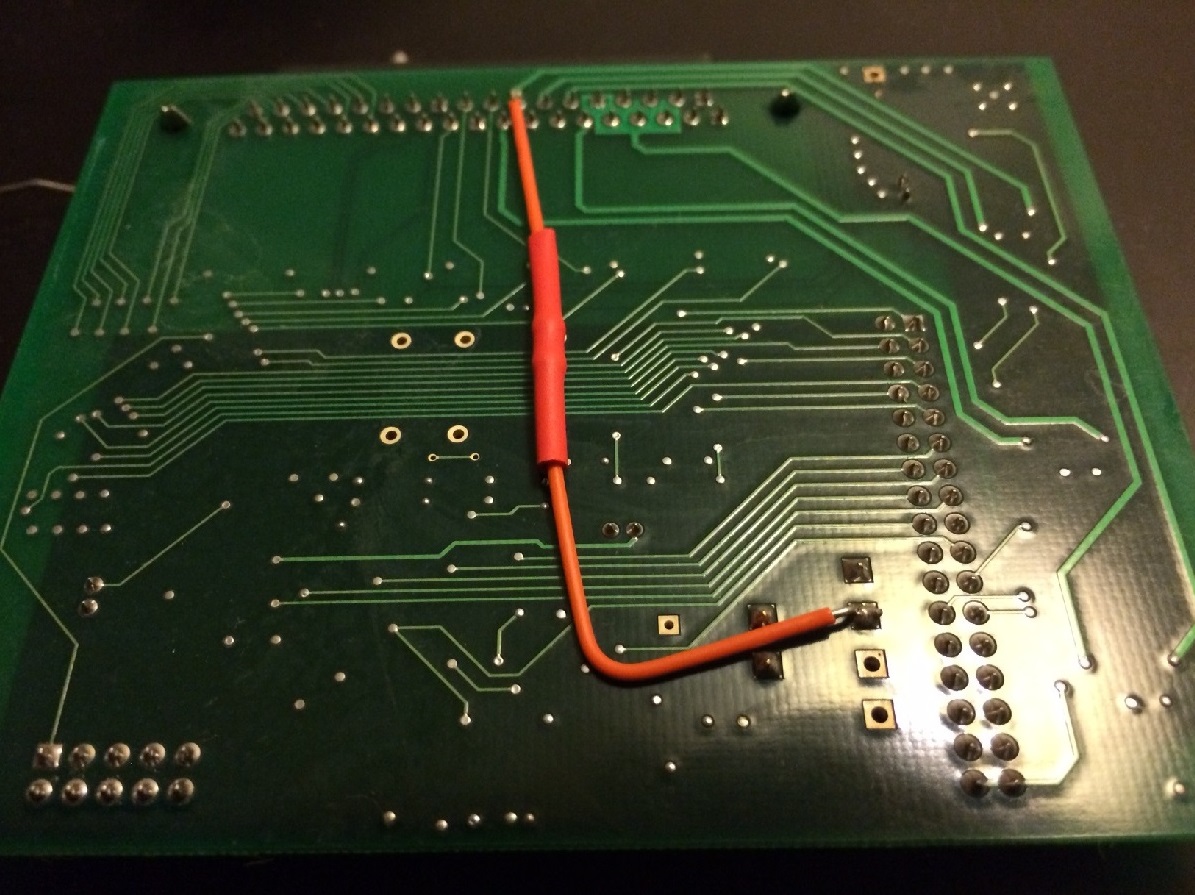

vcc is one of the holes that wire goes between before ending at that row of 4. it's going to VVT out on the header pins.
Attached Thumbnails
Need another MS3 Input-118255d1405744908-chiburbians-2001-ls-parallel-install-pull_up2.jpg
Braineack is offline   Reply With Quote
Old 03-31-2015, 02:25 PM   #11
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Awesome. I need to figure out variable paunch control and then I'll open it up again.
aidandj is offline   Reply With Quote
Old 04-01-2015, 04:55 PM   #12
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by aidandj View Post
Awesome. I need to figure out variable paunch control and then I'll open it up again.
I want that also.
stoves is offline   Reply With Quote
Old 04-01-2015, 05:00 PM   #13
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Seems simple. Just need a circuit that uses a potentiometer to provide 0-5v to the Spare ADC on the MS3x board.

Run TPS ref to a potentiometer, then back to the spare ADC input.
aidandj is offline   Reply With Quote
Old 04-01-2015, 07:01 PM   #14
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
I'd be able to tell you quickly, but they took down their scehmatics and put them into word docs that you cant even read because the jpg resolution is so poor. Beyond that they make in incredibly hard to find the most basic information anymore--even for someone like me who's been building them for 8 years and knows what to actually look for.
The docs are still a work in progress aren't they? Give them feedback, or they'll never change!
richyvrlimited is offline   Reply With Quote
Old 08-08-2015, 11:00 PM   #15
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

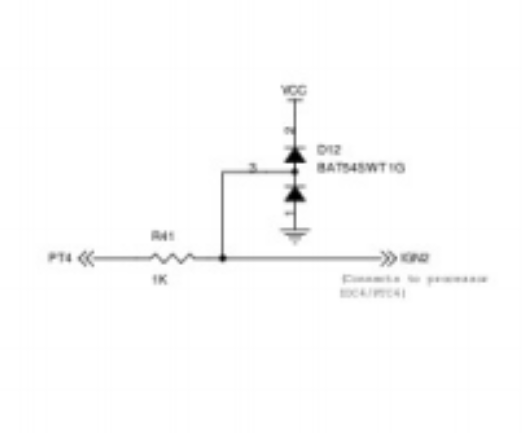

<p>Necro bump.</p><p>Based on this thread I don't need a pull-up for PT4.</p><p>http://www.msextra.com/forums/viewto...31&amp;t=55448</p><p>But I don't see a pull-up in the &quot;schematic&quot;</p><p></p>
