Old 12-11-2015, 04:47 PM   #21
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I've obviously seen that

With them asking 4 times the price of a standard MS3 daughterboard, and double the cost of a DIY MS3x, you think they'd take the time to explain the benefits more.

I still don't know why MS3pro is better, other than input filtering (not listed on that page) and that' it's potentially housed in smaller enclosure. What does MS3 pro do that MS3x does not?
deezums is offline   Reply With Quote
Old 12-11-2015, 04:48 PM   #22
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,920
Total Cats: 1,434
Default

Be way smaller mostly.

Its not for everyone obviously lol.
aidandj is offline   Reply With Quote
Old 12-12-2015, 07:53 AM   #23
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,430
Total Cats: 195
Default

If anyone is interested in fitting an MS3 inside the stock ECU housing, we do have a model for that (which is mostly aimed at street-class racers). There's a catch though - it will only control what is needed to actually run the engine and the ancillaries (A/C, alternator, etc), plus boost control and VVT control, nothing else. Ie no spare digital inputs, outputs, etc.
Reverant is offline   Reply With Quote
Old 02-14-2016, 04:25 PM   #24
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

ok guys, sorry for the delay but the boards have been ordered only now because I made some modifications to the board.
I'll contact everyone once they have arrived.
WestfieldMX5 is offline   Reply With Quote
Old 02-16-2016, 09:56 AM   #25
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,259
Total Cats: 51
Default

Quote:
Originally Posted by deezums View Post
I've obviously seen that

With them asking 4 times the price of a standard MS3 daughterboard, and double the cost of a DIY MS3x, you think they'd take the time to explain the benefits more.

I still don't know why MS3pro is better, other than input filtering (not listed on that page) and that' it's potentially housed in smaller enclosure. What does MS3 pro do that MS3x does not?
Short version - we went over the entire schematics looking for ways to improve the circuits, and if we could find a way to make it better, we added it. If you tried to build all the MS3-Pro's improvements starting with an MS3 V3.0 kit, the only parts left on the V3.0 board would be the analog inputs (with a few different component values and a couple of extra parts hot glued to the board) and the RS232 connection. Everything else, including the power supply, would be completely redone. And you'd have to make some changes to the MS3 daughter card as well to pull off some changes to the USB communications.

Beyond the VR conditioners and the more noise resistant power supply, most of the changes focused on making it a more robust and more noise resistant design. For example, the USB circuit is now isolated from the ECU's 5V power plane and ground, making it far better able to handle things like ground offsets between your computer and your ECU wiring. There isn't any drastically new features in there (unless you count the MAX9926) so much as a bunch of little incremental changes everywhere.

Some people get what we did with the MS3-Pro and say it's exactly what they've been asking for. Others have reacted with, "Meh, it's not worth it for me over the original MS3." We've got both options covered.
Matt Cramer is offline   Reply With Quote
Old 03-07-2016, 09:31 AM   #26
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

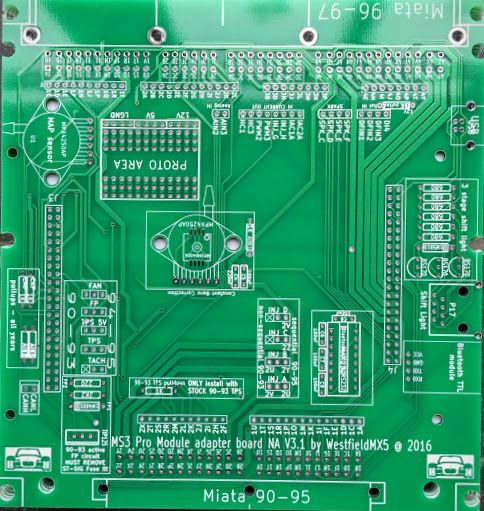

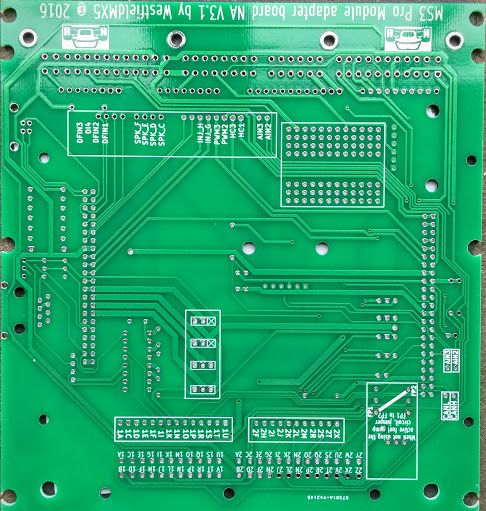

Ok guys, the boards have arrived and are a bit cheaper than expected.
I didn't have to pay VAT and import duties (33%!), so they're $49 each instead of $69.
Send me a PM if you want one.




Attached Thumbnails
New MS3 Pro plug & play adapter boards-80-img_1704_jpg_jpeg_394da26f45b635402bce45b69ec719ff9d7d2b91.jpg   New MS3 Pro plug & play adapter boards-80-img_1705_jpg_jpeg_ad102cf3199bf2d142fe290e4f4a6d079d4bcad1.jpg

Last edited by WestfieldMX5; 03-20-2016 at 03:27 PM.
WestfieldMX5 is offline   Reply With Quote
Old 07-12-2016, 04:10 PM   #27
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Just to add that I needed a 99-05 board myself, so I have had a batch made for these years as well.
See here for more info on the 99-05 NB version

MS3 Pro module adapter board for 99-00
WestfieldMX5 is offline   Reply With Quote
Old 07-21-2016, 07:23 AM   #28
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Gonna give myself a shameful bump because I had 5-6 people asking me to make the NB version. Now that I have, only 2 out of 5 actually bought it.
Any takers?
WestfieldMX5 is offline   Reply With Quote
Old 12-16-2016, 09:19 AM   #29
Junior Member

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 269
Total Cats: 6
Default

I have been working with a buddy of mine getting one of these boards and a MS3 Pro module installed in his racecar and I can say that we have been given GREAT customer service and it is making any issues we may encounter easy to diagnose and correct. I would NOT hesitate to buy another board from him. Top notch service! Thanks again!

After the holidays, I am going to order one of these boards myself!
MX5RACER is offline   Reply With Quote
Old 12-19-2016, 01:32 AM   #30
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,495
Total Cats: 81
Default

I also only can recommend Frank and encourage everyone who is interested to buy such a board - it's a great piece of hardware.

Just recently I rewired all the spare in/outputs (WB, Boost, oilpressure, oiltem) through the spare pins of the OEM wiring - so I got a completely stock looking ECU. Nice, just nice...
Zaphod is offline   Reply With Quote
Old 12-23-2016, 09:41 PM   #31
Newb

Join Date: Dec 2016
Posts: 3
Total Cats: 0
Default

Ok so Im not understanding how this is pnp Im getting a ms3 pro locally what all do I need to get it running my boosted 91 1.6
Skylar Griffin is offline   Reply With Quote
Old 12-23-2016, 09:42 PM   #32
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,920
Total Cats: 1,434
Default

Quote:
Originally Posted by Skylar Griffin View Post
Ok so Im not understanding how this is pnp Im getting a ms3 pro locally what all do I need to get it running my boosted 91 1.6
You don't. Did you read the thread?

https://www.miataturbo.net/megasquir...r-board-77596/
aidandj is offline   Reply With Quote
Old 12-25-2016, 02:54 PM   #33
Newb

Join Date: Dec 2016
Location: San Jose, CA
Posts: 12
Total Cats: 0
Default

I have no confidence if this is what I need, but it looks like it could be. I have a '99 engine going into a '94 car that I want to supercharge and keep AC. Keeping things looking stock is a big plus. I guess one thing I don't know is if I have any need for the additional ouputs that would be lost with this add-on board? Would this board be able to run coil on plug ignition?
clarkma5 is offline   Reply With Quote
Old 12-25-2016, 03:51 PM   #34
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,920
Total Cats: 1,434
Default

This is not what you need
aidandj is offline   Reply With Quote
Old 12-25-2016, 04:13 PM   #35
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

I can't say if this is what you need, that all depends on how you're going to do the wiring. You don't loose any outputs and you can run coil on plug.
WestfieldMX5 is offline   Reply With Quote
Old 12-25-2016, 04:14 PM   #36
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,920
Total Cats: 1,434
Default

If its going in a 94 he's going to need an NB ecu and wiring harness right?
aidandj is offline   Reply With Quote
Old 12-25-2016, 04:20 PM   #37
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

There will be some wiring issues to work out but I think his best option is to route the 99 cam & crank signals, idle valve etc through the corresponding 94 wires and use a 94-95 ecu so he can keep the 94 connectors. A couple of other things, like VICS, will have to be rerouted to unused pins in and rerouted internally.
WestfieldMX5 is offline   Reply With Quote
