Default No Bluetooth Power from pin 9

Hey guys, please be patient with me as i am NOT very good at the ECU stuff at all.

I recently purchased the Bluetooth adapter from EFI Analytics (Cables and Adapters | tunerstudio.com) and when I went to go hook it up to my Megasquirt, it got no power and ended up hooking it up to a different power source.

From my reading, the adapter should get power from PIN 9 on the Megasqurit (http://tunerstudio.com/index.php/sha...rs232bluetooth) but it seems that I am getting no such luck.

Tuner Studio says I have a MS2 Extra Serial 310.

Do I just need to ship to one of you amazing people who knows what the hell they are doing to fix this or am I just doing something wrong?

Thanks in advance guys.
v01canic is offline   Reply With Quote
Old 07-09-2013, 03:03 AM   #2
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

forgot to mention, I did find this during my research before posting but I have no idea what it means mine is a Brain built:

https://www.miataturbo.net/megasquir...49/#post943816

Quote:
Originally Posted by bearda View Post
Not all MS do, but there's a jumper on the DIYPNP units to send power to pin 9. There are some times when you may not want to power pin 9 though, so YMMV.
v01canic is offline   Reply With Quote
Old 07-09-2013, 03:35 AM   #3
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Yes, you have to connect the pins of the BL/TH jumper to send 5 volts to pin 9.

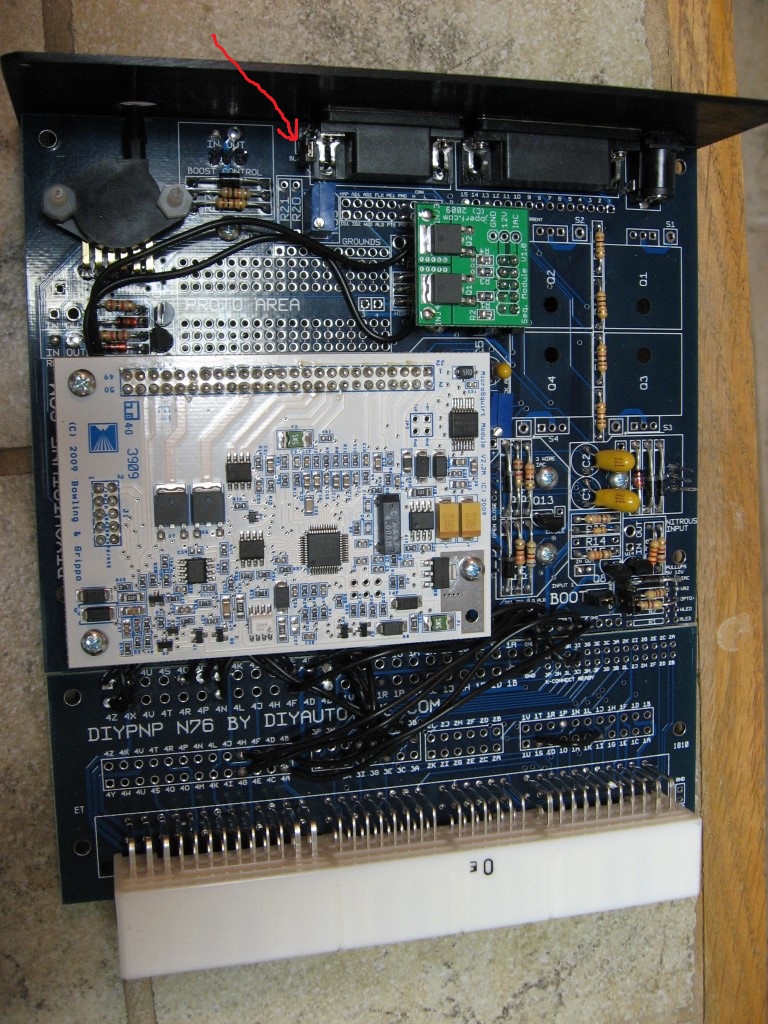

This is an old pic where I did NOT have the pins connected yet. Move the jumper over so the 2 pins are connected.
Attached Thumbnails
No Bluetooth Power from pin 9-img_0084-medium-.jpg
aaronc7 is offline   Reply With Quote
Old 07-09-2013, 03:59 AM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Thanks for the fast reply!

Is this a jumper like back in old PATA hard drive days when there was a master and slave drive or do i need to solder crap.
v01canic is offline   Reply With Quote
Old 07-09-2013, 04:02 AM   #5
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Like the old PATA drives/clear your CMOS on the motherboard, etc.
aaronc7 is offline   Reply With Quote
Old 07-09-2013, 04:14 AM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

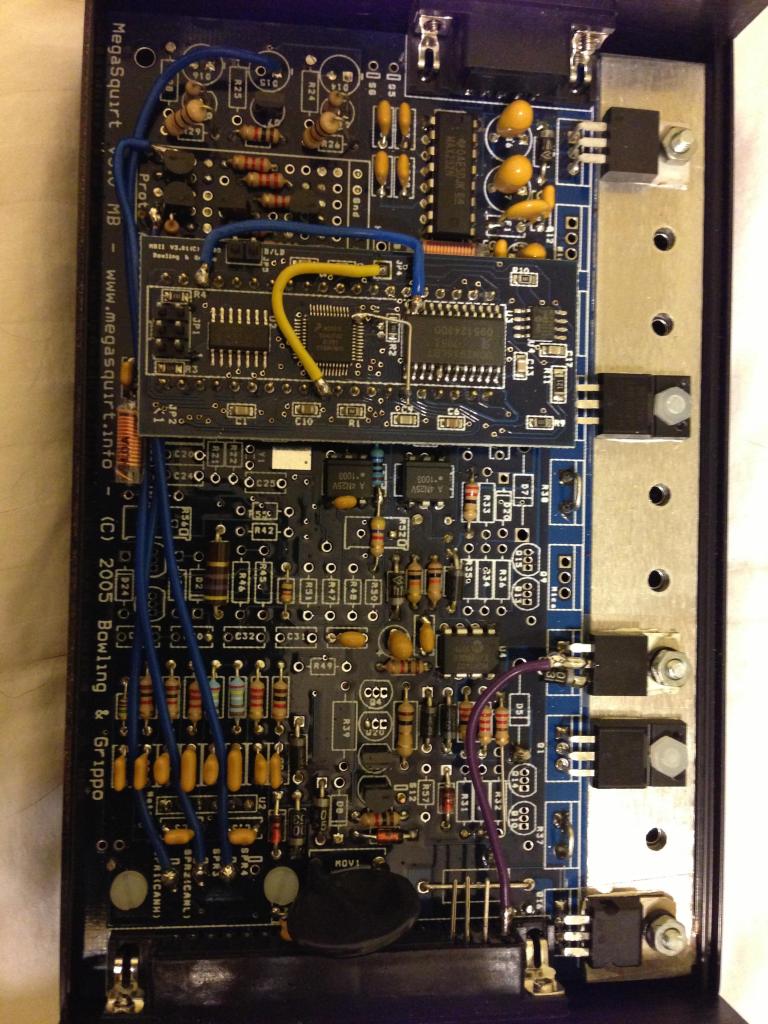

i haz no jumperz

Attached Thumbnails
No Bluetooth Power from pin 9-img_08341.jpg
v01canic is offline   Reply With Quote
Old 07-09-2013, 04:31 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Apparently it's working now, nevermind
v01canic is offline   Reply With Quote
Old 07-09-2013, 04:36 AM   #8
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Oh, I thought you had a DIYPNP, saw you mentioned something about it in an earlier post.

Either way, glad it's working for ya.
aaronc7 is offline   Reply With Quote
Old 07-09-2013, 06:54 AM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

That looks like one of my very early units, not a Braineack unit.
Reverant is offline   Reply With Quote
