Default No RPM Signal In MT

I finally decided to tackle a parrallel MSI build on my '97, but I'm having some issues.

I built and modded the board myself. Everything checked ok w/ the stim. Being a bit of a wuss (and its my DD) I'm connecting all the sensor inputs first to double check everything, then I'll add the fuel and spark outputs when its all settled.

I hooked up most of them w/ no issue. I soldered everything into the stock harness such that they are shared with teh stock ECU. (Boomslag parts on backorder) Down to the last one, RPM input. No start. I attatched the grey shielded wire to the position shown in Braineak's big DIY MS thread (white wire on the stock ECU). With the MS plugged in, the car won't start. When I disconnect it everything is normal.

I've checked that all my jumpers an mods are in palce and correct. I checked the schematic for the '96-'97 models but it doesn't look like there's an RPM input to the ECU.

Am I pulling the signal from the right place? Or should I look to MS hardware issues?

I am running COPs if that makes a difference....

Thanks.
--Alex
AlexO35 is offline   Reply With Quote
Old 05-17-2008, 08:55 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

There are two inputs for the tach, CKP and CMP. Do you have both connected?
cjernigan is offline   Reply With Quote
Old 05-17-2008, 09:17 PM   #3
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Yes, just confirmed.

CMP - Yellow / Blue wire to pin 25 of DB37
CKP - White wire to pin 24 of DB37

--Alex
AlexO35 is offline   Reply With Quote
Old 05-17-2008, 09:20 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Are your codebase outputs setup correctly? Reference the MSPNP msq for the correct settings.
mspnp.com
cjernigan is offline   Reply With Quote
Old 05-17-2008, 09:36 PM   #5
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

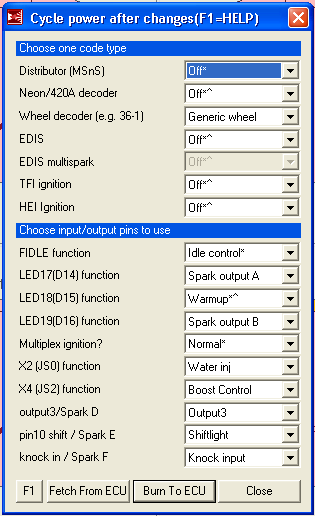

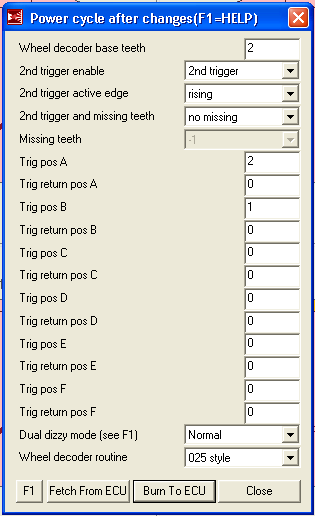

They should be. I've loaded the PNP base maps.
Attached Images
File Type: bmp ms screen 1.bmp (477.8 KB, 118 views)
File Type: bmp ms screen 2.bmp (477.8 KB, 123 views)
AlexO35 is offline   Reply With Quote
Old 05-17-2008, 09:43 PM   #6
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

I'm thinking it's got to be a hardware error for it not to start on the stock ECU. Can the CKP, CMP signals be shared with the ECU and MS?
--Alex
AlexO35 is offline   Reply With Quote
Old 05-17-2008, 10:02 PM   #7
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

probably not your problem but i had been having problems with mine getting tach signal, ended up fixing it by reinstalling megatune, at the very least it's quick and easy
Mach929 is offline   Reply With Quote
Old 05-17-2008, 10:49 PM   #8
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Tried again, not luck. Double checked the input mods. They all look and measure ok. D1 and D2 are jumpered.

CMP is hooked up with not issue. When I connect the CKP to pin 24 I get a no start. I tried disconnecting the stock ECU to see if signal sharing was the issue, but no RPM in MT.
--Alex
AlexO35 is offline   Reply With Quote
Old 05-17-2008, 11:32 PM   #9
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Just checked through the U3 opto isolator circuit. Seems to be good.
--Alex
AlexO35 is offline   Reply With Quote
Old 05-18-2008, 12:27 AM   #10
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Edit: Nope thats not it.

Ill think about it and get back to you. I also have a 97. But I made sure my tach worked with the stim prior to modding it.
Saml01 is offline   Reply With Quote
Old 05-18-2008, 11:12 AM   #11
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Yea, mine worked prior to the mod. I used the stim 2.1 not the Jim stim though. Couldn't test it after the mods.
--Alex
AlexO35 is offline   Reply With Quote
Old 05-18-2008, 12:21 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by AlexO35 View Post
Down to the last one, RPM input. No start. I attatched the grey shielded wire to the position shown in Braineak's big DIY MS thread (white wire on the stock ECU). With the MS plugged in, the car won't start. When I disconnect it everything is normal.


will the car not start or do you not have a tach signal?
Braineack is offline   Reply With Quote
Old 05-18-2008, 12:35 PM   #13
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

From how I read it, Alex can't get his tach signal to read. He also can't start his car when the MS is plugged in. The MS is not hooked up to control anything, but just to read sensor inputs.

Perhaps you've wired one of your sensor inputs to the wrong wire and it's wired to an output of the MS, causing the signal to the ECU to be extremely wrong and the car won't start.
jasonrobo02 is offline   Reply With Quote
Old 05-18-2008, 12:47 PM   #14
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

As it turns out there was a single strand of shield grounding the CKP signal. Should have known to check that sooner. It's almost aways a silly little problem. All is good now.... On to outputs.

Thanks for the help.
--Alex
AlexO35 is offline   Reply With Quote
Old 05-18-2008, 12:50 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Been there done that
Braineack is offline   Reply With Quote
Old 05-18-2008, 05:39 PM   #16
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

...and she's running fuel only now. Started as normal on the PNP map. Time do do a bit of tuning and set up for ignition control. Thanks again.
--Alex
AlexO35 is offline   Reply With Quote
