Default Normally aspirated strange power curve issues

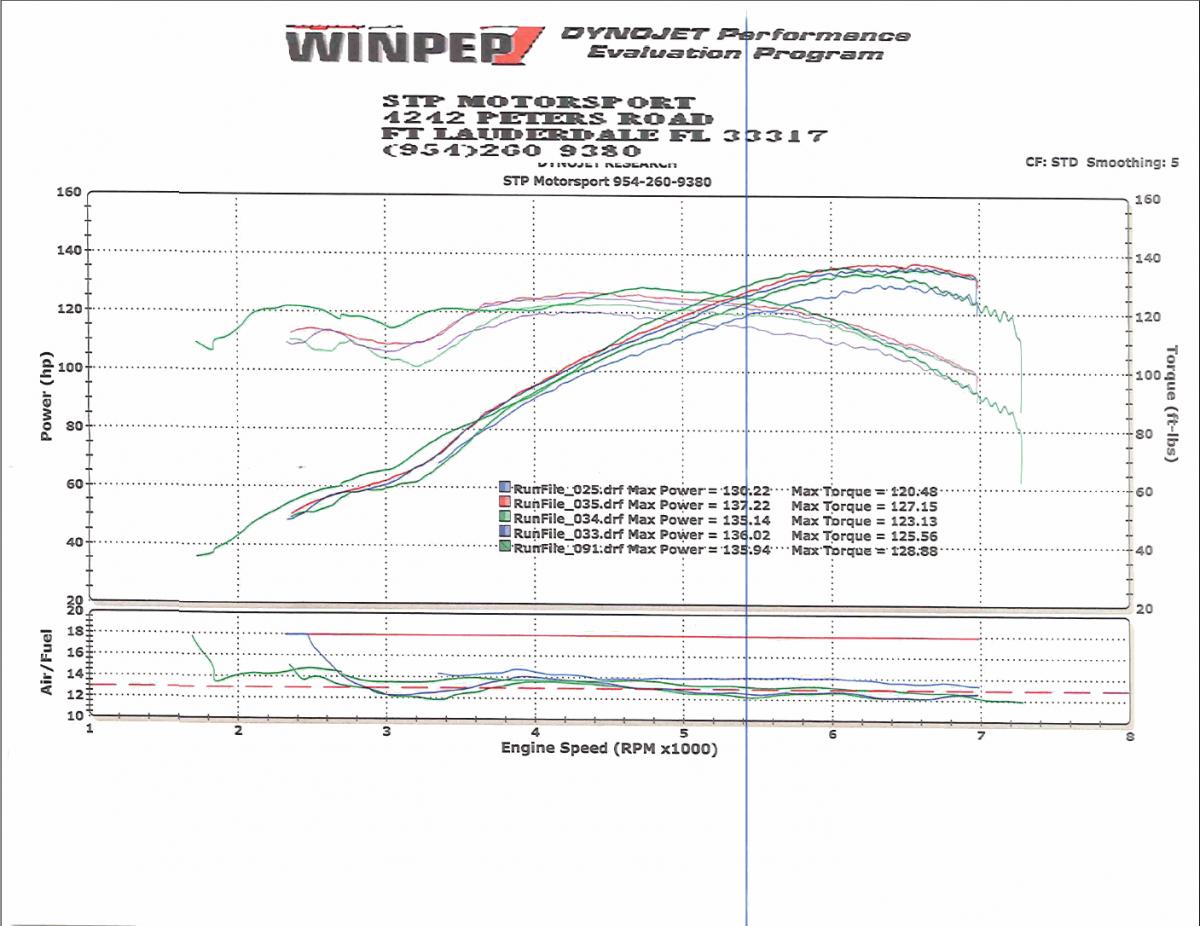

Please see attached dyno sheet.

These are from two different cars. One is a '90 with a '01+ swap, DIYPNP & VVTuner. One is a '95 with a '01+ swap, DIYPNP & VVTuner. Both are running the same timing map, but different fuel maps as the '90 is running the '01+ injectors @ 60psi vs the '95 running the '95 injectors @ 45psi. Both have similar intakes. The '90 is running a Jackson Racing header, and has the VCTS butterflies still intact and working. The '95 has a Racing Beat header and the VCTS butterflies removed. The '90 is running a Jackson Racing high flow cat and a 1.6 Mazdaspeed Spec Miata exhaust. The '95 is running the Springfield Dyno Spec Miata exhaust. Same dyno, different days, similar conditions.

The overall power numbers are close.
'90:
RUN 91
HP 135.94
TQ 128.88

'95:
RUNS 25,33-35
HP 137.22
TQ 127.15

The issue I have is the shape of each curve. The '90 graph peaks @ 6,000 and falls off very fast. The '95 peaks 500 RPMs later @ 6,500 and by 7,000 is about 10hp stronger. The torque curves show a similar trend, the '90 makes more average torque, but falls off quickly after 6,000 and by 7,000 is almost 10ft/lbs lower. What would cause the '90 to fall off so fast?

VCTS butterflies?
Exhaust restriction compared to the '95?
Difference in the VVTuner maps?
Difference between the Jackson Racing header vs the Racing Beat header?
D. All of the above?

What say you?
VVT VS VVT.pdf
MX5RACER is offline   Reply With Quote
Old 03-01-2013, 02:48 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,325
Default

Post an image of the dyno charts, nobody wants to download a PDF and look at it sideways.
Savington is offline   Reply With Quote
Old 03-01-2013, 03:06 PM   #3
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

How lazy can you be? It took me all of 1 second to rotate it 90*. Maybe 2 seconds to download the PDF.
Ryan_G is offline   Reply With Quote
Old 03-01-2013, 03:33 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

If you are working 14-16 hours per day, 7 days a week, 2 seconds here and there quickly add up to time you don't have.
Reverant is offline   Reply With Quote
Old 03-01-2013, 03:35 PM   #5
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

Normally aspirated strange power curve issues-vvt-vs-vvt.jpg
MX5RACER is offline   Reply With Quote
Old 03-01-2013, 03:36 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

No one is going to review this until you stop acting like a Democrat.
hustler is offline   Reply With Quote
Old 03-01-2013, 03:36 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
If you are working 14-16 hours per day, 7 days a week, 2 seconds here and there quickly add up to time you don't have.
American dream post.
hustler is offline   Reply With Quote
Old 03-01-2013, 03:39 PM   #8
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by Reverant View Post
If you are working 14-16 hours per day, 7 days a week, 2 seconds here and there quickly add up to time you don't have.
While I can understand this to an extent (I work 50 hour weeks on top of 3 on campus master's courses all while trying to get my new business up an running) I still think the effort I put it was minimal at best.
Ryan_G is offline   Reply With Quote
Old 03-01-2013, 04:00 PM   #9
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

Thread drift guys... Not into politics, just finding out why my car loses so much power up top!
MX5RACER is offline   Reply With Quote
Old 03-01-2013, 04:01 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Swap IMs, go back and dyno, and find out if that's the cause.
Braineack is offline   Reply With Quote
Old 03-01-2013, 05:17 PM   #11
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

The two cars are different. Different parts, different tunes, different motors.

Why do you think there are Sooo many posts about "i have the same parts and motor but so&sos map doesn't work for me..."
Miater is offline   Reply With Quote
Old 03-01-2013, 06:26 PM   #12
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

were these cars dyno tuned?
JasonC SBB is offline   Reply With Quote
Old 03-01-2013, 06:32 PM   #13
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

The '90 was tuned on the Dyno. The '95 was just a baseline using the spark map from the '90 and an adjusted fuel map before these baseline runs.
MX5RACER is offline   Reply With Quote
Old 03-02-2013, 01:26 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Do they have identical VVT maps?
Were they dyno tuned?
It can have a profound effect on the shape of the torque curve.

If some people are to be believed, the VTCS butterflies are a significant restriction at the topend - however I would expect it to depress the peak power number, and not just cause a dropoff after peaking.
JasonC SBB is offline   Reply With Quote
Old 03-02-2013, 09:07 PM   #15
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

VVT maps are the same.
MX5RACER is offline   Reply With Quote
Old 03-06-2013, 12:16 PM   #16
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

VVT maps are both as delivered in the VVTuner. I am wondering if the PID settings in the VVTuner software need to be adjusted. While both VVTuners are calling for the same amount of retard/advance one might be getting more or less. I will be looking into this on the dyno.

I am picking up the exhaust that was used on the '95 and I will be putting it onto my '90 and going back to the dyno sometime this week. Once I have it strapped to the dyno and I make a few runs I will see what happens with the curve. If I do not see any changes up high, I will open the VVTuner software and adjust the curves up high and see what happens.

Once I get these results, I am planning on fitting a VICS manifold on the motor and adjusting the DIYPNP to switch the VICS @ 5,500rpms and head back to the dyno.

Thanks for everyone's help so far.
MX5RACER is offline   Reply With Quote
Old 03-06-2013, 12:19 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Sounds like a plan, but I don't think advancing vvt up top will yield anything for you. Pretty sure people reported it basically only working in the lower rpm, sub 5k or so
18psi is offline   Reply With Quote
Old 03-06-2013, 12:54 PM   #18
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

That is correct, the VVT should be letting the intake cam go fully retarded up top. The VVTuner map is calling for 5 degrees of advance based on the table above 6,000rpms.

The PID's in the VVTuner software might need to be adjusted. I might be requesting say 5 degrees of advance up top, but getting 10 etc. Adjusting the PID's might be the answer if the the target and the actual advance are different.

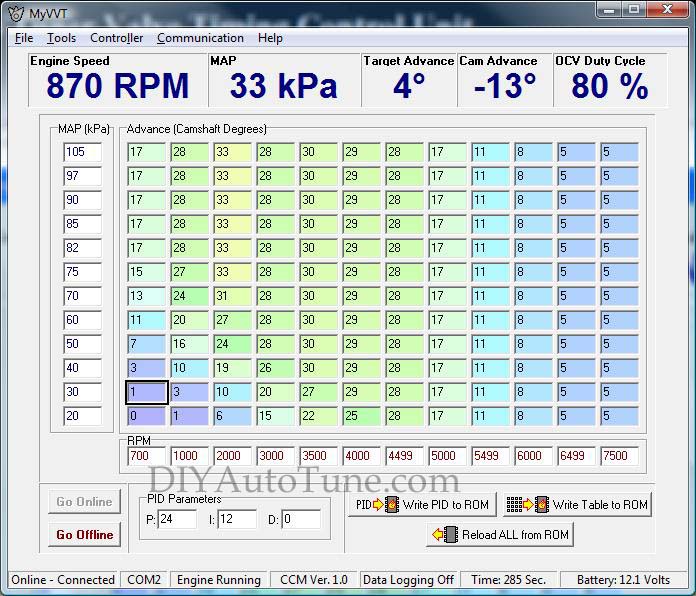

Here is a view of the VVTuner map.
Attached Thumbnails
Normally aspirated strange power curve issues-vvt.jpg
MX5RACER is offline   Reply With Quote
Old 03-11-2013, 10:28 AM   #19
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

I got over to the dyno this weekend, but was not able to test the exhaust. The exhaust from the '95 hit the axle and one of the bolts for my seat mounts on my '90.

I was able to do some testing on the VVT tuning and saw no gains up high. I moved on to testing my intake. I removed the filter from my intake and made a run, no change. I removed the intake piping and saw a power drop almost everywhere. Now, here is where it gets interesting.

I took my intake piping off, mine is the same size as the throttle body, either 2.25" or 2.5" and I put the intake from the '95, which is 3". I saw a gain up high of about 3-4 HP, but also saw a 10ft/lb loss down low. So if you want more torque down low, go smaller on the intake tube... lol.

The printer at the dyno was broken, so I do not have the graphs. I am going to try to swing by with a flash drive and get the graphs.
MX5RACER is offline   Reply With Quote
Old 04-09-2013, 09:39 AM   #20
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

Holy restrictive intake Batman!

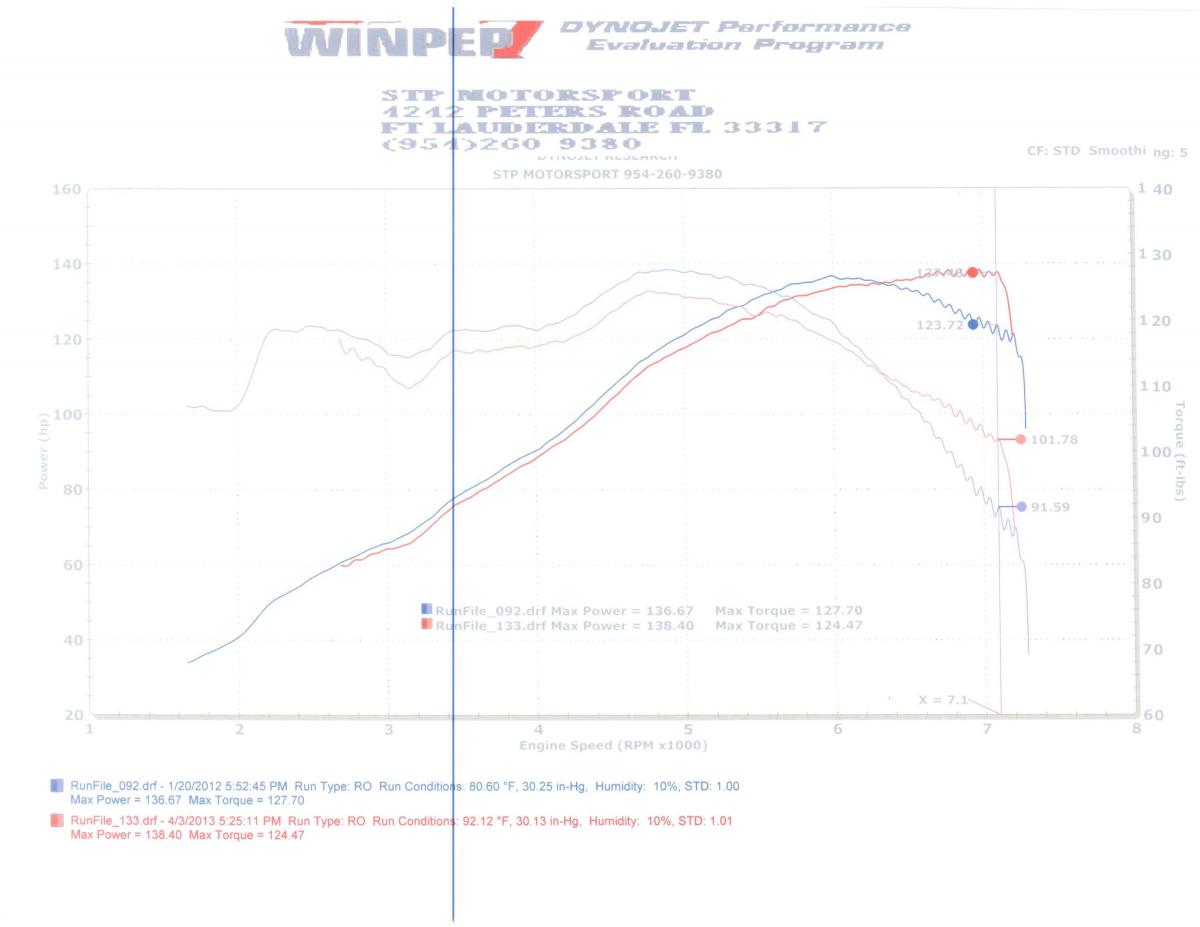

I found my power loss above 6k! I was able to swap to a VICS manifold from the VCTS manifold with butterflies. I found 14HP and 10ft/lbs at 7200! I lost 2-3 HP and torque everywhere else.

Normally aspirated strange power curve issues-dyno-vics-vs-vcts.jpg
MX5RACER is offline   Reply With Quote
