Old 04-09-2013, 10:02 AM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Square top will give you 7-10hp.
hustler is offline   Reply With Quote
Old 04-09-2013, 10:15 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

yeah the VCTS manifold is the worst of them all. Are you actually running VICS now or just the IM?


Hustler, so far as I've seen, a funcitoning VICS IM will net same exact powercurve as a squaretop.
Braineack is offline   Reply With Quote
Old 04-09-2013, 10:24 AM   #23
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
yeah the VCTS manifold is the worst of them all. Are you actually running VICS now or just the IM?


Hustler, so far as I've seen, a funcitoning VICS IM will net same exact powercurve as a squaretop.
No way, we gained significant high end power and lost a tad in the mid range when we replaced the vics with a flat top on the csp car. I dont have dyno numbers to back it up I just have the boat load of VE I needed to add up top and the bit I had to take away in the mid range to back it up.
Leafy is offline   Reply With Quote
Old 04-09-2013, 10:36 AM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

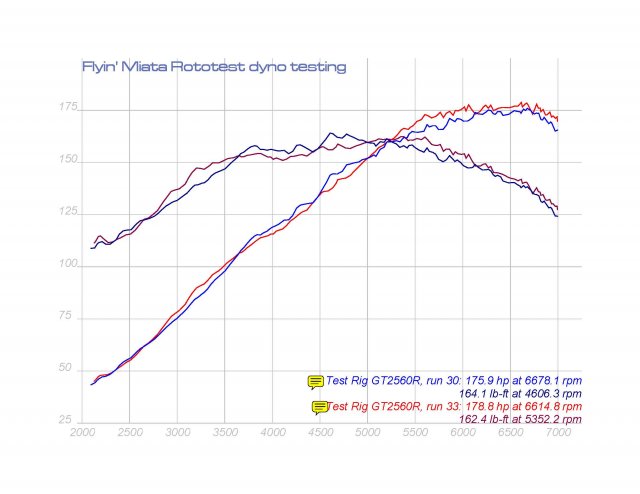

Here's the one I was thinking of:



Quote:
Run 30 [is] w/the stock VICS IM w/ VICS set at 5400 RPM, which tends to be corret for most FM2 cars. Run 33 has the flat top manifold installed.
Attached Thumbnails
Normally aspirated strange power curve issues-vics%2520vs%2520ftm.jpg
Braineack is offline   Reply With Quote
Old 04-09-2013, 10:39 AM   #25
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
yeah the VCTS manifold is the worst of them all. Are you actually running VICS now or just the IM?


Hustler, so far as I've seen, a funcitoning VICS IM will net same exact powercurve as a squaretop.
Negative. I made a touch less torque and 10hp more (on the MD-240) from 4500-7100 with my square top compared to my daily. Same engine, same header, same exhaust, same intake pipe, the daily has a 99 plenum, green car as a square.
hustler is offline   Reply With Quote
Old 04-09-2013, 10:45 AM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

This thread is really starting to be cool.

Thanks for sharing OP.

This is yet another plot showing what we all suspected/knew: vtcs mani past 6k is DONE son
18psi is offline   Reply With Quote
Old 04-09-2013, 11:23 AM   #27
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 18psi View Post
This thread is really starting to be cool.

Thanks for sharing OP.

This is yet another plot showing what we all suspected/knew: vtcs mani past 6k is DONE son
+1 for "sonning".
hustler is offline   Reply With Quote
Old 04-09-2013, 11:40 AM   #28
Junior Member
Thread Starter

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

I am operating the VICS @ 5,400.

I will be removing the VCTS and doing some light porting (i.e. gasket matching, work behind the throttle body, etc) and retesting. I would love to gain back the lost HP and TQ and keep most/all of the high RPM power.

A question for you guys, do you think that a 2.25" Bosal made, Mazdaspeed brand Spec Miata exhaust, with a Jackson Racing 1.6L high-flow cat is too small to support more than 140HP?
MX5RACER is offline   Reply With Quote
Old 04-09-2013, 11:45 AM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

Just throw the VTCS IM away and dont look back.
Braineack is offline   Reply With Quote
Old 04-09-2013, 12:32 PM   #30
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

BTW the VICS vs VTCS vs Squaretop data from FM vs TSE don't jive very well.
JasonC SBB is offline   Reply With Quote
Old 04-09-2013, 12:35 PM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

I wasn't aware there was data from TSE from testing them: care to share?
18psi is offline   Reply With Quote
Old 04-09-2013, 12:42 PM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

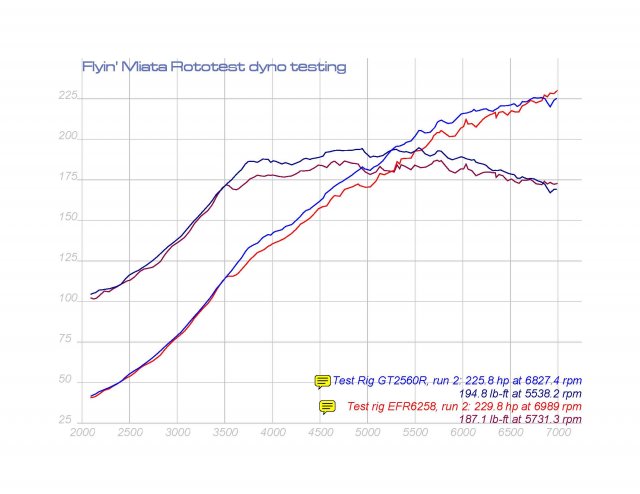

k, good to know.

similar to the FM vs. TSE EFR results I'm going to assume

Attached Thumbnails
Normally aspirated strange power curve issues-efrvs2560_155.jpg
Braineack is offline   Reply With Quote
Old 04-09-2013, 12:48 PM   #33
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

well obviously 2560>EFR especially on a 1.6 in Australia
18psi is offline   Reply With Quote
Old 04-09-2013, 01:22 PM   #34
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

I have a suspicion that the square top doesn't have as much effect on a turbo car as an N/A car.
karter74 is offline   Reply With Quote
Old 04-09-2013, 01:27 PM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Aussie correction values differ from SAE.
hustler is offline   Reply With Quote
Old 04-09-2013, 01:28 PM   #36
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

Quote:
Originally Posted by karter74 View Post
I have a suspicion that the square top doesn't have as much effect on a turbo car as an N/A car.
Oh boy here we go
18psi is offline   Reply With Quote
Old 04-09-2013, 01:29 PM   #37
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by karter74 View Post
I have a suspicion that the square top doesn't have as much effect on a turbo car as an N/A car.
It should be a function of revlimit, not turbo vs NA.
JasonC SBB is offline   Reply With Quote
Old 04-09-2013, 01:30 PM   #38
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Brand new VTCS vs VICS data:
VICS manifold vs VCTS (W/Butterflies) - MX-5 Miata Forum

The difference above 6800 RPM actually matches FM's stock 99 vs stock 01 dyno plot
JasonC SBB is offline   Reply With Quote
Old 04-09-2013, 01:33 PM   #39
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Leafy View Post
No way, we gained significant high end power and lost a tad in the mid range when we replaced the vics with a flat top on the csp car. I dont have dyno numbers to back it up I just have the boat load of VE I needed to add up top and the bit I had to take away in the mid range to back it up.

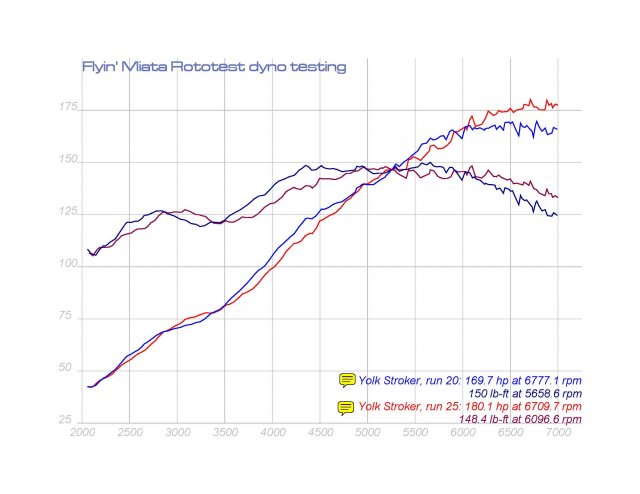

MX-5 Miata Forum - View Single Post - FM High Compression VVT Stroker Hydra

Attached Thumbnails
Normally aspirated strange power curve issues-yolk%2520vtcs%2520vs%2520flat%2520top.jpg
JasonC SBB is offline   Reply With Quote
Old 04-09-2013, 01:38 PM   #40
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

Quote:
Originally Posted by JasonC SBB View Post
Brand new VTCS vs VICS data:
VICS manifold vs VCTS (W/Butterflies) - MX-5 Miata Forum

The difference above 6800 RPM actually matches FM's stock 99 vs stock 01 dyno plot
He just posted that in this very thread today lol
18psi is offline   Reply With Quote
